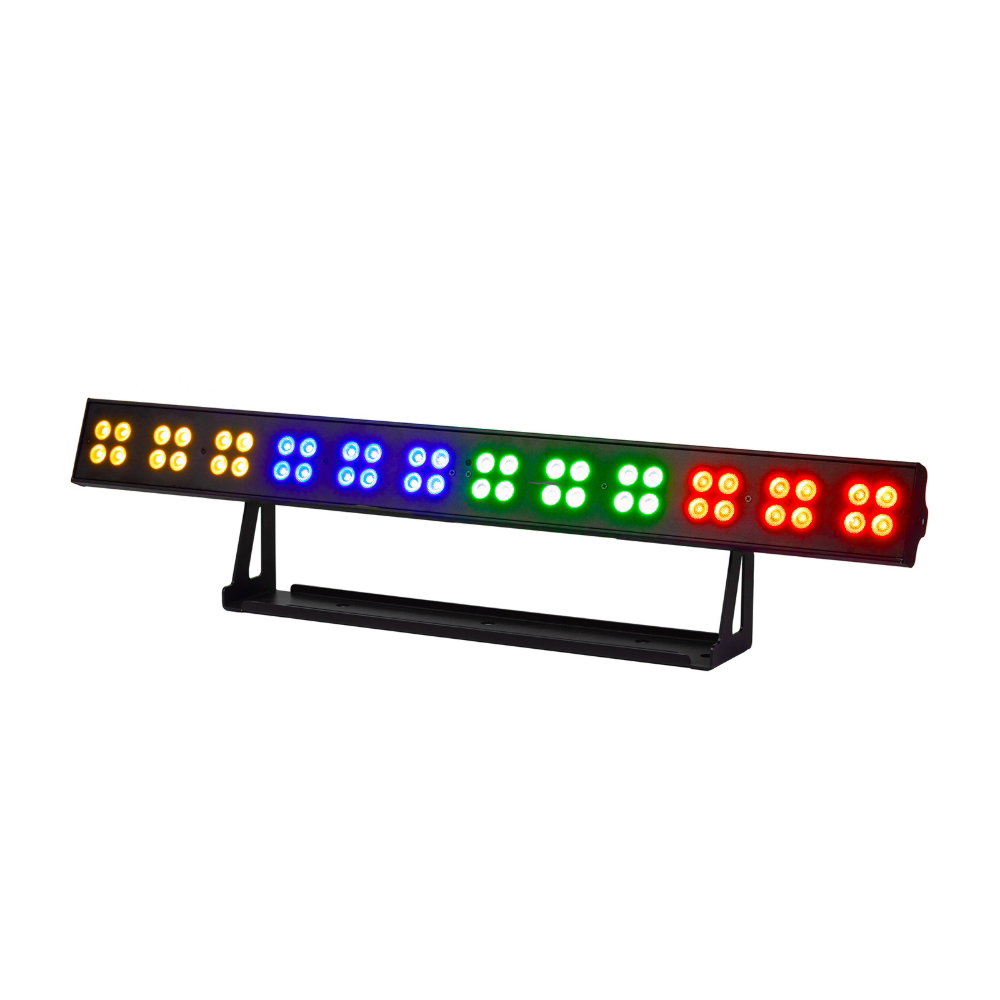

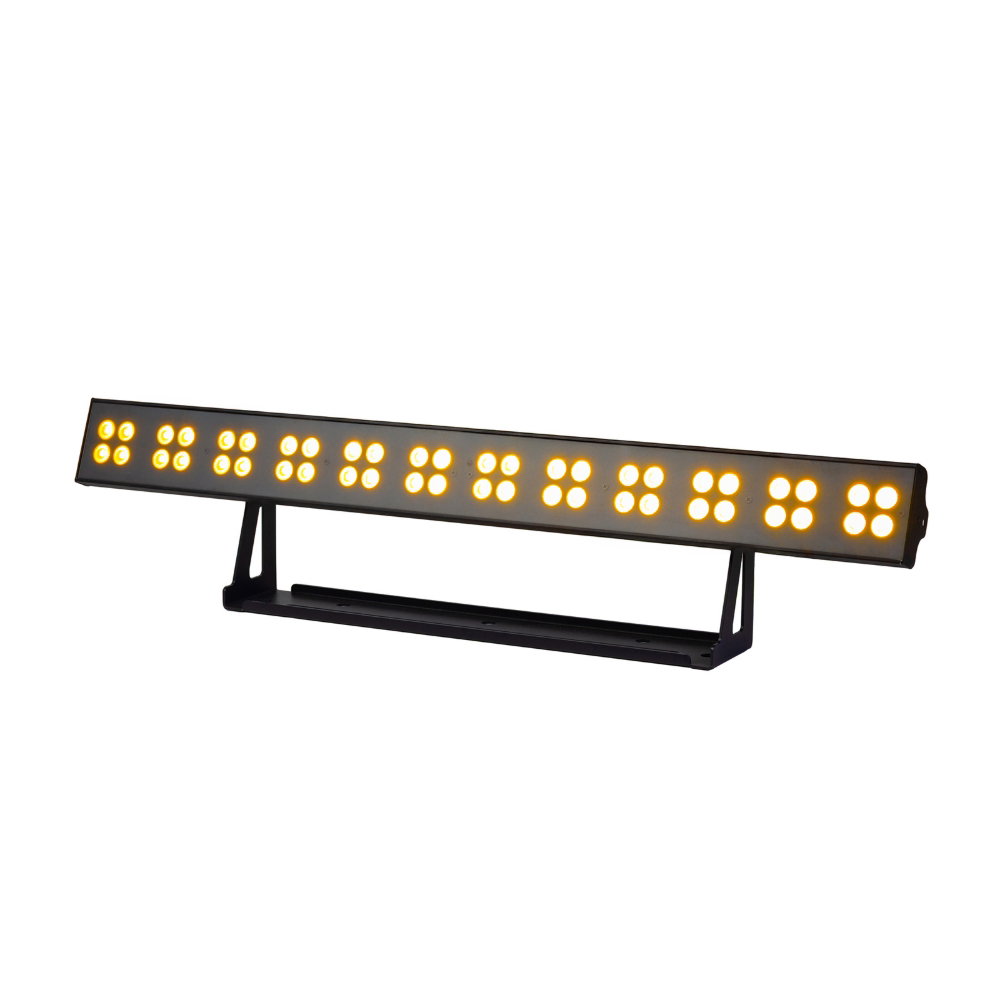

Equinox Quad Blox XL 48 x 4W RGBWW 4-Zone LED Wash Light

Product code: 186462

£240.00 inc VAT
£200.00 ex VAT

SKU: EQLED464

191 in stock

191 available online
VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
1 Year Manufacturer Warranty Included
Optional Add-Ons

About this Product

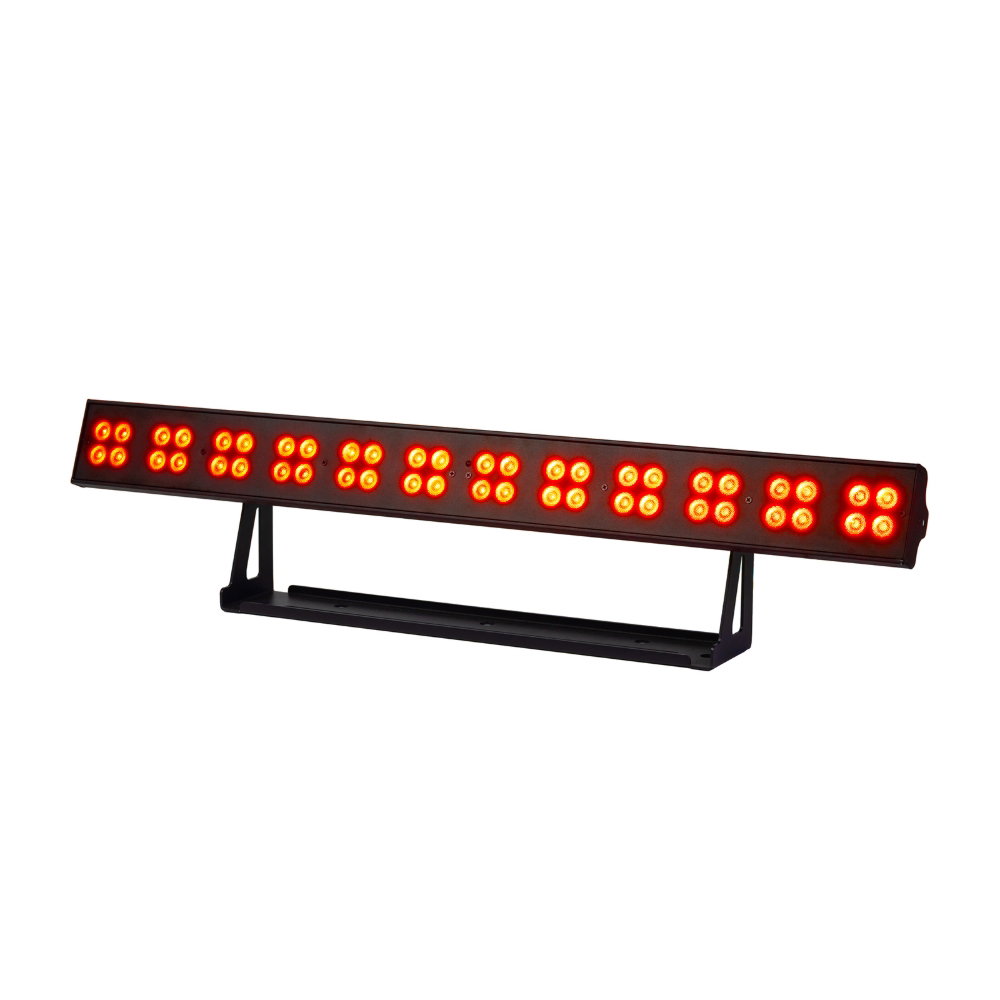

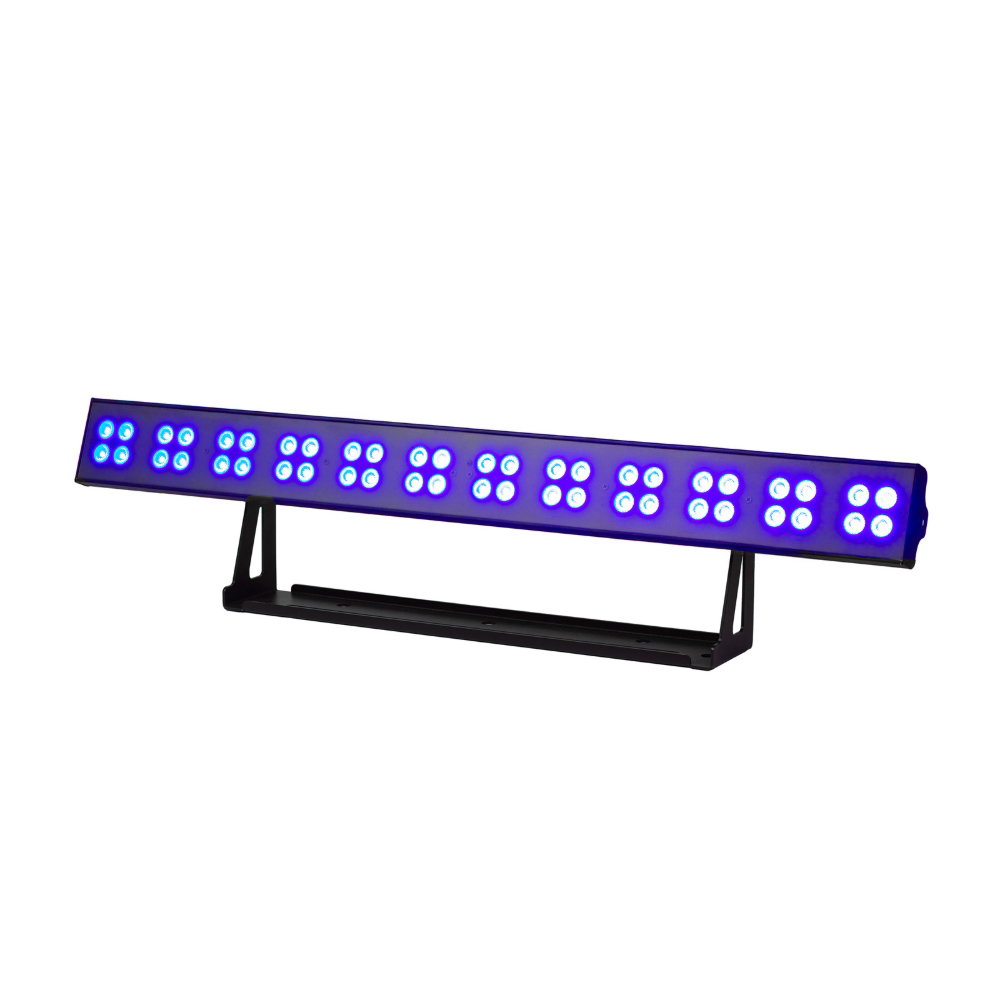

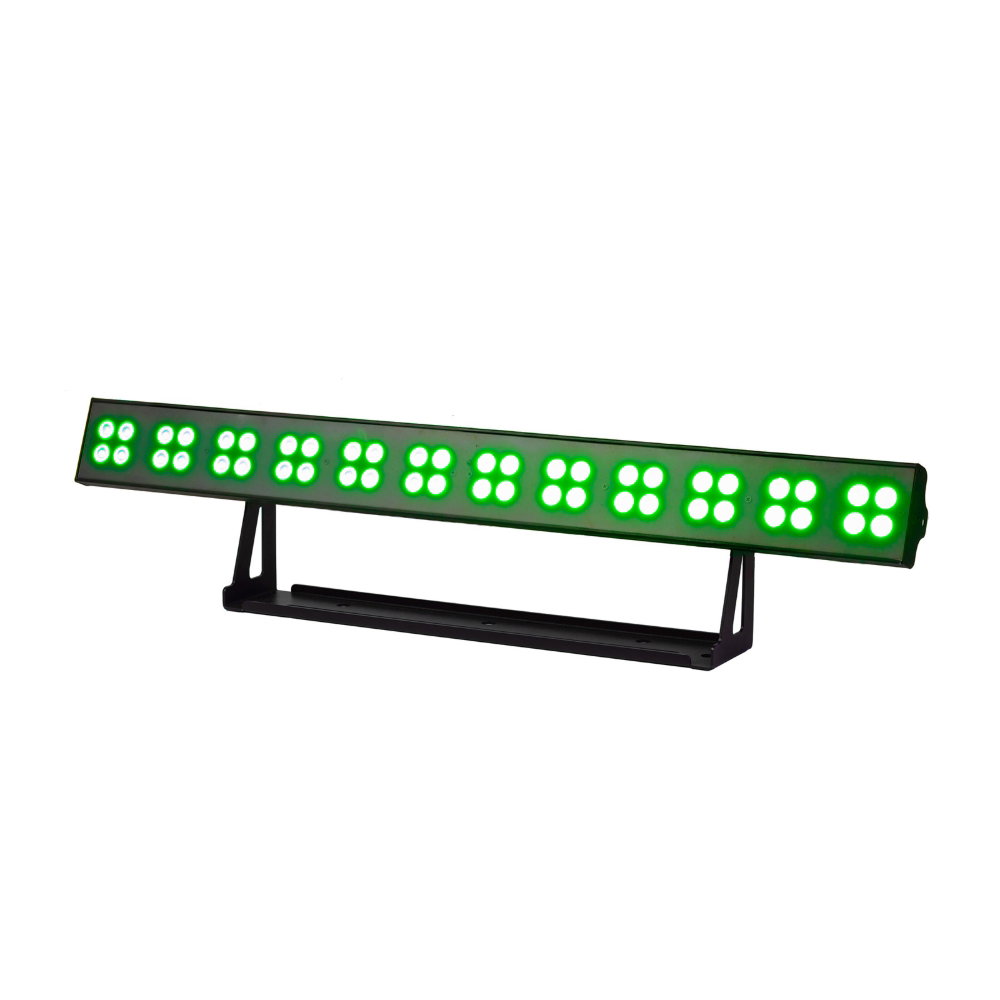

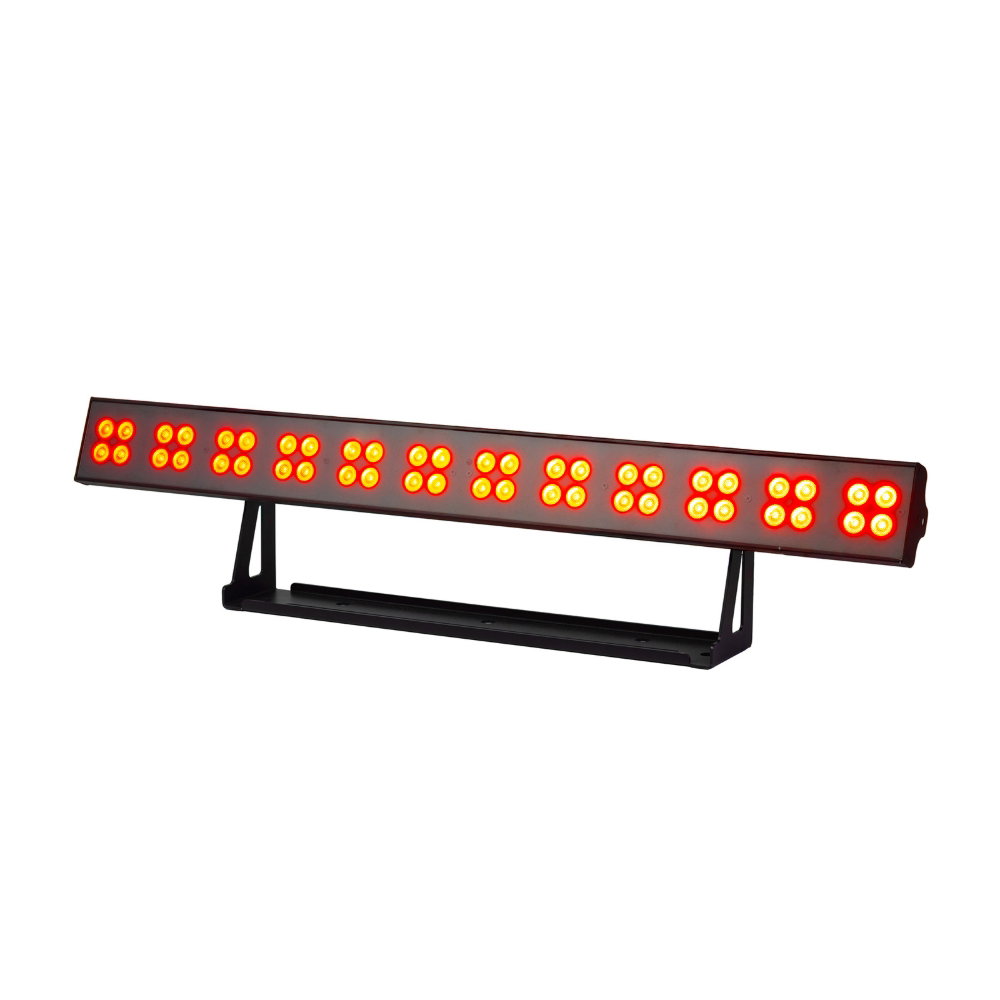

The Quad Blox XL puts 48 x 4W RGBWW LEDs in an 802mm body, split into four segments that can be controlled individually over DMX. Beam angle is 20°, or 30° with the supplied frost filter fitted. It runs standalone from built-in auto and sound shows or the IR remote, and has Power Twist and 3-pin XLR in and out for linking.

48 x 4W
RGBWW LEDs
20° / 30°
Beam, bare / frosted
164W
Power consumption
4.87kg
Weight
Wireless DMX needs a transceiverThe unit has a wireless DMX USB port, but no transceiver is in the box. It pairs with the W-DMX compatible USB transceiver (LEDJ336), sold separately.

Features

48 x 4W quad-colour LEDs (RGBWW)
20° beam, 30° with the included frost filter

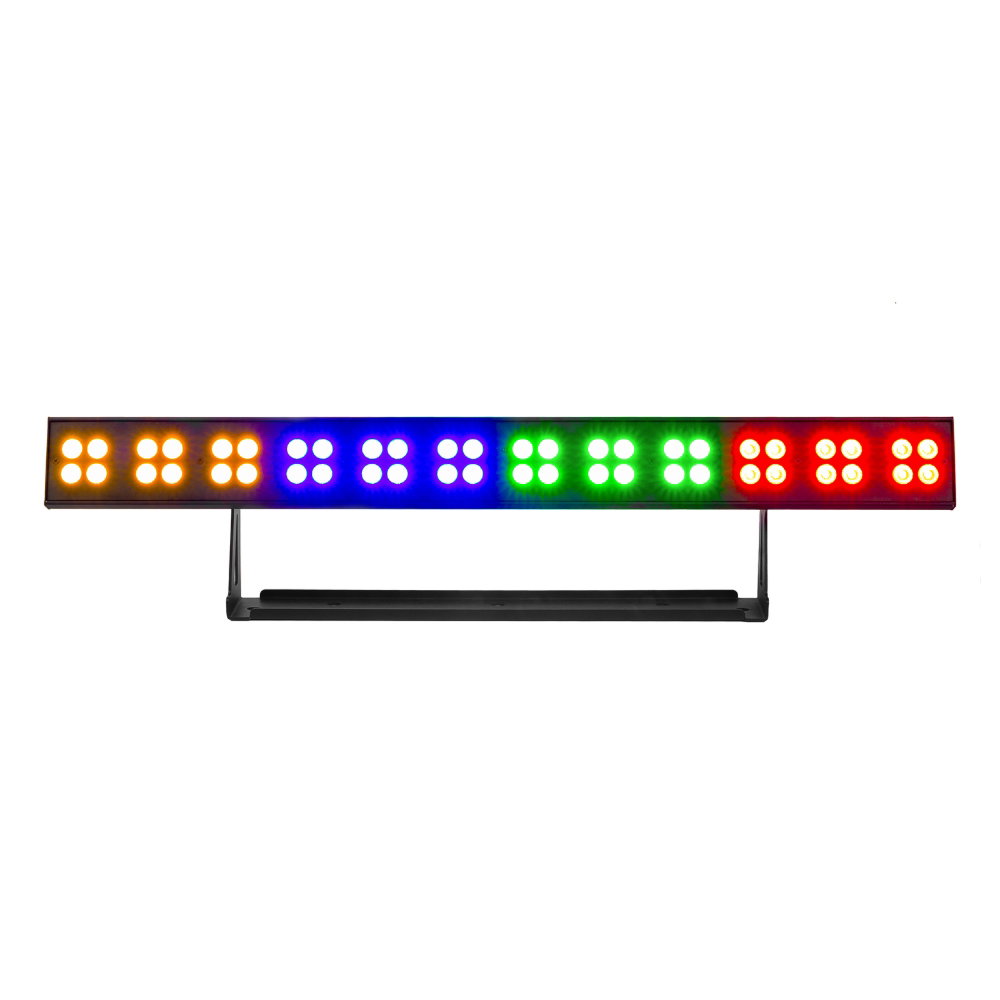

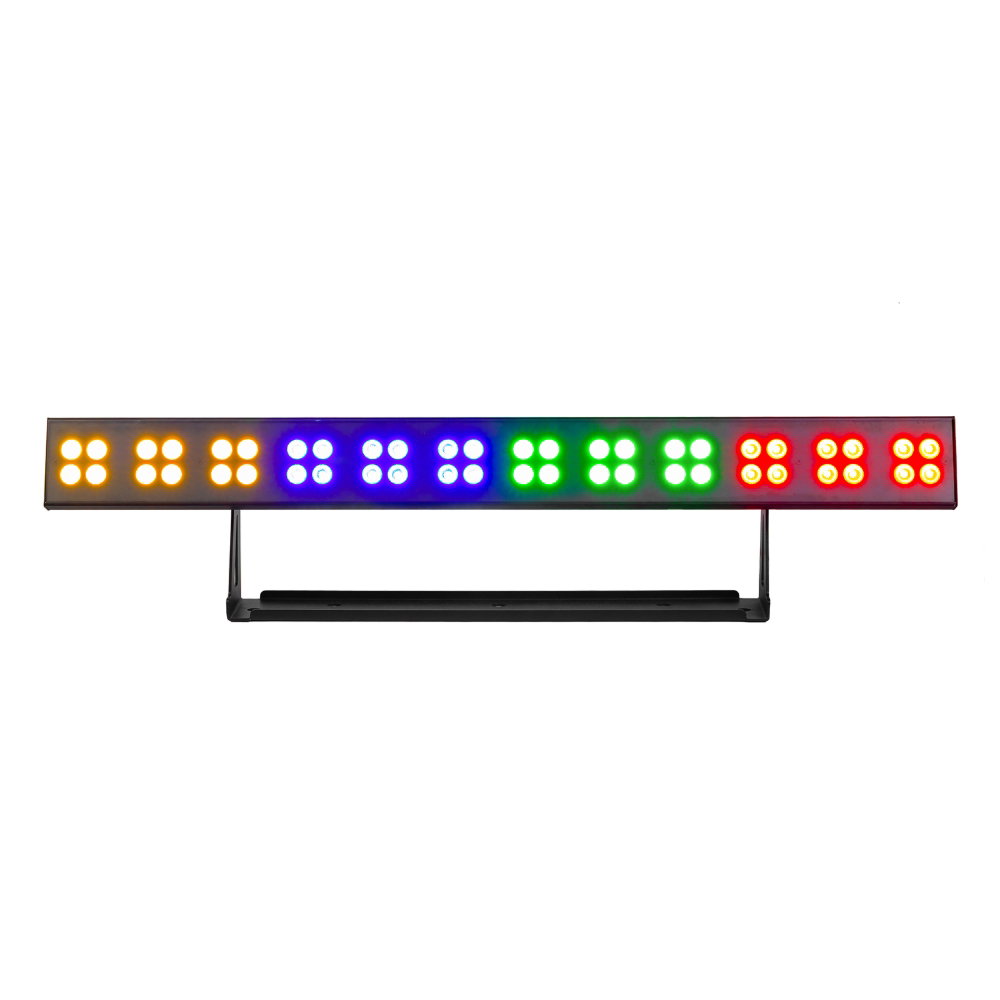

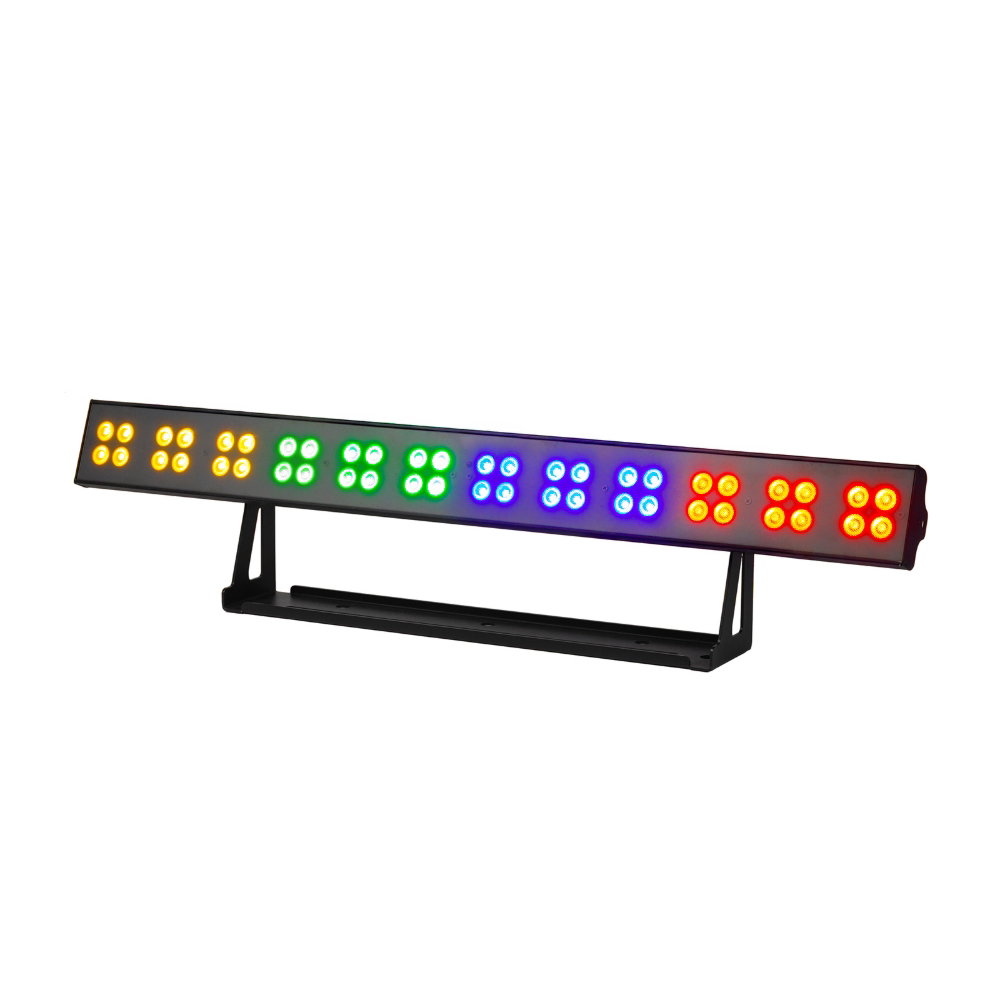

4-segment pixel zone mapping
4, 6, 9, 16, 18 or 20 DMX channel modes
Auto, static colour, sound active, manual and primary/secondary modes
0-100% dimming, variable strobe and 1200Hz refresh rate
Power Twist and 3-pin XLR in/out; power link up to 16 units at 240V

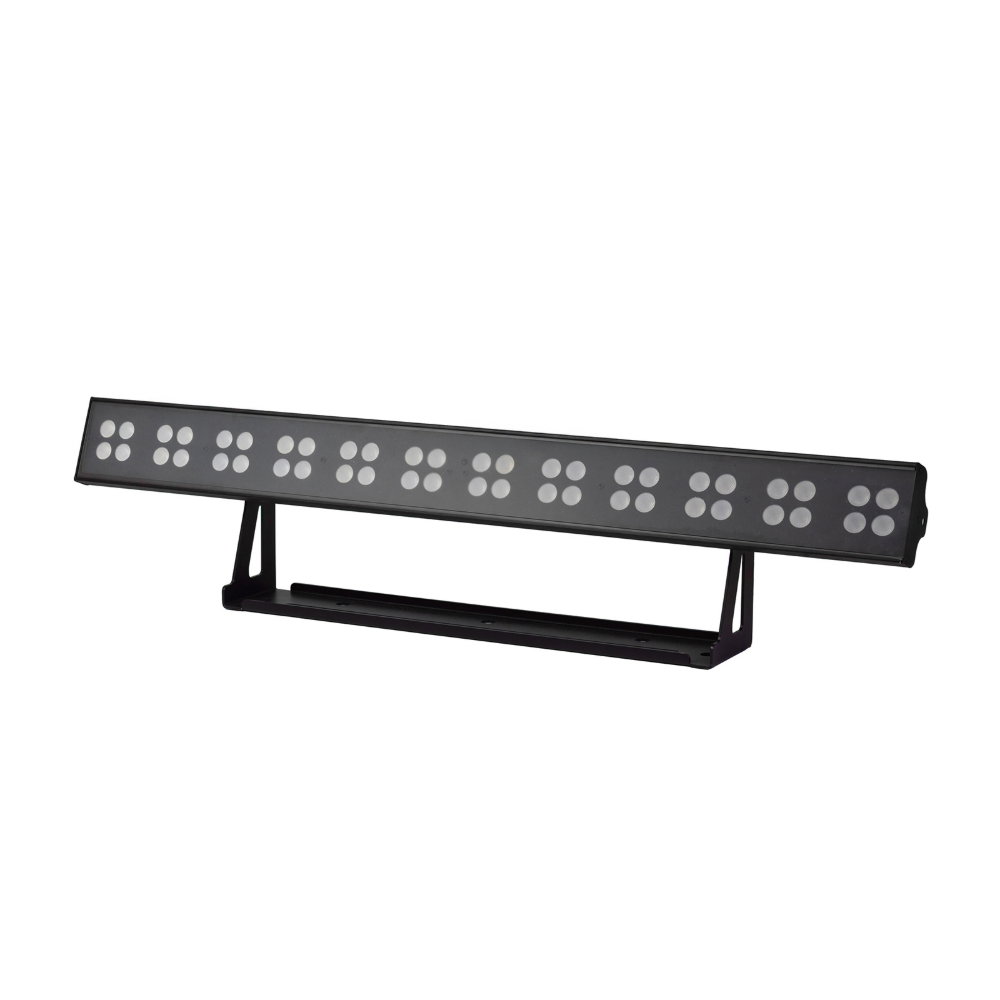

Double bracket for truss mounting or floor standing; IR remote included

Specifications

Equinox Quad Blox XL 48 x 4W RGBWW 4-Zone LED Wash Light specifications
Brand Equinox
Manufacturer part number EQLED464
LEDs 48 x 4W RGBWW
Beam angle 20° (30° with frost filter)

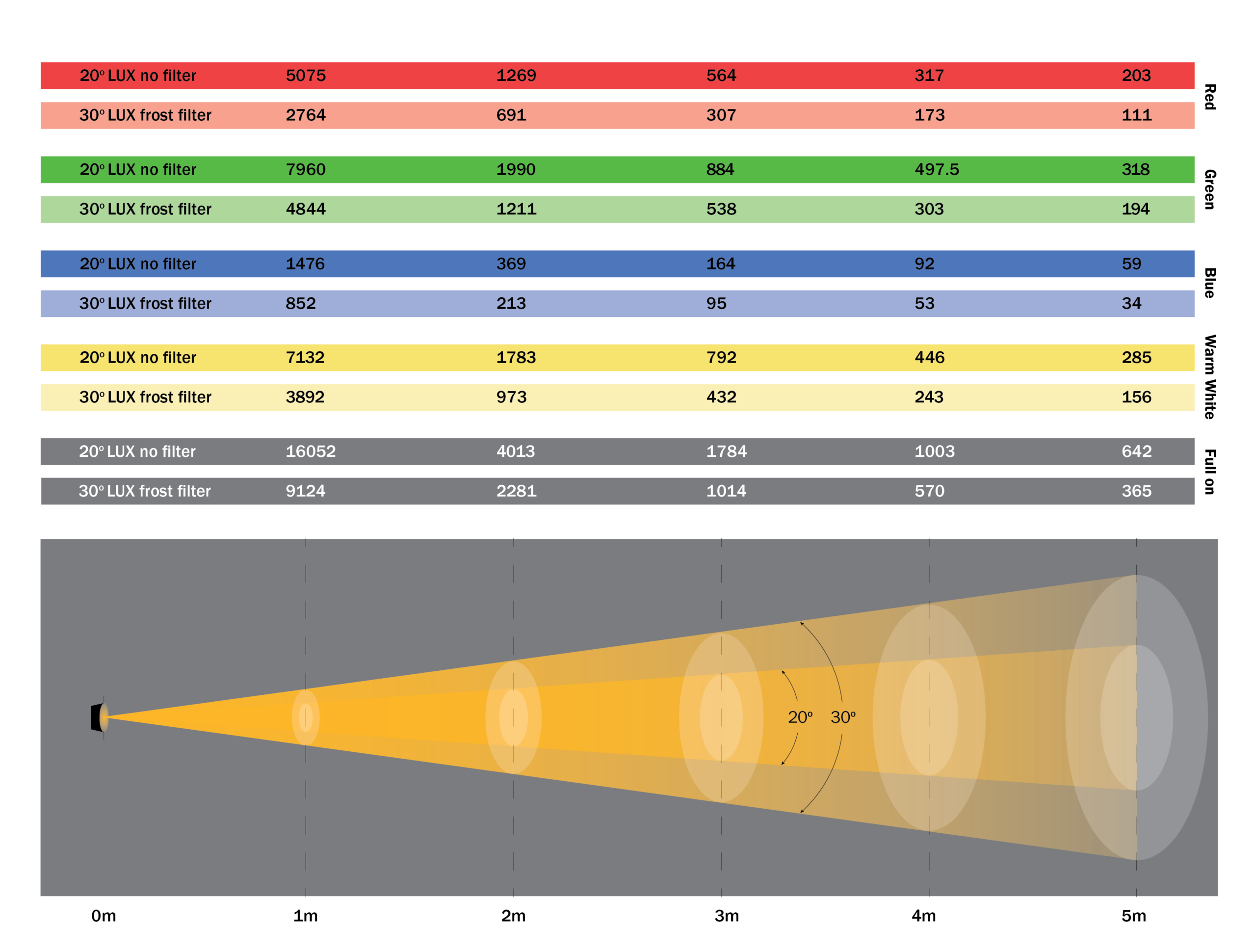

Output 16,052 lux at 1m, full on, 20° without filter
Pixel zones 4
DMX channels 4 / 6 / 9 / 16 / 18 / 20
Control DMX, wireless DMX USB port, IR remote, auto, sound active, primary/secondary
Connections Power Twist in/out, 3-pin XLR DMX in/out, USB-C (software updates only)
Power consumption 164W
Power supply 100-240V, 50/60Hz, T3.15A fuse
Dimensions 168 x 802 x 100mm
Weight 4.87kg
In the box Fixture, diffuser, double bracket, IR remote, power cable

Full features

  • 48 x 4W quad-colour LEDs (RGBWW)
  • Beam angle: 20°
  • 30° frost filter included
  • Pixel zone mapping (4 segment)
  • Refresh rate: 1200Hz
  • DMX channels: 4/6/9/16/18 or 20 selectable
  • W DMX USB compatibility for wireless primary/secondary or DMX control
  • Auto, static colour, sound active, manual and primary/secondary modes
  • 0 - 100% dimming
  • Variable strobe
  • Bracket allows for multiple rigging or floor standing applications
  • 4 button menu with LED display
  • PowerTwist input/output
  • 3-Pin XLR input/output
  • Convection cooled
  • Supplied with IR remote

Stock code

EQLED464

Barcode / EAN

5056742213593

Commodity Code

9405499090

Country Of Origin

China
