Optimal Audio ZonePad VL1 Volume Wall Controller for SmartAmp White

SKU: VL1-UK-W
Optimal Audio ZonePad VL1 Volume Wall Controller for SmartAmp White
Click to enlarge

    £32.00 inc VAT
    £26.67 ex VAT

    Available on back-order

    On backorder, expected 29 Sep 2026
    Delivered by Thu 1st OctOrder by 3pm
    Click & Collect Wed 30th Sep ›Collect from our warehouse in Wembley, London
    VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
    3 Year Manufacturer Warranty Included
    About Stage Supply
    Chat to us on WhatsApp

    About this Product

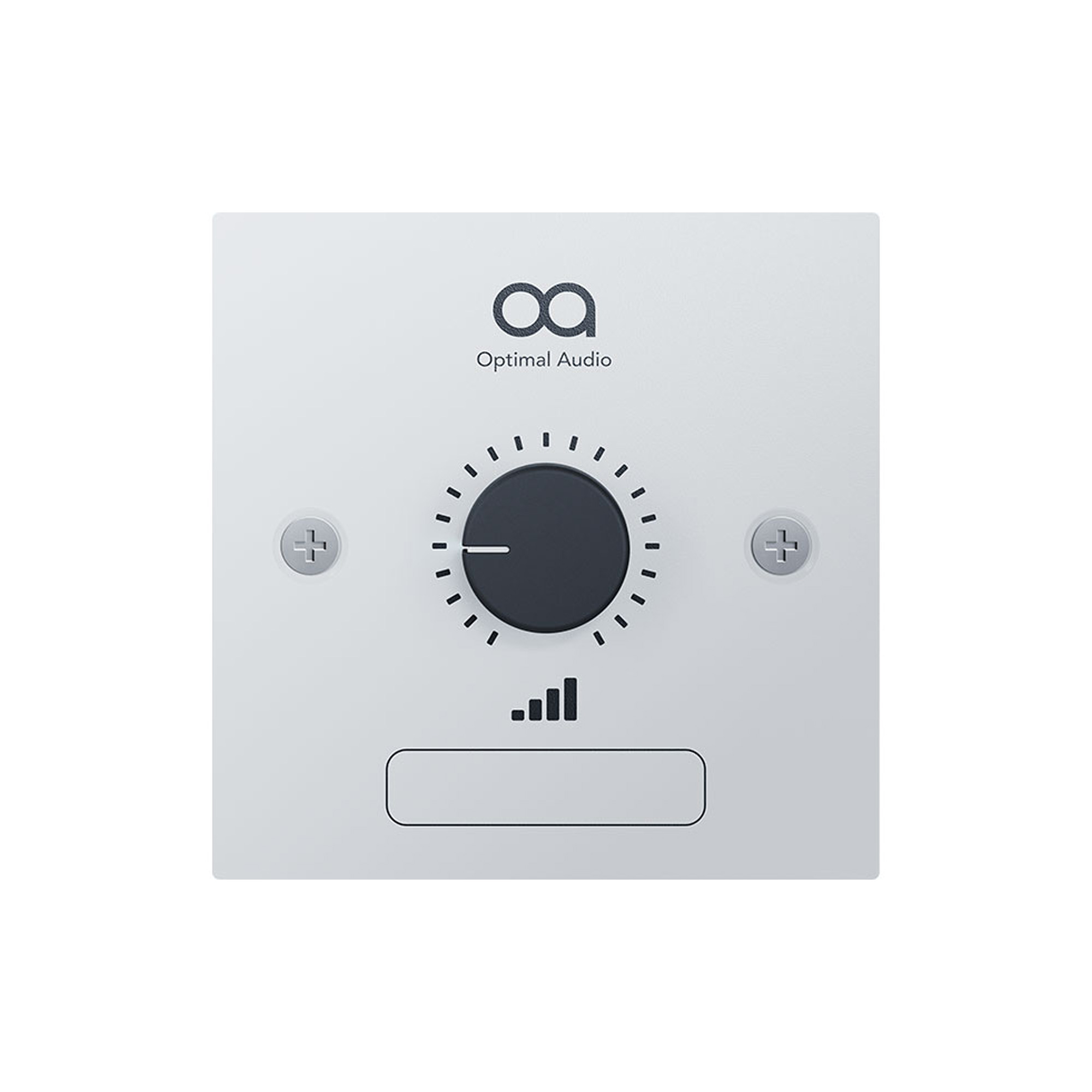

    The Optimal Audio ZonePad VL1 is a passive wall-mounted volume controller for the SmartAmp 10, 20 and 30. It wires straight into the SmartAmp GPIO port, needs no power supply of its own, and gives in-room level control from a single rotary dial.

    Two-zone controlPair two VL1s on a SmartAmp 20 or SmartAmp 30 for independent level control on each channel pair, without a dedicated zone processor. Shielded cable is required.
    Features
    Single rotary dial for simple level control
    Connects directly to the SmartAmp GPIO port
    No external power supply required
    One VL1 for overall output, or two for basic two-zone control
    Painted steel faceplate with a secured circuit board
    Screen-printed zone label area
    Fits UK and EU single-gang back boxes
    White finish
    Specifications
    Model ZonePad VL1 (UK/EU)
    SKU VL1-UK-W
    Type Passive analogue volume/level wall controller
    Control Single rotary dial
    Connection 3-pin terminal block
    Power None required (3.3V from SmartAmp GPIO)
    Cable Shielded, required for EMC compliance
    Compatible With SmartAmp 10, SmartAmp 20, SmartAmp 30
    Back Box UK/EU single-gang
    Fixing Centres 60.6mm
    Dimensions (W x H x D) 85.8 x 85.8 x 21.6mm
    Material Painted steel, silk-screened graphics
    Weight 0.14kg
    Colour White
