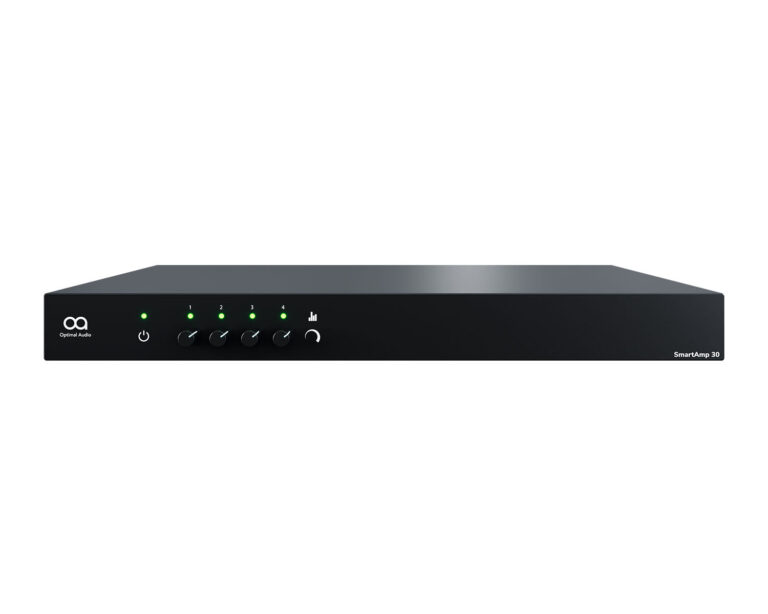

The Optimal Audio SmartAmp 30 is the most powerful DSP amplifier in the SmartAmp range, delivering 250W per channel across four independent channels in a full-width 1U chassis. Supporting both low-impedance and 70/100V line outputs, it is built for larger commercial installations — multi-zone venues, hotel complexes, retail chains, and event spaces where each channel needs its own dedicated power budget. Built-in DSP with Optimal Audio speaker presets handles all processing internally.
Channels
4
Independent channels
Power Per Channel
250W
Dedicated per channel
Total Power
1,000W
4 x 250W
Form Factor
Full-width 1U
Rack mount
Output Types
Low-Z + 70/100V
Dual-mode
Ecosystem Integration
The SmartAmp 30 integrates with Optimal Audio Zone controllers, ZonePad wall panels, and the WebApp for complete system configuration and control. Built-in speaker presets for all Optimal Audio loudspeakers eliminate the need for external DSP processing.
Features
✓
4 channels at 250W each — no shared power budget between channels
4 channels at 250W each — no shared power budget between channels
✓
Built-in DSP with Optimal Audio speaker presets for plug-and-play configuration
Built-in DSP with Optimal Audio speaker presets for plug-and-play configuration
✓
Supports both low-impedance and 70V/100V distributed line outputs
Supports both low-impedance and 70V/100V distributed line outputs
✓
Full-width 1U chassis for maximum power density in rack installations
Full-width 1U chassis for maximum power density in rack installations
✓
PFC power supply for efficient mains power usage
PFC power supply for efficient mains power usage
✓
EuP2103 compliant for low standby power consumption
EuP2103 compliant for low standby power consumption
✓
Works with Optimal Audio Zone controllers, ZonePad, and WebApp
Works with Optimal Audio Zone controllers, ZonePad, and WebApp
✓
UK power supply included (SAMP30UK variant)
UK power supply included (SAMP30UK variant)
Specifications
| Type | DSP amplifier |
| Channels | 4 |
| Power Per Channel | 250W (dedicated) |
| Total Power | 1,000W |
| Output Modes | Low impedance, 70V, 100V |
| DSP | Built-in with Optimal Audio speaker presets |
| Form Factor | Full-width 1U rack mount |
| Power Supply | PFC, EuP2103 compliant |
| Mains Supply | UK (included) |
| SKU | SAMP30UK |
