Does this microphone need phantom power?

Yes. Condenser microphones need 48V phantom power to work, supplied from the desk, a preamp or an active DI. If the channel has phantom switched off you will get almost no signal. More on phantom power.

What pickup pattern is this, and when does it matter?

Cardioid. Front pickup with rejection at the rear, the usual pattern for live vocals and close instrument miking where spill from the rest of the stage needs controlling. How to stop feedback.

Shure MX395B/C Microflex Cardioid Button Boundary Microphone

Product code: 6215

£222.00 inc VAT
£185.00 ex VAT

SKU: MX395B/C

Ordered from supplier, allow 1–3 weeks

About this Product

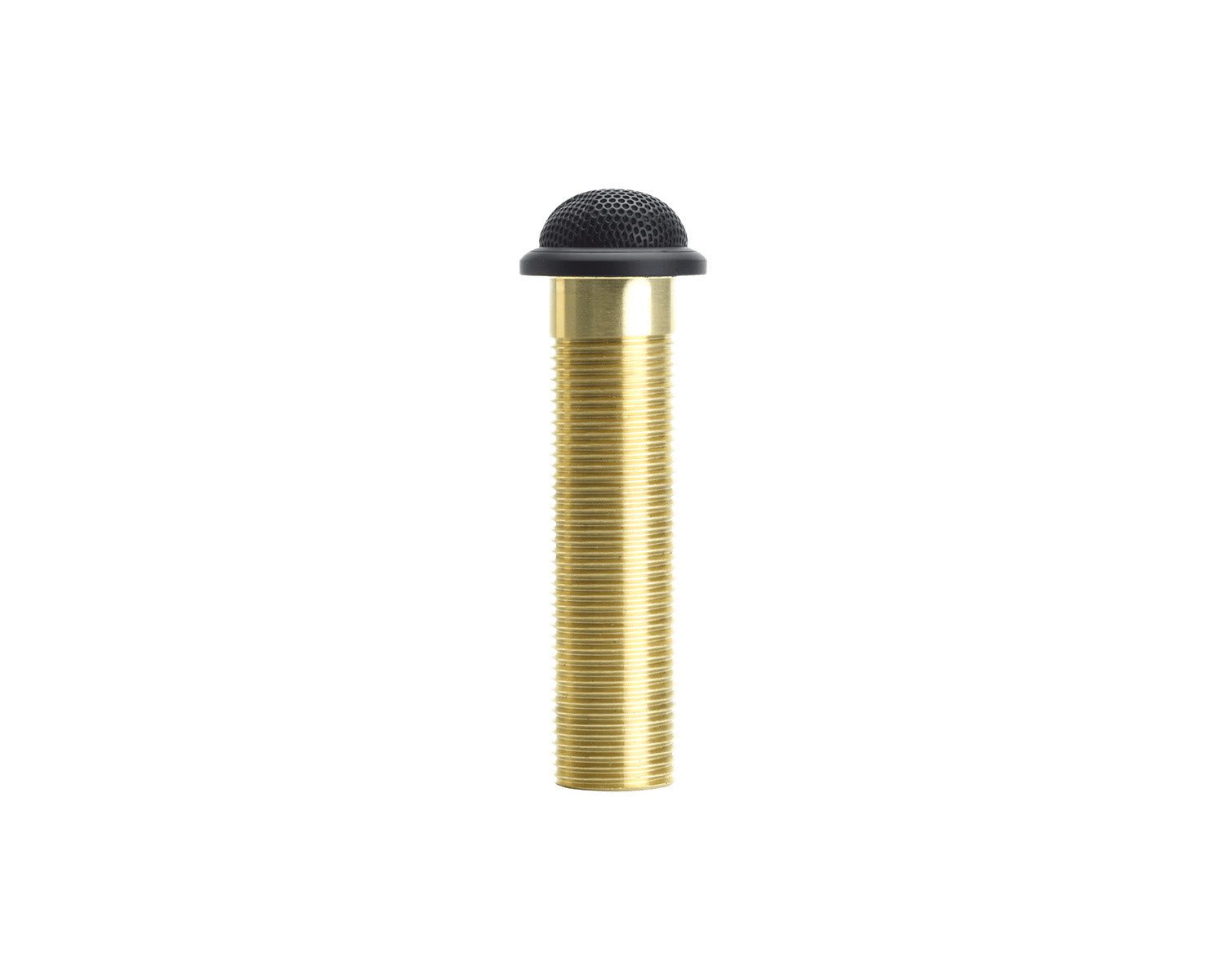

The Shure MX395B/C is a 25mm ‘button’ boundary condenser in black with a cardioid capsule, the most discreet mic in the Microflex range, sitting barely 2cm proud of the table it’s set into. CommShield RF filtering keeps phones out of the audio.

Features

25mm low-profile button boundary design

Clean audio-only wiring (3-pin)

CommShield RF filtering

Switchable 150Hz low-cut filter

Black, white and aluminium finishes across the range

Mounts through the tabletop with a wing nut

NoteLED variants need true 48V (P48) phantom and their LED is driven by external logic, plan the automatic-mixer wiring accordingly.

Specifications

Shure MX395B/C Microflex Cardioid Button Boundary Microphone specifications
Type	Low-profile boundary condenser
SKU	MX395B/C
Finish	Black
Polar pattern	Cardioid
LED	None
Frequency response	50Hz-17kHz
Sensitivity	-35 dBV/Pa (18mV)
Max SPL	121dB
Self noise	28dB SPL
Connector	3-pin XLR-type
Power	11-52V phantom, 2.0mA
Weight	136g

Full features

Cardioid polar pattern
Only 2.5 cm (1 in) in diameter, extending just 2 cm above the mounting surface
Wide dynamic range and smooth frequency response
Low profile, aesthetic design
RF filtering with CommShield technology
Finish: Black

Full specifications

Transducer Type: Condenser
Polar Pattern: Cardioid
Frequency Range From (Hz): 50
Frequency Range To (kHz): 17
Sensitivity dBV/Pa: Cardioid: -35.00
Sensitivity mvpa: Cardioid: 18.00
Equivalent Selfnoise: Cardioid: 28 dB(A)
Maximum Sound Pressure: Cardioid: 121 dB
Impedance (Ω): Rated: 150 / Actual: 180
Switchable Low Cut: yes
Output Connectors: 3 Pin XLR
Attenuation PAD: no
Interchangeable Capsule: no (different polar patterns offered as part of the mic, not via an interchangeable capsule)
Requires Phantom Power (VDC): 3-pin version: 11-52 VDC 5-pin version: 48-52 VDC
Weight (g) / (lbs): 149 g / 0.328 lbs
Height (mm) / (in): 101 mm / 3.976 in
Width (mm) / (in): 32 mm / 1.26 in
Depth (mm) / (in): 32 mm / 1.26 in

Product Reviews

No reviews yet — be the first to review this product.

Bought this? It takes a minute.

Manuals & Downloads

Spec SheetPDF
