Is this rated for outdoor use?

Yes. IP65 is dust tight and protected against water jets from any direction, the usual rating for outdoor stage and festival use.

How is this controlled?

Over DMX. Address it from the fixture menu and patch it on any DMX console or interface.

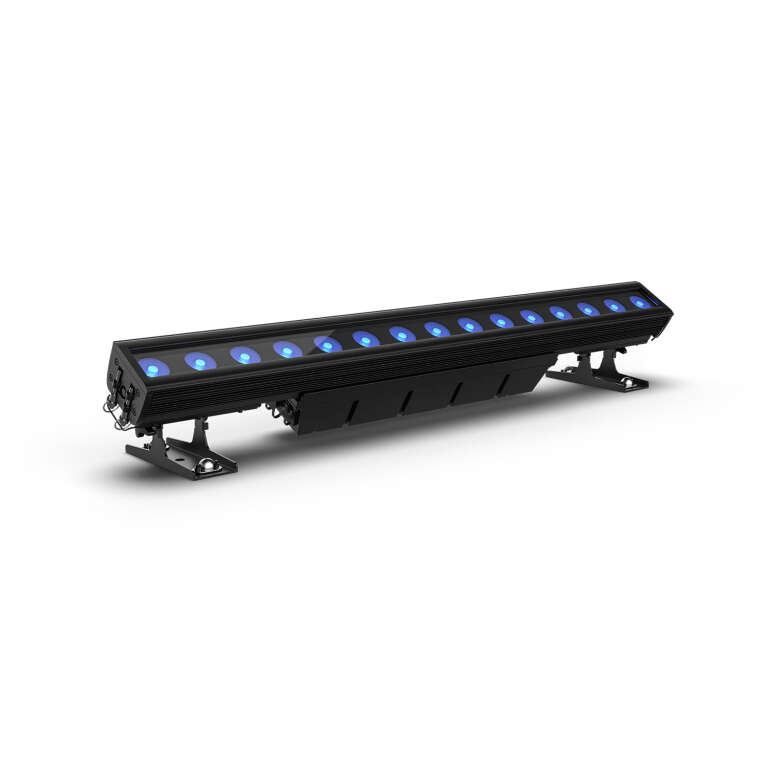

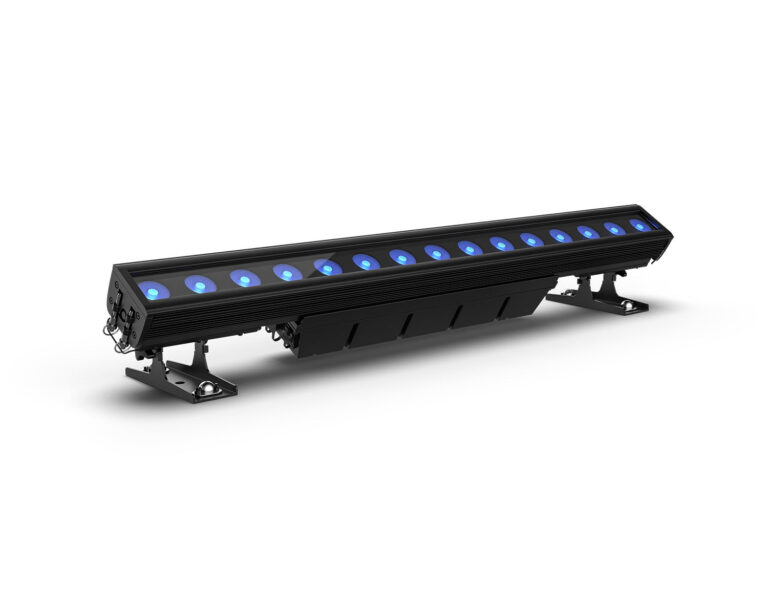

Chauvet Professional COLORado Batten Q15 LED Wash Batten

Product code: 35731

£1,500.00 inc VAT
£1,250.00 ex VAT

SKU: COLORADOBATTENQ15

9 available online

More available from supplier in 1–3 weeks

Optional Add-Ons

Narrow Half Coupler Silver

£6.00 inc VAT
£5.00 ex VAT

Add to basket

Narrow Half Coupler Black

£6.00 inc VAT
£5.00 ex VAT

Add to basket

Half Coupler 750kg

£14.00 inc VAT
£11.67 ex VAT

Add to basket

Coupler with Eye Nut

£14.00 inc VAT
£11.67 ex VAT

Add to basket

Equinox 30cm PVC Coated Safety Wire 50kg

30cm Safety Wire 50kg

£3.00 inc VAT
£2.50 ex VAT

Add to basket

Equinox 75cm PVC Coated Safety Wire 50kg

75cm Safety Wire 50kg

£3.00 inc VAT
£2.50 ex VAT

Add to basket

About this Product

The Chauvet Professional COLORado Batten Q15 is an IP65-rated quad-colour RGBW LED batten with 15 individually controllable LEDs, delivering pixel-mappable looks free of visible colour separation. A tight native 16-degree beam angle provides exceptional throw, while the included wall wash filter widens the spread to 16 by 43 degrees for smooth, even coverage. Multiple mounting options, adjustable trunnions, omega bracket, end-cap, and back plate, make it adaptable to truss, floor, and icicle configurations.

LEDs · Individually controllable

RGBW

LED Type · Quad-colour

16°

Beam Angle · 16° x 43° with filter

IP65

IP Rating · All-weather rated

Features

15 individually controllable RGBW LEDs for pixel mapping

No visible colour separation, clean, homogeneous output

Tight 16° native beam angle for long-throw applications

Included wall wash filter creates 16° x 43° spread

IP65 rated for outdoor and all-weather use

Selectable smooth dimming curves and CT presets

Adjustable trunnions with quarter-turn omega bracket adaptor

End-cap and back plate mounting for icicles and row alignment

Stowable glare shield included

Specifications

Chauvet Professional COLORado Batten Q15 LED Wash Batten specifications
LED Count	15
LED Type	RGBW (quad-colour)
Beam Angle	16° (16° x 43° with wall wash filter)
IP Rating	IP65
SKU	COLORADOBATTENQ15

Full features

Quad-Colour RGBW LED Batten for touring, rental, and production, indoors or out
All environment operation with IP rated power and DMX connections
Unique end-cap and back plate mounting options
Colour temperature presets, from 1800 K to 8000 K
Selectable, smooth dimming curves for programming versatility
Built for touring, live event, television, and theatrical productions
Large, easy to navigate display with password protection

Full specifications

OPTICAL

Light Source: 15LEDs (quad-colour RGBW) 20 W, (800 mA), 50,000 hours life expectancy.
Colour Temperature (range): 1800 to 8000 K
Installed Optics: 16°
Beam Angle (Horizontal): 15.5°
Beam Angle w/Filter (Horizontal): 41.9°
Beam Angle (Vertical): 14.7°
Beam Angle w/Filter (Vertical): 15.3°
Field Angle (Horizontal): 28.6°
Field Angle w/Filter (Horizontal): 77.9°
Field Angle (Vertical): 28.1°
Field Angle w/Filter (Vertical): 32.1°
Lumens: 6,324
Lumens w/Filter: 5,547
Illuminance (total): 2399 lux @ 5 m
Illuminance w/Filter (total): 653 lux @ 5 m
Selectable PWM: 1,200 Hz, 2,000, 2,400 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

DYNAMIC EFFECTS

Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0 to 25 Hz
Standalone Colour Mixing: Yes
Colour Temperature Presets: Yes
Dim Modes: 5
Built-in Automated Programs: Yes
Customisable Programs: Yes
Recall Custom Programs: Yes

CONSTRUCTION / PHYSICAL

Dimensions: 41.22 x 7.28 x 6.55 in (1047 x 185 x 166.4 mm)
Weight: 28.8 lb (13 kg)
Exterior Colour: Black
Housing Material: Aluminium alloy

CONNECTIONS

Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Power Output: Seetronic Powerkon IP65
Data Connectors: 5-pin IP65 XLR
Cable Length (power): 5 ft (1.5 m)

CONTROL

Control Protocol: DMX, RDM
DMX Channels: 1 Cell: 4, 6, 8, 10
15 Cell: 45, 60, 64, 66, 76
Modes/Personalities: 9 personalities

ELECTRICAL

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 6 units @ 100 V; 8 units @ 120 V; 14 units @ 208 V; 15 units @ 230 V; 16 units @ 240 V
Power and Current: 194 W, 1.606 A @ 120 V, 60 Hz
Power and Current: 197 W, 0.951 A @ 208 V, 60 Hz
Power and Current: 197 W, 0.860 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

CE, MET
IP Rating: IP65, temporary outdoor/wet use
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

Compare the Range

Chauvet Professional COLORado Batten Q15 LED Wash Batten

£1,500.00 inc VAT
£1,250.00 ex VAT

15 x 20W RGBW
IP65 Outdoor

Viewing Now

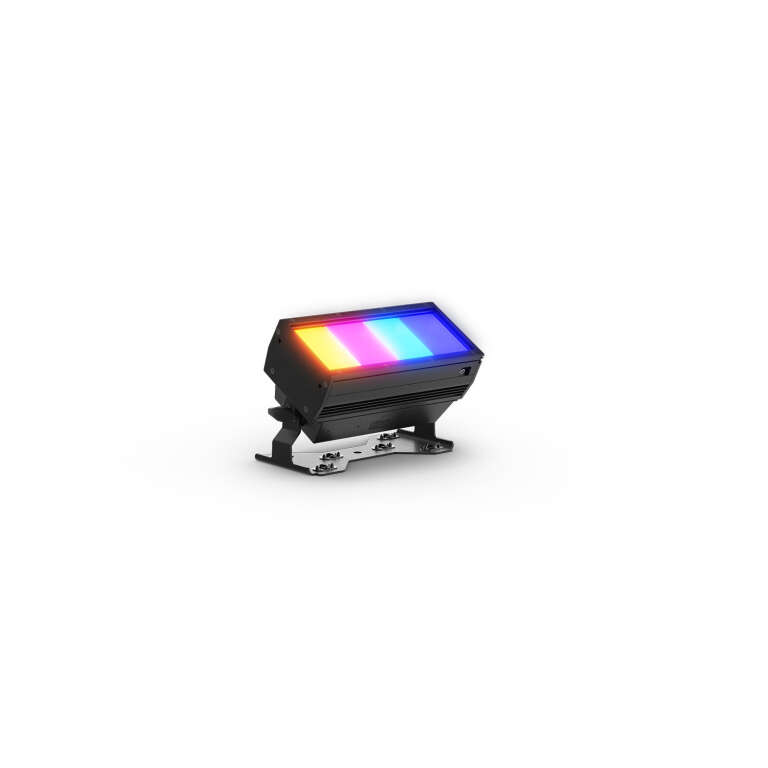

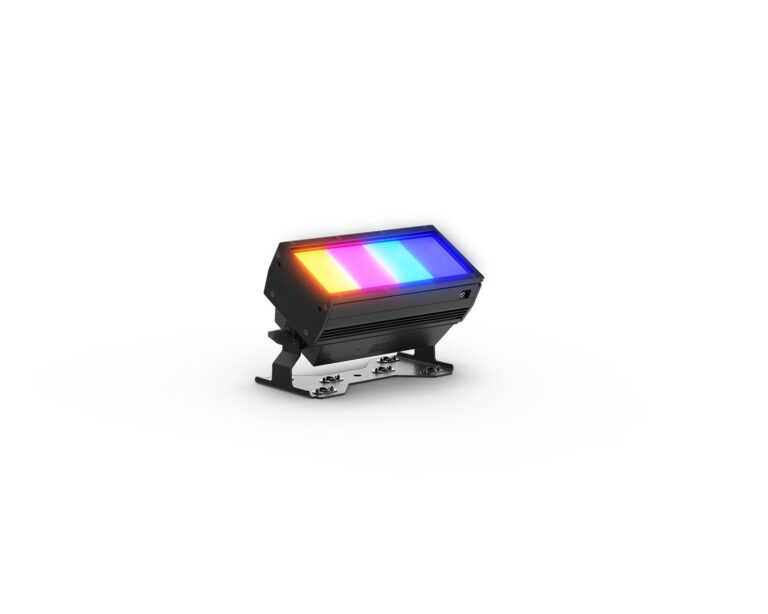

Chauvet Professional COLORado Solo Bar 1 LED Batten

£1,250.00 inc VAT
£1,041.67 ex VAT

4-Cell RGBwWL
IP65 Outdoor

View →

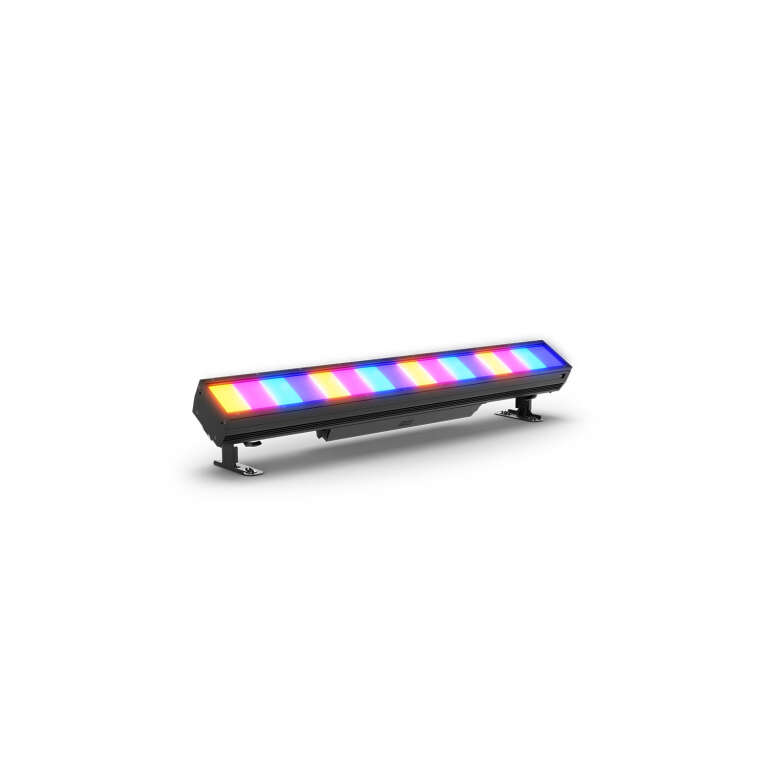

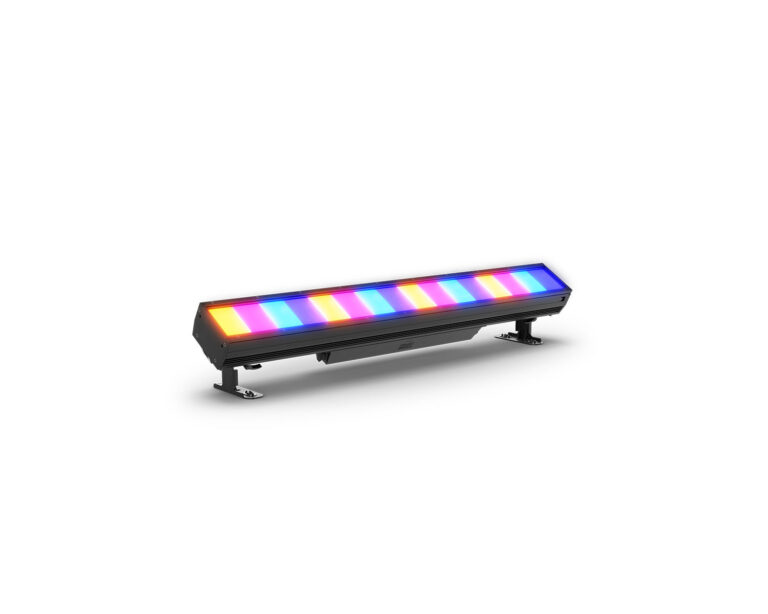

Chauvet Professional COLORado Solo Bar 4 LED Batten

£2,650.00 inc VAT
£2,208.33 ex VAT

16-Cell RGBwWL
IP65 Outdoor

View →

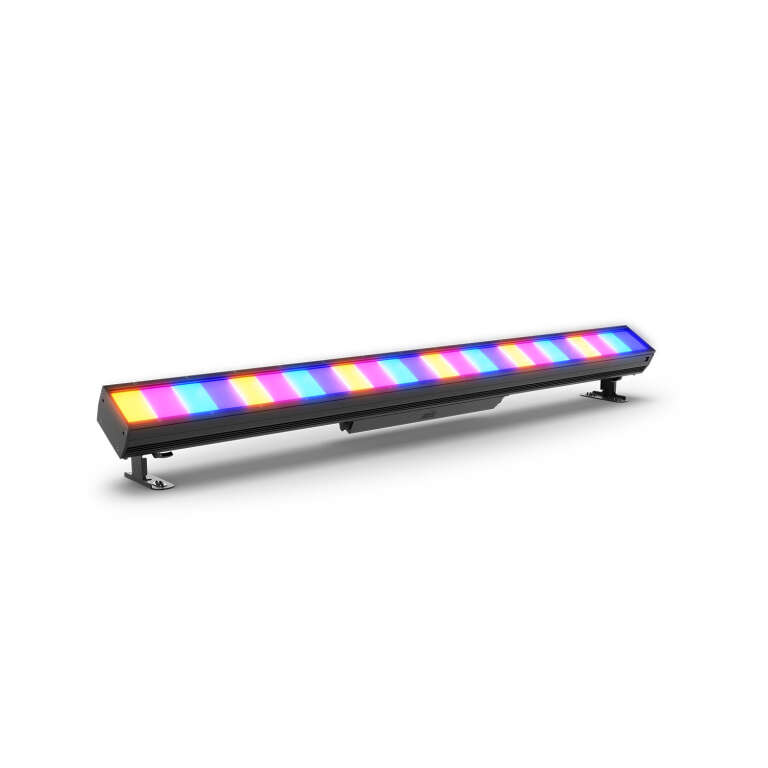

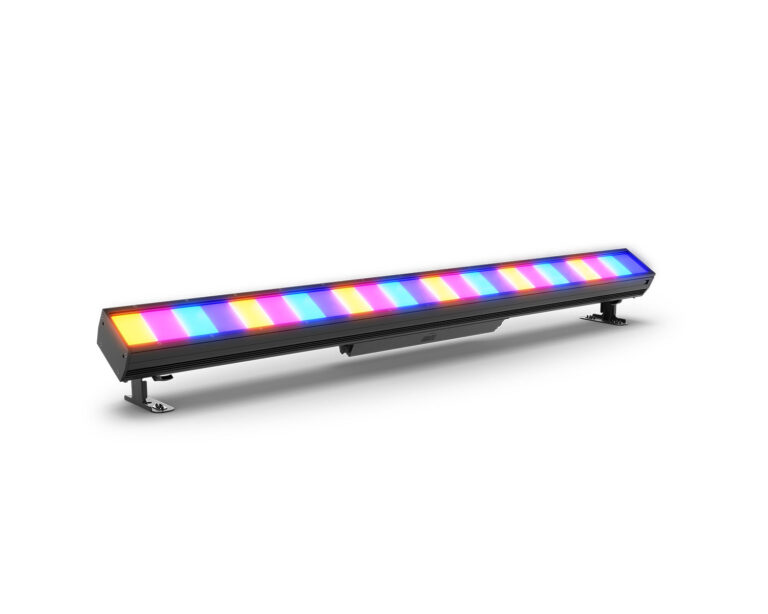

Chauvet Professional COLORado Solo Bar 6 LED Batten

£3,500.00 inc VAT
£2,916.67 ex VAT

24-Cell RGBwWL
IP65 Outdoor

View →

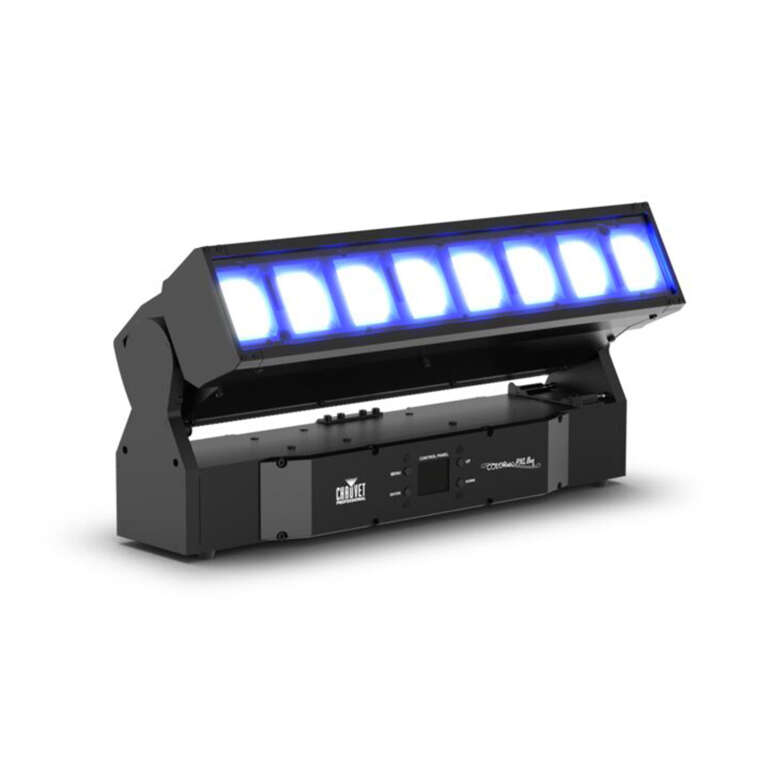

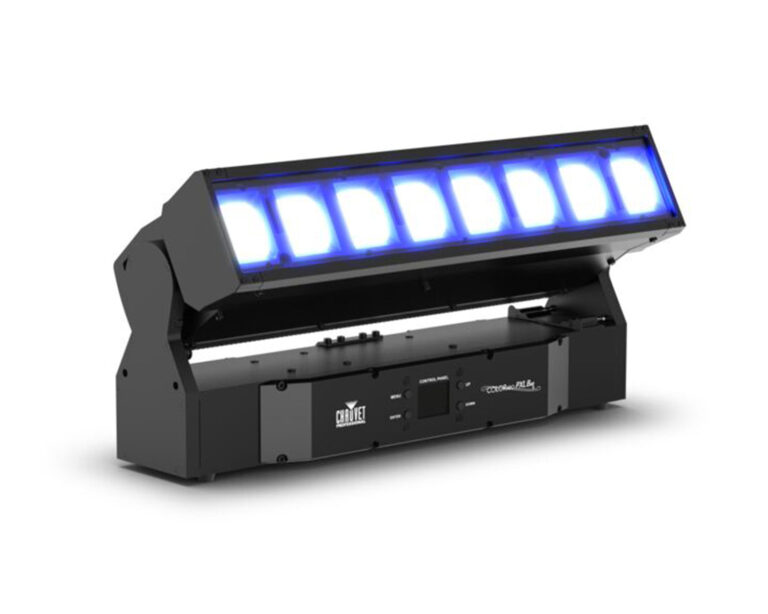

Chauvet Professional COLORado PXL Bar 8 LED Batten

£2,400.00 inc VAT
£2,000.00 ex VAT

8 x 45W RGBW
IP65 Outdoor

View →

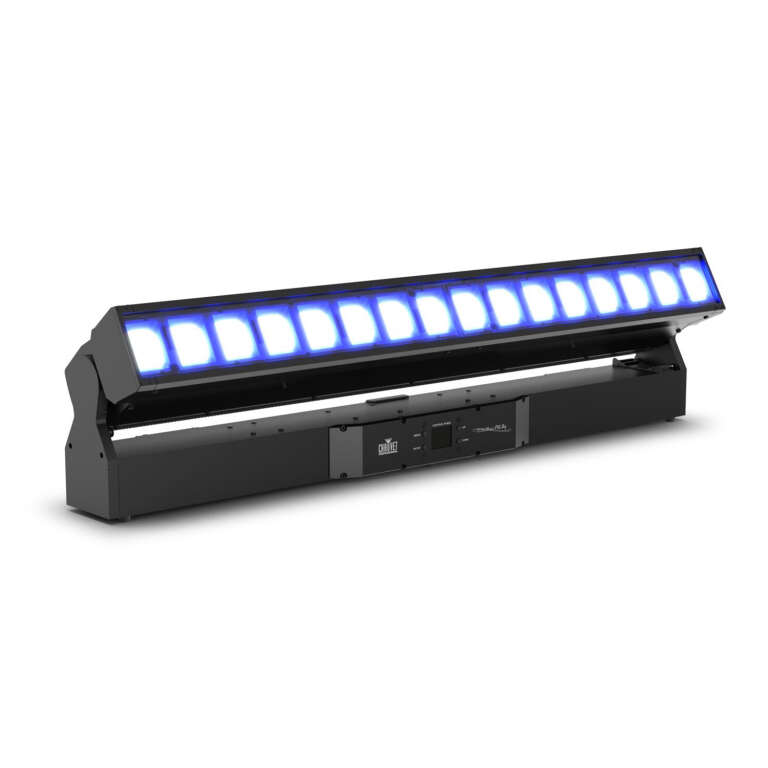

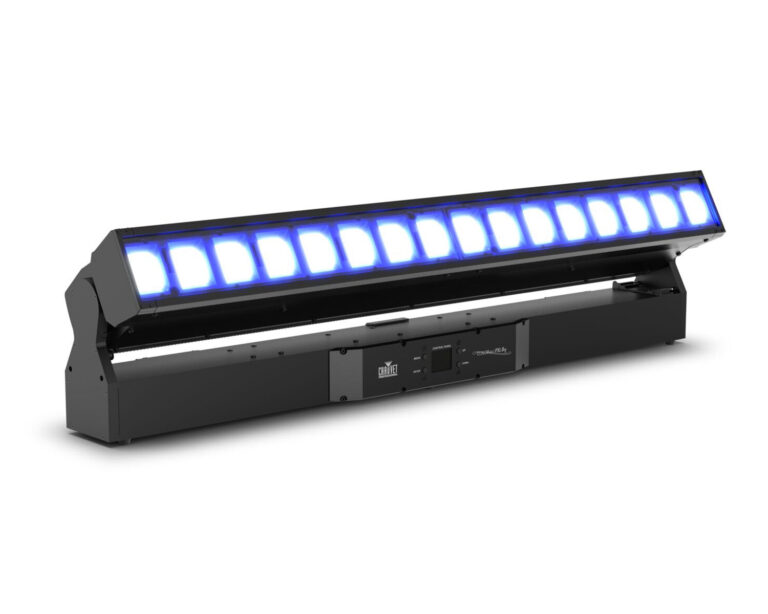

Chauvet Professional COLORado PXL Bar 16 LED Batten

£4,099.00 inc VAT
£3,415.83 ex VAT

16 x 45W RGBW
IP65 Outdoor

View →

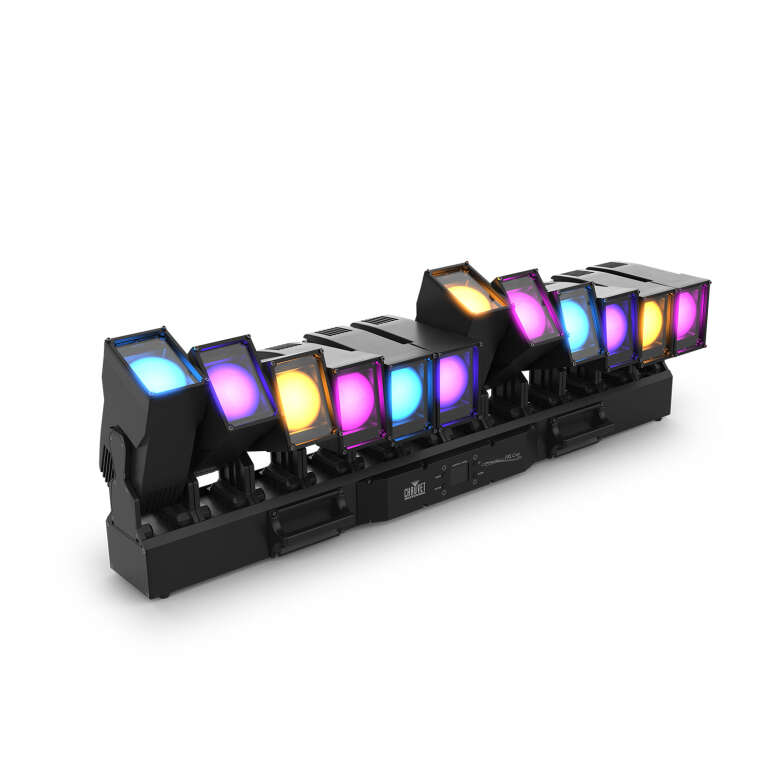

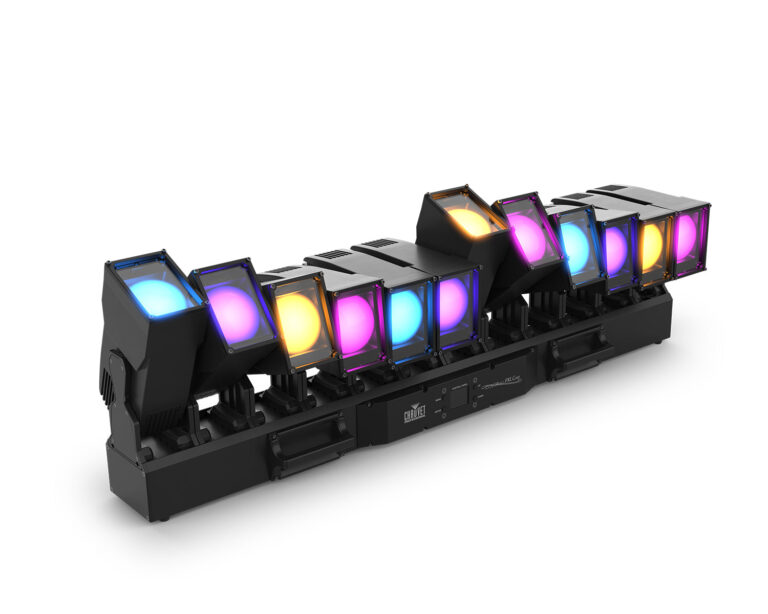

Chauvet Professional COLORado PXL Curve 12 LED Batten
