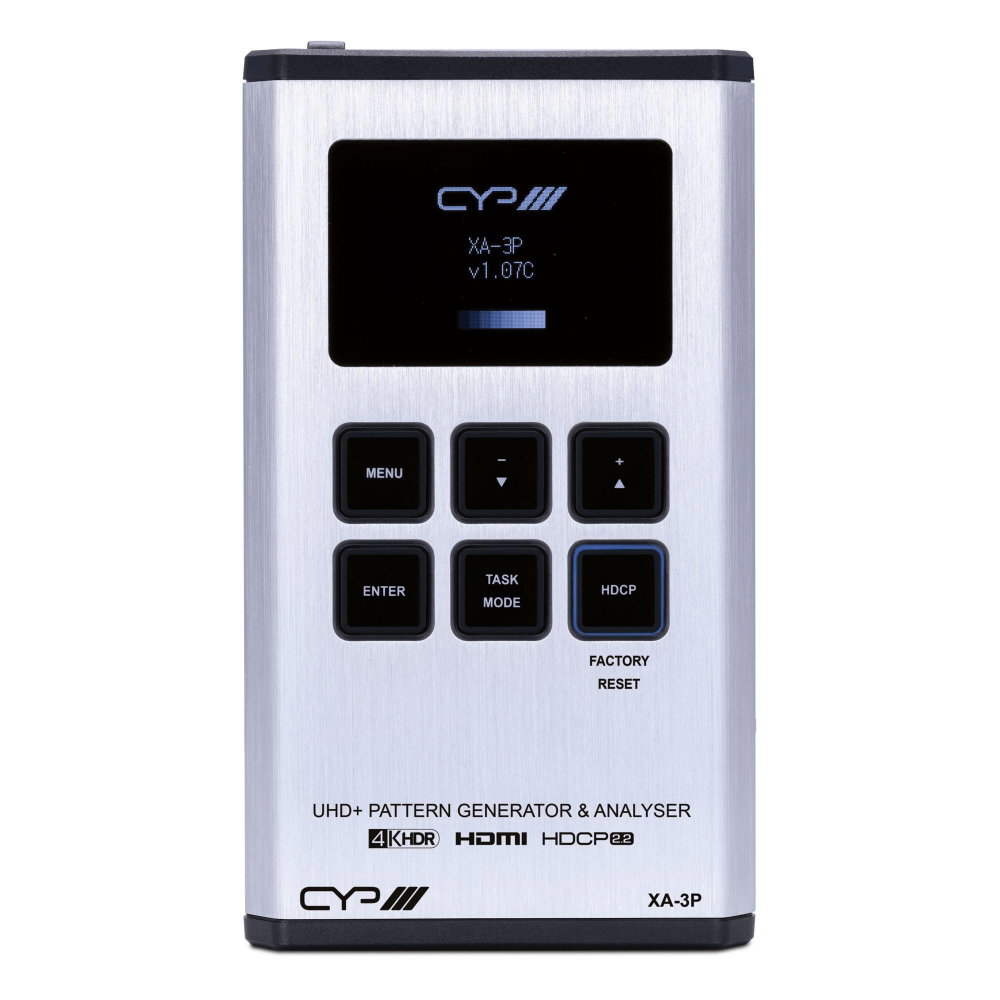

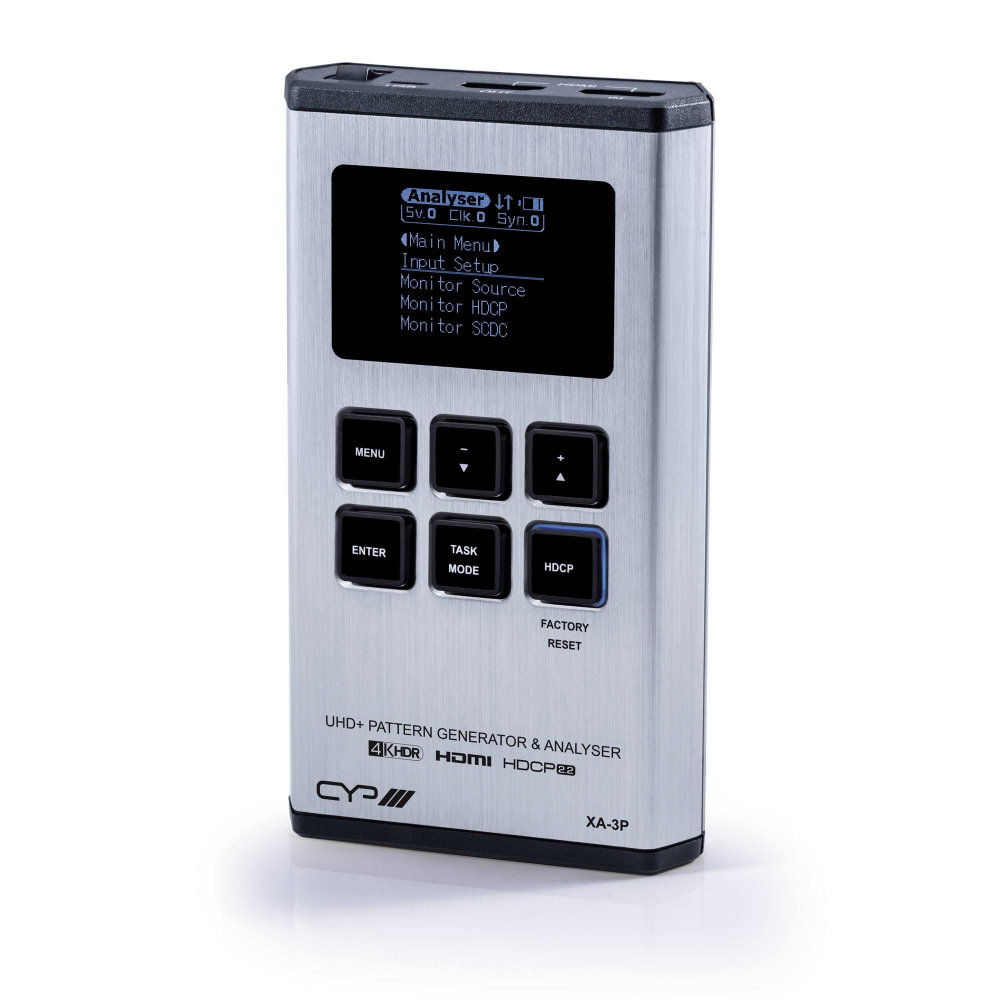

A handheld tester for checking each part of a 4K HDMI chain: it analyses sources, generates test patterns for displays, tests cables and manages EDID. Cable test mode shows whether a lead will pass 18Gbps, and analyser mode can downscale a 4K source to 1080p. It runs from a lithium-ion battery or USB power, so it can be used in a rack or behind a wall-mounted screen with no mains nearby.
18Gbps
HDMI 2.0
HDCP 2.2
Compliance
23
Output resolutions
11
Test patterns

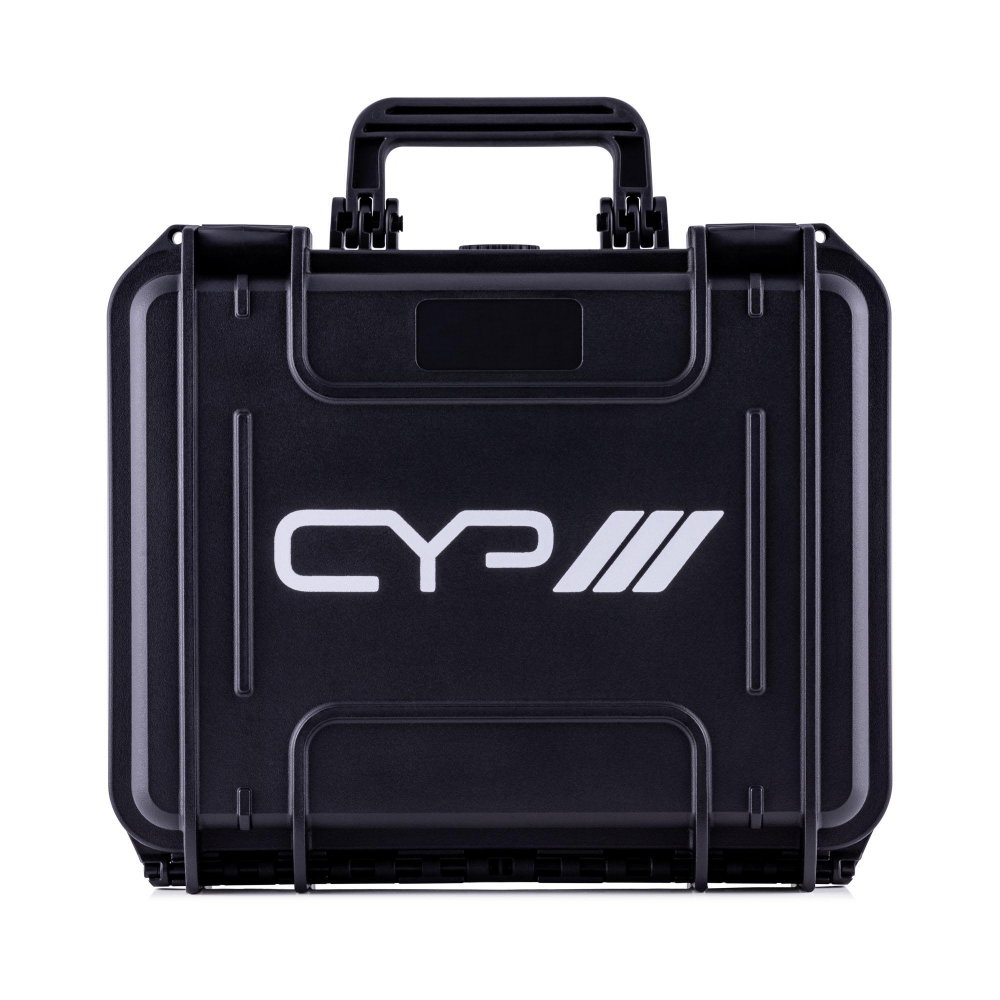

Battery and case not includedCYP’s datasheet lists the lithium-ion battery as not included, and the XA-CASE hard case is sold separately. The unit can also run from 5V/2.1A USB power.
Features
Analyser, pattern generator, HDMI cable tester and EDID manager
HDMI 2.0 with 18Gbps 4K UHD support, HDCP 1.4 and 2.2
Up to 4096×2160@60Hz 4:4:4 8-bit
23 output resolutions and 11 test patterns in generator mode
HDMI 2.0 cable test with 5V and hot plug detection
Built-in 4K to 1080p downscaler, SCDC monitor and packet analysis
Sine wave audio generation up to 8-channel LPCM
10 preset and 10 user EDID slots, USB firmware update
Specifications
| Brand | CYP |
| Model | XA-3P |

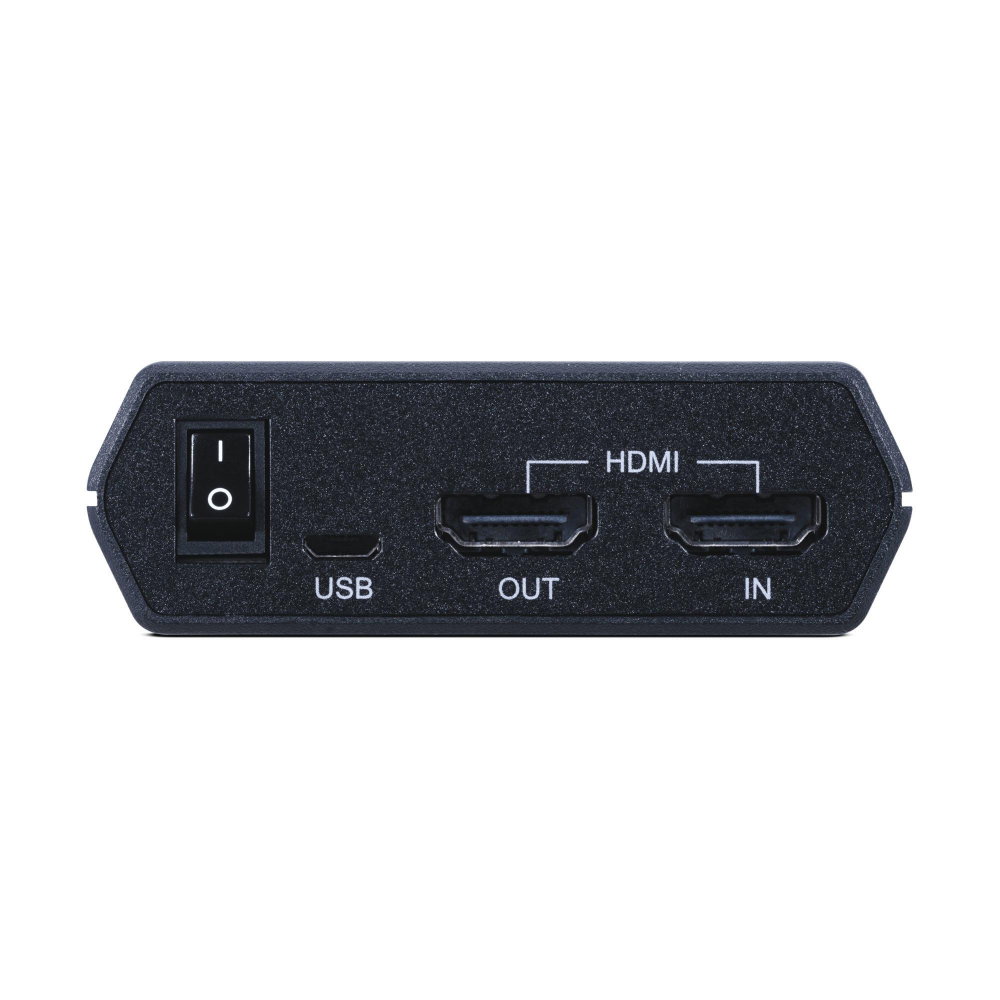

| Input | 1x HDMI (Type A) |
| Output | 1x HDMI (Type A) |
| USB | 1x USB (power and control) |
| HDMI / HDCP | HDMI 2.0, HDCP 1.4 and 2.2 |
| Bandwidth | 18Gbps |
| Max resolution | 4096×2160@60Hz 4:4:4 |
| Audio | LPCM 8ch, bitstream, HD bitstream |
| Power | 5V/2.1A USB or Li-ion battery (not included) |
| Power consumption | 4.7W |
| Chassis | Aluminium, silver |
| Dimensions | 80 x 124 x 24mm (W x H x D) |
| Weight | 320g |
