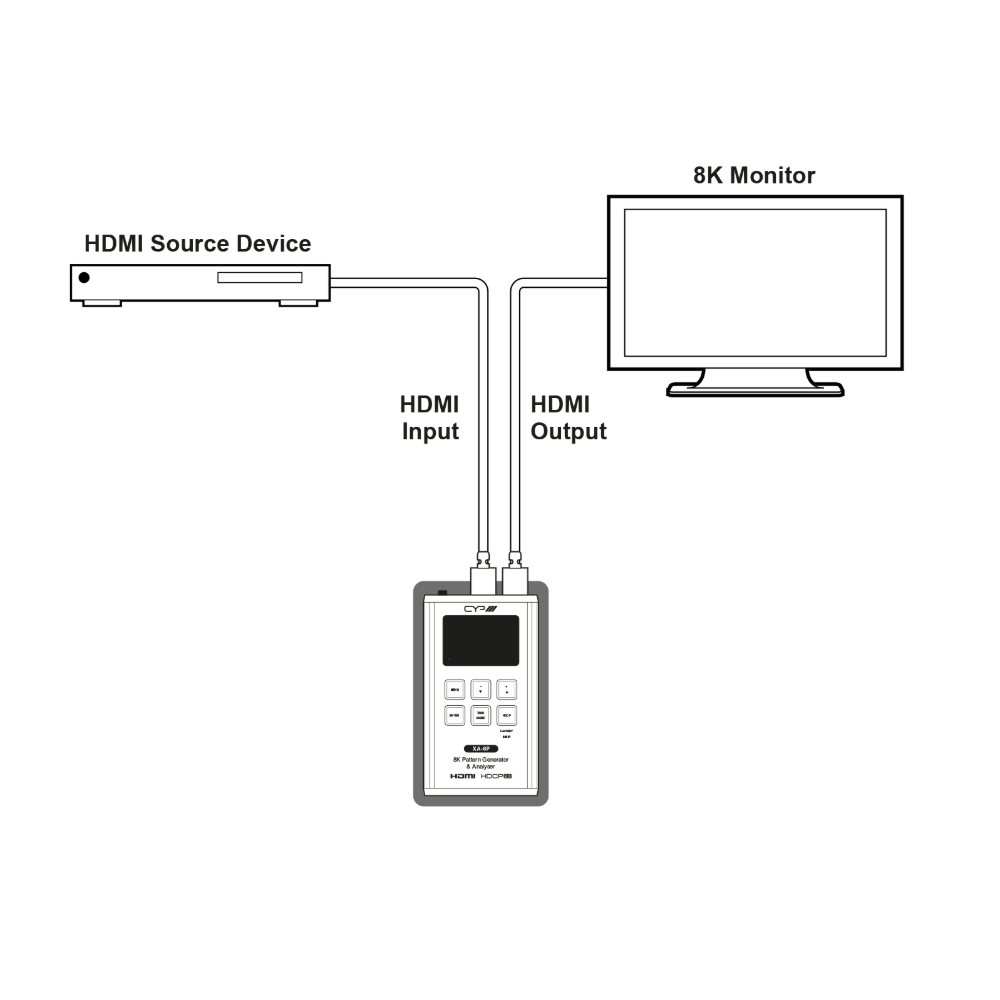

The XA-8P is a palm-sized 8K HDMI generator and analyser for commissioning and fault-finding HDMI 2.1 systems. In generator mode it outputs 40 resolutions up to 8K with 20 test patterns, and in analyser mode it reports source video, audio, timing and packet data, with HDCP and SCDC monitoring. EDID tools cover 12 built-in and 10 user-definable EDIDs, and the unit runs from a lithium-ion battery or USB-C power.
40Gbps
HDMI 2.1
8K60 4:2:0
Max video
40
Output resolutions
20
Test patterns
Battery not includedCYP state the XA-8P takes a single lithium-ion battery that is not included. It can also run from a USB-C power supply or power bank.
Features
HDMI 2.1 generator and analyser, 40Gbps input and output
Up to 7680×4320@60Hz 4:2:0 8-bit
40 output resolutions and 20 test patterns
Analyses source video, audio, timing and packets
12 built-in and 10 user-definable EDIDs, with analysis and emulation
HDR analysis and generation to CEA-861-G and CEA-861.3
8-channel LPCM sine wave generation, adjustable per channel

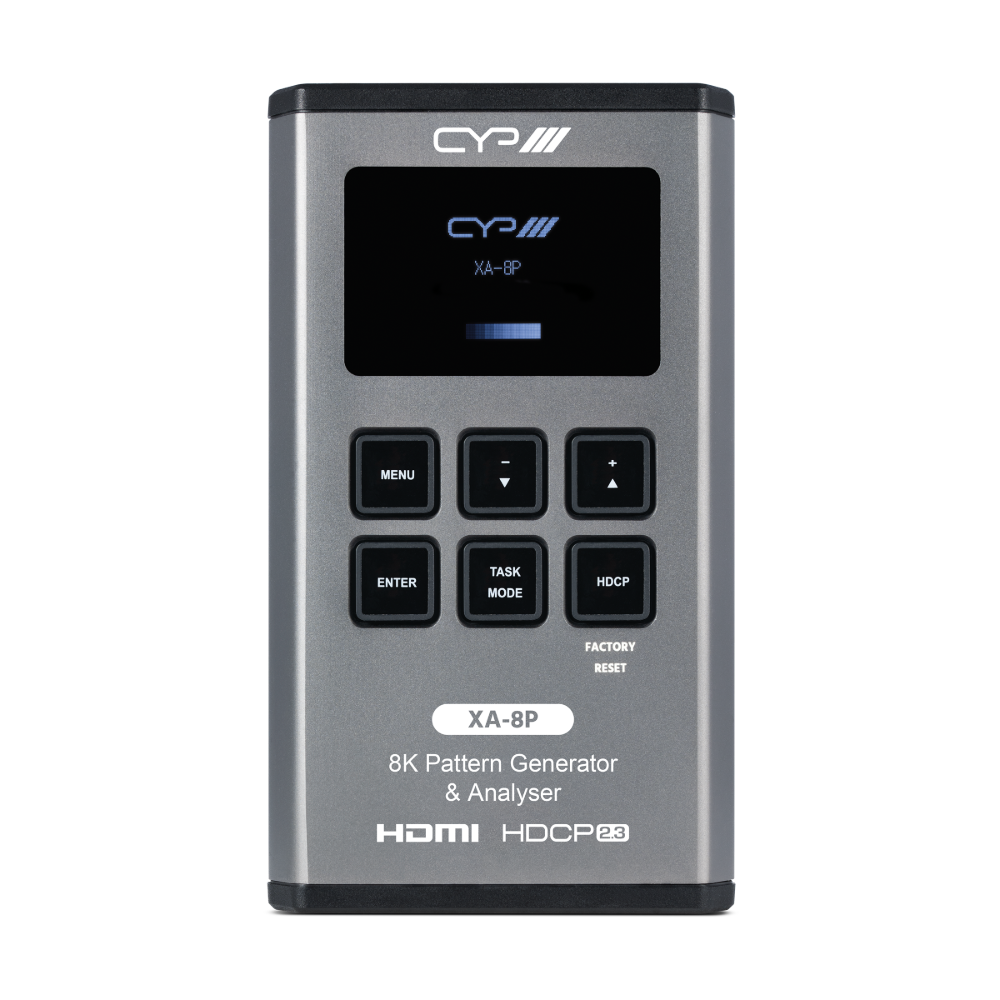

OLED display; USB-C for charging, serial and firmware
Specifications
| Brand | CYP |
| Model | XA-8P |

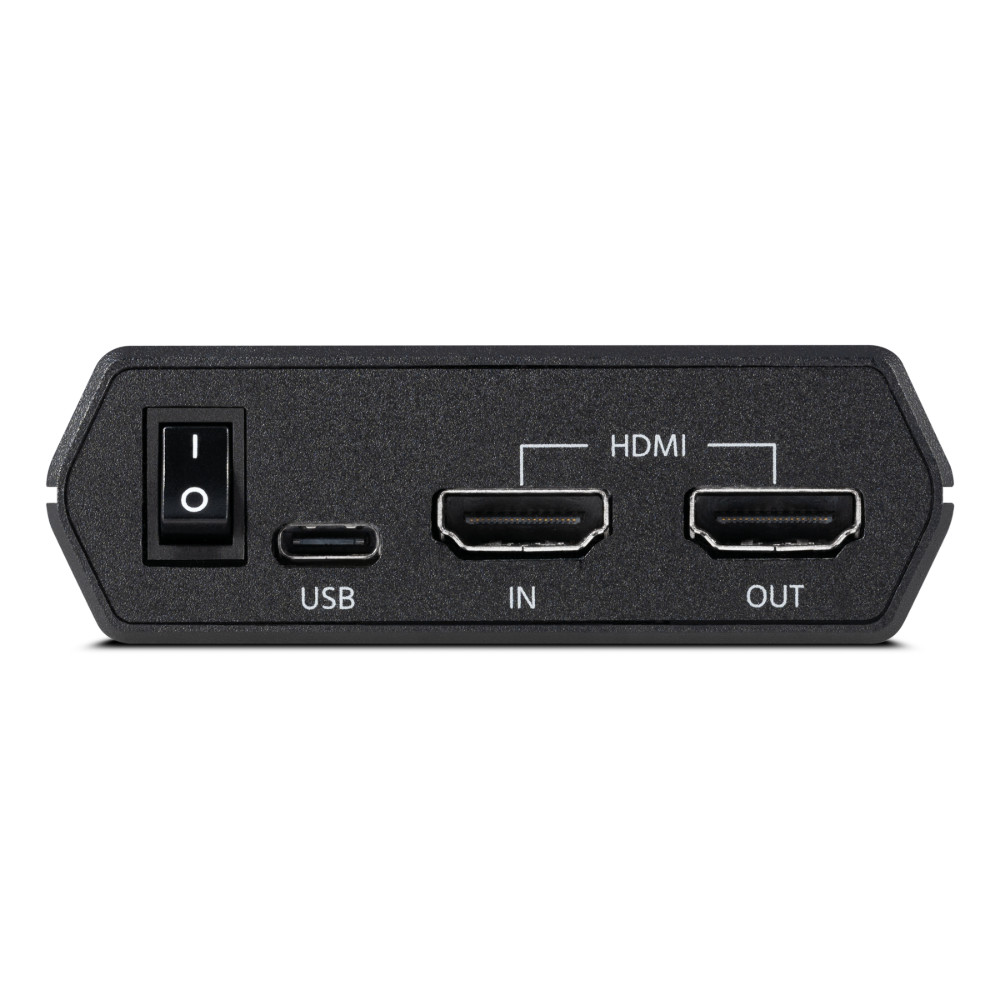

| Input | 1x HDMI (Type A) |
| Output | 1x HDMI (Type A) |
| USB | 1x USB-C (charging, serial, firmware) |
| HDMI / HDCP | HDMI 2.1, HDCP 2.3 |
| Bandwidth | 40Gbps |
| Max resolution | 7680×4320@60Hz 4:2:0 |
| Colour depth | 8 to 12-bit (patterns 8-bit max) |
| Audio | LPCM 8ch, bitstream, HD bitstream |
| Power | 5V/2.1A USB-C or Li-ion battery (not included) |
| Power consumption | 4.7W |
| Display | OLED |
| Chassis | Aluminium, dark grey |
| Dimensions | 80 x 124 x 24mm (W x H x D) |
| Weight | 320g |
