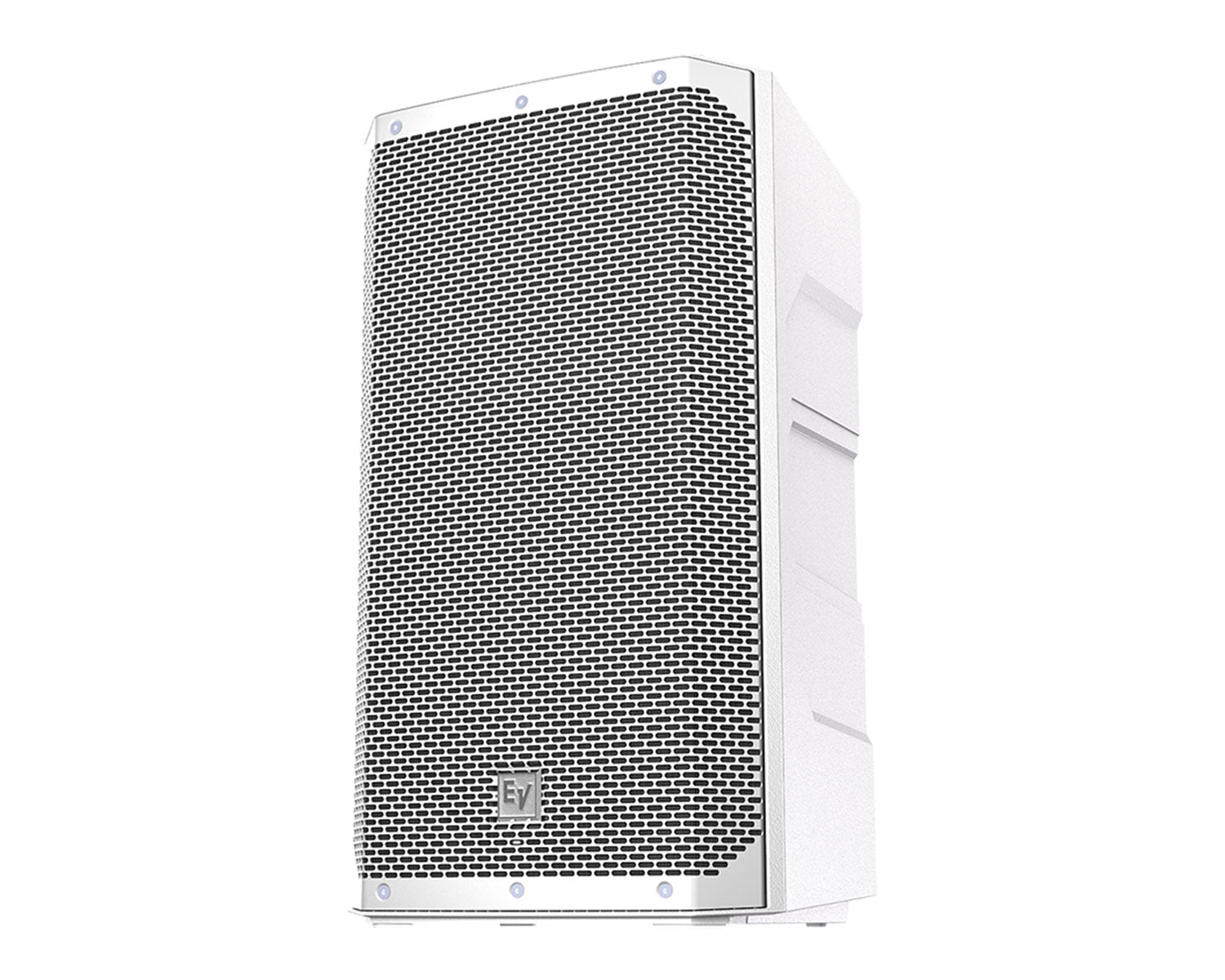

In white, the ELX200-12P suits venues and events where a black box would stand out, while delivering the same 1200W Class D power and 130 dB maximum SPL as the black version. A 12″ EVS-12M woofer and 1″ titanium compression driver cover 51 Hz to 20 kHz (-10 dB) through a 90° x 60° SST waveguide. Setup runs through QuickSmart DSP on the LCD or from the QuickSmart Mobile app over Bluetooth LE.
1200W
Class D amplifier
130 dB
Maximum SPL
90° x 60°
Coverage
15.6 kg
Net weight
Features
1200W Class D amplifier, up to 130 dB maximum SPL
EVS-12M 12″ woofer with DH-1L 1″ titanium compression driver
EV-patented SST waveguide for 90° x 60° coverage
QuickSmart DSP: four presets, sub/top match, three-band EQ, five user presets
QuickSmart Mobile app (Bluetooth LE) controls up to six ELX200 speakers

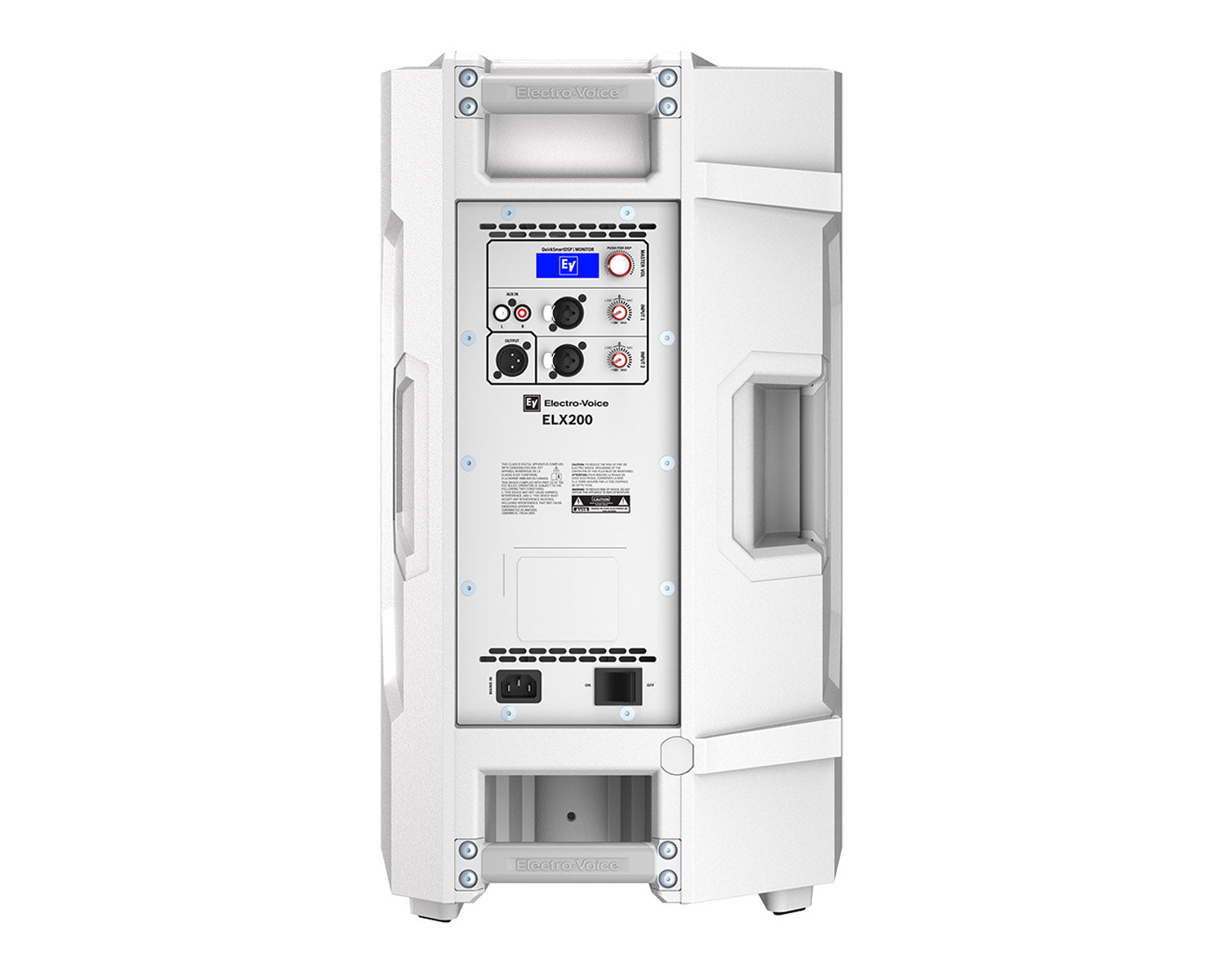

Two XLR/TRS combo inputs, stereo RCA input and XLR output
Three M10 suspension points, integrated pole mounts and three handles
Specifications
| Brand | Electro-Voice |
| Model | ELX200-12P |
| Manufacturer part number | F.01U.361.352 |
| Type | Powered 2-way full-range |
| Drivers | EVS-12M 300 mm (12″) LF; DH-1L 1″ titanium compression driver HF |
| Frequency response (-3 dB) | 57 Hz-16 kHz (full space, Music preset) |
| Frequency range (-10 dB) | 51 Hz-20 kHz |
| Maximum SPL | 130 dB |
| Coverage (H x V) | 90° x 60° |
| Amplifier | 1200W Class D |
| Crossover frequency | 1700 Hz |
| Connectors | 2x XLR/TRS combo input, 1x stereo RCA input, 1x XLR |
| DSP and control | QuickSmartDSP with LCD; QuickSmart Mobile app via Bluetooth LE |
| Enclosure | Polypropylene; 18 AWG powder-coated steel grille |
| Suspension | (3) M10 points |
| Dimensions (H x W x D) | 629 x 363 x 344 mm |
| Net weight | 15.6 kg |
| Colour | White |
