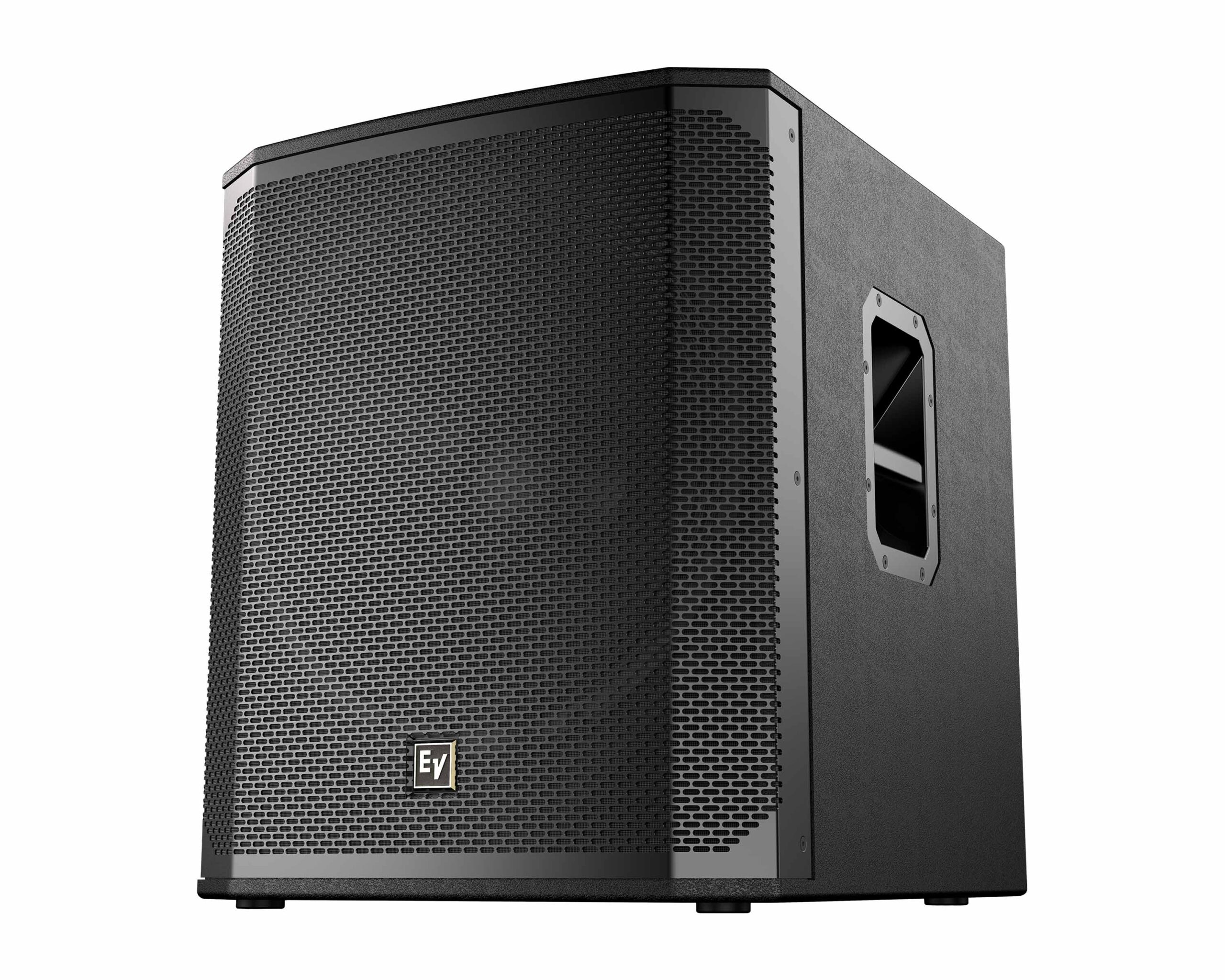

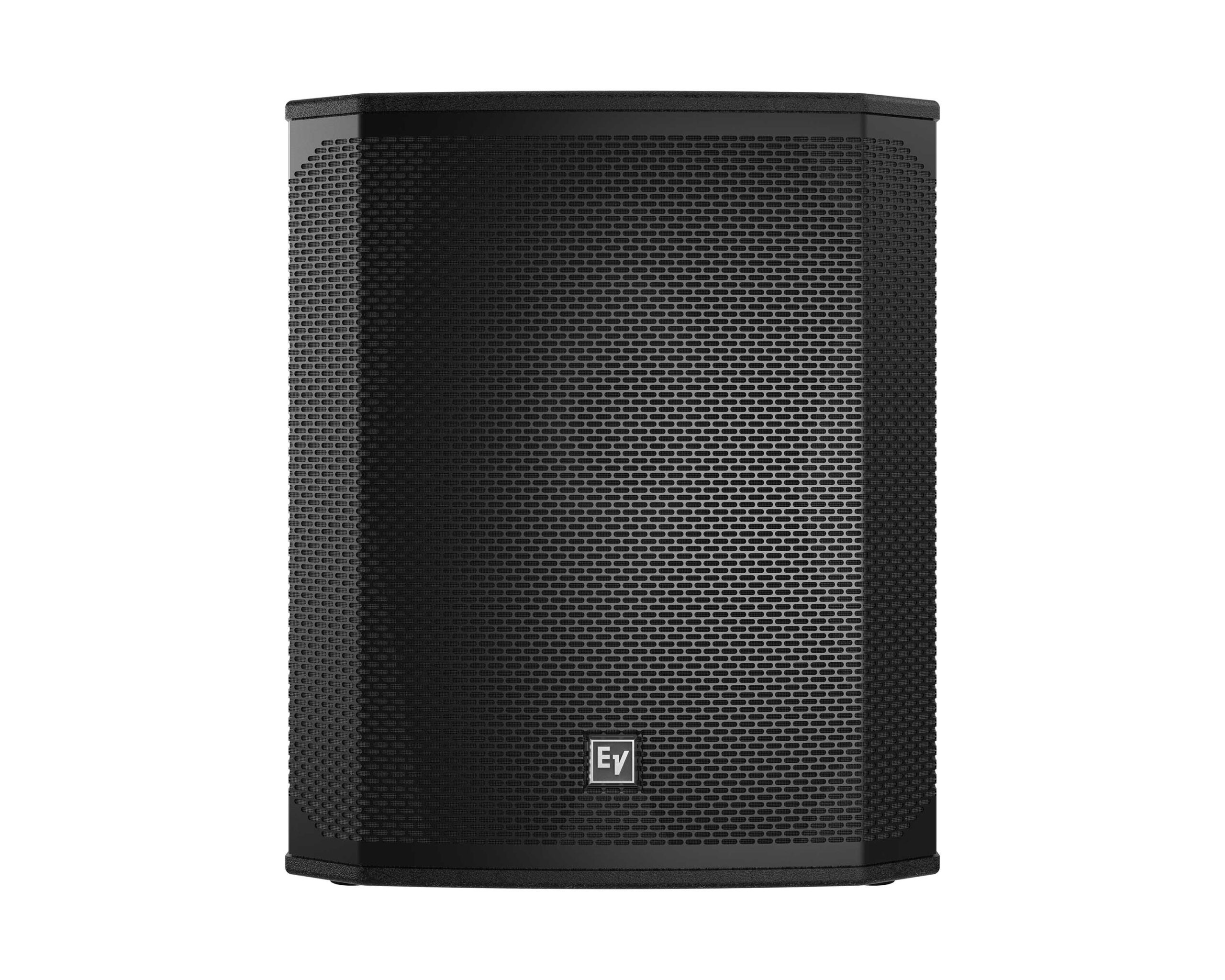

ELX200-18S is the passive 18″ subwoofer in Electro-Voice’s ELX200 range, putting an EVS-18L woofer into a braced 15 mm plywood cabinet with a polyurea top coat. It handles 400W continuous and 1600W peak, reaching 133 dB peak SPL with a frequency range from 28 Hz (-10 dB). Dual NL4 connectors and an M20 pole-mount plate make it a straightforward low end for a passive PA run from an external amplifier.
18″
EVS-18L woofer
400W / 1600W
Continuous / peak
133 dB
Peak SPL
28 Hz
Low end (-10 dB)
Passive: amplifier requiredThe ELX200-18S has no built-in amplifier. Drive it from an external amplifier channel into its 8 ohm nominal load, using the 35 Hz high-pass filter EV recommends.
Features
EVS-18L 18″ woofer, 400W continuous / 1600W peak
133 dB peak SPL with 94 dB sensitivity (1W/1m)
Frequency range 28 Hz to 300 Hz (-10 dB)
Braced 15 mm plywood cabinet with durable polyurea top coat

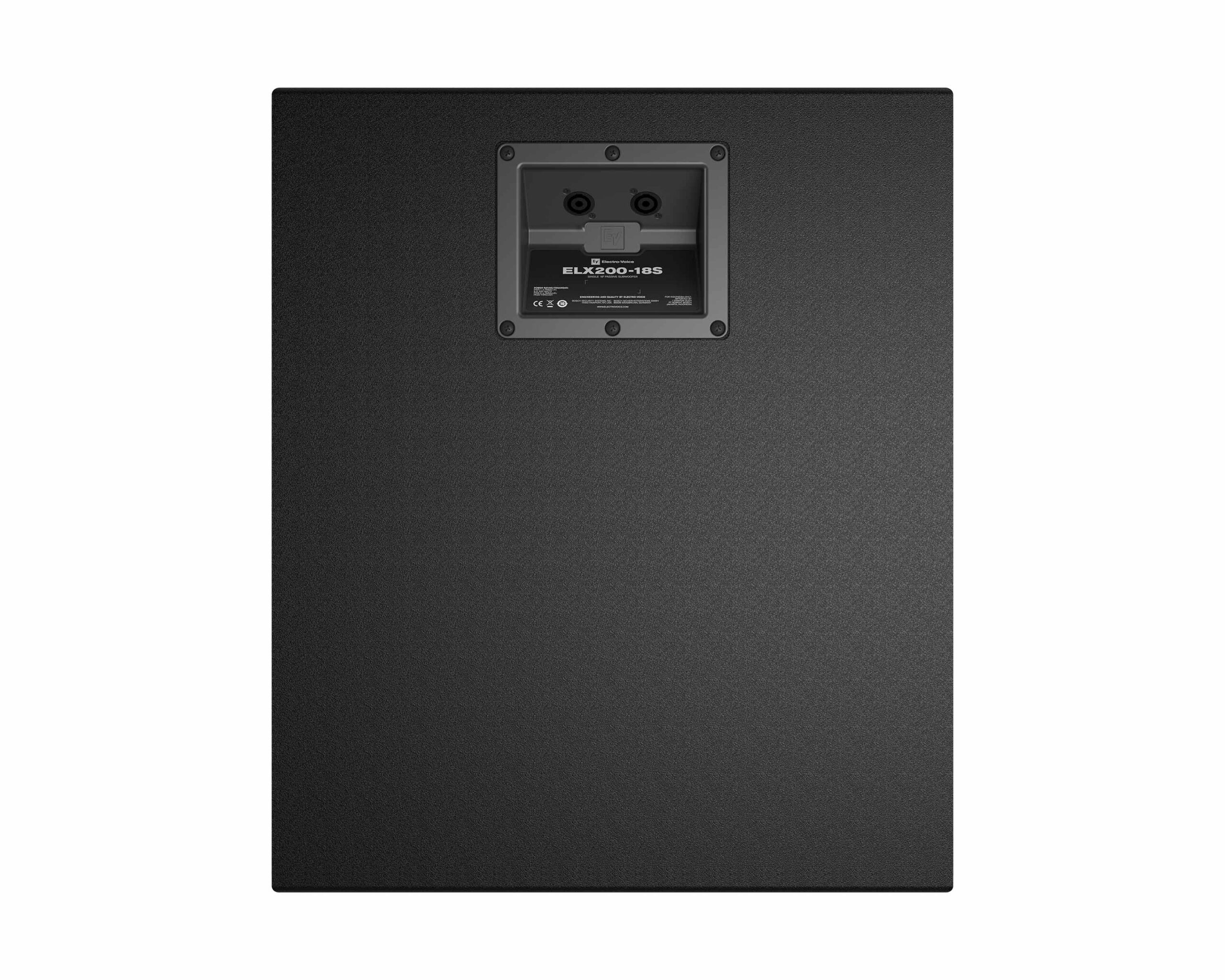

Dual NL4 connectors
Integrated M20 threaded pole-mount plate
Two handles; verified with over 500 hours of abuse and endurance testing
Specifications
| Brand | Electro-Voice |
| Model | ELX200-18S |
| Manufacturer part number | F.01U.351.461 |
| Type | Passive subwoofer |
| Driver | EVS-18L 457 mm (18″) |
| Frequency response (-3 dB) | 45 Hz-200 Hz (full space) |
| Frequency range (-10 dB) | 28 Hz-300 Hz (full space) |
| Axial sensitivity (1W/1m) | 94 dB |
| Maximum SPL | 133 dB peak (1 m, pink noise at rated peak power) |
| Power handling | 400W continuous / 1600W peak |
| Impedance | 8 Ω nominal, 7.2 Ω minimum |
| Recommended high-pass | 35 Hz |
| Connectors | 2x NL4 |
| Enclosure | 15 mm plywood with polyurea top-coat finish; 18 AWG powder-coated steel grille |
| Pole mount | Integrated M20 threaded plate |
| Dimensions (H x W x D) | 600 x 507 x 574 mm |
| Net weight | 26.6 kg |
| Colour | Black |
