Electro-Voice EVID-S10.1D 2x10" Passive Subwoofer, IP54, White

Product code: 186324

£720.00 inc VAT
£600.00 ex VAT

SKU: F.01U.332.745

2 in stock (more available subject to additional lead time)

2 available online

More available from supplier in 1–3 weeks

Other colours available

About this Product

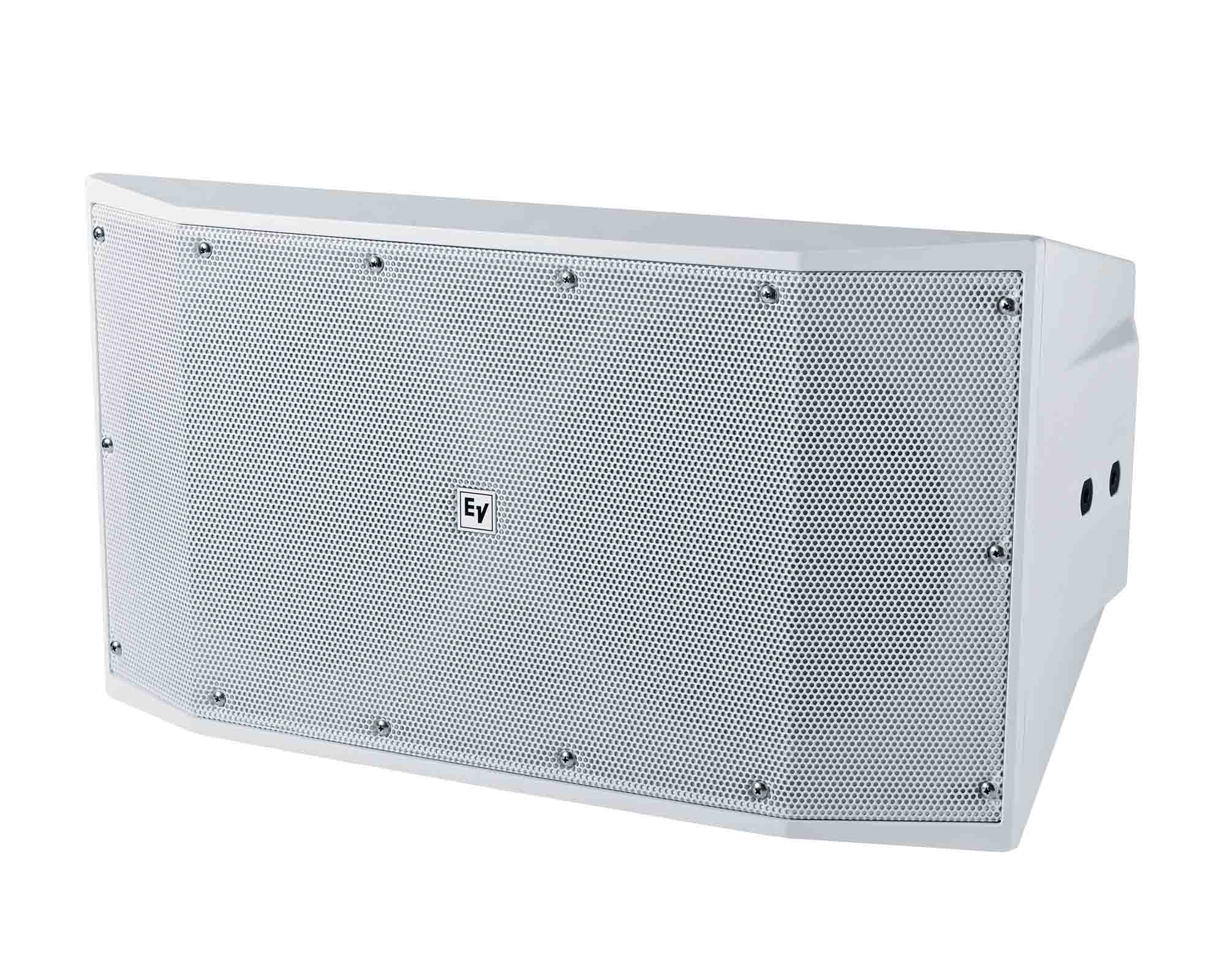

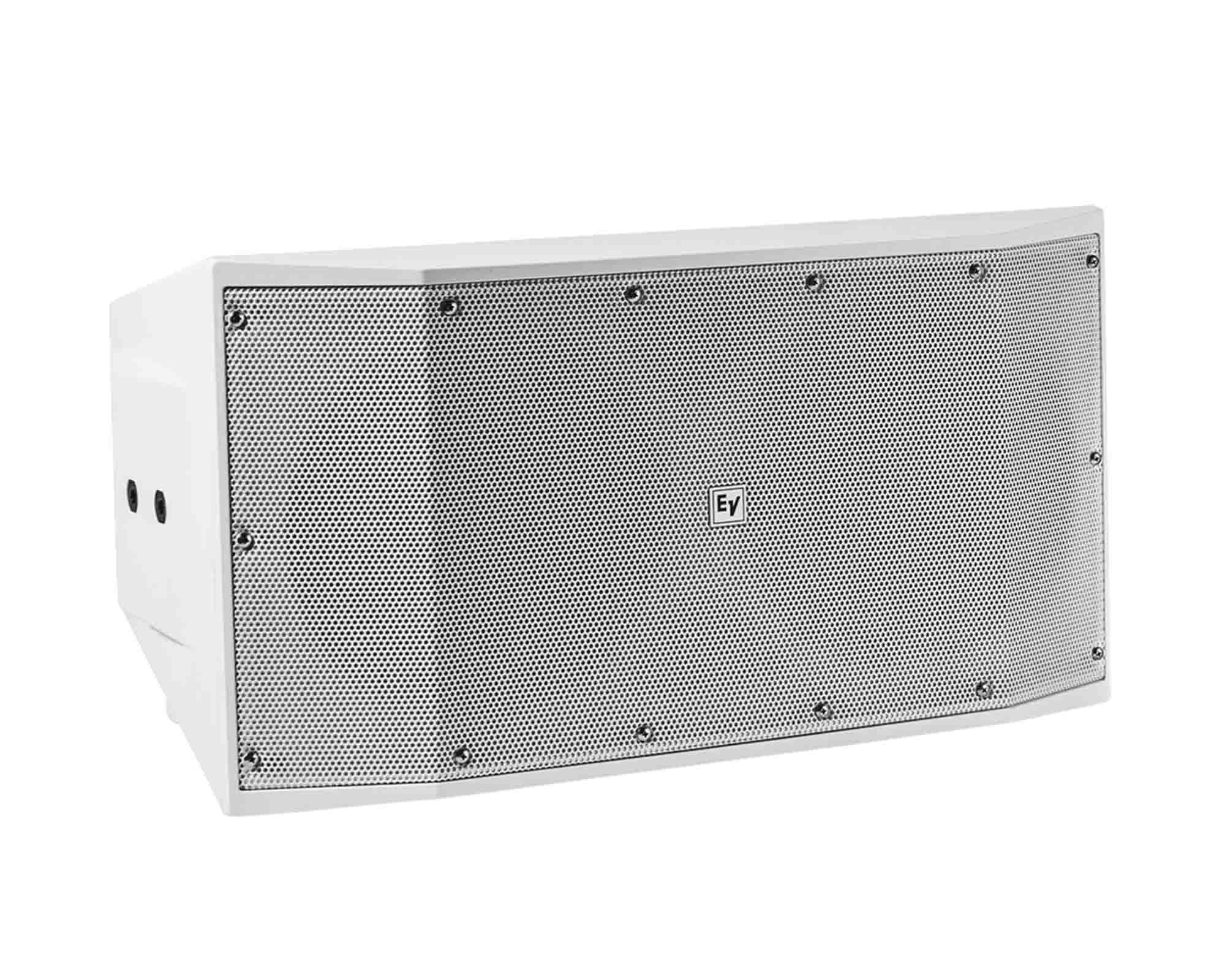

Built to sit on a wall, floor or ceiling out of the way, the white EVID-S10.1D puts two 10″ woofers into a weather-resistant cabinet rated IP54, or IP65 with its included port covers. A rear switch sets stereo operation at 2x 8 ohms or mono at 4 ohms, and a Euroblock output passes signal on to satellite speakers. EV rates it at 400W continuous with 94 dB sensitivity, for patios, bars, retail and hospitality spaces.

2x 10″

Woofers

400W

Continuous power handling

33 Hz

Low end (-10 dB)

IP54 / IP65

Standard / with port covers

Transformer and crossover panels sold separatelyThe EVID-S10.1D is low impedance as supplied. For a 70V or 100V line system you need the IP-10D-TW (white) transformer input panel (250W), and the IP-10D-CW (white) crossover input panel is also an optional extra.

Features

Two 10″ high-excursion woofers, 33 Hz to 500 Hz (-10 dB)

400W continuous (1600W peak), 120 dB calculated max SPL (126 dB peak)

IP54 as standard, IP65 with the included port covers

Stereo (2x 8 ohm) or mono (4 ohm) operation via rear switch

Euroblock input and output to feed satellite speakers

Floor feet included; four M10 fly points plus one M10 safety point

Paintable finish; tested against solar radiation, salt mist and moisture

Optional 70V/100V transformer, crossover panel and U-bracket

Specifications

Electro-Voice EVID-S10.1D 2×10″ Passive Subwoofer, IP54, White specifications
Brand	Electro-Voice
Model	EVID-S10.1D
Manufacturer part number	F.01U.332.745
Drivers	2x 10″ (254 mm) woofers
Frequency range (-10 dB)	33 Hz-500 Hz (half-space)
Sensitivity	94 dB (1W, half-space, averaged 50-150 Hz)
Maximum SPL	120 dB calculated (126 dB peak)
Power handling	400W continuous / 1600W peak
Impedance	2x 8 Ω (stereo mode) or 1x 4 Ω (mono mode)
Recommended high-pass	40 Hz, 24 dB/oct
Transformer	Optional accessory (IP-10D-TB / IP-10D-TW, 250W)
Connectors	2x removable 4-pin Euroblock (input and output), max 12 AWG
IP rating	IP54 (IEC 60529); IP65 with port covers fitted
Included hardware	2x subwoofer feet, Allen wrench, weather input cover, 2x IP65 port covers, screws
Dimensions (H x W x D)	356 x 651 x 491 mm (without U-bracket)
Net weight	17.9 kg
Colour	White (RAL 9003)

Full features

EVID S10.1D subwoofer
Carefully engineered for outdoor environments, without compromising performance
400 W power handling provides for 120 dB maximum SPL (126 dB peak)
70/100 V transformer input panel accessory available
Crossover input panel accessory available
Perfect solution for a wide variety of surface mount applications
IP54 and IP65 Rated

Full specifications

General

Frequency Range (-10 dB): 33 Hz – 500 Hz
Colour: White
Connector Type: Two removable locking 4-pin connector (Euroblock) – Input and output. Max. wire size 12 AWG (2.5 mm).
Environmental Specs: IP-54 (per IEC-60529); IP-65 with port covers
LF Transducer: Two 10 inch (254 mm)
Max. SPL/1m (calc): 120dB
Nominal Impedance: Stereo Mode: (2) 8Ω; Mono Mode: (1) 4Ω
Power Handling (Continuous / Peak): 400W/1600W
Recommended High-Pass Frequency: 40Hz
Sensitivity 1 W/1 m: 94dB
Transformer Taps (Transformer Version Only): Optional Accessory
Weatherized: Yes

Physical & Dimensions

Height: 356mm
Width: 651mm
Depth: 491mm
Weight: 17.9kg

Product Reviews

No reviews yet — be the first to review this product.

Manuals & Downloads

DatasheetPDF

Installation GuidePDF
