Biamp

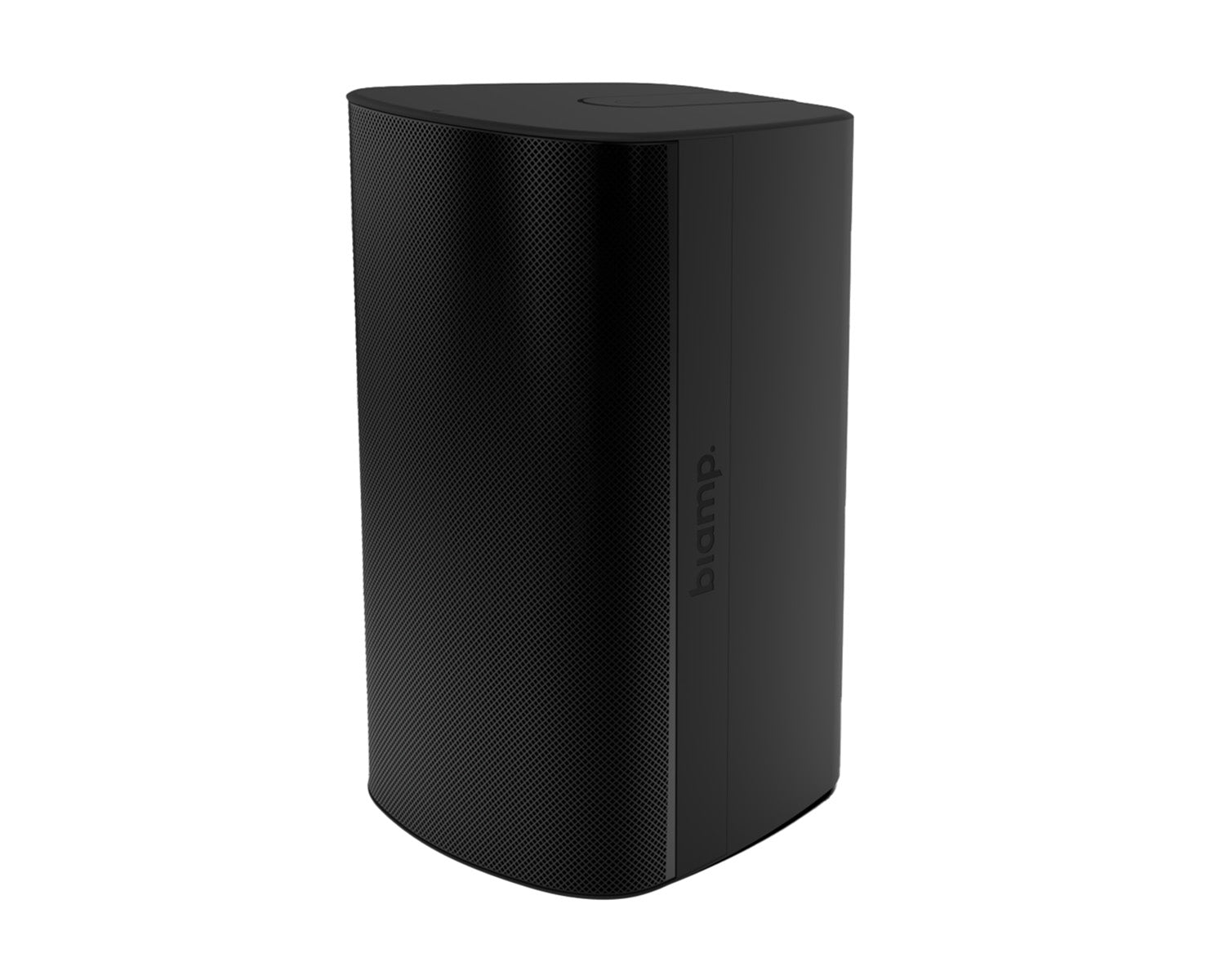

Biamp EX-S10SUB 10" IP54 Surface-Mount Sub with U-Bracket Black

SKU: 920-01823-10000
Biamp EX-S10SUB 10" IP54 Surface-Mount Sub with U-Bracket Black - Image 1
Click to enlarge

    £770.00 inc VAT
    £641.67 ex VAT

    1 in stock (more available subject to additional lead time)

    Order in 19h 54m 6s for FREE delivery by Tue 7th JulClick & Collect available Mon 6th Jul from us in London ›
    VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
    1 Year Manufacturer Warranty Included
    About Stage Supply
    Chat to us on WhatsApp

    About this Product

    The Biamp EX-S10SUB (920-01823-10000) is a passive 10 inch surface-mount installation subwoofer in black with an IP54 rating for indoor or outdoor use, supplied with a ClickMount u-bracket. It extends low frequency response in distributed systems and pairs with EX-S series full-range cabinets in venues, hospitality and exterior zones.

    Key Features
    ✓10 inch (250 mm) treated paper LF cone
    ✓Passive, low impedance operation
    ✓Operating range 38 Hz to 140 Hz
    ✓Selectable UXO 80 Hz or 125 Hz crossover presets
    ✓IP54 rated to IEC 60529 for indoor or outdoor use
    ✓Supplied with ClickMount u-bracket
    ✓Lever-actuated 4-position terminal block with pass-through
    ✓Requires 35 Hz, 18 dB high-pass filter and DSP preset
    ✓ETL listed to UL 1480A, CSA C22.2 62368-1
    Specifications
    Operating mode Passive, low impedance
    Operating range (-10 dB) 38 Hz to 140 Hz
    LF transducer 1 x 10 inch (250 mm) treated paper cone
    Beamwidth Omnidirectional
    Sensitivity 89 dB (1 W, 8 ohm)
    Power handling 300 W (8 ohm nominal)
    Maximum SPL (UXO 125 Hz) 113 dB continuous, 119 dB peak
    Recommended amplifier 300 W to 600 W, 8 ohm
    Required processing 35 Hz, 18 dB high-pass filter; DSP preset
    Environmental rating IP54 per IEC 60529
    Mounting ClickMount U-Bracket
    Dimensions (H x W x D) 529 x 310 x 312 mm
    Weight 12.8 kg
    Finish Black

    More Information

    • Exceptional audio clarity with discreet styling
    • Easy to install with two mounting options
    • Utilizes innovative ClickMount U-Bracket for mounting
    • Low frequency boost for distributed applications
    • ETL listed to comply with UL 1480A, CSA 62368-1, CE marked, and RoHS complian
    • Finish: Black
