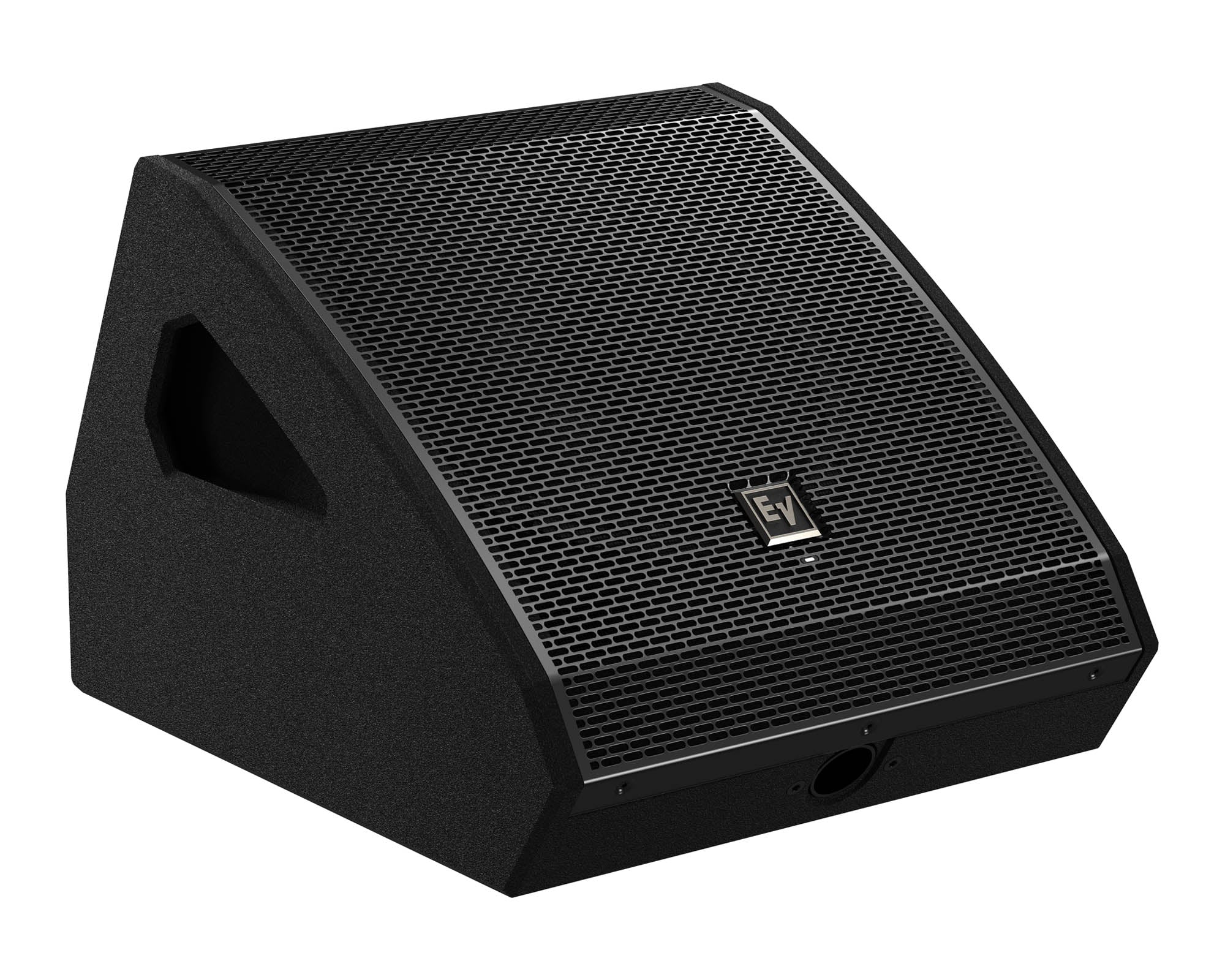

Electro-Voice PXM-12MP 12" Powered Coaxial Stage Monitor, Black

Product code: 186315

£829.00 inc VAT
£690.83 ex VAT

SKU: F.01U.362.555

11 in stock (more available subject to additional lead time)

10 available online

More available from supplier in 1–3 weeks

About this Product

The PXM-12MP is a powered floor monitor built around a 12″ / 1.75″ coaxial driver, giving a symmetrical 90° x 90° pattern so performers can move around without losing their mix. A 700W Class D amplifier designed by Dynacord delivers up to 129 dB SPL, and the 55° cabinet angle works for players standing close or further back. A front pole mount and subwoofer-matching low-pass filters let it double as a fill, delay or compact main PA.

700W

Class D amplifier

129 dB

Maximum SPL

90° x 90°

Coaxial coverage

55°

Monitor angle

Features

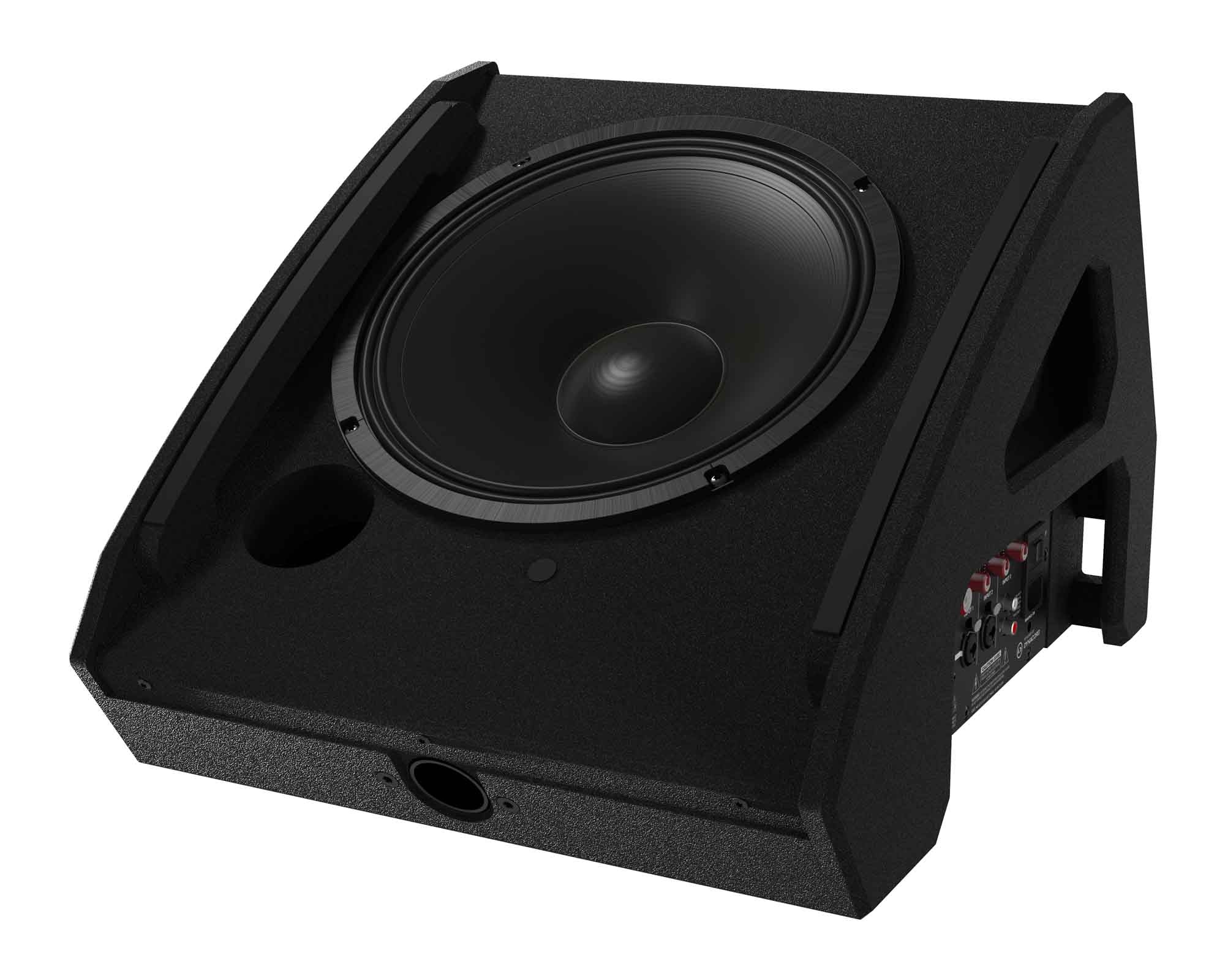

12″ / 1.75″ coaxial driver with symmetrical 90° x 90° coverage

700W Class D amplifier (500W LF, 200W HF) designed by Dynacord

55° monitor angle; integrated pole mount for fill, delay or main PA use

DSP with four EQ presets, high and low shelving and parametric mid EQ

Tunable feedback notch filter and adjustable low-cut

Adjustable sub-matching low-pass filters for a three-way system

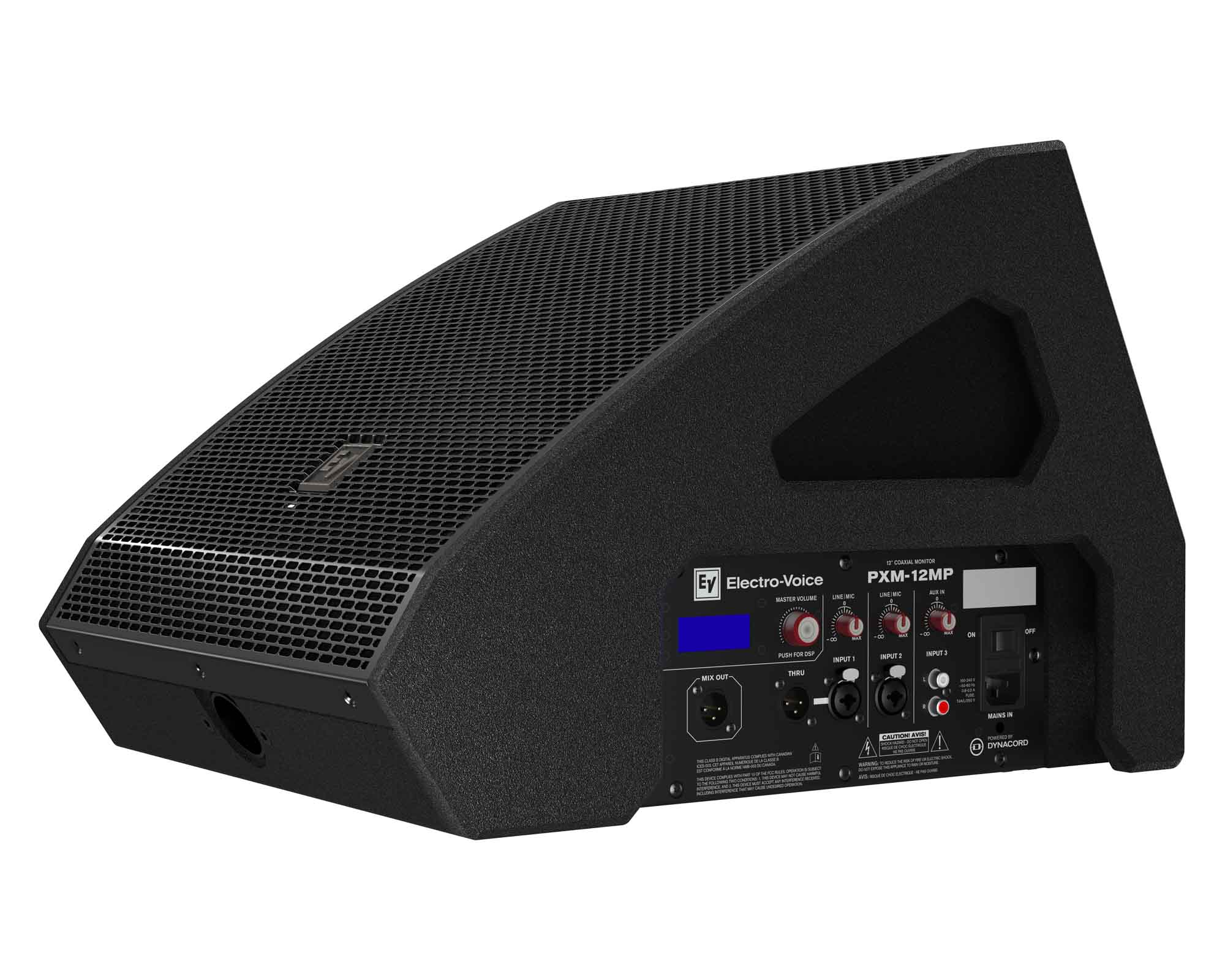

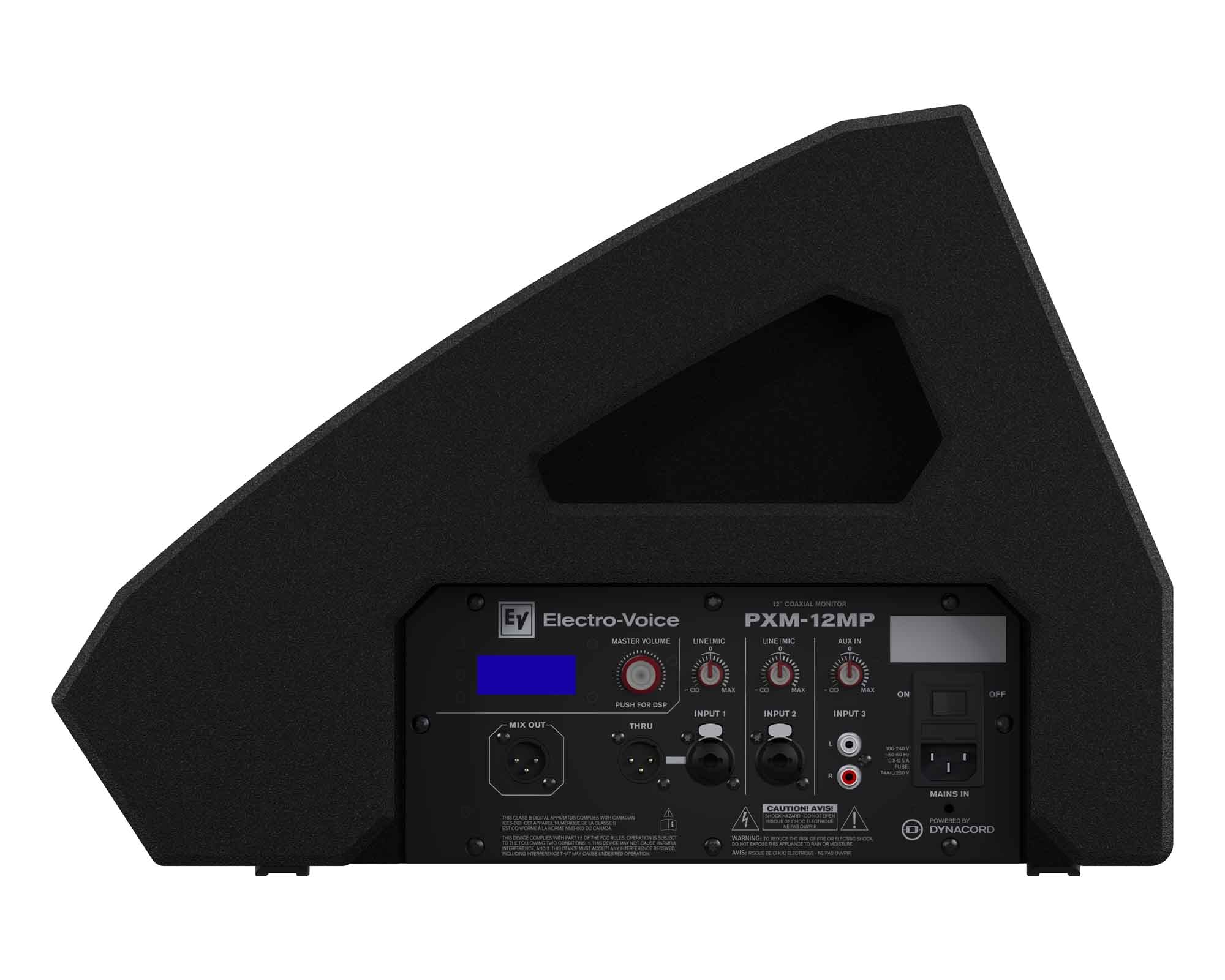

Two XLR/TRS combo inputs and a stereo RCA input, with XLR thru and XLR mix out

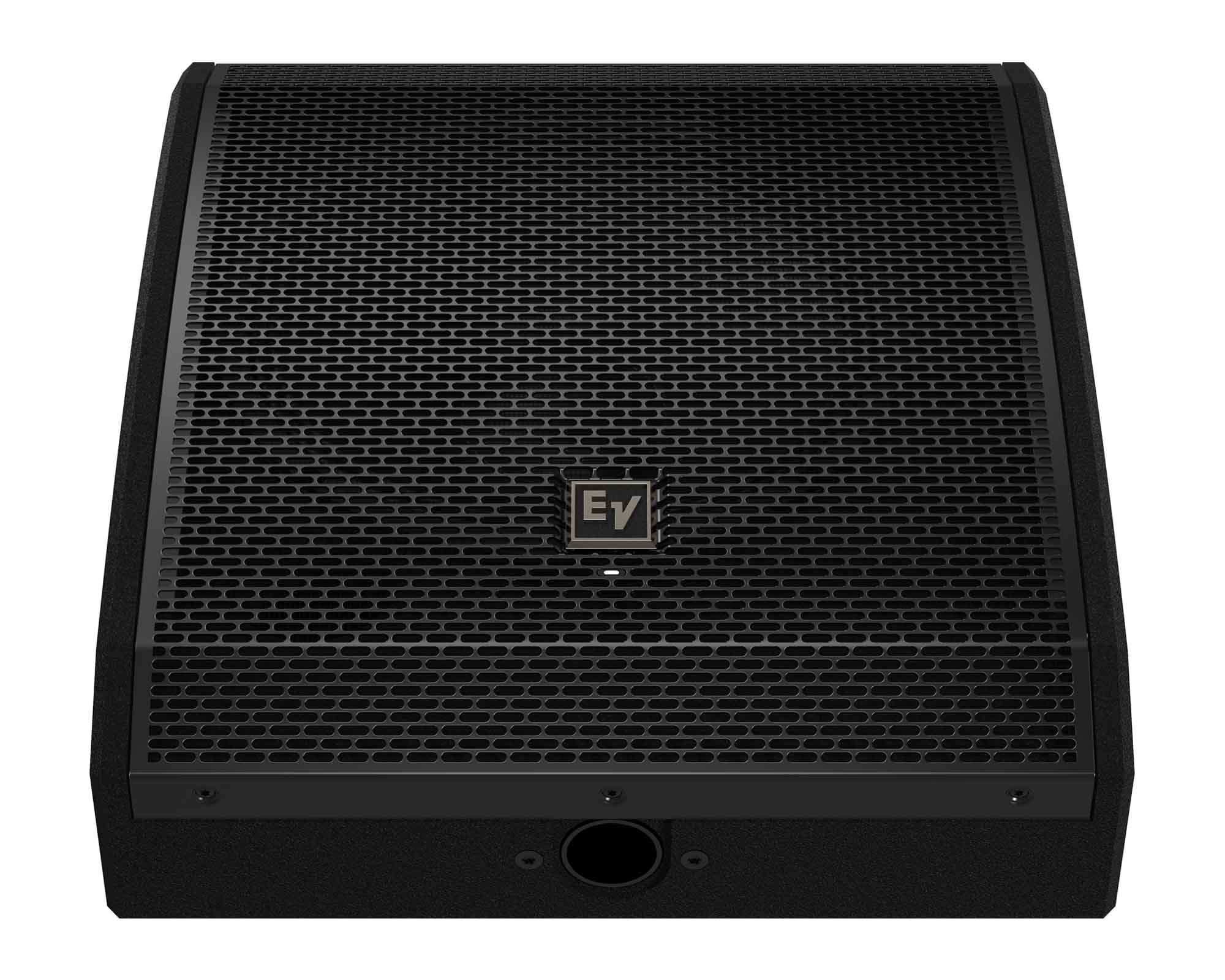

15 mm plywood cabinet with black powder-coated steel grille

Specifications

Electro-Voice PXM-12MP 12″ Powered Coaxial Stage Monitor, Black specifications
Brand	Electro-Voice
Model	PXM-12MP
Manufacturer part number	F.01U.362.555
Driver	CXCA2128-1NA 12″ / 1.75″ 2-way coaxial
Frequency response (-3 dB)	64 Hz-20 kHz
Frequency range (-10 dB)	53 Hz-20 kHz
Maximum SPL	129 dB
Coverage (H x V)	90° x 90°
Monitor angle	55°
Amplifier	700W Class D (500W LF, 200W HF)
Crossover frequency	1.6 kHz
Connectors	2x XLR/TRS combo input, 1x stereo RCA input, 1x XLR thru, 1x XLR mix out
Enclosure	15 mm plywood; steel grille with black powder coat
Dimensions (H x W x D)	334 x 409 x 484 mm
Net weight	13.5 kg
Power	100-240 V AC, 50-60 Hz
Colour	Black

Full features

Multi-functional monitoring system that is useable as a floor wedge or as a mains PA.
Acoustically optimized 55° monitor floor angle
QuickSmartDSP features best-in-class processing. Easy setup via four presets, sub/top system-match, three-band EQ, five user-programmable presets, visual monitoring of limiter status, input level control and meters, and master volume control to optimize gain structure, all via LCD.
700 W Class-D power amplifier designed by Dynacord delivers up to 129 dB peak SPL utilizing transducers by EV.
System reliability verified with over 500 hours of abuse and endurance testing.

Full specifications

Frequency response (-3 dB): 64 Hz - 20 kHz
Frequency range (-10 dB): 53 Hz - 20 kHz
Monitor Angle: 55°
Maximum SPL: 129 dB
Coverage (H x V): 90˚ x 90˚
Amplifier Rating: 700 W
LF Channel Rating: 500 W
HF Channel Rating: 200 W
Crossover frequency: 1.6 kHz
Transducer: CXCA2128-1NA 12” / 1.75” 2-way coaxial
Connectors:
- 2x XLR/TRS combo input
- 1x Stereo RCA input
- 1x XLR THRU input; 1x XLR MIXOUT output
Enclosure: 15 mm Plywood
Grille: Steel with black powder coat
Colour: Black
Dimensions (H x W x D) mm (in): 334 mm x 409 mm x 484 mm (13.1 in x 16.1 in x 19.0 in)
Net weight: 13.5 kg (29.8 lb)
Shipping weight: 15.6 kg (34.3 lb)
Power consumption: 100 - 240 V AC, 50 - 60 Hz, 0.8 - 0.5 A

Product Reviews

No reviews yet — be the first to review this product.

Manuals & Downloads

DatasheetPDF

Installation GuidePDF
