Electro-Voice LRC-1100 EN54 Column Speaker, 100V, 1m, Black

SKU: F.01U.417.804

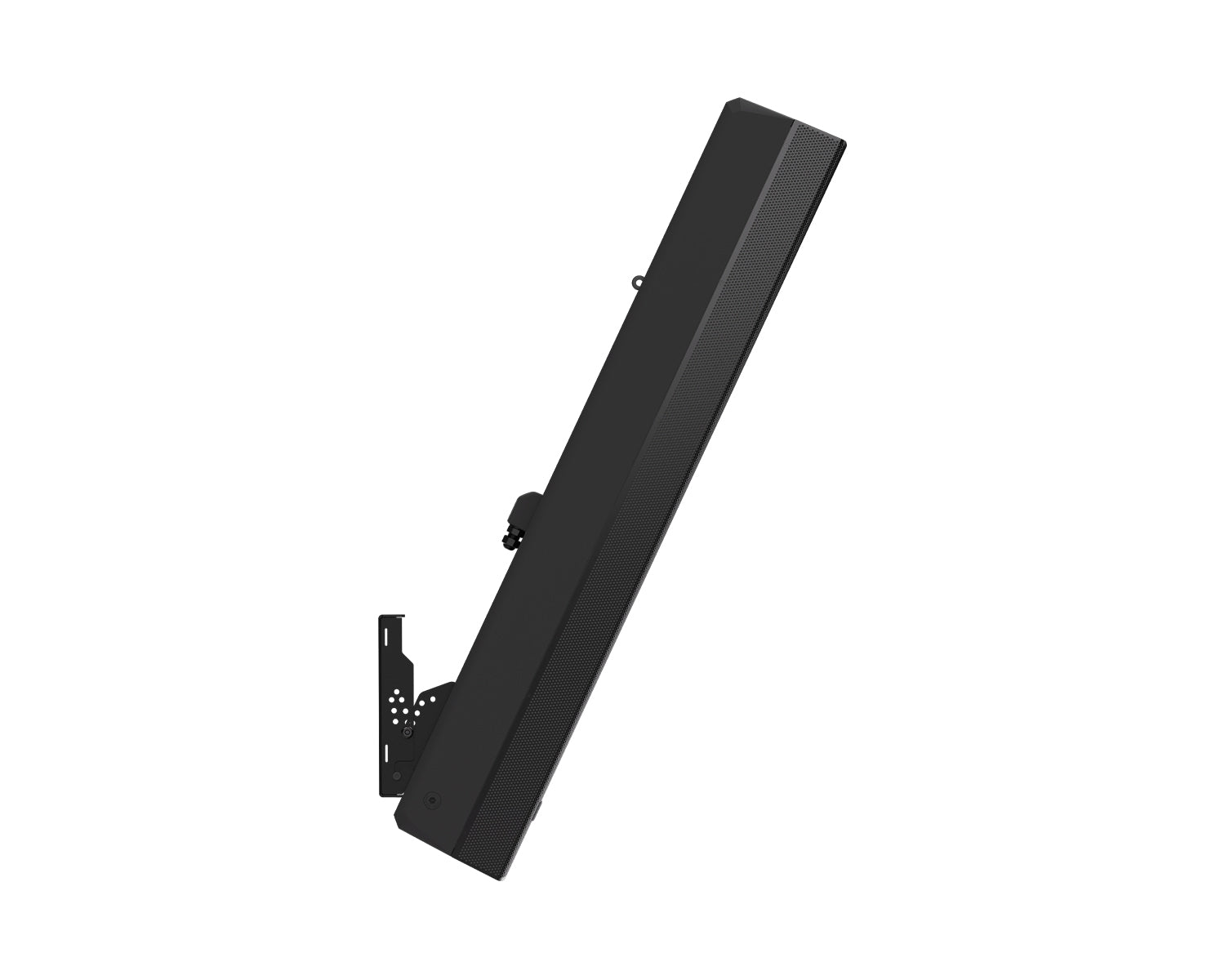

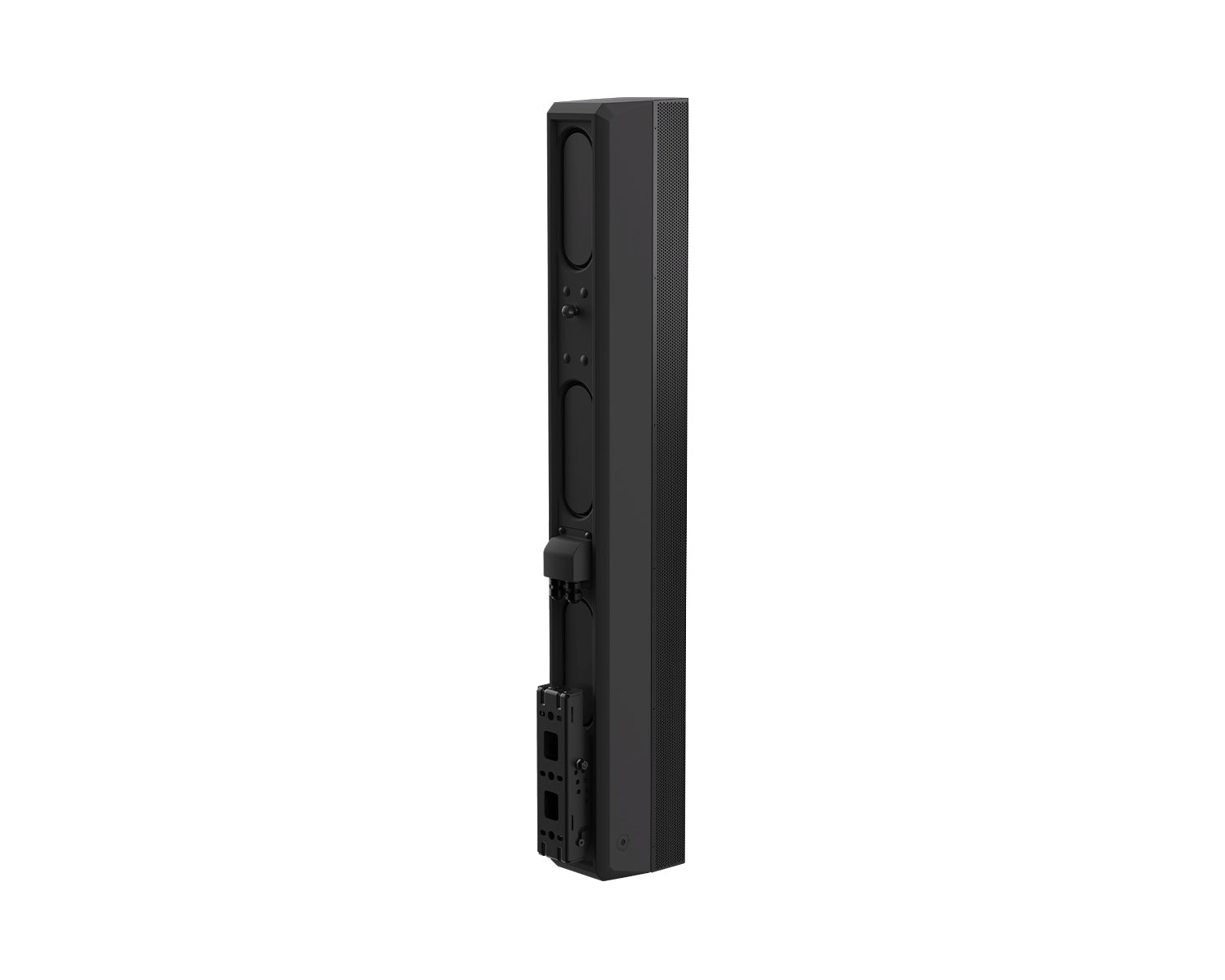

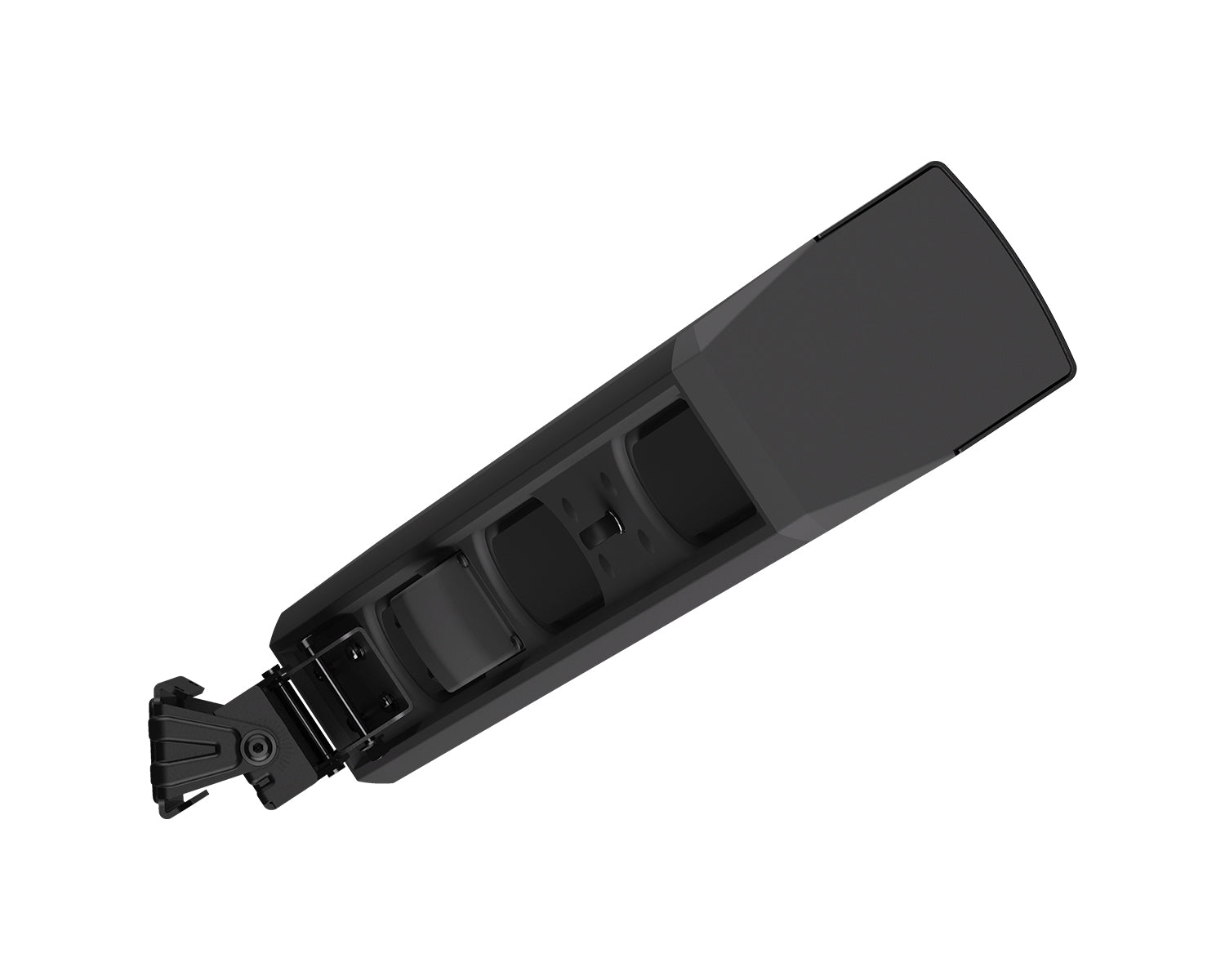

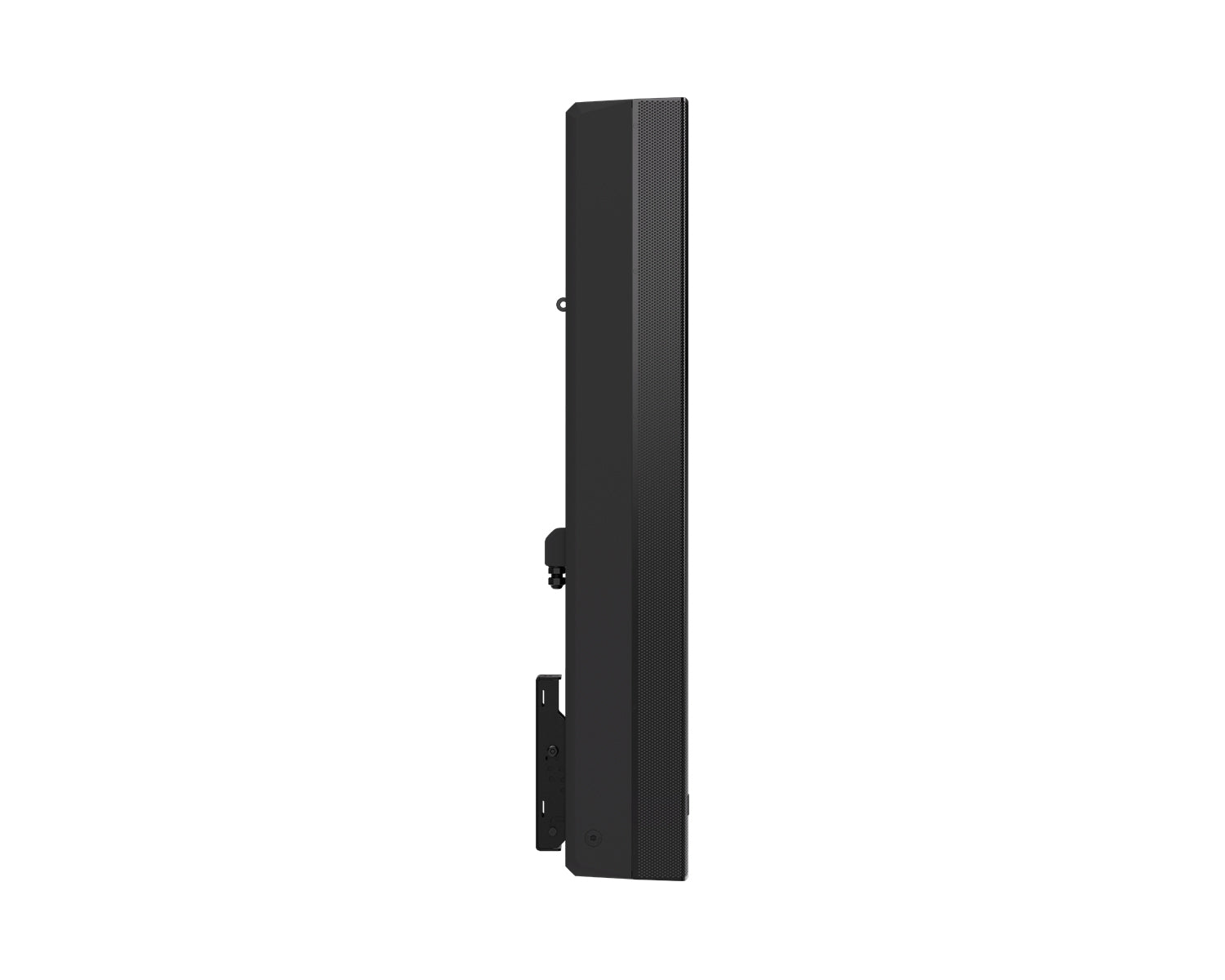

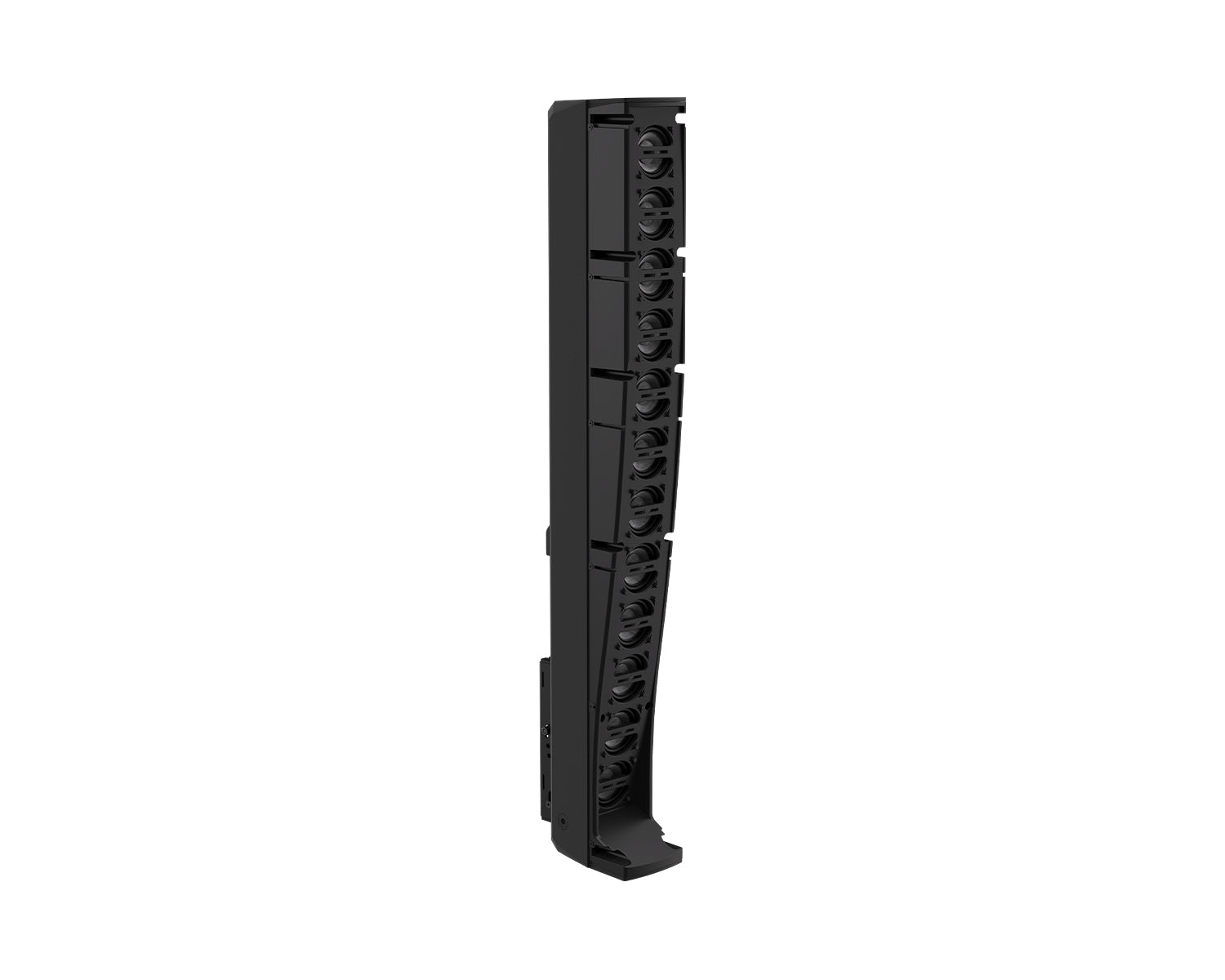

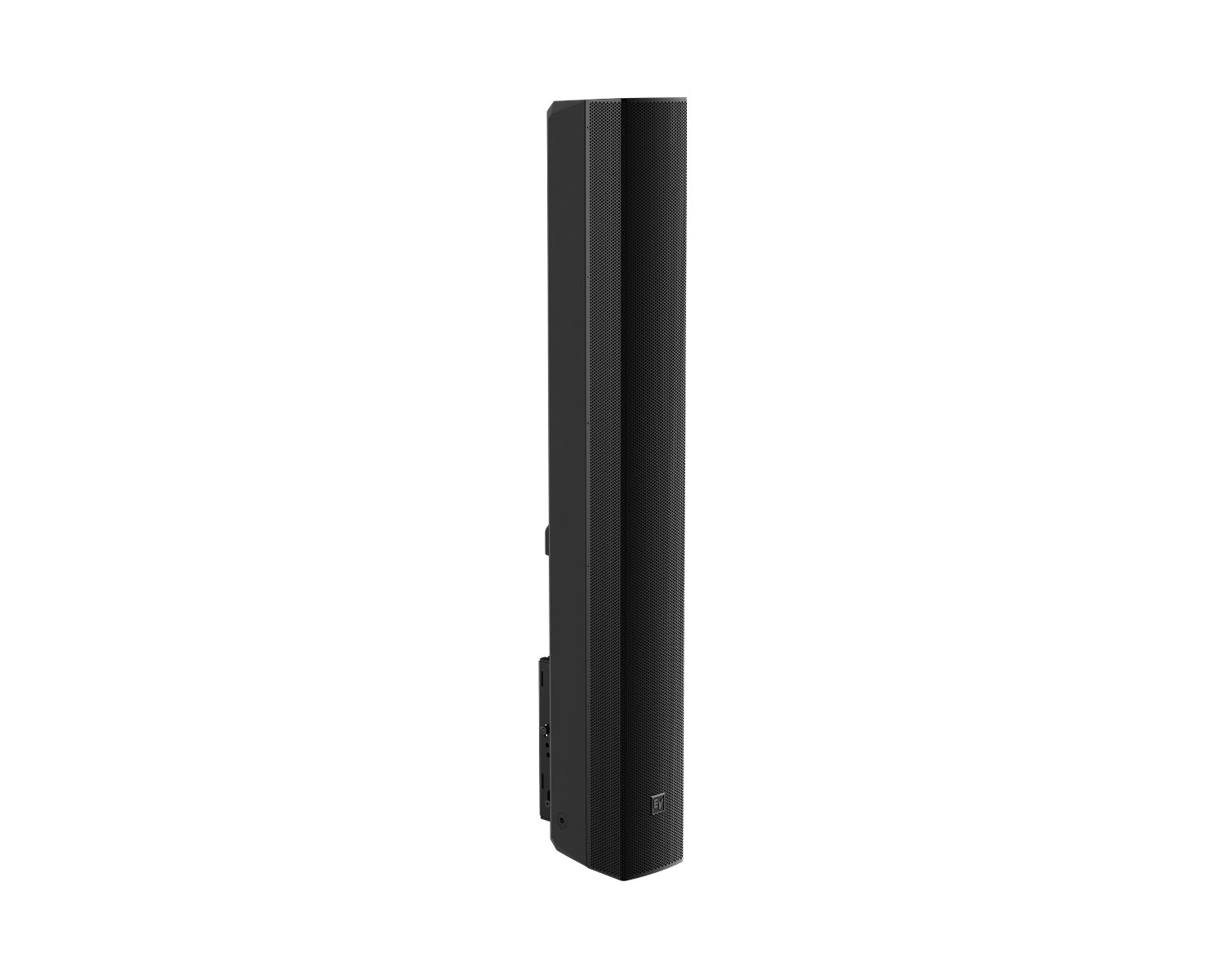

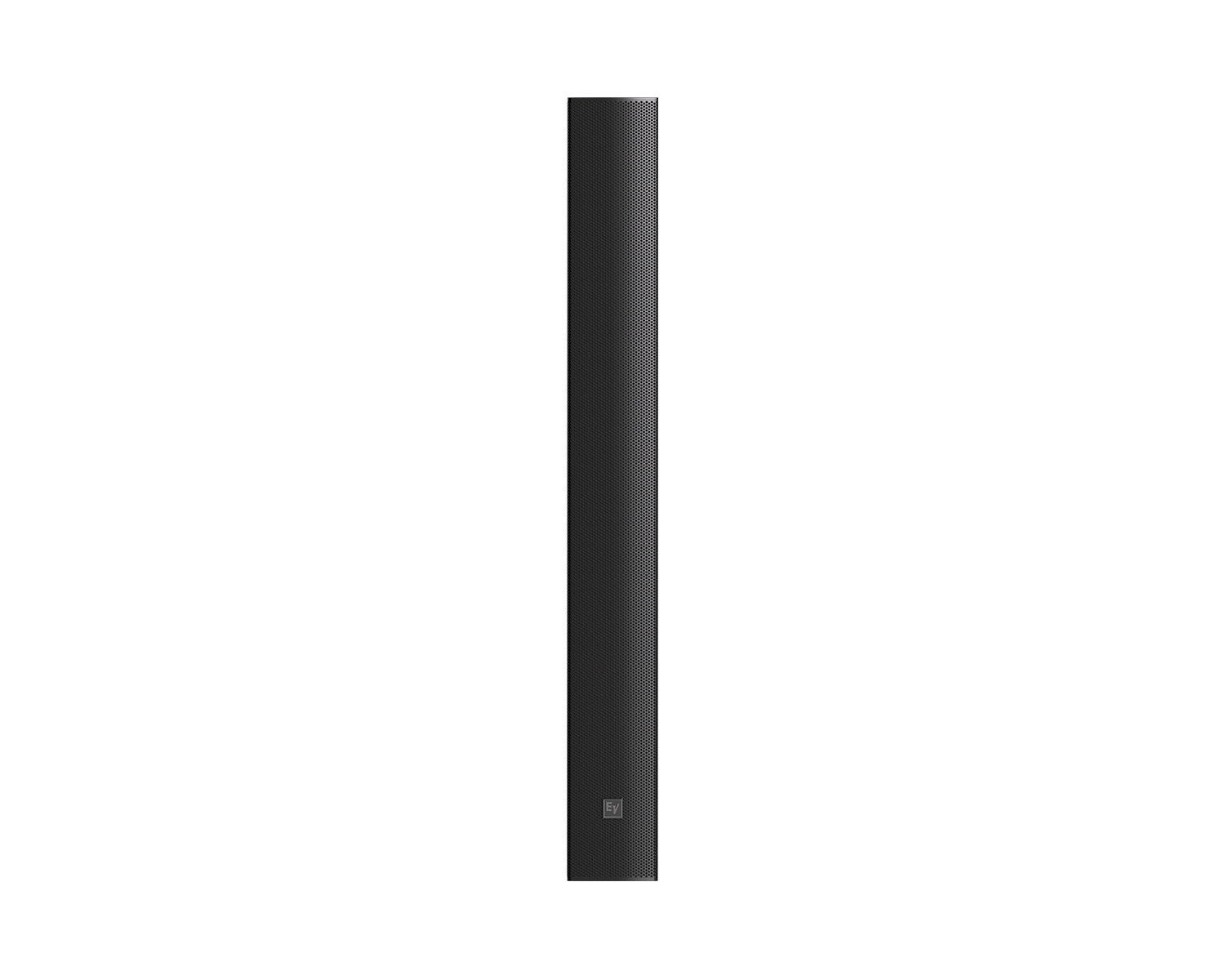

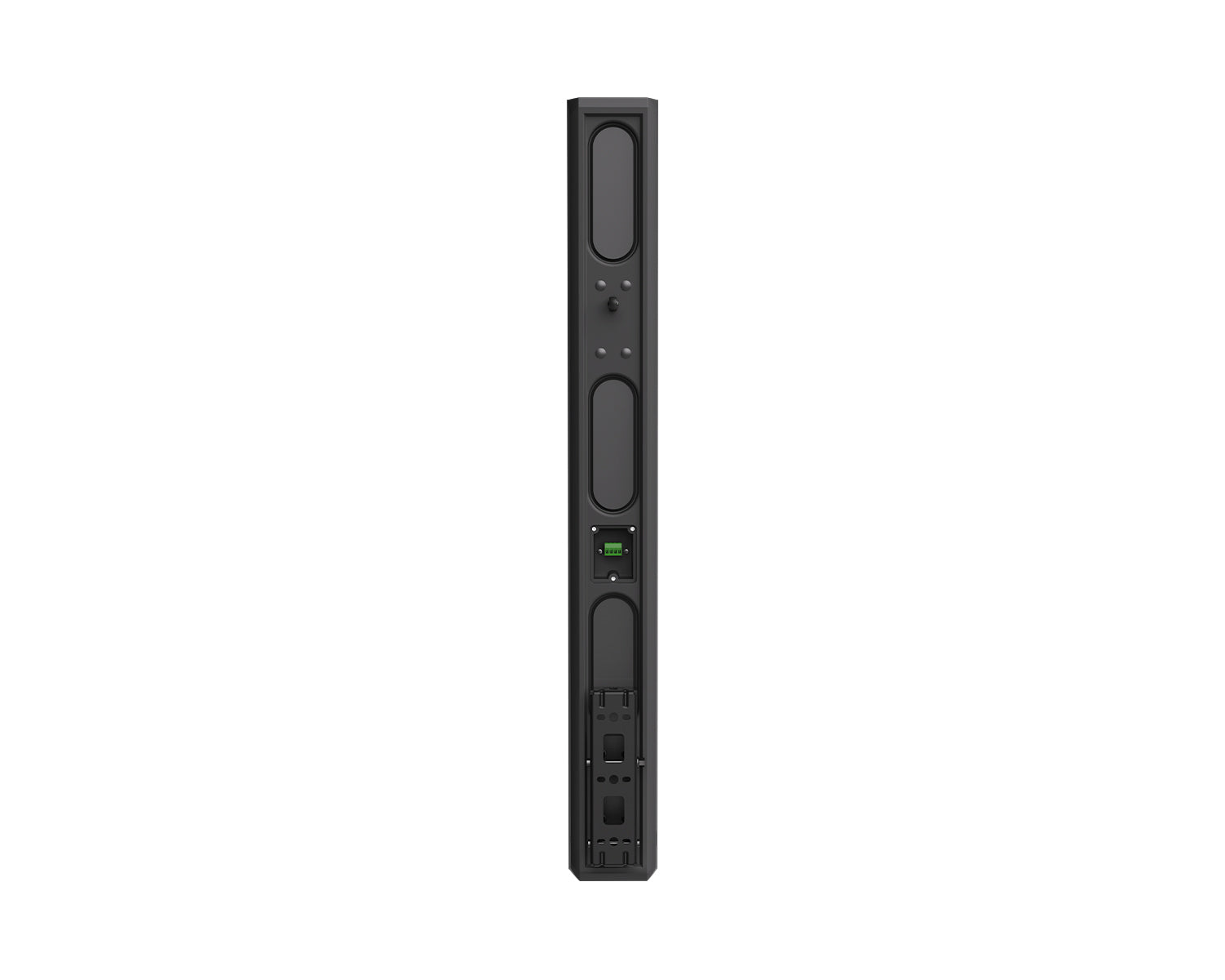

Electro-Voice LRC-1100 EN54 Column Speaker, 100V, 1m, Black - Image 1
Electro-Voice LRC-1100 EN54 Column Speaker, 100V, 1m, Black - Image 2
Electro-Voice LRC-1100 EN54 Column Speaker, 100V, 1m, Black - Image 3
Electro-Voice LRC-1100 EN54 Column Speaker, 100V, 1m, Black - Image 4
Electro-Voice LRC-1100 EN54 Column Speaker, 100V, 1m, Black - Image 5
Electro-Voice LRC-1100 EN54 Column Speaker, 100V, 1m, Black - Image 6
Electro-Voice LRC-1100 EN54 Column Speaker, 100V, 1m, Black - Image 7
Electro-Voice LRC-1100 EN54 Column Speaker, 100V, 1m, Black - Image 8
Click to enlarge

    £905.00 inc VAT
    £754.17 ex VAT

    4 in stock (more available subject to additional lead time)

    4 available online
    More available from supplier in 1–3 weeks
    FREE delivery by TuesdayOrder by 3pm
    Click & Collect Monday ›Collect from our warehouse in Wembley, London
    VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
    Other colours available
    1 Year Manufacturer Warranty Included
    About Stage Supply
    Chat to us on WhatsApp

    About this Product

    LRC-1100 is a 1 m passive column for voice alarm and general installed sound, using twelve 2.5″ full-range drivers with PaSS phase plugs and passive radiators to extend the low end. It is EN54-24 Type B certified and carries a pre-installed 70V/100V transformer with EV’s Automatic Saturation Compensation, alongside an 8 ohm low-impedance mode. Coverage is 130° horizontal with a switchable 20° or 40° vertical pattern, and the column is weatherised for full outdoor exposure.

    EN54-24
    Type B certified
    120W
    Maximum 100V tap
    20°/40°
    Switchable vertical coverage
    126 dB
    Maximum SPL (narrow)
    Features
    EN54-24 Type B certified for voice alarm systems
    Pre-installed 70V/100V transformer with ASC, plus 8 ohm low-impedance mode
    100V taps 120, 60, 30 and 15W; 70V adds an 8W tap
    Switchable 20°/40° vertical pattern with 5° downward bias
    Twelve 2.5″ drivers with PaSS phase plugs and passive radiators
    Weatherised for full outdoor exposure (FW), IP56c per EV datasheet
    SwifTilt pan and tilt bracket included; sits close to the mounting surface
    Specifications
    Brand Electro-Voice
    Model LRC-1100
    Manufacturer part number F.01U.417.804
    EN54 certification EN54-24 Type B
    Drivers (12) 2.5″ active drivers; (3) passive radiators
    Frequency range (-10 dB) 65 Hz-14 kHz
    Coverage (H x V) 130° x 20° (narrow) / 130° x 40° (wide)
    Maximum SPL 126 dB narrow / 123 dB wide
    Axial sensitivity (1W/1m) 93 dB narrow / 91 dB wide
    Power handling (Lo-Z) 200W continuous / 400W program
    Impedance (Lo-Z) 8 Ω nominal
    Transformer taps 100V: 120W, 60W, 30W, 15W; 70V: 120W, 60W, 30W, 15W, 8W
    Recommended high-pass 70 Hz or higher, Butterworth 24 dB/oct
    Connector 4-pin Euroblock input and pass-through (max 12 AWG)
    IP rating FW (outdoor full exposure), IP56c
    Dimensions (H x W x D) 950 x 110 x 150 mm
    Weight 7.6 kg
    Colour Black (RAL 9004)

    Product Reviews

    No reviews yet — be the first to review this product.

    More Information

    • Twelve 2.5-inch full-range drivers coupled to proprietary PaSS phase plugs produce a narrow vertical pattern and exceptional LF extension.
    • User can select a narrow or wide vertical pattern (20°/40°), with a 5° downward bias to focus energy towards the listener.
    • Weatherised for full exposure, including IP56c rating, and EN54-24 Type B certified for all weather applications.
    • SwifTilt Pan-Tilt mounting bracket (patent pending) supports most mounting situations and installs column as close to the mounting surface as possible.
    • Includes rear insert points for suspension
    • 37.4” (950 mm) high
    • 12x 2.5” (63.5 mm) full-range drivers
    • 3x 2.5” (63.4 mm) passive radiators
    • 20°/40° vertical coverage (switchable)
    • 130° horizontal coverage
    • 65 Hz-14 kHz
    • 126 dB SPL (peak)
    • Lo-Z, 8 ohms, 400W program
    • 70/100V
