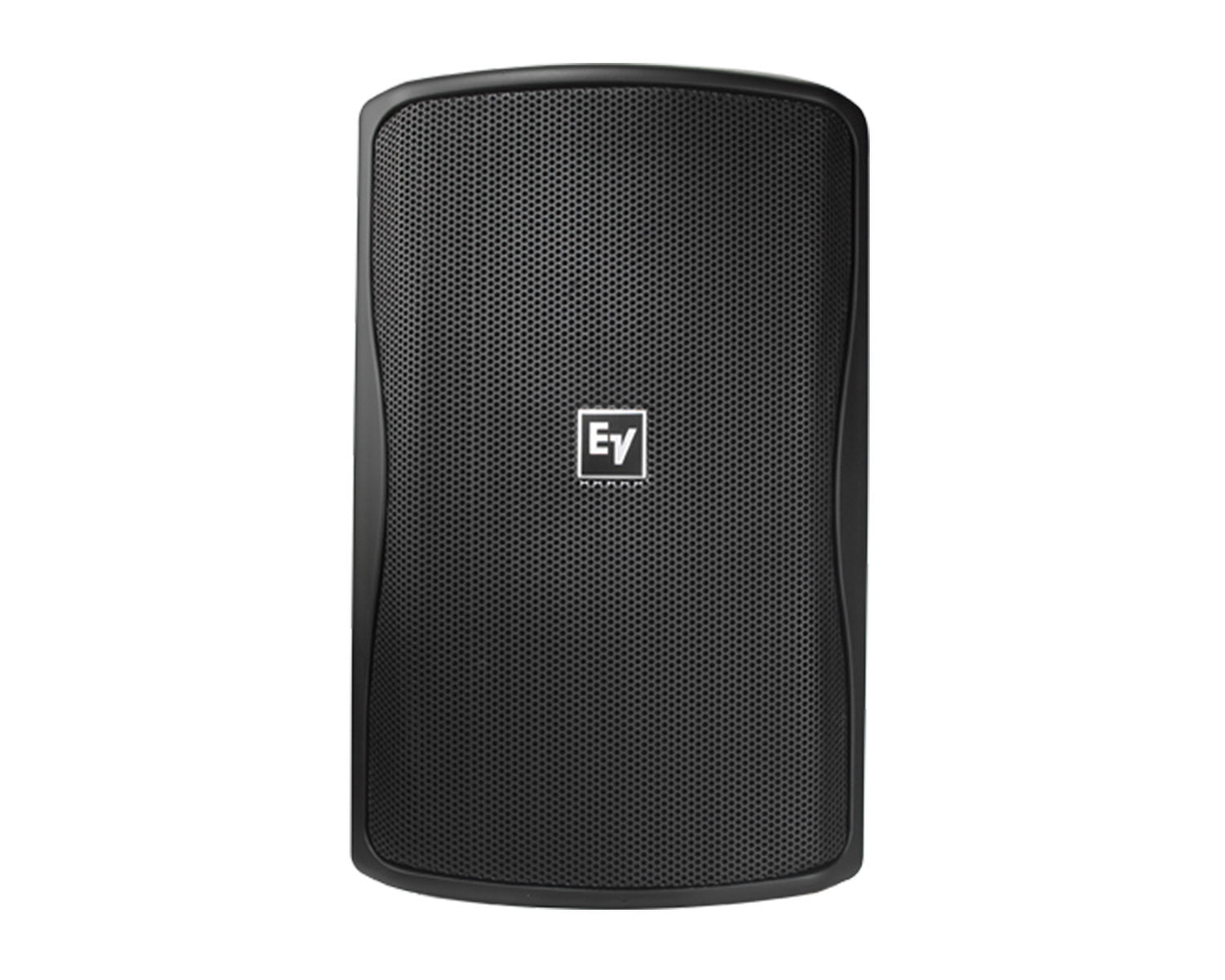

Electro-Voice ZX1i-100 8" 2-Way Install Speaker, IP55, Black

Product code: 186347

£504.00 inc VAT
£420.00 ex VAT

SKU: F.01U.265.577

2 in stock (more available subject to additional lead time)

2 available online

More available from supplier in 1–3 weeks

About this Product

The ZX1i-100 is a compact passive install speaker with an 8″ EV8L weatherised woofer and a DH2005 1″ exit compression driver on a rotatable 100° x 100° horn. It handles 200W continuous (800W peak) at 8 ohms and reaches 121 dB calculated maximum SPL, with response from 60 Hz to 20 kHz (-3 dB). The IP55 ABS cabinet and integrated QuickSAM bracket suit both indoor rooms and outdoor areas.

100° x 100°

Rotatable horn

200W

Continuous power handling

121 dB

Calculated maximum SPL

IP55

Weather rating

8 ohm version; input cover sold separatelyThis is the low-impedance ZX1i-100 with no line transformer. For 70V or 100V distributed systems use the ZX1i-100T. EV’s weatherised input panel cover (TC-ZX1i) is an optional extra.

Features

EV8L 8″ weatherised woofer and DH2005 1″ exit compression driver

Rotatable 100° x 100° horn for broad, even coverage

200W continuous, 400W program, 800W peak power handling

121 dB calculated maximum SPL, 92 dB sensitivity (1W/1m)

IP55 ABS enclosure with multilayer hydrophobic grille cloth

Integrated QuickSAM heavy-duty bracket included: snap on, then tighten

Optional AB-ZE array bracket kit for multiple units

Specifications

Electro-Voice ZX1i-100 8″ 2-Way Install Speaker, IP55, Black specifications
Brand	Electro-Voice
Model	ZX1i-100
Manufacturer part number	F.01U.265.577
LF / HF drivers	EV8L 203 mm (8″) weatherised cone; DH2005 25 mm (1″) exit compression driver
Frequency response (-3 dB)	60 Hz-20 kHz (half-space)
Frequency range (-10 dB)	48 Hz-20 kHz (half-space)
Axial sensitivity (1W/1m)	92 dB
Maximum SPL	121 dB calculated (1 m)
Coverage (H x V)	100° x 100° (rotatable horn)
Rated power	200W continuous / 400W program / 800W peak
Impedance	8 Ω nominal, 6 Ω minimum
Crossover frequency	1.7 kHz
Connector	4-pin Phoenix
IP rating	IP55 (IEC 529)
Enclosure and mounting	ABS resin; integrated QuickSAM bracket
Dimensions (H x W x D)	451 x 282 x 263 mm
Net weight	8.4 kg
Colour	Black

Full features

Integrated QuickSAMTM Heavy-Duty Strong-Arm Mounting Bracket Included
Indoor/Outdoor Design - Meets IEC 529, IP55
8 ohm version with no transformer (ASC is on the ZX1i-100T)
EV8L 8” Weatherized Cone High-Output LF Transducer
DH2005 1” Exit True Compression Driver
100° x 100° Coverage Pattern (90° x 50° is the ZX1i-90)
Rotatable Horn Design
200W Continuous, 800W Peak Power Handling
High Sensitivity, 121 dB Maximum SPL

Full specifications

General

Input Connections: 4-pin Phoenix
Nominal Impedance: 8 Ω
Speaker Type: Full-range, Mid-High, Two-Way
Frequency Response (-3 dB): 60 - 20000 Hz
Frequency Response (-10 dB): 48 - 20000 Hz
Internal Crossover: Yes
Recommended High-Pass Frequency: 40 Hz
Sensitivity 1 W/1 m: 92 dB
Max. SPL/1m (calc): 121 dB
Coverage (Nominal -6 dB) H: 100° (rotatable horn)
Coverage (Nominal -6 dB) V: 100° (rotatable horn)
Rotatable Horn: Yes
System Power Handling (Continuous/Program/Peak): 200/400/800 Watts
LF Transducer: EV8L 8-inch Weatherized Cone
HF Transducer: DH2005 1-in Exit True Compression Driver
Crossover Frequency: 1700 Hz
Minimum Impedance: 6 Ω
Enclosure Material: Injection-moulded high-impact ABS resin
Flying: Yes
Outdoor: Yes
Grill: Polyester Powder Coated, 18GA Galvanized Steel

Physical & Dimensions

Height: 451mm
Width: 282mm
Depth: 263mm
Weight: 8.4kg

Product Reviews

No reviews yet — be the first to review this product.

Manuals & Downloads

DatasheetPDF

Installation GuidePDF
