Rated 4.9 (120 reviews)

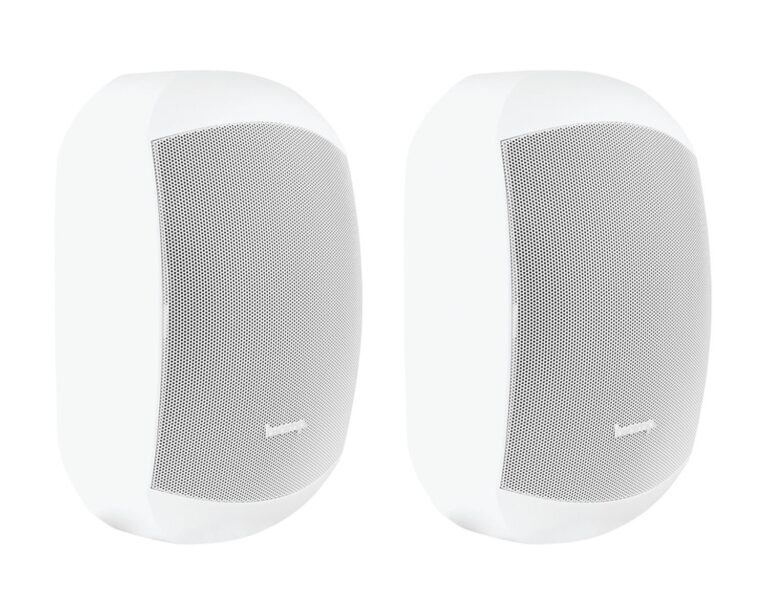

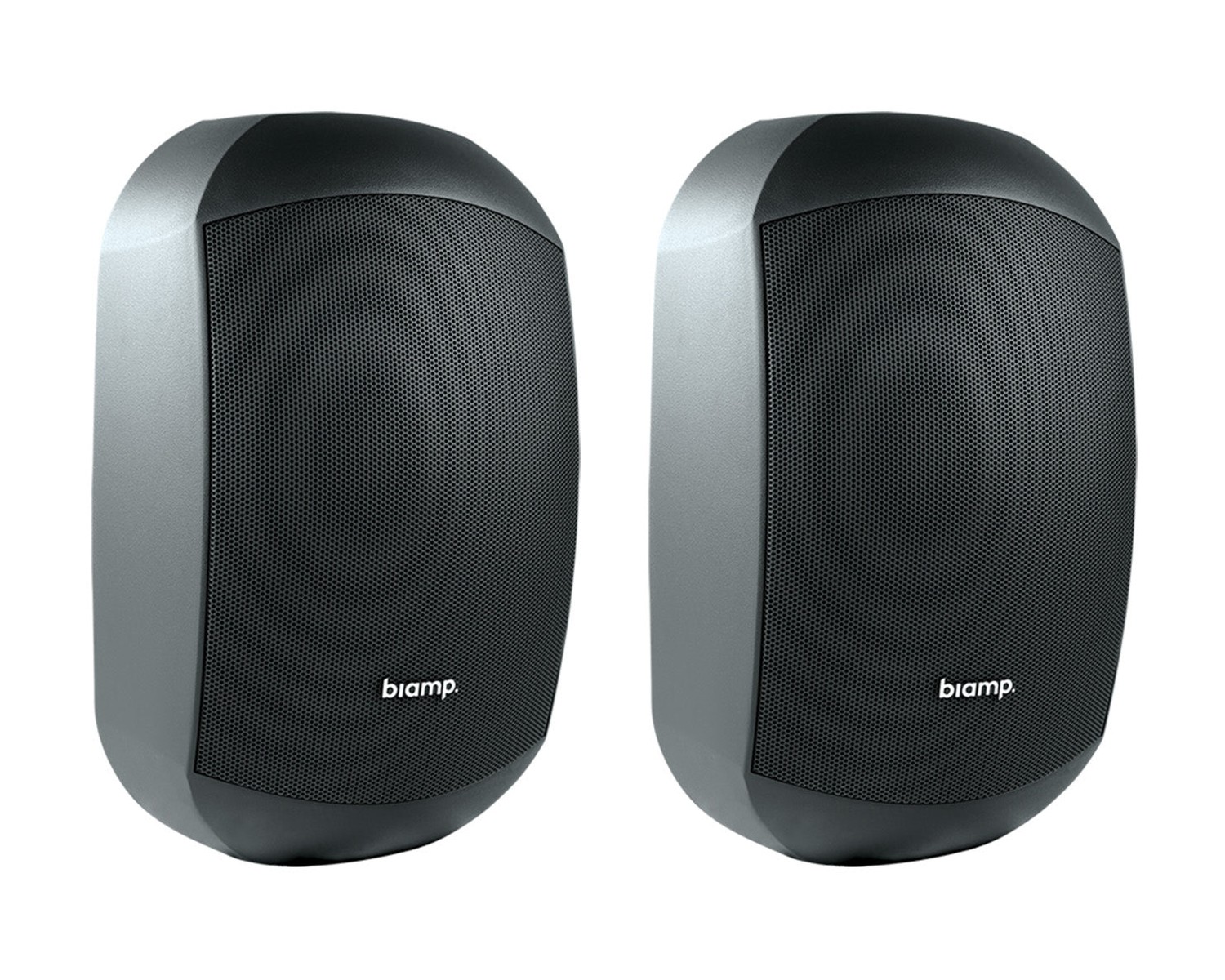

The Apart MASK6CT is the 100V-line version of the MASK6C, a 6.5″ two-way passive loudspeaker with switchable 100V transformer or 16Ω low-impedance operation. Clickmount install, IP64 rated. The workhorse choice for distributed PA across large retail, hospitality and corporate sites. Supplied as a pair.
150W
Power · @ 100V tapped
100V
Voltage · + 16Ω low-Z
6.5″
Driver · 2-way
IP64
IP Rating · Dust/splash
Features
Switchable 100V line / 16Ω low-impedance operation
Multi-tap transformer for system flexibility
Clickmount bracket, install in seconds
IP64 rated for covered outdoor or wet areas
6.5″ woofer + high-frequency tweeter
Suited to long cable runs on 100V distributed systems
Black or white finish, paintable
Designed and manufactured by Apart (Biamp)
Specifications
| Supplied as | Pair (2 speakers) |
| System | Two-way |
| Operating Mode | Passive |
| Transducers | LF 1 x 165 mm coated paper cone; HF 1 x 25 mm soft dome |
| Power | 150W continuous @ 8Ω; 600W peak |
| Transformer | 70V: 60W, 30W, 15W, 7.5W, 3W; 100V: 60W, 30W, 15W, 6W |
| Impedance | 8Ω |
| Frequency range | Operating Range (-10dB) 65 Hz to 22 kHz |
| Sensitivity | Nominal Sensitivity @ 1m; @ 1W; 90 dB; @ 2.83V; 87 dB |
| SPL | Nominal Maximum SPL @ 1m; Peak; 118 dB; Continuous; 112 dB |
| Beamwidth | Nominal Beamwidth (H x V) 100° x 50° |
| Recommended amplifier | 150W to 300W @ 16Ω (49V to 69V) |
| IP rating | IP64 per IEC 60529 |
| Operating Environment | Indoor/Outdoor |
| Mounting | ClickMount bracket |
| Included Accessories | ClickMount bracket; safety cable |
| Material | Grille: Aluminium |
| Enclosure | ABS plastic |
| Dimensions | 328 x 198 x 190 mm (H x W x D) |
| Weight | 4.4 kg |
| Audio | Audio connections made at the ClickMount bracket; lever-action input and output terminals accept up to 16 AWG conductors |
