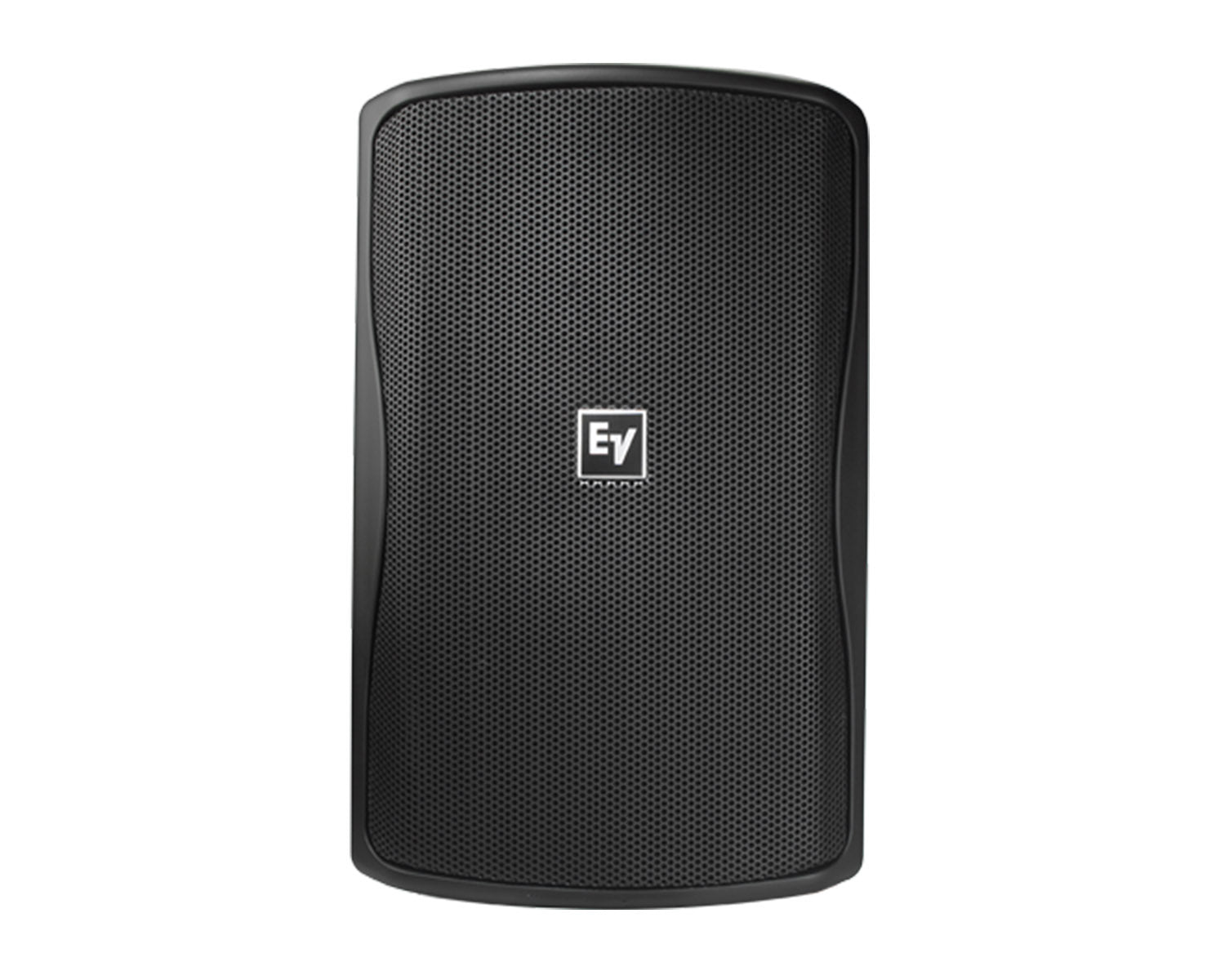

ZX1i-100T is the transformer version of the ZX1i-100, adding a tapped 70V/100V transformer with EV’s Automatic Saturation Compensation to the same 8″ woofer, 1″ compression driver and rotatable 100° x 100° horn. ASC prevents low-frequency transformer saturation, so EV says the high-pass filter does not need raising as more speakers go on the line. It suits distributed constant-voltage installations, and EV lists EN54-24 Type B certification when the separately sold TC-ZX1i cover is fitted.
100W
Maximum 100V tap
100° x 100°
Rotatable horn
121 dB
Calculated maximum SPL
IP55
Weather rating
EN54-24 needs the TC-ZX1i coverEV’s EN54-24 Type B certification (1438/CPR/0323) only applies with the TC-ZX1i input cover installed, which is sold separately, and EV notes the certified configuration is only available in select regions. Check before specifying it for voice alarm.
Features
Built-in transformer with ASC: 100V taps 12.5, 25, 50 and 100W
70V taps from 6.5W to 100W, plus 8 ohm bypass
EV8L 8″ weatherised woofer with DH2005 1″ exit compression driver
Rotatable 100° x 100° horn
200W continuous, 400W program, 800W peak rated system power
IP55 ABS enclosure for indoor and outdoor installation
Integrated QuickSAM heavy-duty mounting bracket included
Specifications
| Brand | Electro-Voice |
| Model | ZX1i-100T |
| Manufacturer part number | F.01U.265.579 |
| LF / HF drivers | EV8L 203 mm (8″) weatherised cone; DH2005 25 mm (1″) exit compression driver |
| Frequency response (-3 dB) | 60 Hz-20 kHz (half-space) |
| Frequency range (-10 dB) | 48 Hz-20 kHz (half-space) |
| Axial sensitivity (1W/1m) | 92 dB |
| Maximum SPL | 121 dB calculated (1 m) |
| Coverage (H x V) | 100° x 100° (rotatable horn) |
| Rated power | 200W continuous / 400W program / 800W peak |
| Transformer taps (100V) | 12.5W, 25W, 50W, 100W, 8 Ω bypass |
| Transformer taps (70V) | 6.5W, 12.5W, 25W, 50W, 100W, 8 Ω bypass |
| Connector | 4-pin Phoenix |
| IP rating | IP55 (IEC 529) |
| EN54 certification | EN54-24 Type B (1438/CPR/0323) with TC-ZX1i cover fitted; select regions |
| Dimensions (H x W x D) | 451 x 282 x 263 mm |
| Net weight | 10.4 kg (with transformer) |
| Colour | Black |
