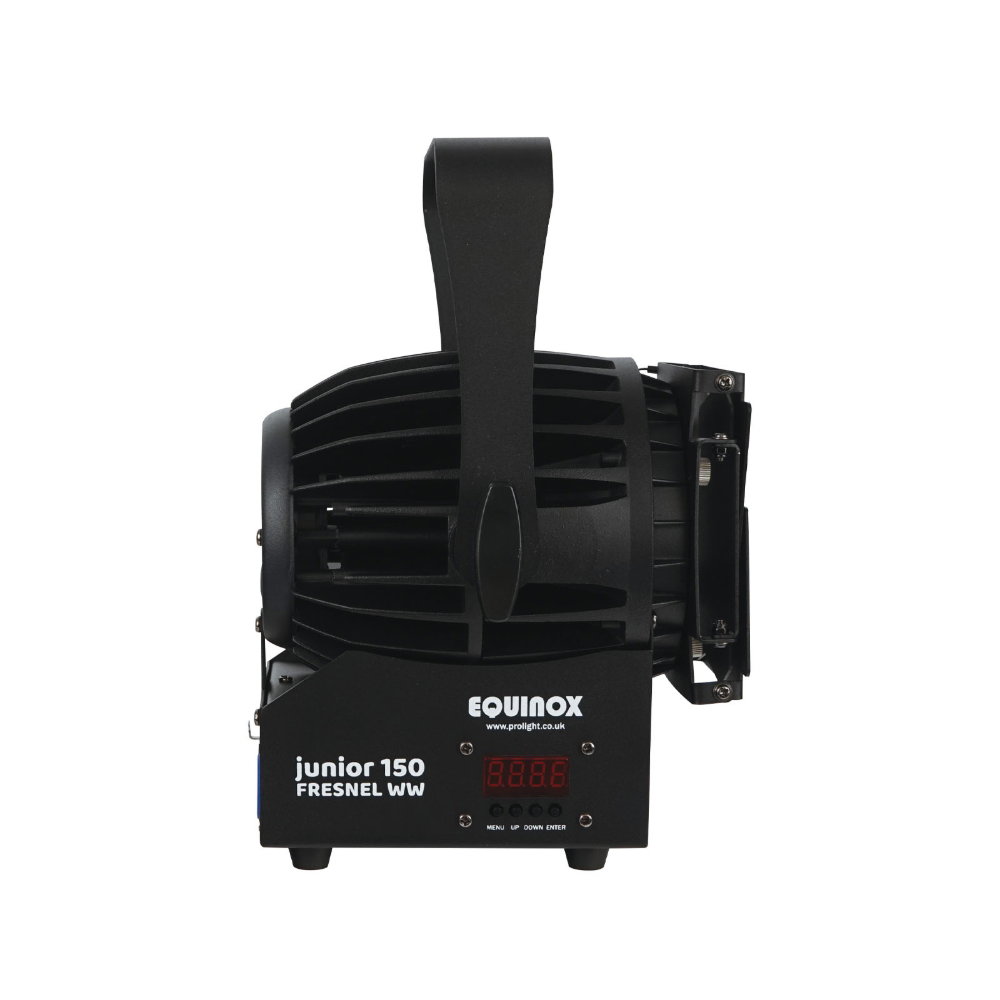

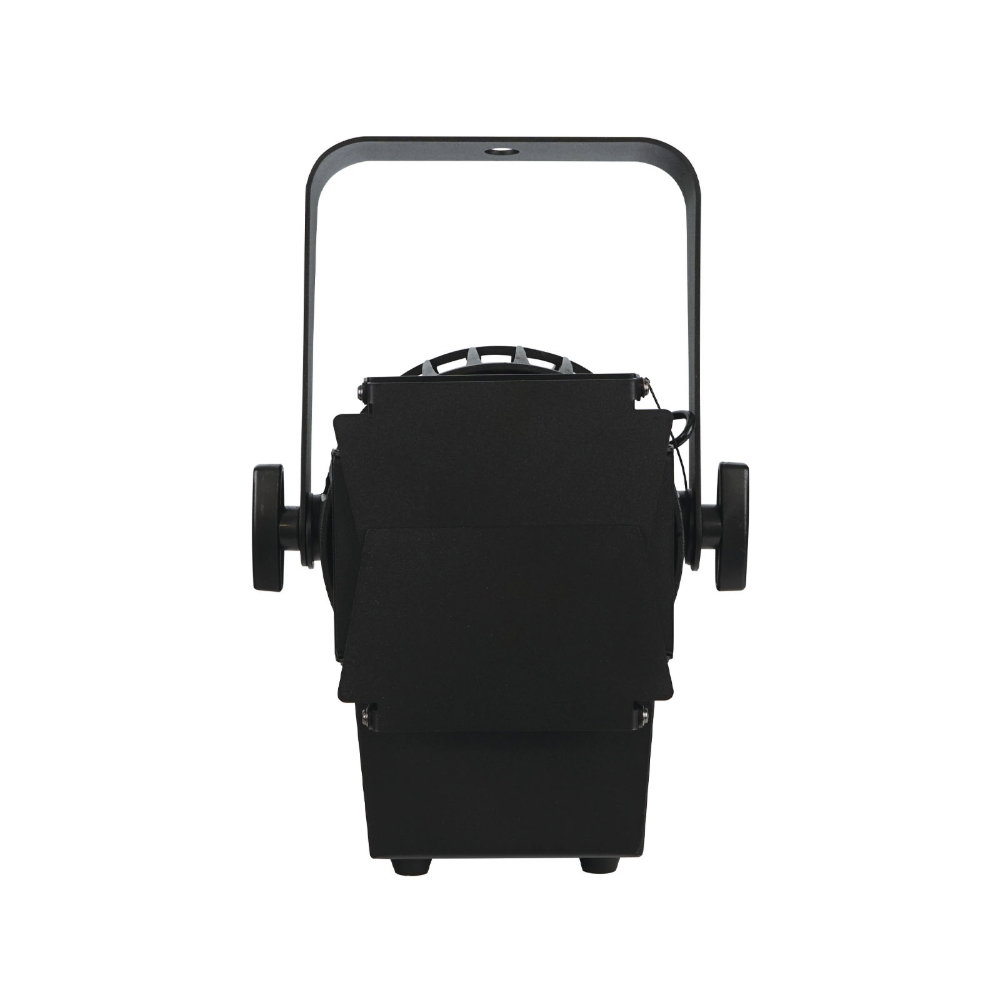

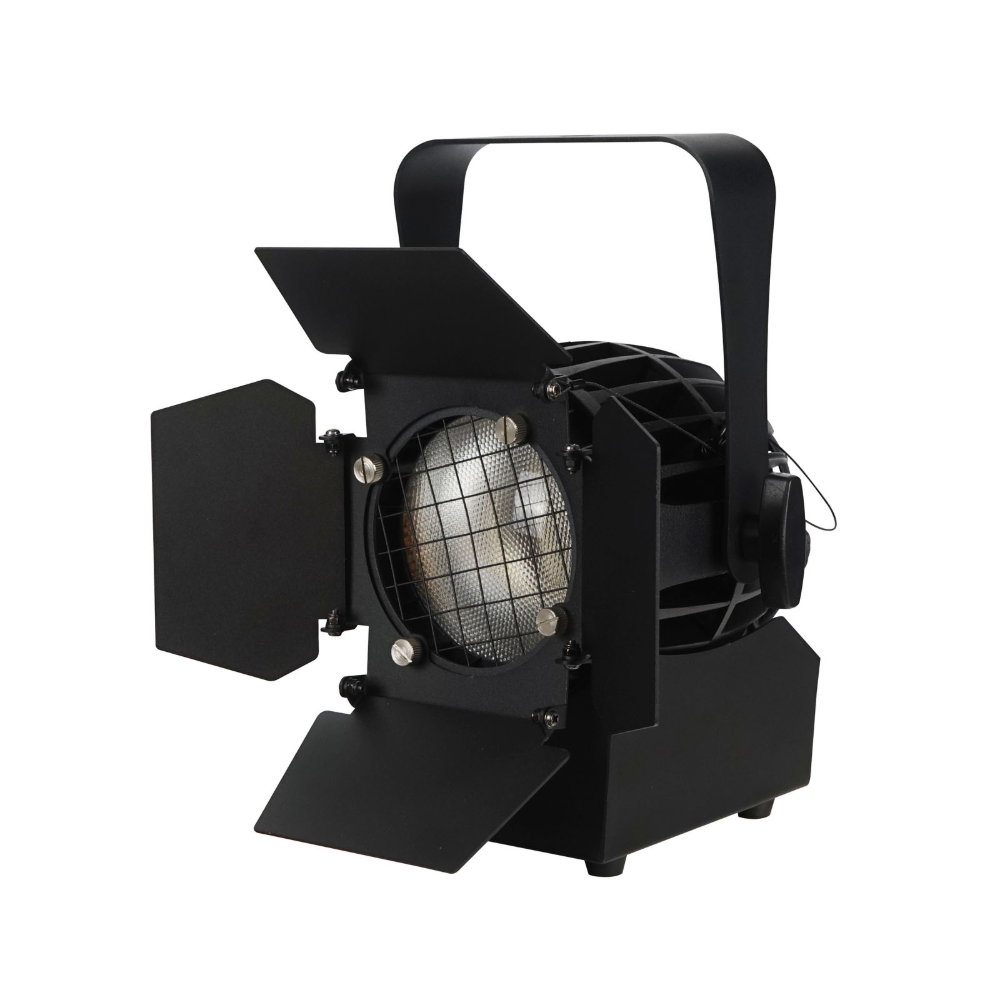

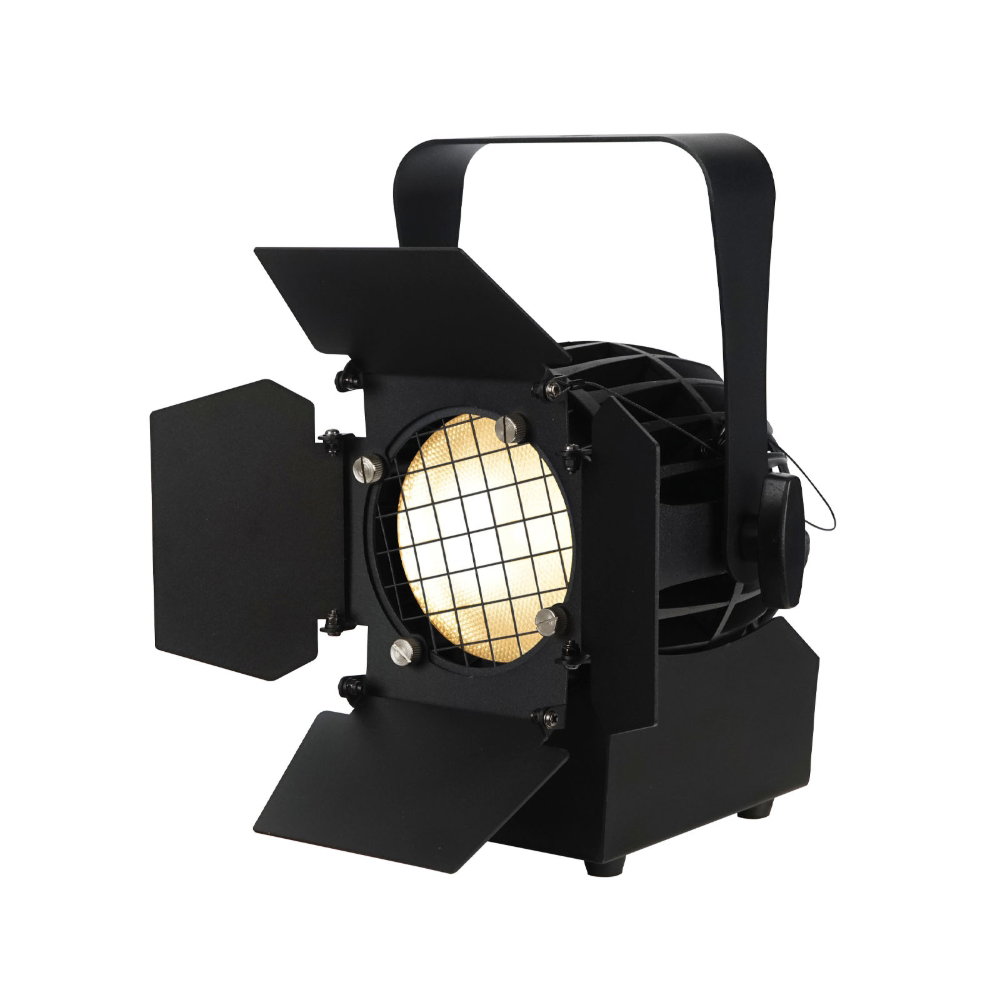

The Equinox Junior 150 Fresnel is a compact warm white stage lantern built on a 150W COB LED source running at 2,900K with a CRI of 90. It is aimed at small stages, studios, school halls and display lighting where a tungsten-look key or fill light is needed but there is no space or dimmer capacity for a conventional fixture. Barn doors are supplied as standard.
LED SOURCE
150W COB
Warm white
COLOUR TEMP
2,900K
Tungsten match
CRI Ra
90
Natural rendering
BEAM ANGLE

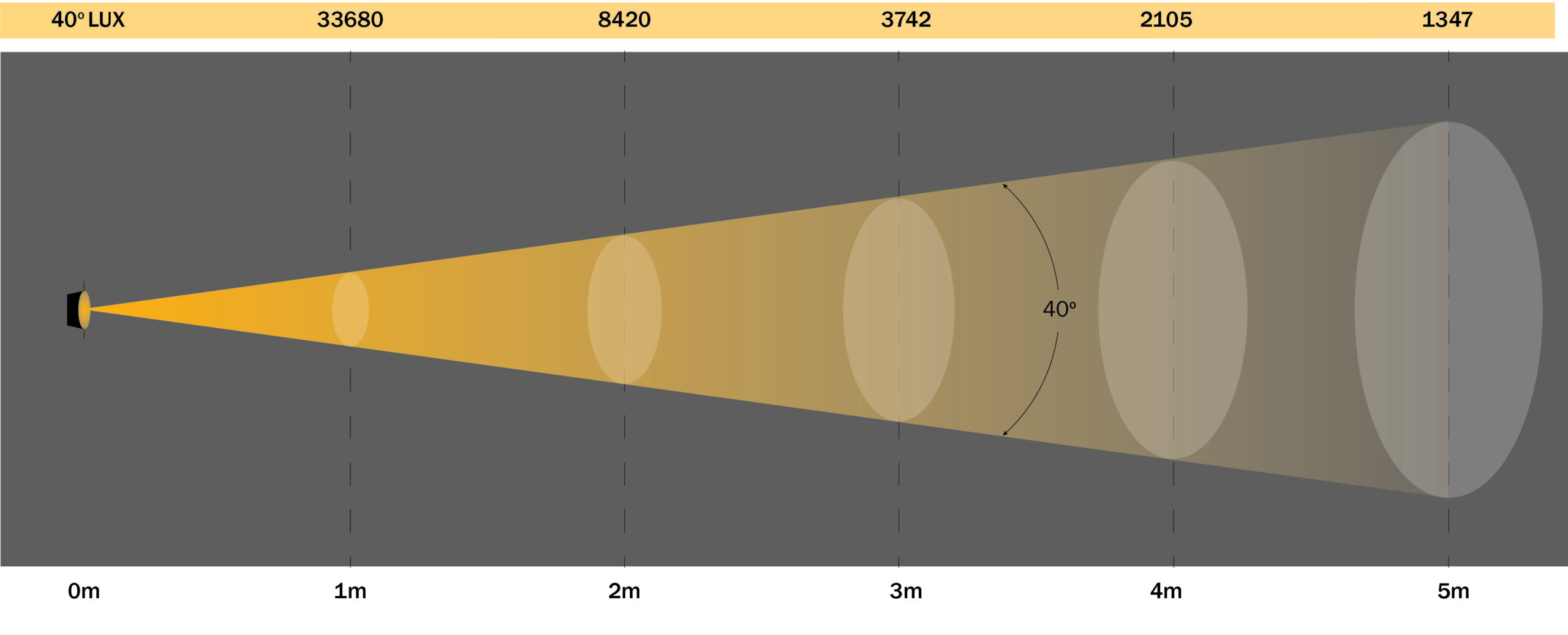

40°
Fixed
Dimming and control
Selectable 1 or 3 channel DMX with RDM for remote addressing and status, plus manual dimming from the onboard menu when no console is present. Multiple dimming curves are provided (linear, square law, inverse square law and S-curve) with both LED and halogen emulation profiles, so the fixture can be matched to existing tungsten lanterns in the same rig.
Features
✓1 x 150W warm white COB LED at 2,900K
✓CRI Ra 90 for natural skin tones and set colours
✓Fixed 40° beam for an even, soft-edged wash
✓RDM compatible for remote addressing
✓1 or 3 selectable DMX channel modes
✓LED and halogen dimming curve profiles
✓11.8kHz refresh rate, flicker-free for broadcast and streaming

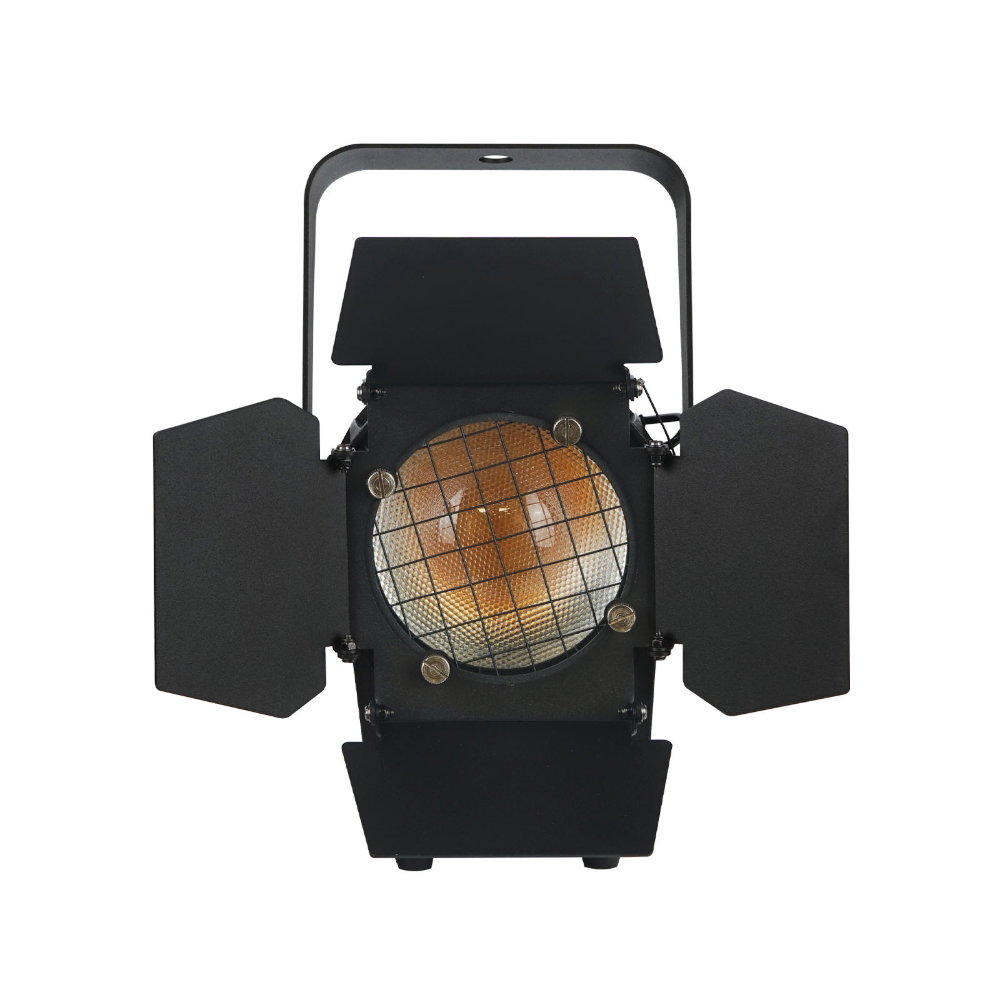

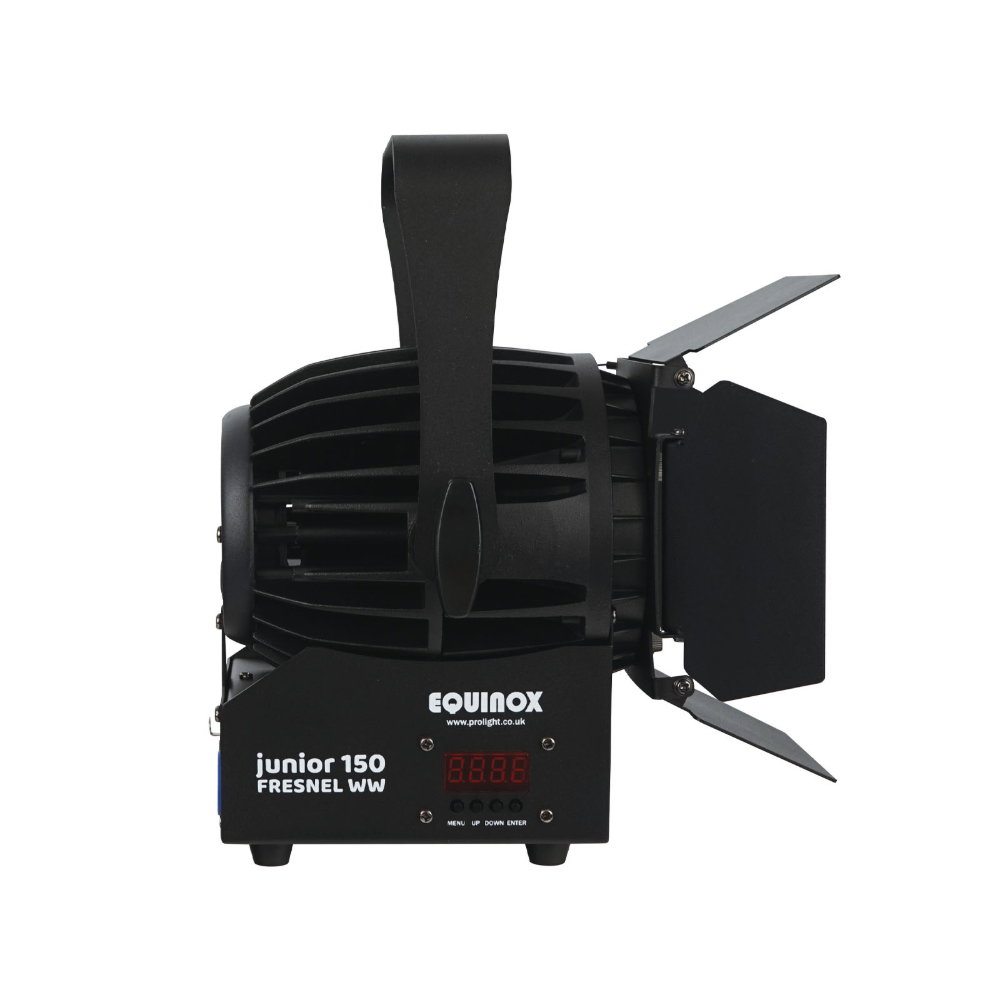

✓Barn doors included
✓Temperature controlled fan keeps noise down in quiet scenes

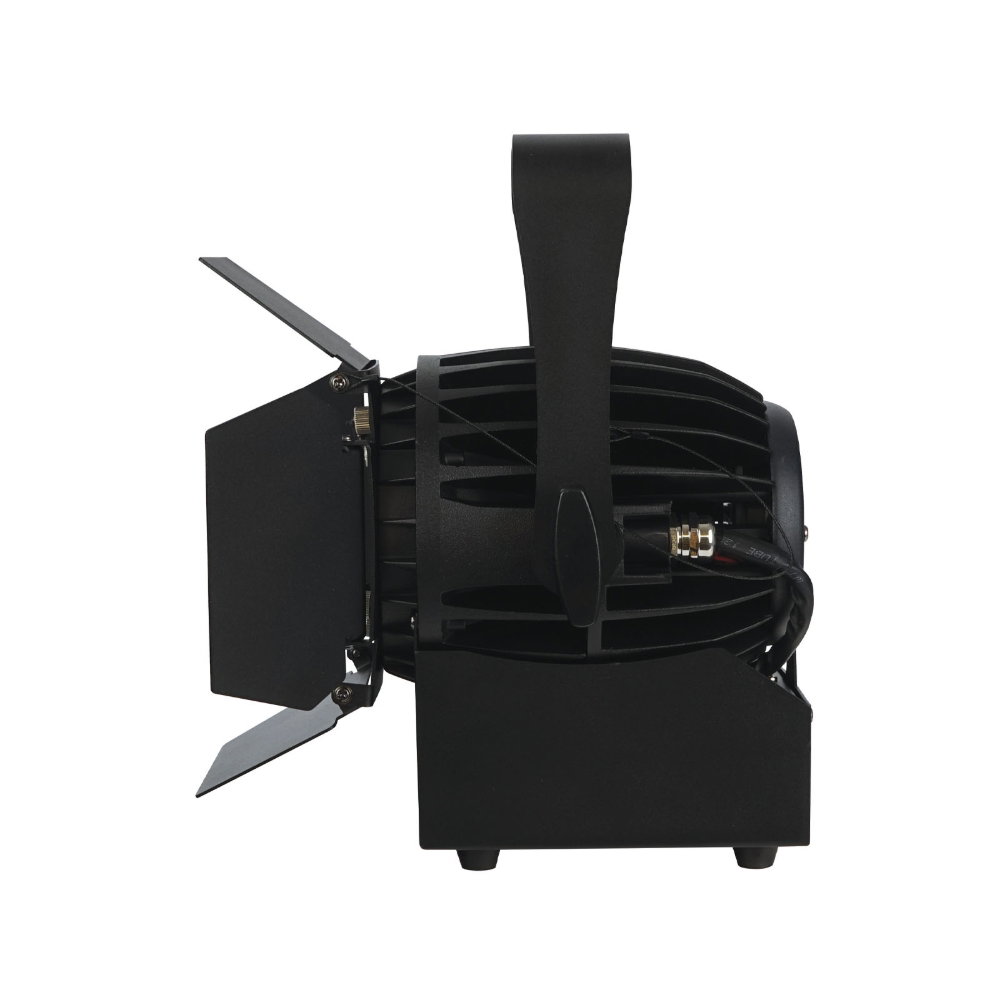

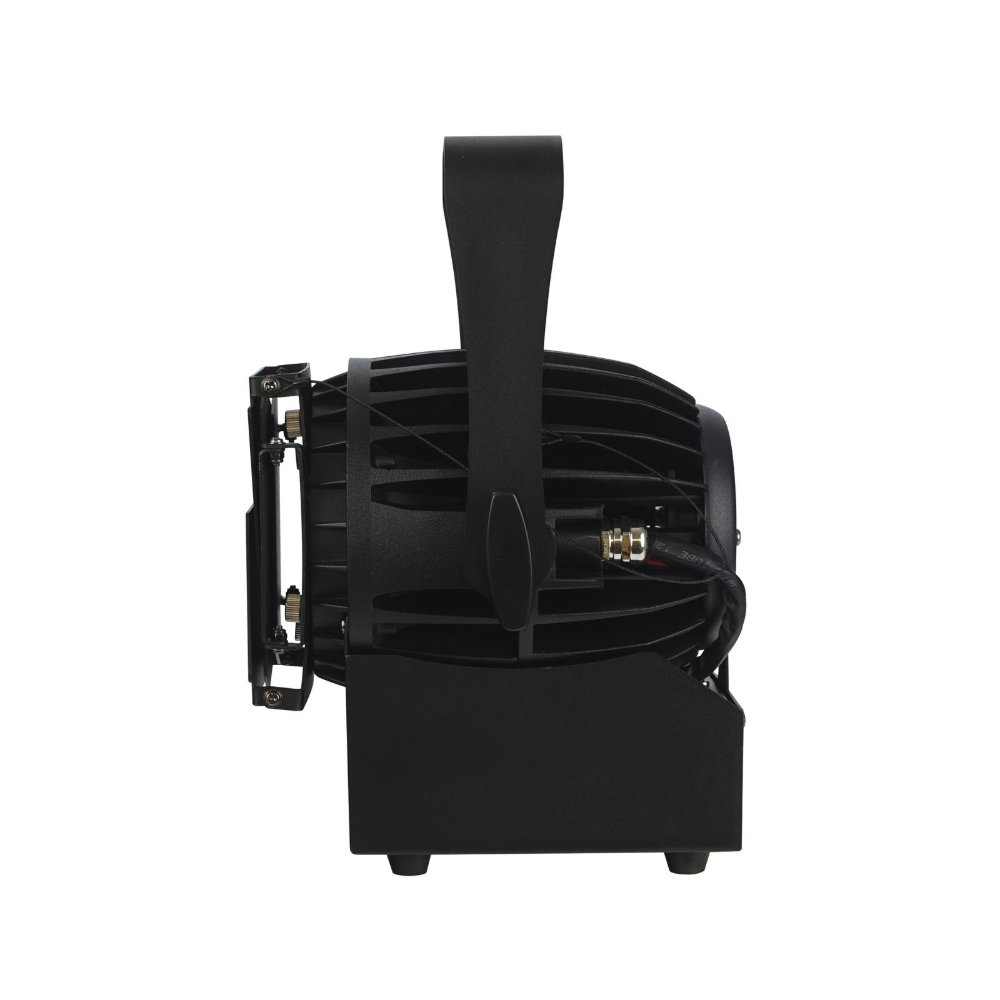

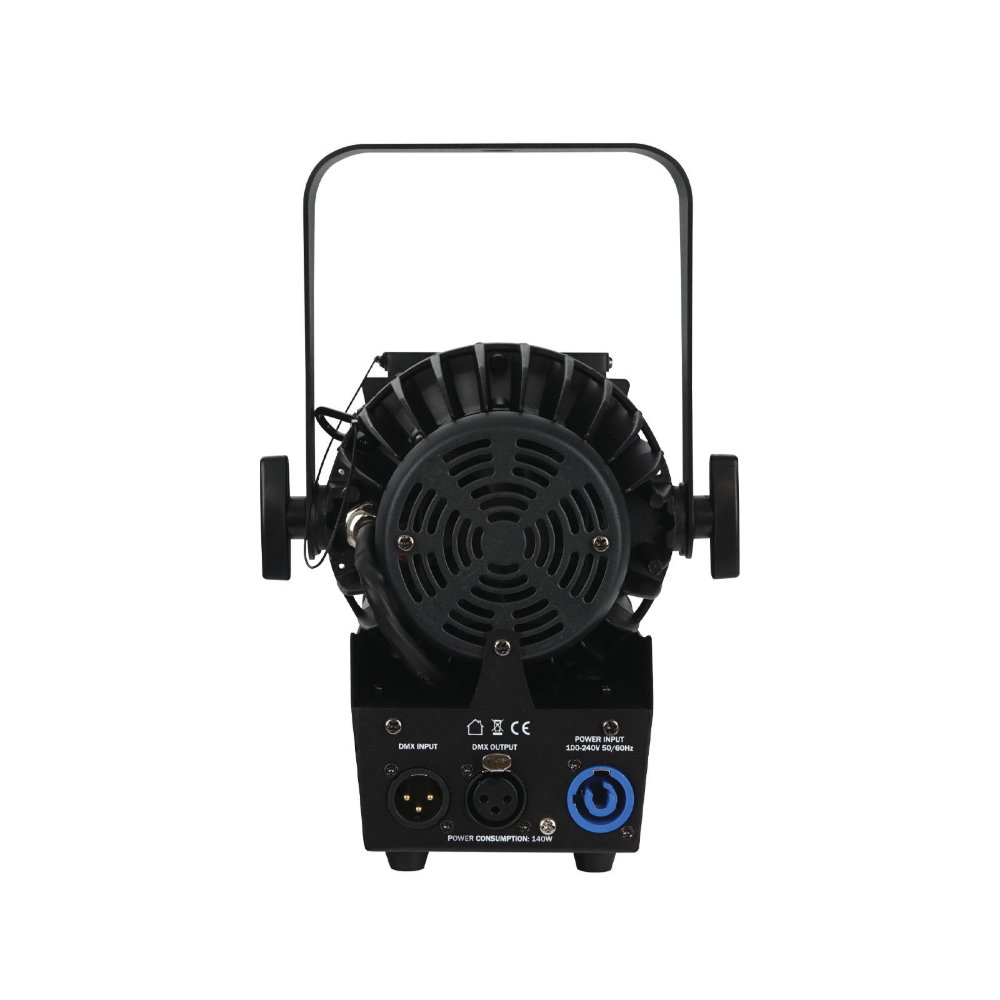

✓PowerTwist input and 3-pin XLR in/out
Specifications
| LED source | 1 x 150W warm white COB LED (2,900K) |
| Beam angle | 40° |
| CRI Ra | 90 |
| Refresh rate | 11.8kHz |
| DMX channels | 1 or 3 selectable |
| Protocols | DMX, RDM |
| Modes | Manual, primary/secondary |
| Dimming | 0-100%, linear / square law / inverse square law / S-curve |
| Connections | PowerTwist input, 3-pin XLR in/out |
| Power consumption | 140W |
| Power supply | 100-240V, 50/60Hz |
| Fuse | F3A 250V |
| Dimensions (H x W x D) | 265 x 185 x 152mm |
| Weight | 2.9kg |
