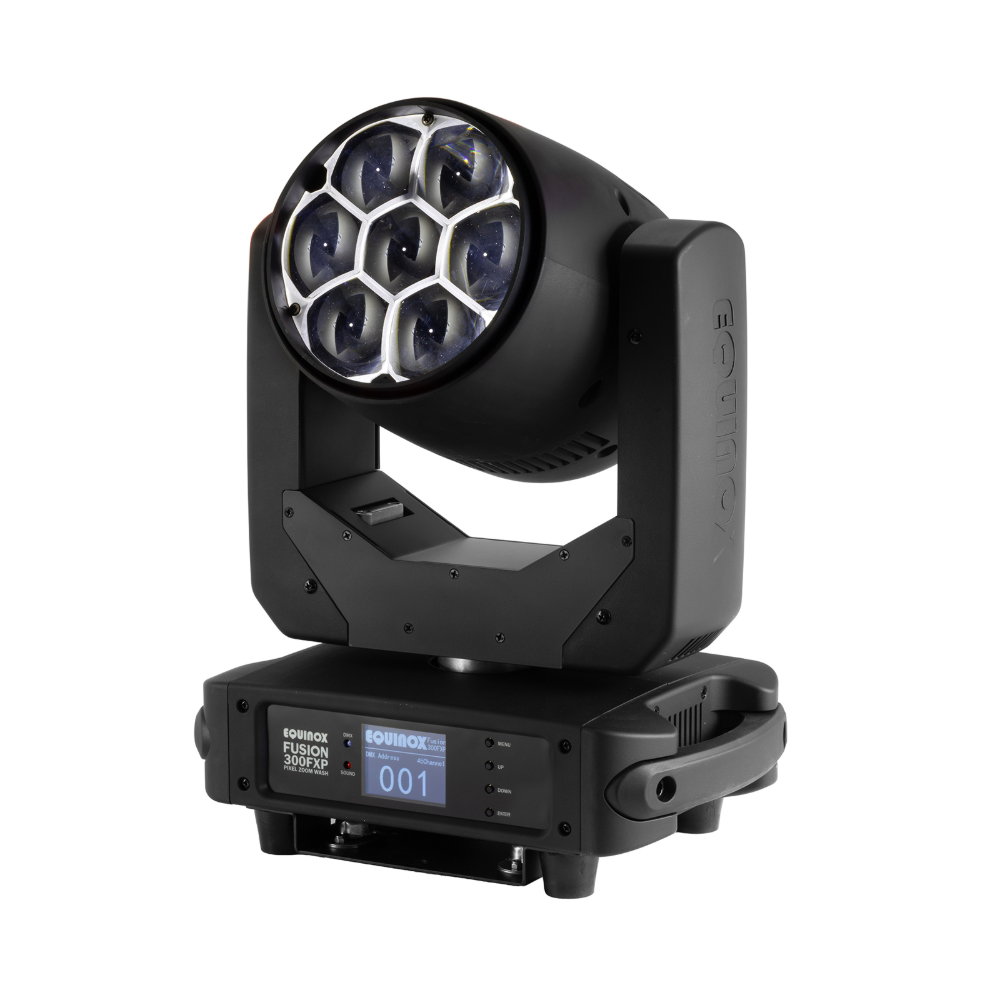

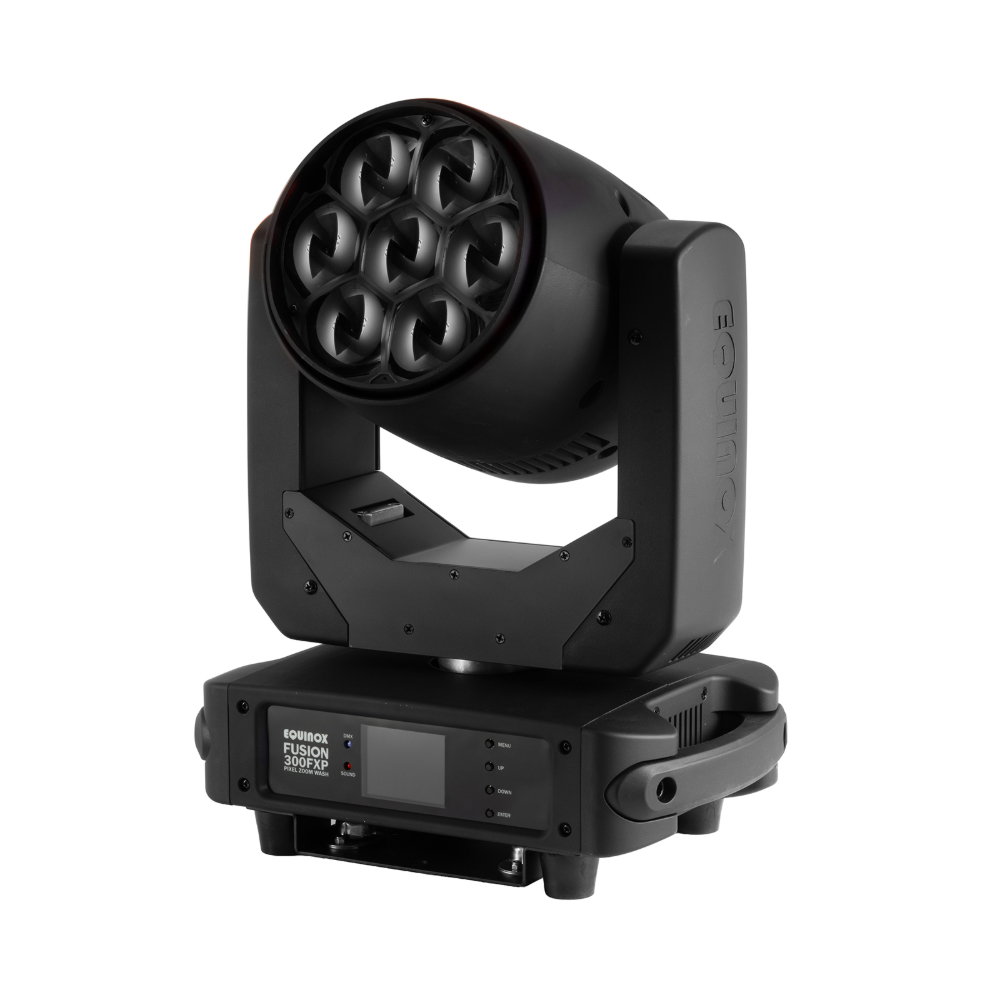

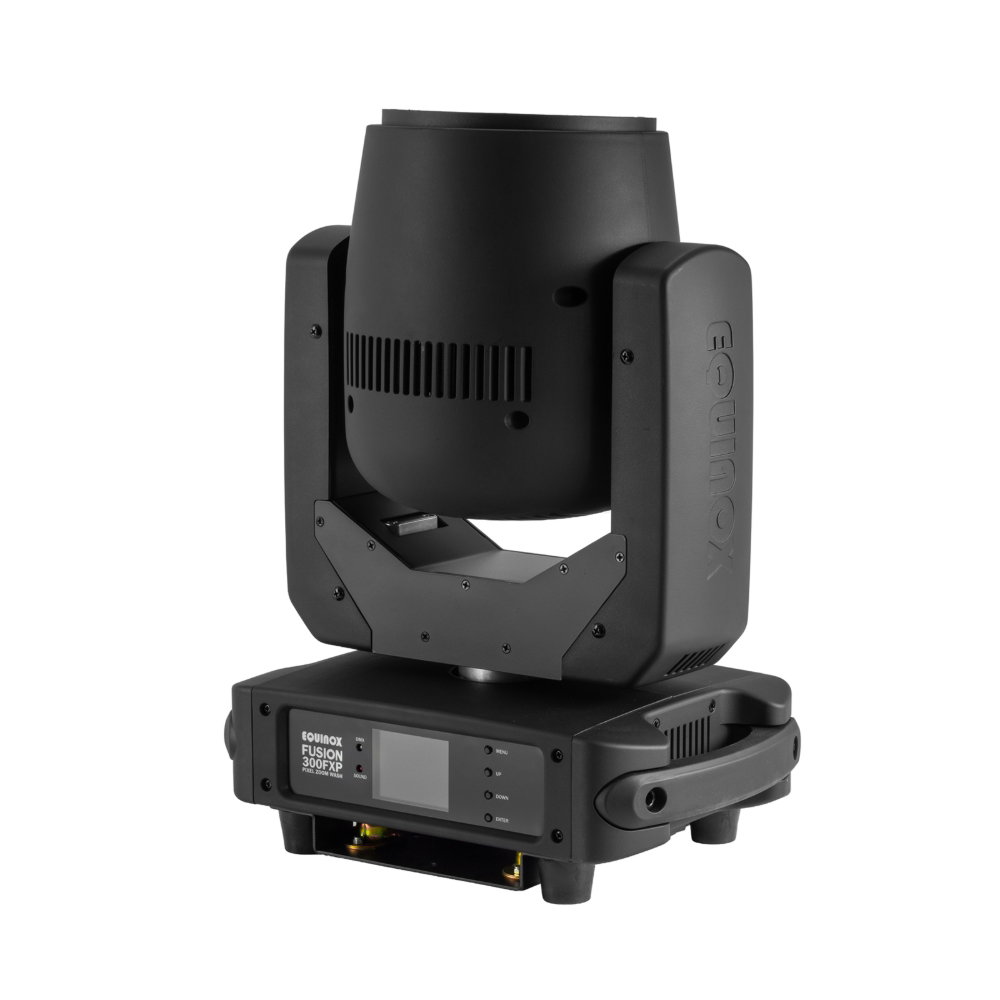

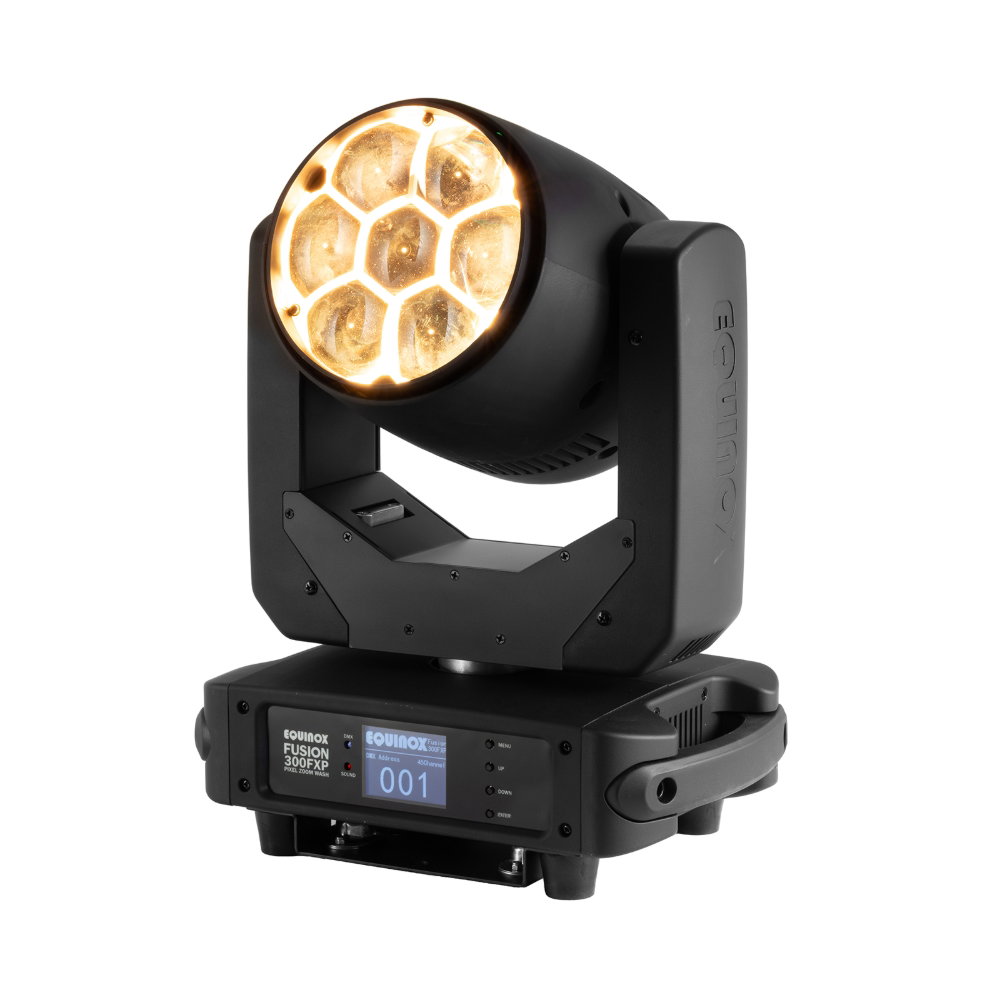

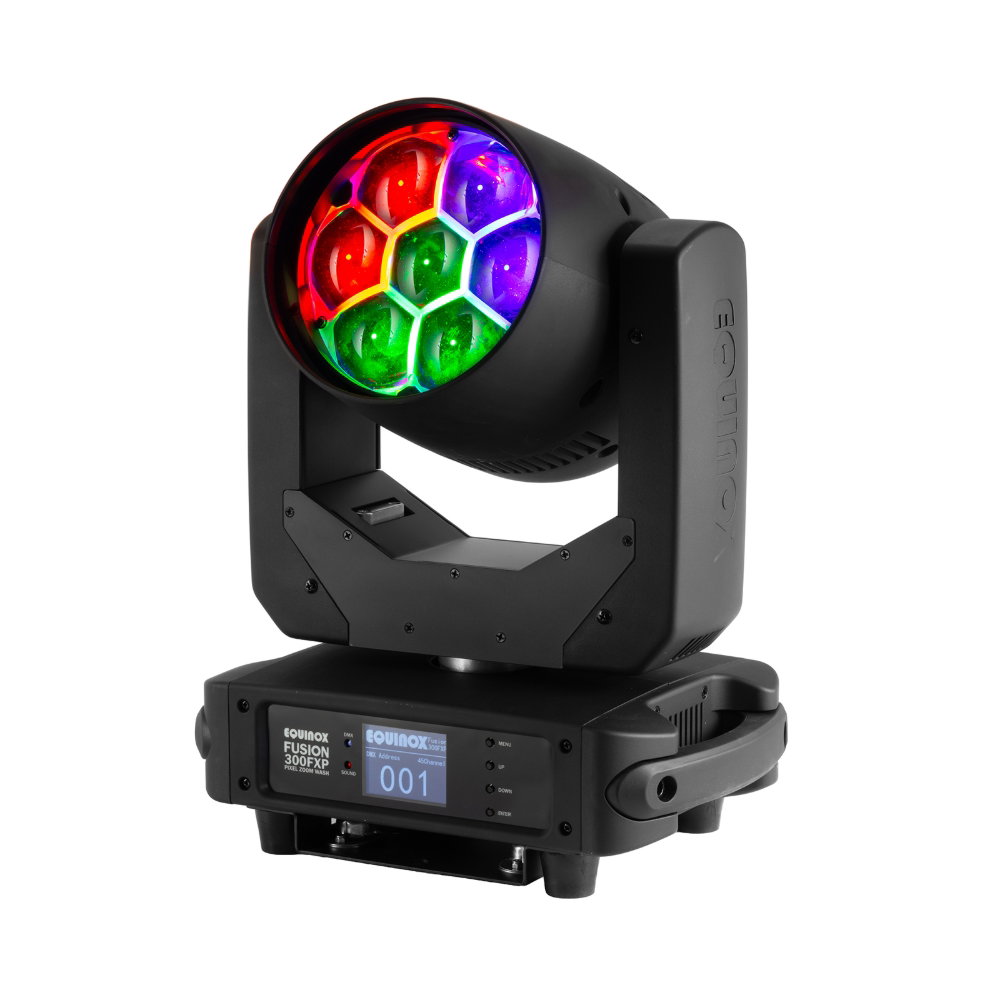

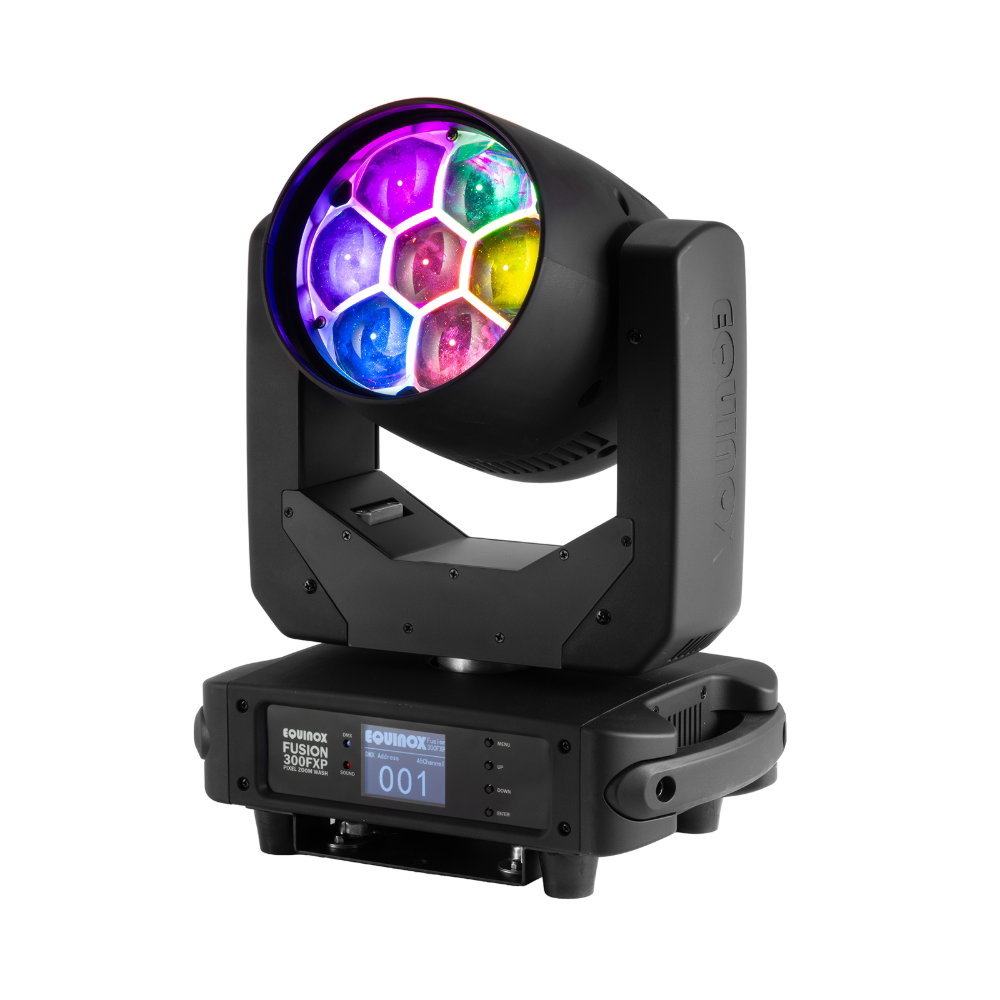

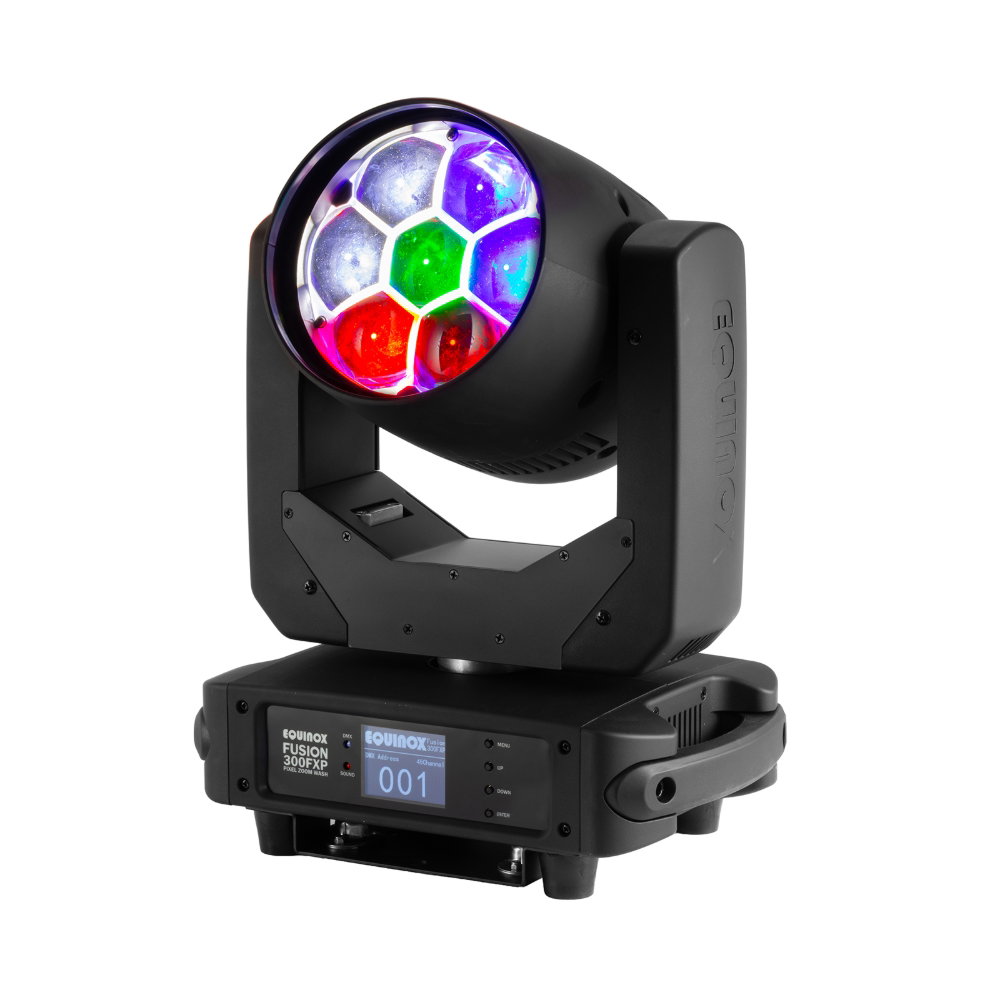

The Equinox Fusion 300FXP is a compact RGBW moving head wash built around 7 x 40W quad-colour LEDs, each individually pixel mappable for eye-candy and chase effects as well as flat colour washes. Motorised zoom takes the beam from a tight 5° to a 40° wash, and the rotating front lens adds mid-air multibeam looks that a fixed-lens wash cannot produce. It suits mobile DJs, small to mid-size stages and installs that need one fixture to cover wash, effect and beam duties.
LED ENGINE
7 x 40W
Quad-colour RGBW
ZOOM RANGE
5° – 40°
Motorised
OUTPUT
86,570 Lux
At 2m, 5° full on
MOVEMENT
540° / 270°
Pan / tilt, 16-bit
Power and data linking

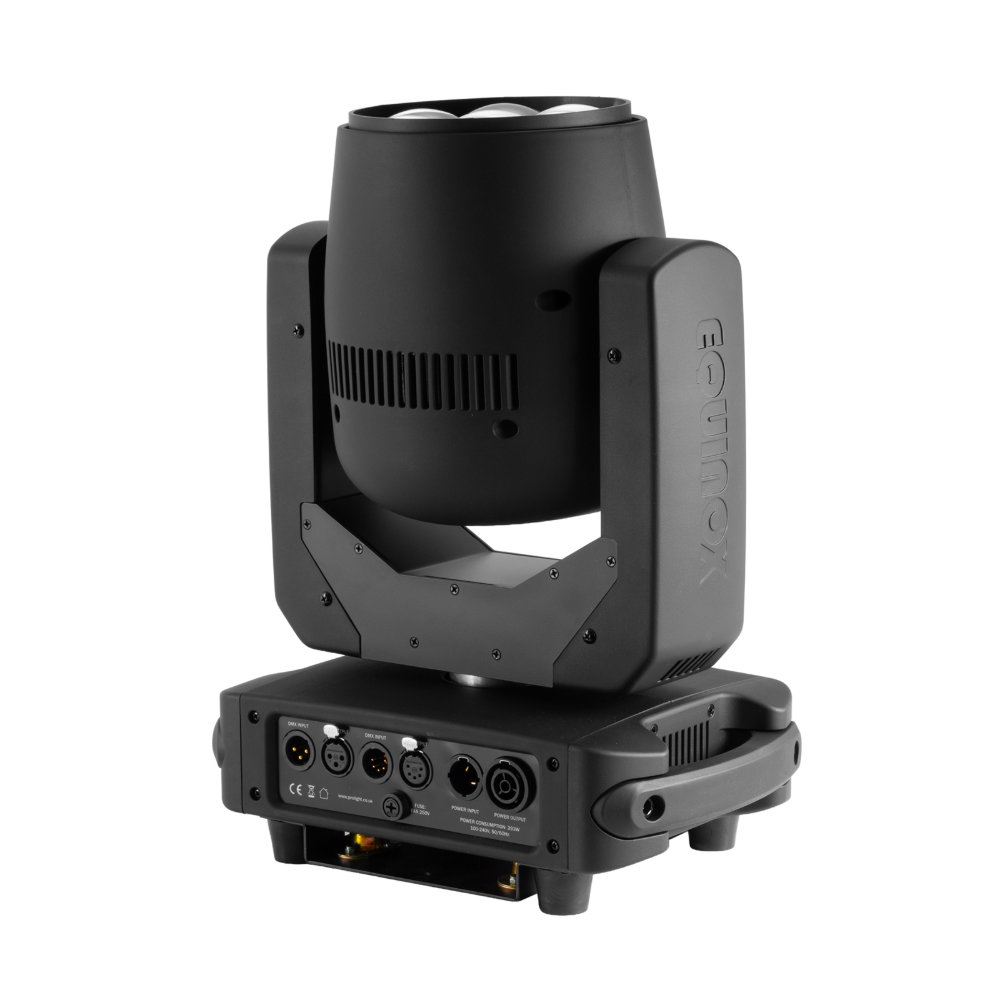

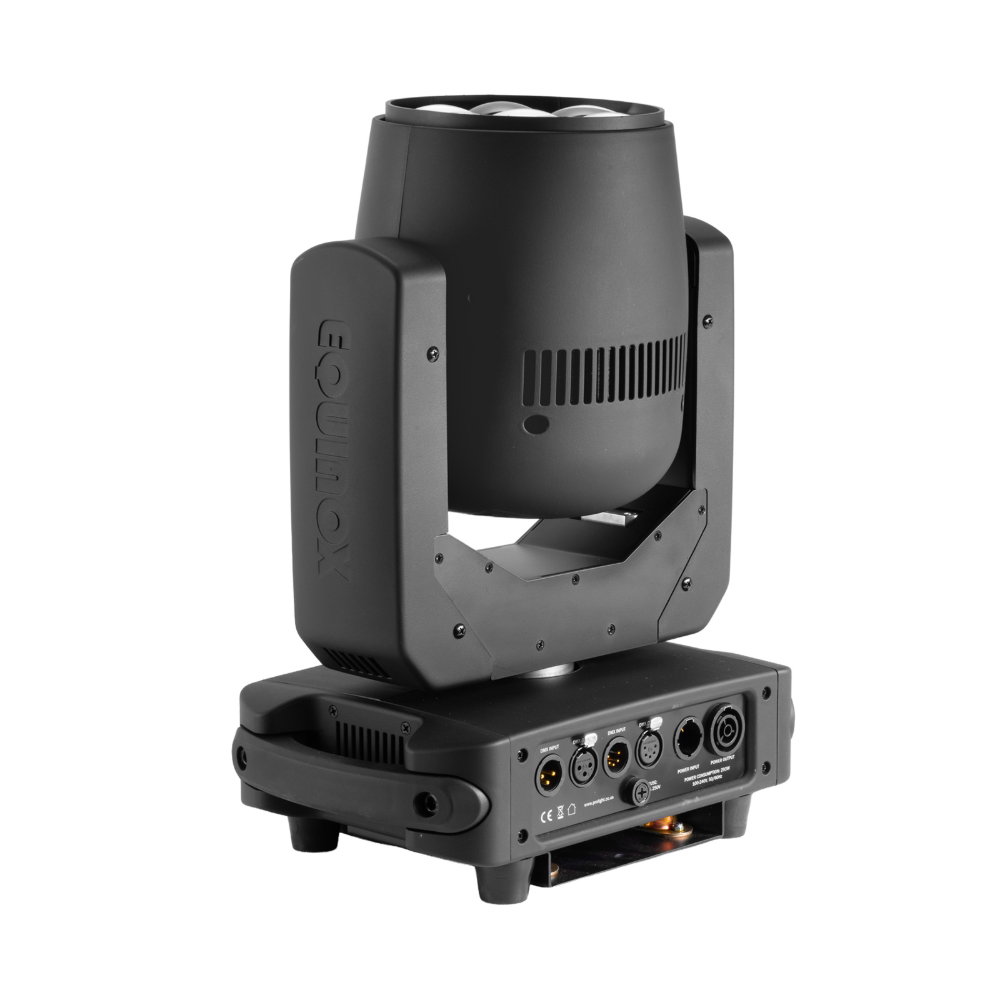

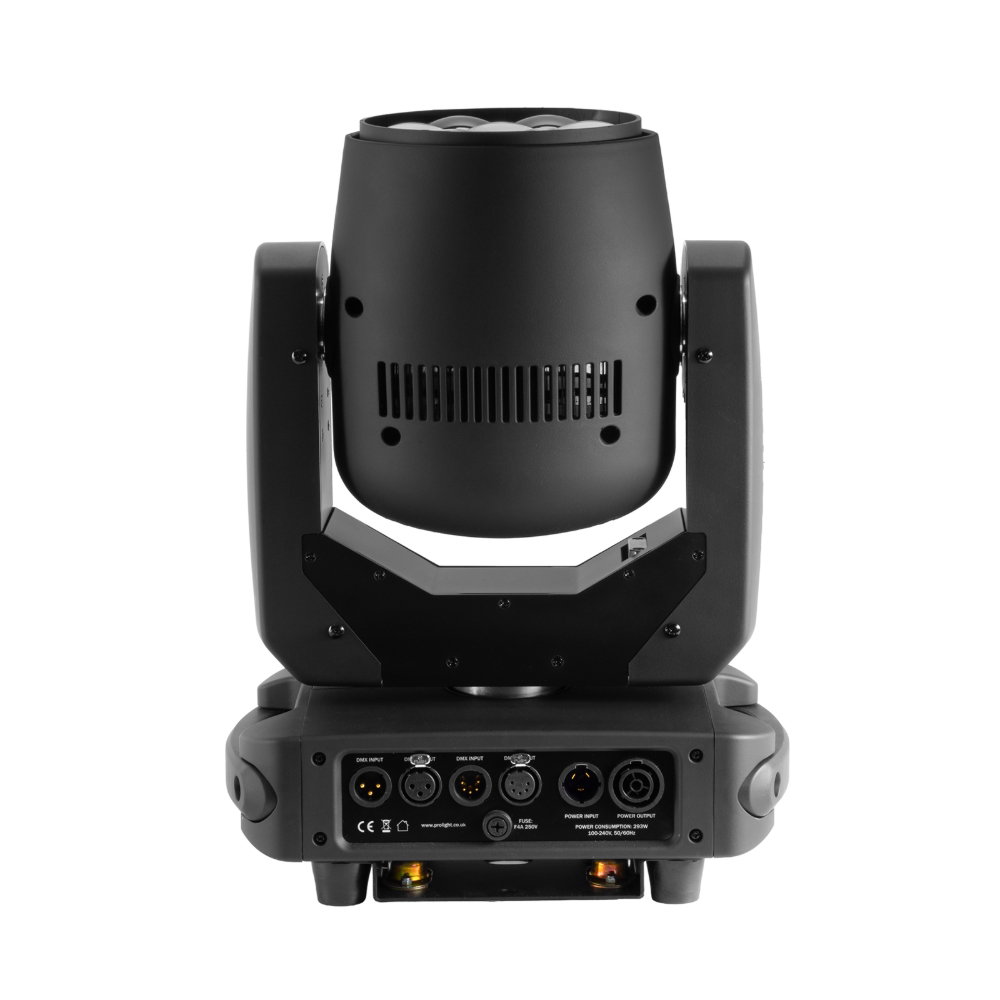

PowerTwist TR1 input and output allow multiple fixtures to be daisy-chained from one mains feed, and both 3-pin and 5-pin XLR in/out are fitted so the Fusion 300FXP drops into either DMX convention without adaptors. Draw is 300W at 100-240V, 50/60Hz.
Features
✓7 x 40W quad-colour RGBW LEDs with full pixel mapping
✓Motorised zoom, 5° narrow beam to 40° wash
✓Rotating front lens for mid-air multibeam effects
✓Selectable DMX modes: 2/10/14/19/40/45 or 49 channels
✓Auto, sound active, manual and primary/secondary modes
✓Colour temperature presets and 0-100% dimming
✓16-bit pan/tilt with auto position correction
✓3kHz refresh rate, flicker-free on camera
✓Quick release omega clamps included

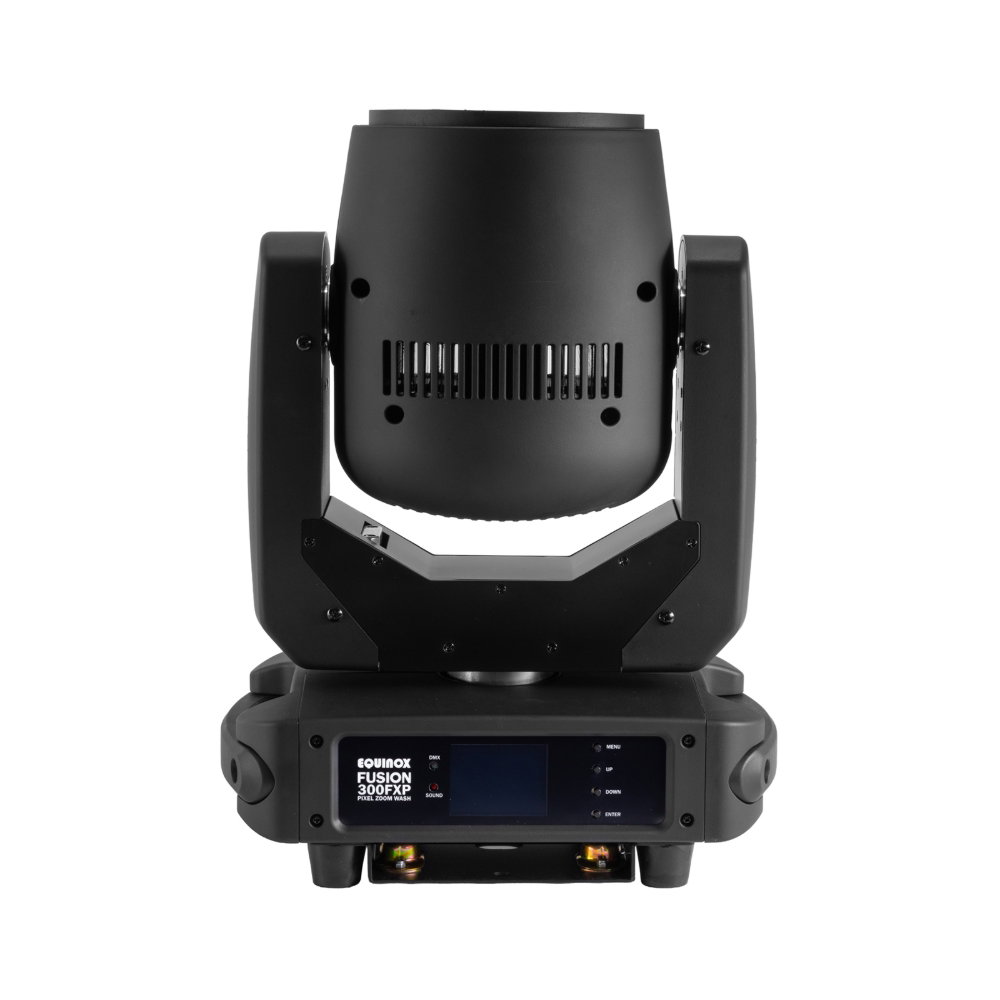

✓4-button menu with 2.6” LCD display
Note

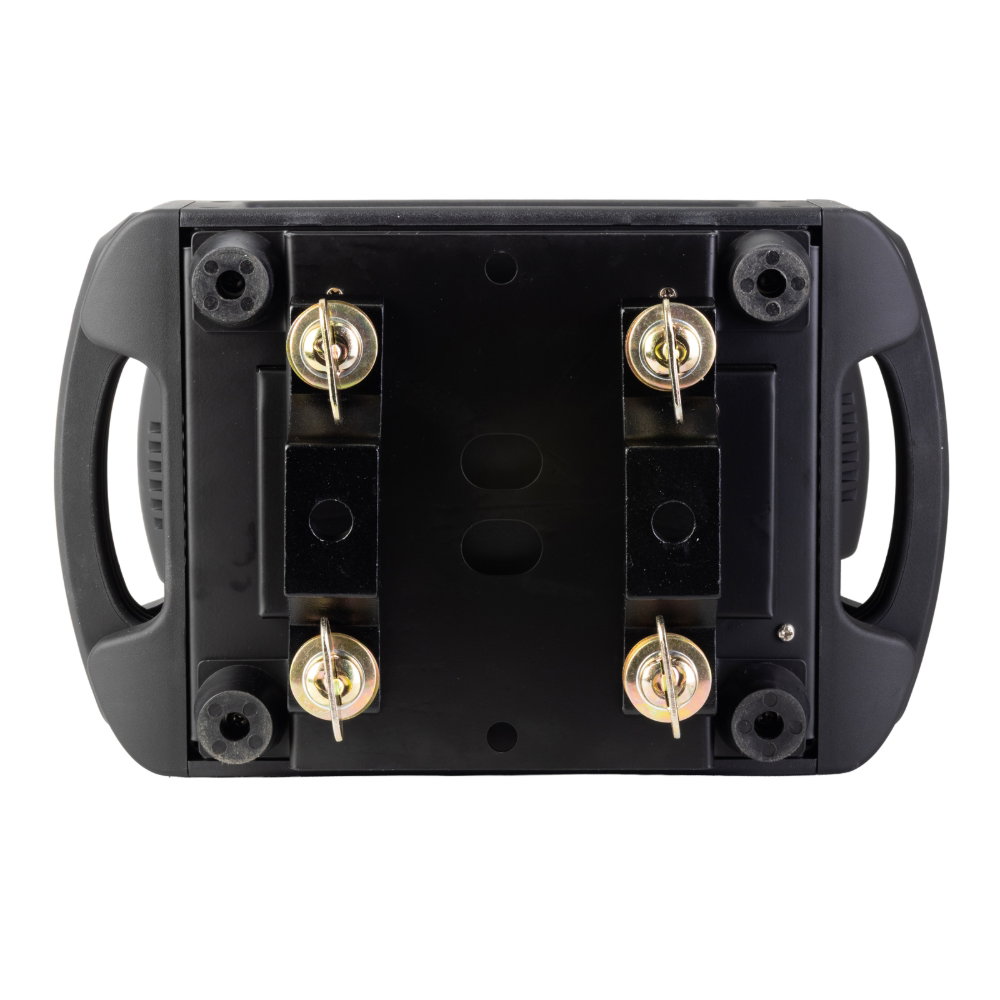

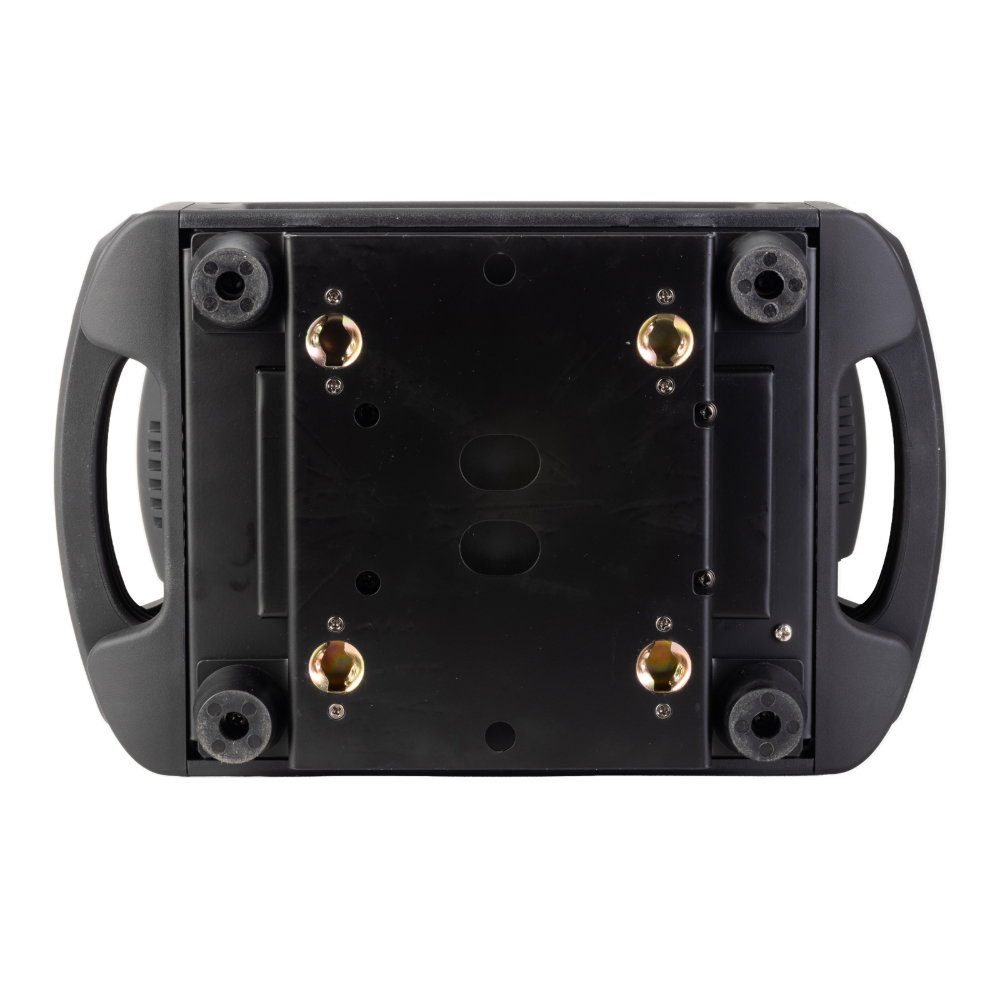

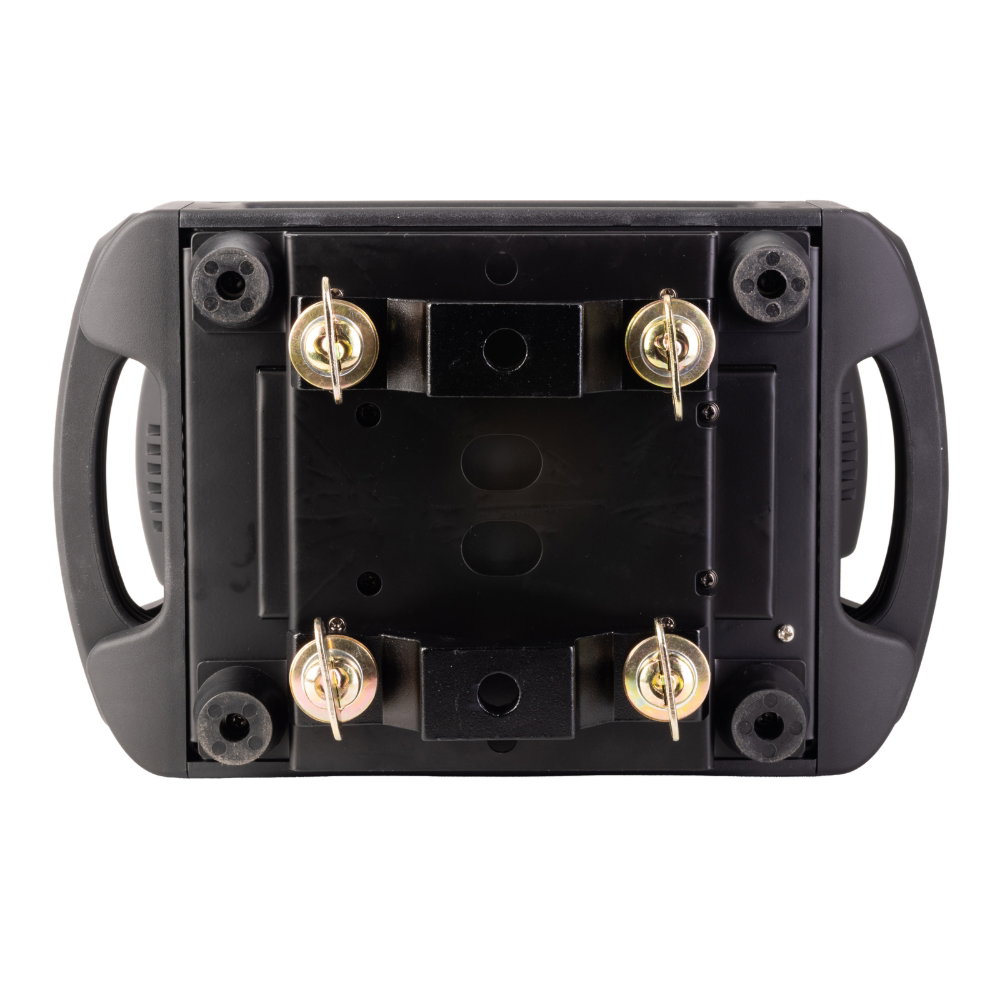

The square hole spacing on the base supports multiple clamp orientations, which is worth knowing when rigging tight fixture spacing on a truss or when the yoke needs to sit across the tube rather than along it. Forward facing show mode parks the heads front-of-house for standalone use without a console.
Specifications
| LED source | 7 x 40W quad-colour LEDs (RGBW) |
| Beam angle | 5° to 40° (motorised zoom) |

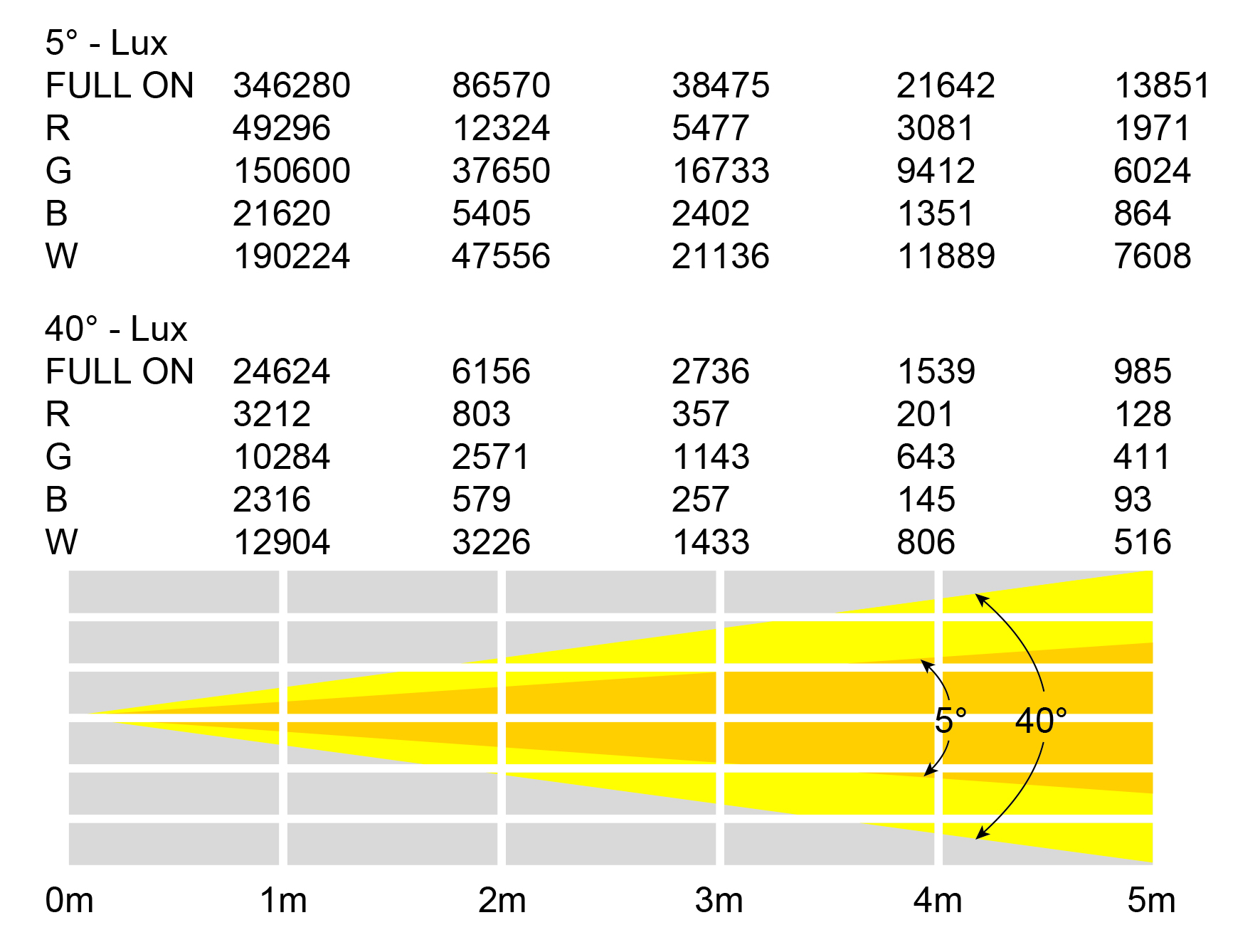

| Illuminance | 86,570 Lux @ 2m at 5°; 6,156 Lux @ 2m at 40° |
| CRI | 70 |
| Refresh rate | 3kHz |
| DMX channels | 2/10/14/19/40/45 or 49 selectable |
| Pan / tilt | 540° / 270°, 16-bit positioning |
| Connections | PowerTwist TR1 in/out, 5-pin XLR in/out, 3-pin XLR in/out |
| Cooling | Fan cooled, 49.3dBA @ 1m |
| Power consumption | 300W |
| Power supply | 100-240V, 50/60Hz |
| Fuse | F4A 250V |
| Dimensions (H x W x D) | 385 x 310 x 190mm |
| Weight | 8.7kg |
