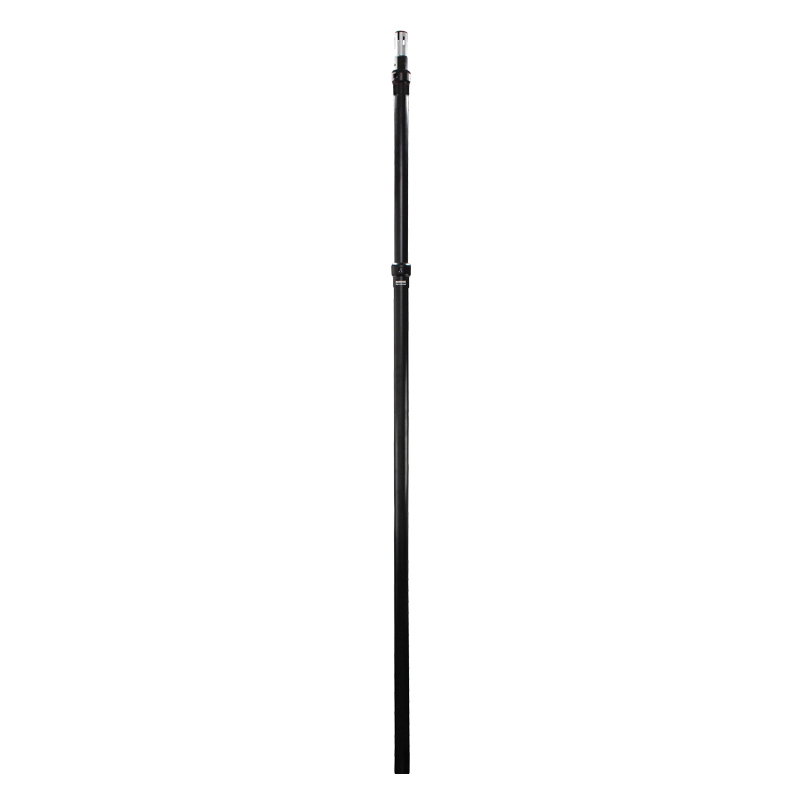

This telescopic vertical upright is the load-bearing post of the Equinox aluminium pipe and drape system, adjusting anywhere between 1.8m and 4.2m to suit anything from a low exhibition booth to a full-height ballroom backdrop. The black anodised aluminium finish disappears behind drapes and starcloths, and the secure locking system sets height without tools. Used with a base plate and spigot at the foot and horizontal cross bars between uprights.
HEIGHT RANGE
1.8m – 4.2m
Telescopic
DIAMETER
70mm Ø
Aluminium tube
WEIGHT
2.9kg
Per upright
FINISH
Black
Anodised
Features
✓Telescopic height adjustment from 1.8m to 4.2m
✓Black anodised aluminium finish stays discreet on stage
✓Tool free setup for fast get-ins and turnarounds

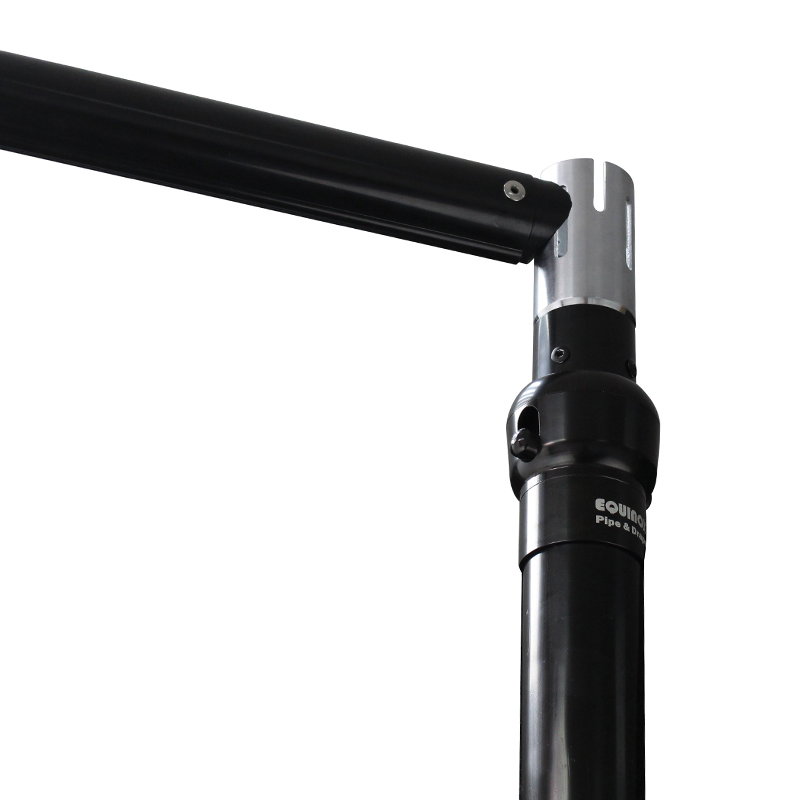

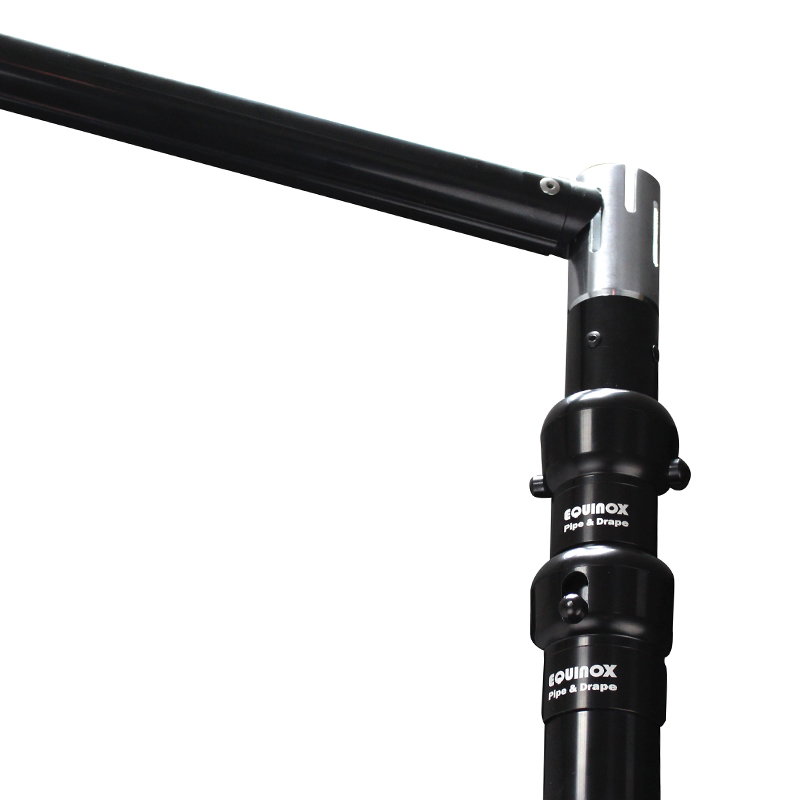

✓Secure locking system holds the set height
✓70mm diameter tube for stability at full extension
✓2.9kg per upright, lightweight for one-person handling
✓Supports drapes, backdrops and starcloths
✓Part of the modular Equinox pipe and drape range
Note

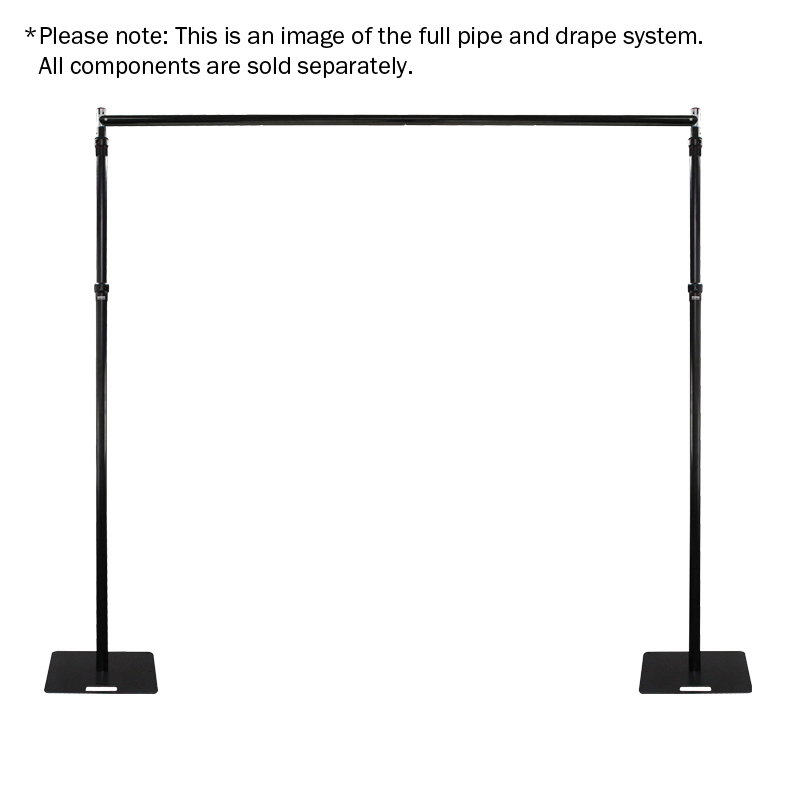

Sold as a single upright. A complete run also needs base plates (EQLED304) with spigots (EQLED303) and horizontal cross bars – budget for one upright plus base at each end of every drape span.
Specifications
| Type | Telescopic vertical upright |
| Height range | 1800mm to 4200mm |
| Tube diameter | 70mm Ø |
| Material and finish | Anodised aluminium, black |
| Assembly | Tool free, secure locking system |
| Weight | 2.9kg |
