Equinox UV Power Flood 24 x 3W UV LED 395nm DMX Blacklight 60° (EQLED029)

Product code: 163152

£78.00 inc VAT
£65.00 ex VAT

SKU: EQLED029

2 in stock (Wembley), 89 more available

Optional Add-Ons

Equinox GB 330 Universal Gear Bag - 2 Compartment 430mm (EQLED330)

£34.00 inc VAT
£28.33 ex VAT

Add to basket

About this Product

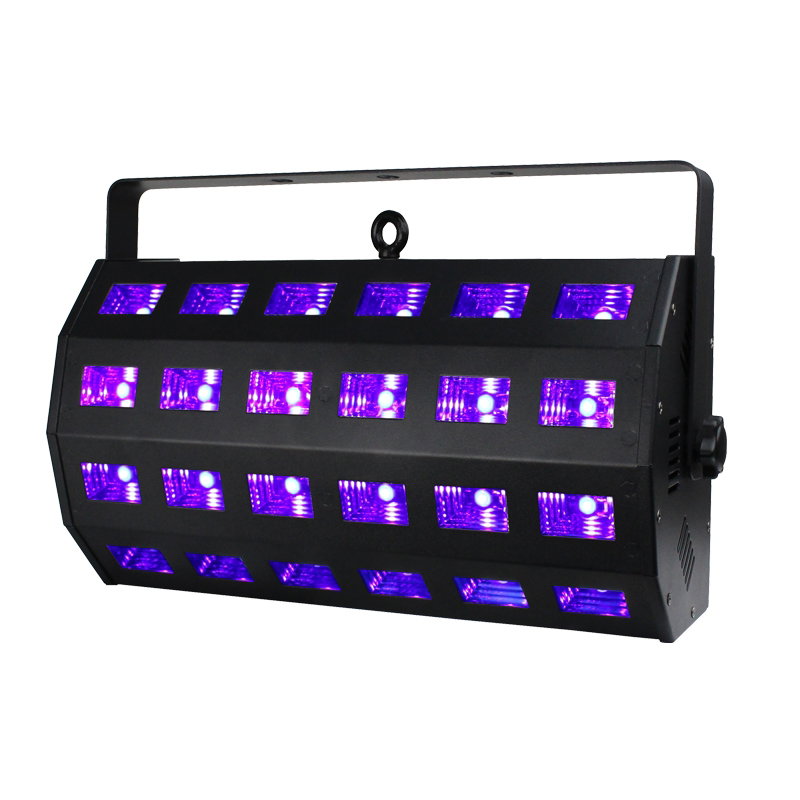

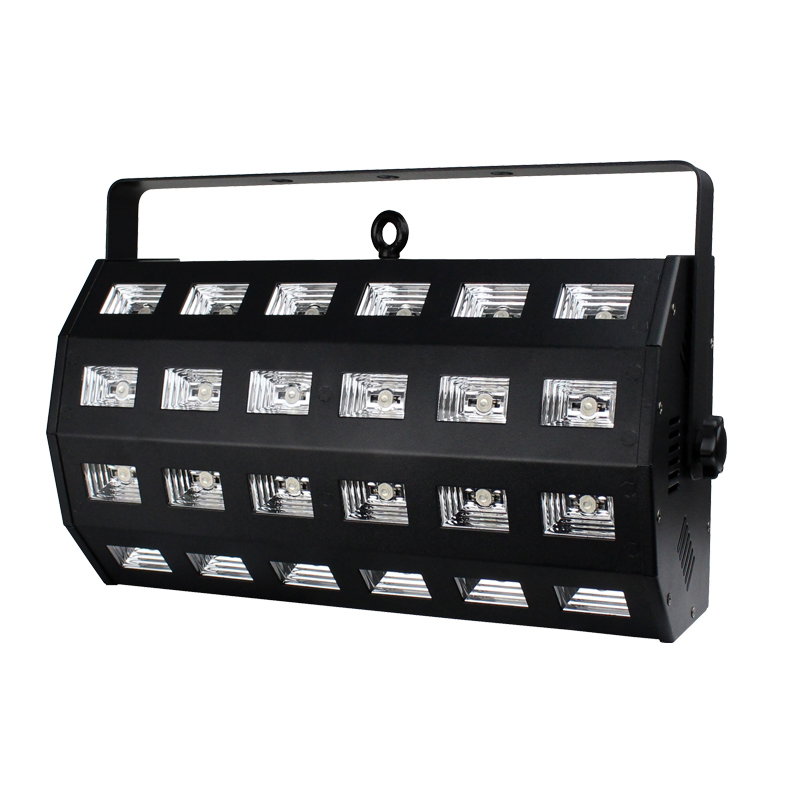

The Equinox UV Power Flood packs 24 x 3W UV LEDs at 395nm into a compact housing with a curved front face, spreading blacklight over a wider area than a flat-fronted flood of the same size. Unlike the passive Mini Batten models it is fully DMX controllable across 8 channels with dimming and variable strobe, so it can be cued from a console alongside the rest of the rig. Suits themed nights, glow events, haunted attractions and UV-reactive set work.

24 x 3W

LED COUNT · UV LEDs

395nm

WAVELENGTH · Ultra violet

8 CH

DMX · 3-pin XLR in/out

60°

BEAM ANGLE · Curved front housing

Control optionsRuns on 8-channel DMX from a console, or standalone in auto and sound active modes. Master/slave linking lets several units run in step from one fixture without a desk, which is the quickest way to cover a larger floor at a mobile gig. A 4kHz refresh rate keeps it clean on camera.

Features

24 x 3W UV LEDs producing strong blacklight output

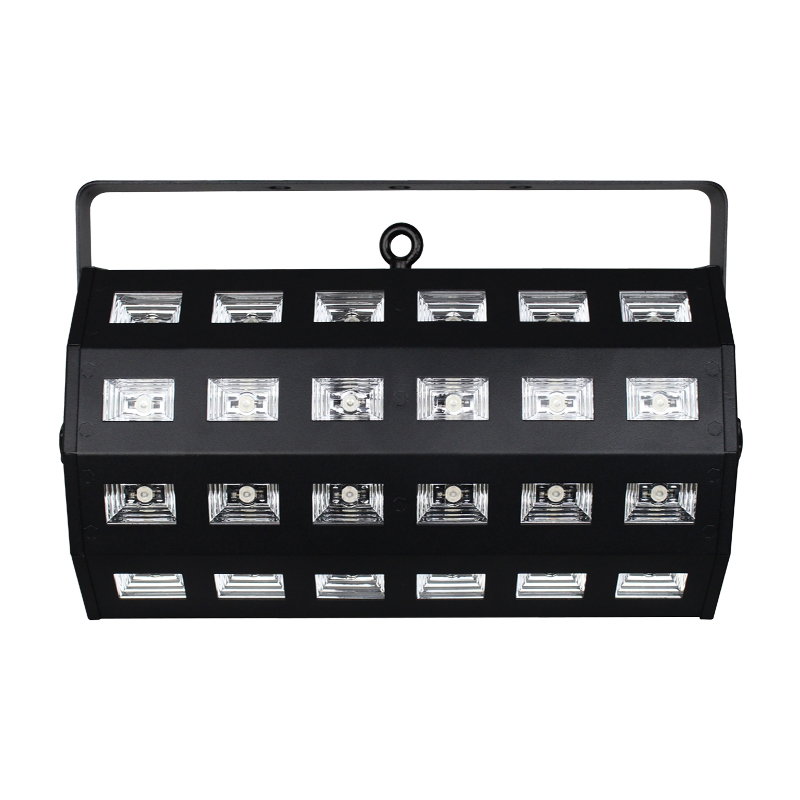

Curved housing front for maximum coverage from a compact unit

8-channel DMX control

Auto, sound active and master/slave modes

0-100% dimming and variable strobe

4kHz refresh rate

Supplied with hanging bracket

4-button menu with LED display

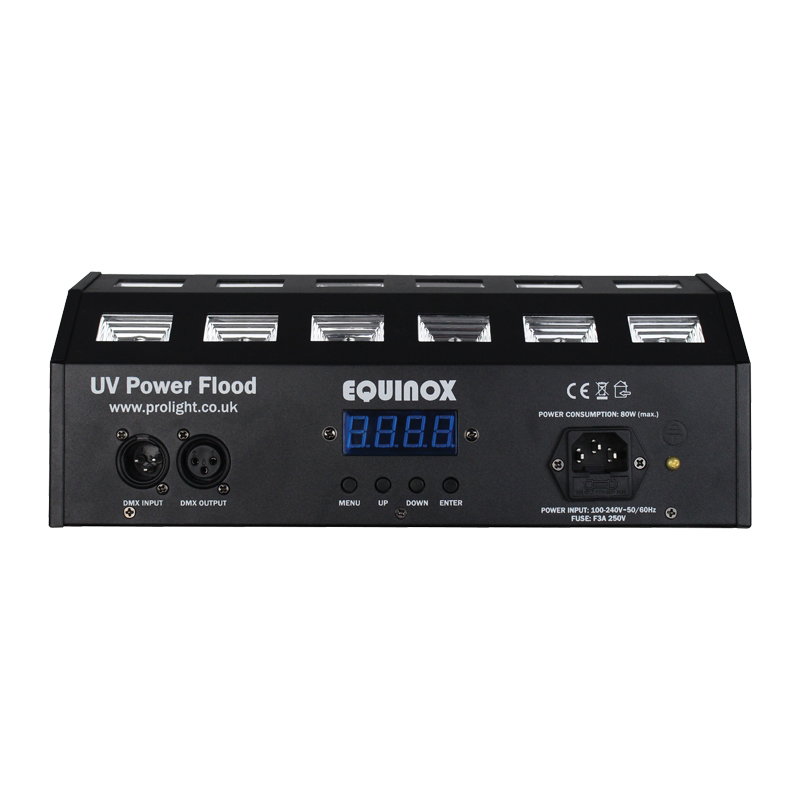

IEC power input and 3-pin XLR in/out

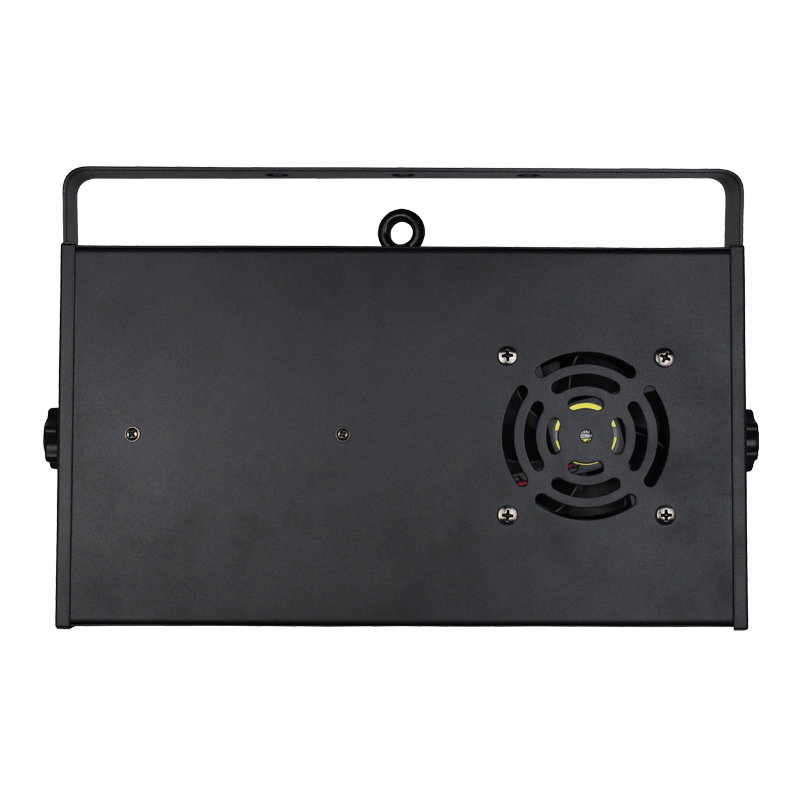

Fan cooled for sustained full-output running

Specifications

Equinox UV Power Flood 24 x 3W UV LED 395nm DMX Blacklight 60° (EQLED029) specifications
LED source	24 x 3W UV LEDs
Wavelength	395nm
Beam angle	60°
Refresh rate	4kHz
DMX channels	8
Modes	DMX, auto, sound active, master/slave
Connections	IEC power input, 3-pin XLR in/out
Cooling	Fan cooled
Power consumption	80W
Power supply	100-240V, 50/60Hz
Fuse	F3A 250V
Dimensions (H x W x D)	230 x 353 x 122mm
Weight	2.3kg

Full features

24 x 3W UV LEDs
Beam angle: 60°
Ultra violet wavelength: 395nm
Refresh rate: 4kHz
DMX channels: 8
Auto, sound active and master/slave modes
0 - 100% dimming
Variable strobe
Supplied with hanging bracket
4 button menu with LED display
IEC power input
3-Pin XLR input/output
Fan cooled

Power consumption: 80W
Power supply: 100~240V, 50/60Hz
Fuse: F3A 250V
Dimensions (H x W x D): 230 x 353 x 122mm
Weight: 2.3kg

Product Reviews

No reviews yet — be the first to review this product.

Bought this? It takes a minute.

Manuals & Downloads

Manuals & Instructions: EQLED029_ManualPDF

Manuals & Instructions: EQLED029_CE_CertificationPDF
