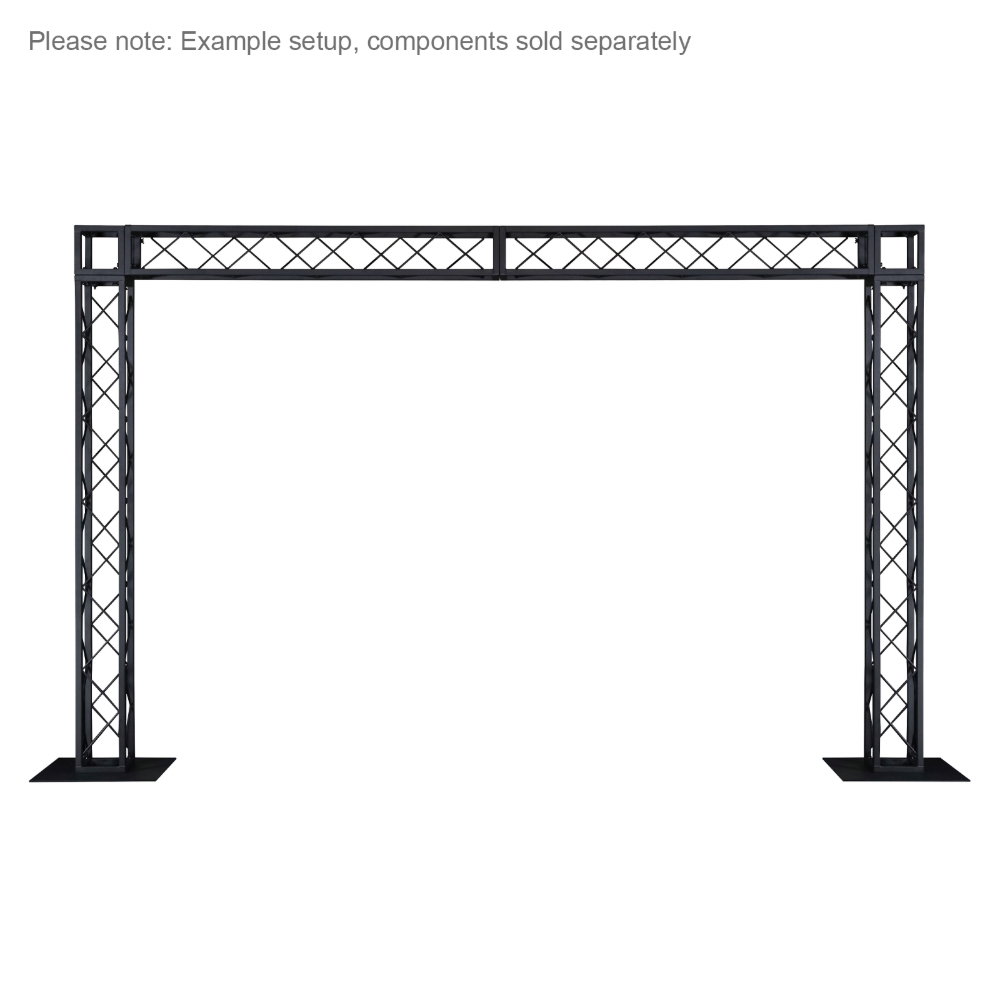

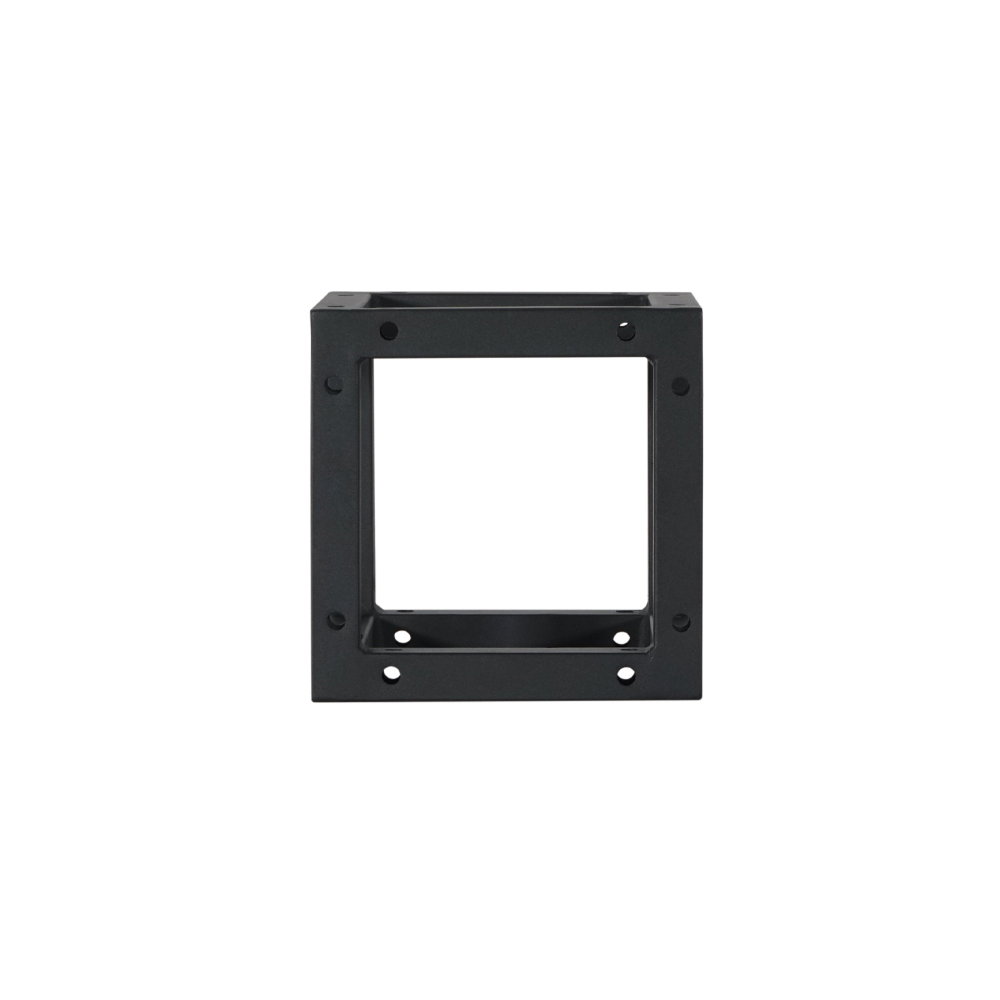

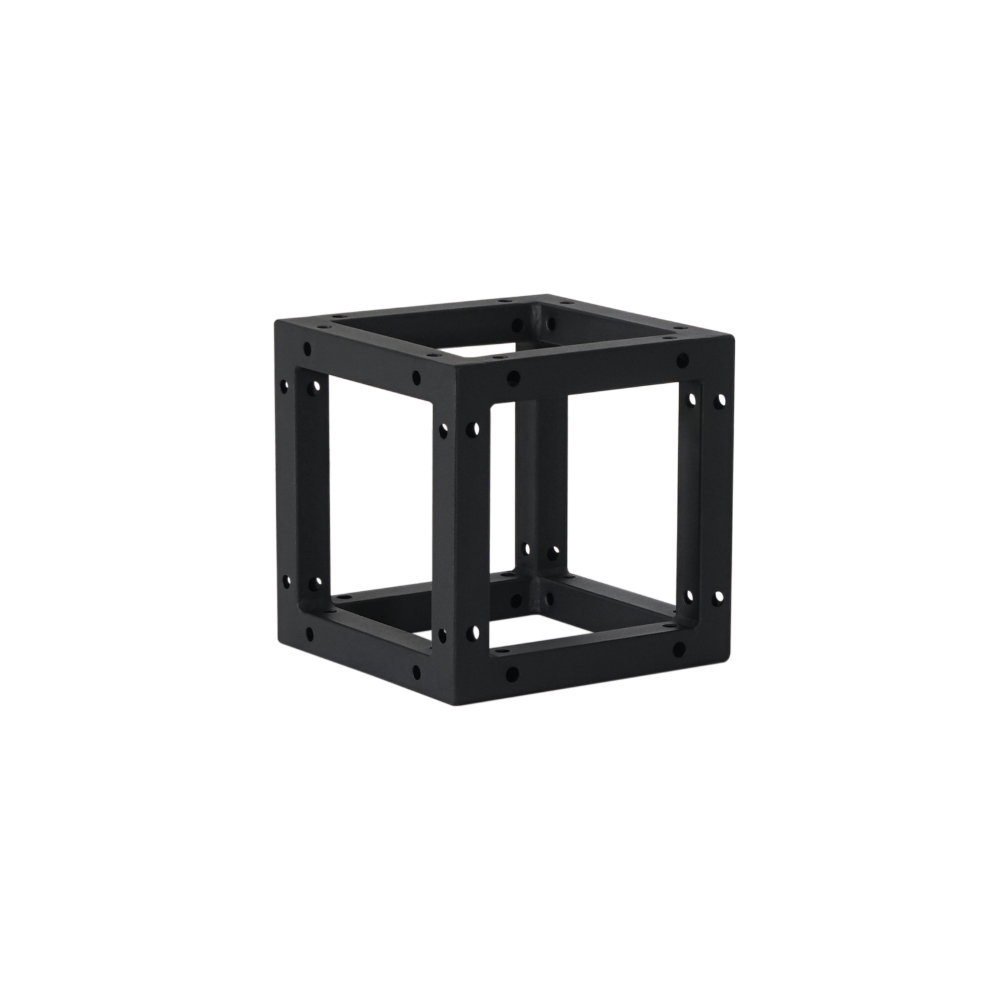

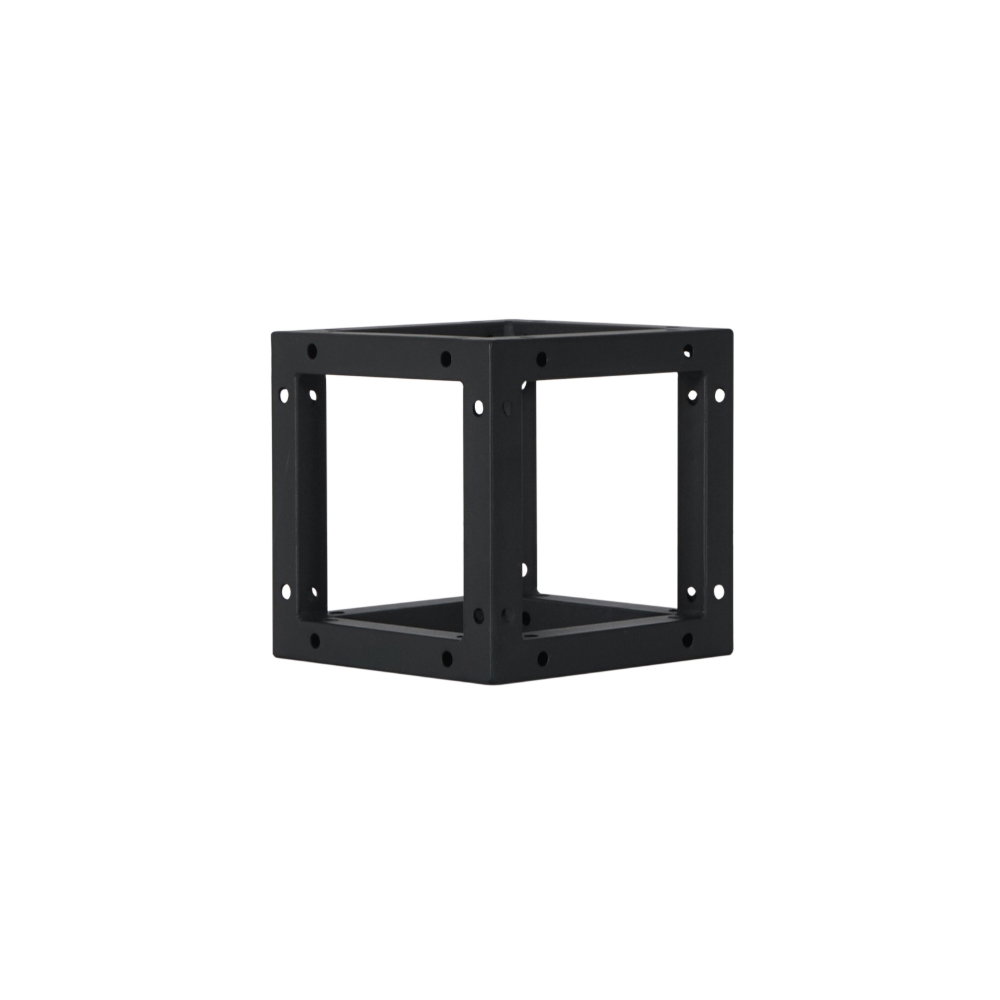

The box corner for the Equinox quad steel DecoTruss system, finished in matt black. It joins truss lengths at 90 degrees on any face, so you can turn a straight run into a goalpost, a square frame or a four-post display cube for retail, exhibition stands and galleries.
FORMAT
20 x 20cm
Quad steel
MAIN CHORDS
25mm
Welded
FINISH
Black
Matt powder coat
WEIGHT
1.7kg
Packed
Features
✓
Box corner joins DecoTruss runs at 90 degrees
Box corner joins DecoTruss runs at 90 degrees
✓
20 x 20cm format with 25mm main chords, matching the straight lengths
20 x 20cm format with 25mm main chords, matching the straight lengths
✓
Welded construction throughout
Welded construction throughout
✓
Matt black powder coat disappears against dark walls and drapes
Matt black powder coat disappears against dark walls and drapes
✓
Steel build is stronger and more economical than aluminium deco truss
Steel build is stronger and more economical than aluminium deco truss
✓
Compact 22 x 22 x 22cm carton, easy to stack in the van
Compact 22 x 22 x 22cm carton, easy to stack in the van
✓
Suited to retail displays, exhibition stands and gallery installs
Suited to retail displays, exhibition stands and gallery installs
✓
1.7kg, so corners add little to overall structure weight
1.7kg, so corners add little to overall structure weight
Note
DecoTruss is decorative truss designed for applications that do not require high load capabilities. Do not use it to fly or support heavy fixtures.
Specifications
| Type | Quad steel DecoTruss box corner |
| Format | 20 x 20cm |
| Main chords | 25mm |
| Finish | Matt black powder coat |
| Packed dimensions (H x W x D) | 22 x 22 x 22cm |
| Packed weight | 1.7kg |
| Barcode / EAN | 0702338066733 |
| Stock code | TRUS085 |
