Konligo Arko470 Folding Event Structure Black Anodised Frame Kit 16m2 (KL0001)

Product code: 164052

£6,499.00 inc VAT
£5,415.83 ex VAT

SKU: KL0001

2 available online

Optional Add-Ons

Konligo Arko470 PES Outer Roof Black Membrane with Support Bar (KL0003)

£1,799.00 inc VAT
£1,499.17 ex VAT

Add to basket

Konligo Arko470 PES Inner Roof Black Membrane with Ground Cover (KL0002)

£1,708.00 inc VAT
£1,423.33 ex VAT

Add to basket

Konligo Arko470 PES Outer Back Black Membrane with Zip Access (KL0005)

£675.00 inc VAT
£562.50 ex VAT

Add to basket

Konligo Arko470 PES Inner Back Black Membrane with Zip Access (KL0004)

£559.00 inc VAT
£465.83 ex VAT

Add to basket

Konligo Truss Clamp for Fastival and Arko Structures 48-51mm (KL0008)

£28.00 inc VAT
£23.33 ex VAT

Add to basket

About this Product

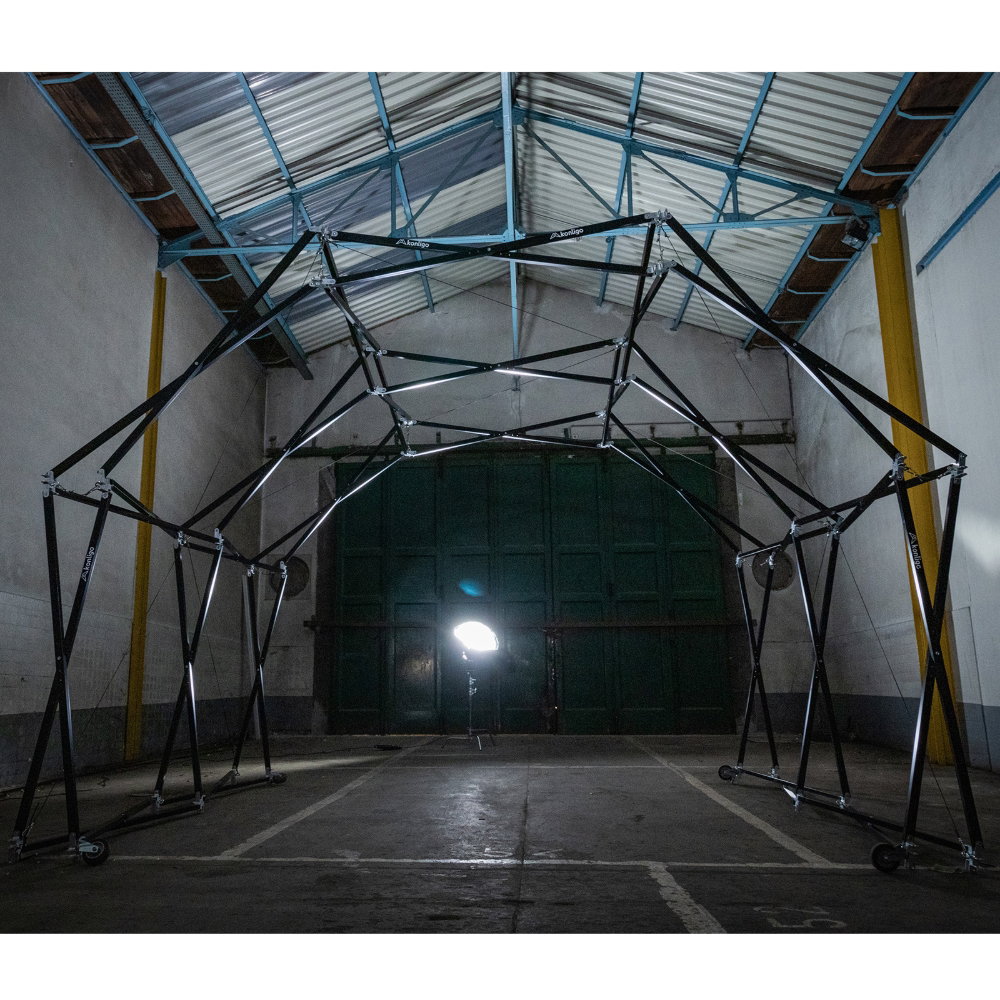

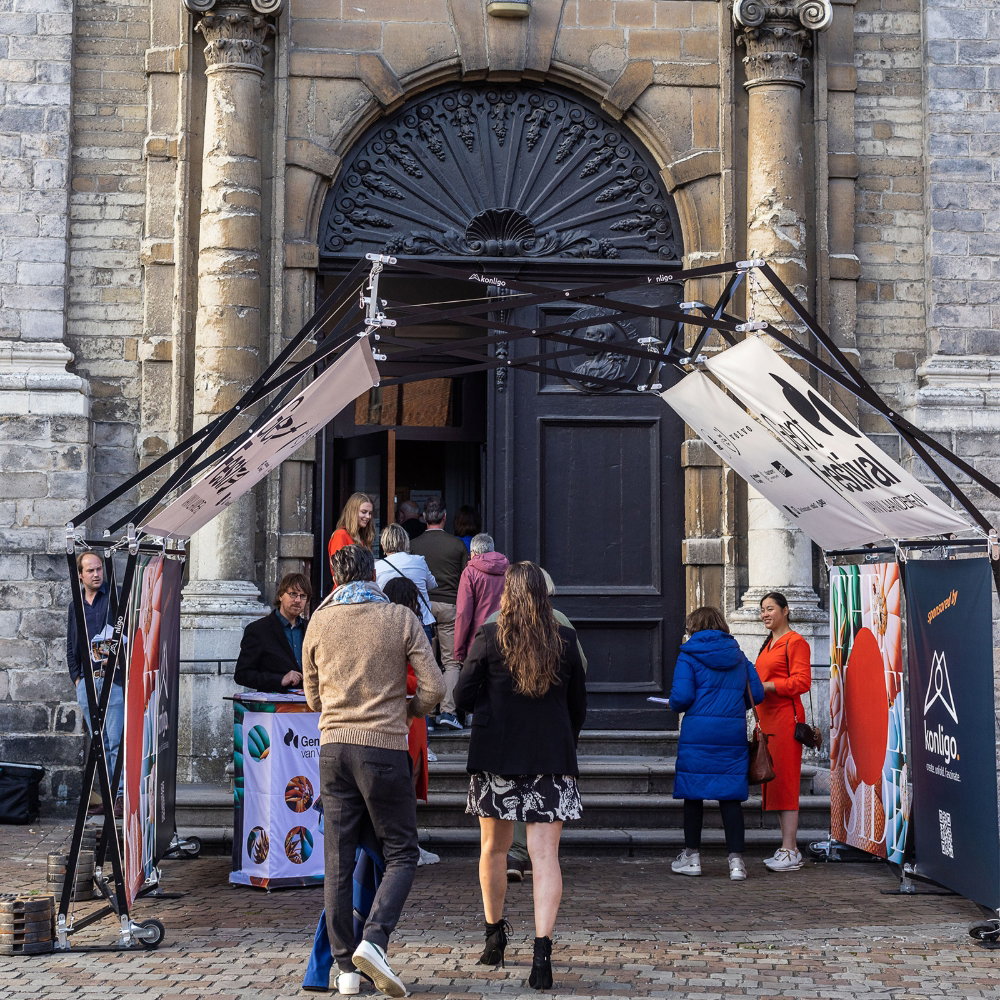

The Konligo Arko470 is a modular folding event structure giving a 16m² covered area with vertical side walls, maximising usable interior space. The aluminium scissor frame folds to a compact transport unit and is erected by two people in under 30 minutes, making it well suited to front-of-house positions, brand activation booths, pop-up stages and exhibition stands.

16m²

Covered area

80km/h

Wind resistance · with ballast

85kg

Total weight

Under 30 min

Setup time · 2-person crew

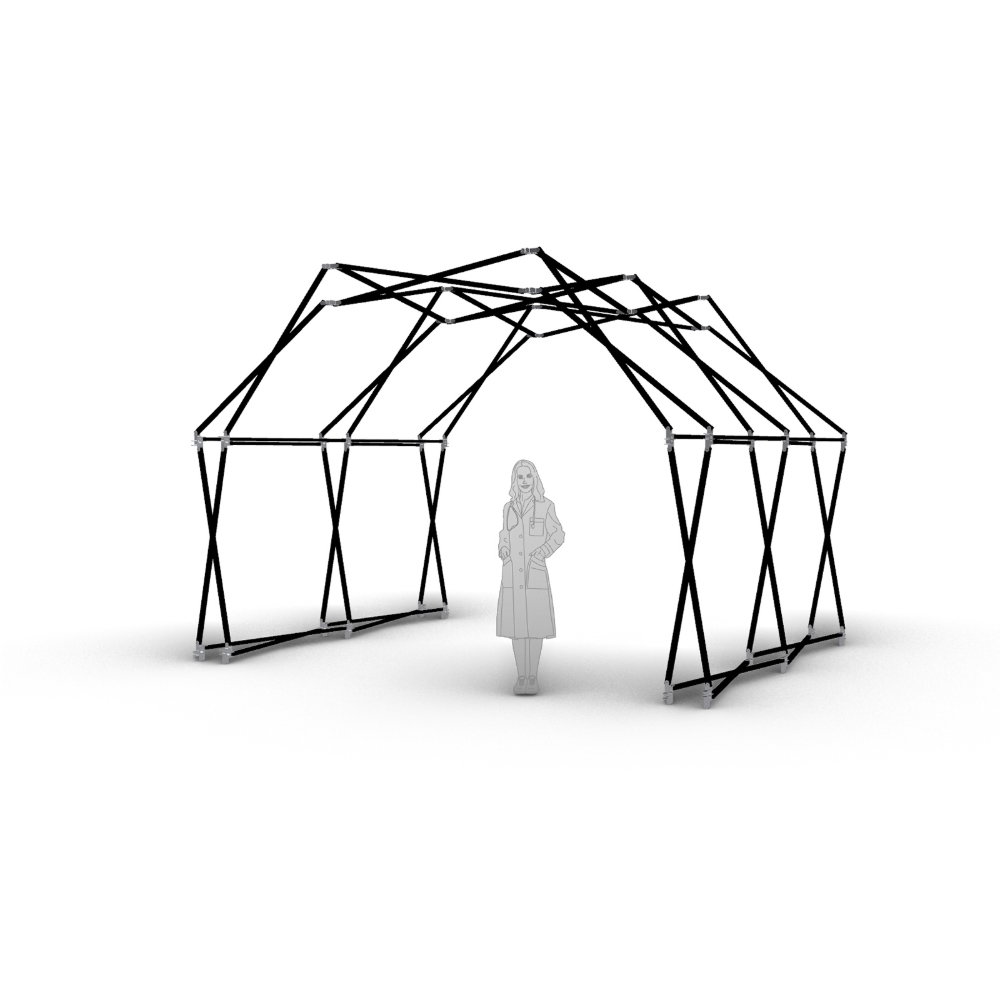

Vertical side wallsUnlike a conventional pitched canopy, the Arko470’s vertical side walls carry full head height to the edge of the footprint, giving noticeably more usable floor area than the covered dimension alone suggests. Useful where FOH desks or exhibition stands need to sit close to the structure edge.

Kit contents

Supplied as standard:

Arko470 folding frame

Transport cover

Assembly pin kit

6 stabilising feet

Optional parts

Sold separately:

KL0002 Inside Membrane

KL0004 Inside Backdrop

KL0003 Outside Membrane

KL0005 Outside Backdrop

KL0016 Power Pole Kit

Features

Folding aluminium scissor structure

16m² covered area with vertical side walls

Two-person setup in under 30 minutes

Lightweight at 85kg

Wind rated to 80km/h with ballast (60km/h with a backdrop)

Folds compactly for transport and storage

Customisable membranes, backdrops and branding

Supplied with protective transport cover

Modular and scalable design

Designed and manufactured in Belgium

NoteFrame kit only, membranes, backdrops and power poles are ordered separately. The 80km/h wind rating applies only with correct ballast and without a backdrop; with a closed backdrop the limit is 60km/h.

Specifications

Konligo Arko470 Folding Event Structure Black Anodised Frame Kit 16m2 (KL0001) specifications
Covered area	16m²
Total weight	85kg
Wind resistance	Up to 80km/h ballasted, no backdrop (60km/h with backdrop)
Setup time	Under 30 minutes
Crew required	2 people
Frame	Folding aluminium scissor structure
Finish	Black anodised
Supplied with	Transport cover, pin kit, 6 stabilising feet
Manufactured in	Belgium

Full features

Fast 2-person setup in under 30 minutes
16m² covered area with vertical side walls
Lightweight structure – only 85kg
Folds down compactly for easy transport and storage
Includes protective transportation cover
Wind rated up to 80 km/h with proper ballast (60 km/h with a backdrop)
Durable aluminium scissor structure
Customisable membranes, backdrops, and branding options
Ideal for FOH, pop-up stages, booths, and brand activations
Modular and scalable design

Kit Contents

Arko470 folding frame
Transport cover
Assembly pin kit
Set of 6 stabilising feet

Optional Parts (Sold Separately)

KL0002 – Inside Membrane Kit: Membrane and ground cover
KL0004 – Inside Backdrop Kit: Backdrop panel with integrated zip opening system (for access or ventilation)
KL0003 – Outside Membrane Kit: Membrane and support bar
KL0005 – Outside Backdrop Kit: Backdrop panel with integrated zip opening system (for access or ventilation)
KL0016 – Power Pole Kit: Power poles and safety cable

Structure weight: 85kg
Stage size: 3m x 4m inside the structure, 5.5m x 4m under it
Folded dimensions: 188 x 74 x 39 cm
Setup time: Under 30 minutes
Assembly: 2 persons (Power Poles recommended)
Wind resistance: Up to 80 km/h with proper ballast
Ballast required at 80 km/h: 3 to 10 x 15kg per foot (270kg to 900kg total) depending on membrane
Material: Aluminium tubes (80% recycled), Vectran cables
Load capacity: Up to 150kg (25kg per 1.2m zone) in no wind, reducing as wind rises
Transport: Folds compactly, on wheels, with protective cover
Includes: Ground cover and transport cover
Certification: CTS Certified

Product Reviews

No reviews yet — be the first to review this product.

Bought this? It takes a minute.

Manuals & Downloads

Manuals & Instructions: KL0001 ManualPDF

Manuals & Instructions: KL0001 VideoZIP

Manuals & Instructions: KL0001 Datasheet ImperialPDF

Manuals & Instructions: KL0001 Datasheet MetricPDF

Manuals & Instructions: KL0001 Membrane DatasheetPDF

Manuals & Instructions: KL0001 Fire CertificationPDF

Manuals & Instructions: KL0001 Risk AssessmentPDF

Manuals & Instructions: KL0001 DXF Technical DrawingZIP

Manuals & Instructions: KL0001 Inside Membrane ManualPDF

Manuals & Instructions: KL0001 Outside Membrane ManualPDF

Manuals & Instructions: KL0001 Power Pole ManualPDF
