What connectors does this cable have?

It uses XLR connectors. Check the connector type at both the source and destination before ordering, as the same cable family is sold in several terminations. Audio connectors explained.

Is this cable available in other lengths?

This is the 10m version. Other lengths in the same range are listed under DMX Cables. Measure the run before ordering, as coiled excess on a stage is a trip hazard and takes up truck space.

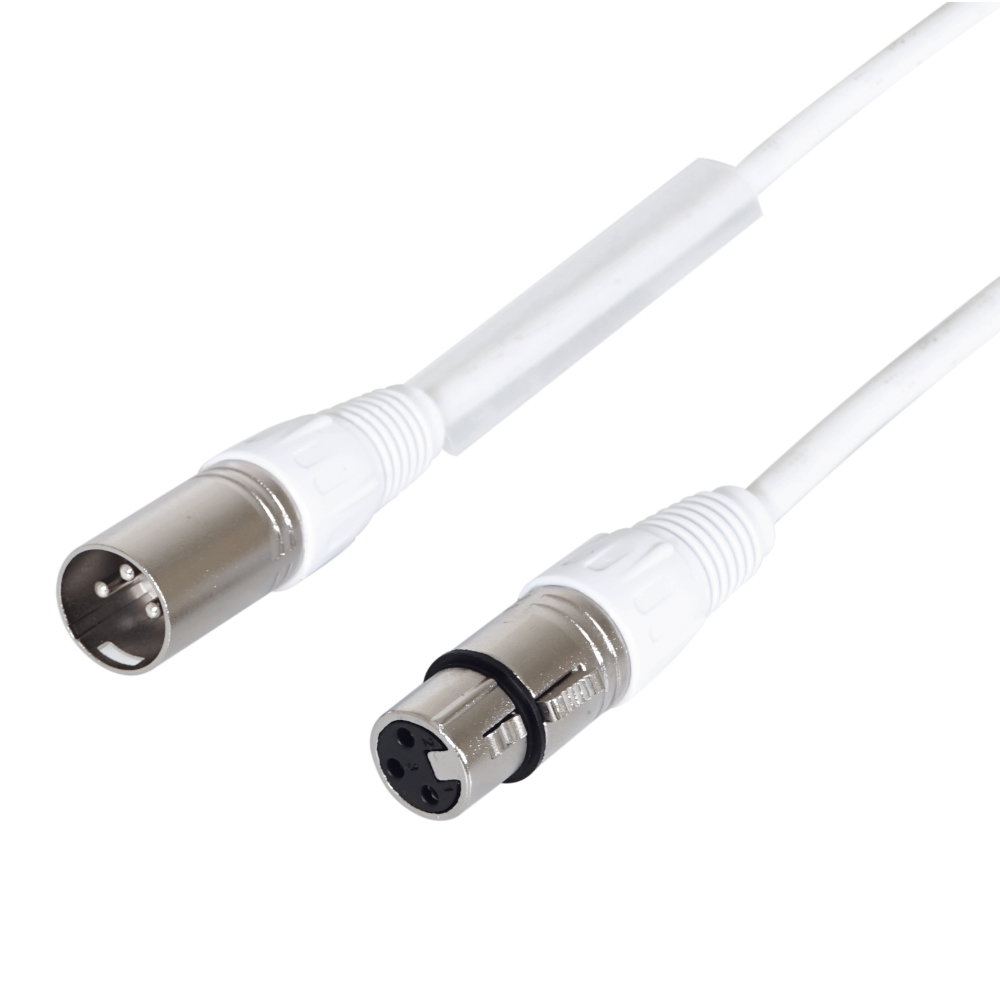

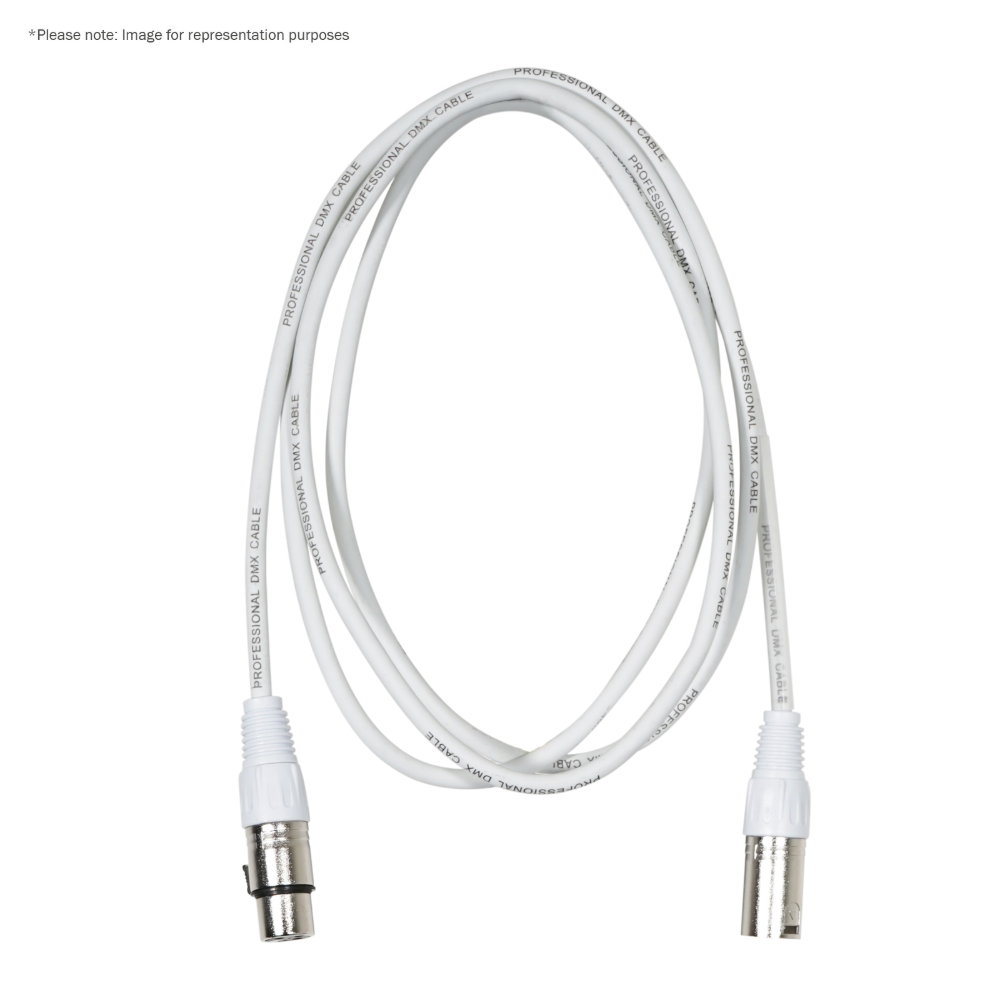

LEDJ 3-Pin XLR DMX Cable 10m Male to Female 110Ω White Sheath (CABL209)

Product code: 162667

£13.00 inc VAT
£10.83 ex VAT

SKU: CABL209

40 available online

Available lengths

2m 3m 5m10m

Other colours available

About this Product

A 10m 3-pin XLR DMX cable in a white PVC sheath, for carrying signal from a lighting console to dimmers, LED fixtures or any DMX device. The 10m length is the standard console-to-first-fixture run and the one most crews buy by the dozen – long enough to cross a stage or reach truss height without a coupler in the line.

10m

LENGTH · Console to rig

3-Pin XLR

CONNECTORS · Male to female

110Ω

IMPEDANCE · True DMX spec

0.5kg

PACKED WEIGHT · White PVC jacket

Why 110Ω mattersThis is proper 110Ω data cable, not repurposed microphone cable. Mic cable is around 50-75Ω and causes reflections on a DMX line, which shows up as flicker or dropped fixtures at the far end of a long chain. The double shield with foil and braid gives greater interference rejection where DMX runs alongside mains.

Features

10m length for console-to-rig and stage-crossing runs

White PVC outer jacket for white truss and exhibition work

3-pin male XLR to 3-pin female XLR

110Ω impedance cable to DMX specification

Double shield with foil and braid for interference rejection

Heat resistant inner liners protect signal integrity

Water-resistant PVC jacket for harsh environments

Clear heatshrink suitable for identification or asset label

Specifications

LEDJ 3-Pin XLR DMX Cable 10m Male to Female 110Ω White Sheath (CABL209) specifications
Stock code	CABL209
Length	10m
Connectors	3-pin male XLR to 3-pin female XLR
Impedance	110Ω
Jacket	White PVC, water resistant
Screening	Double shield, foil and braid
Packed dimensions (H x W x D)	27 x 2.5 x 16cm
Packed weight	0.5kg
Barcode / EAN	0721405350506
Country of origin	China

Full features

White PVC outer jacket
3-Pin Male XLR to 3-Pin Female XLR
Heat resistant
110Ω impedance cable
Double shield with foil and braid for greater interference rejection
Clear heatshrink suitable for identification or asset label
Length: 10m

Stock code	CABL209
Barcode / EAN	0721405350506
Packed Dims (H x W x D)	27 x 2.5 x 16cm
Packed Weight	0.5kg
Outer Carton Quantity	35
Commodity Code	9405499090
Country Of Origin	China
