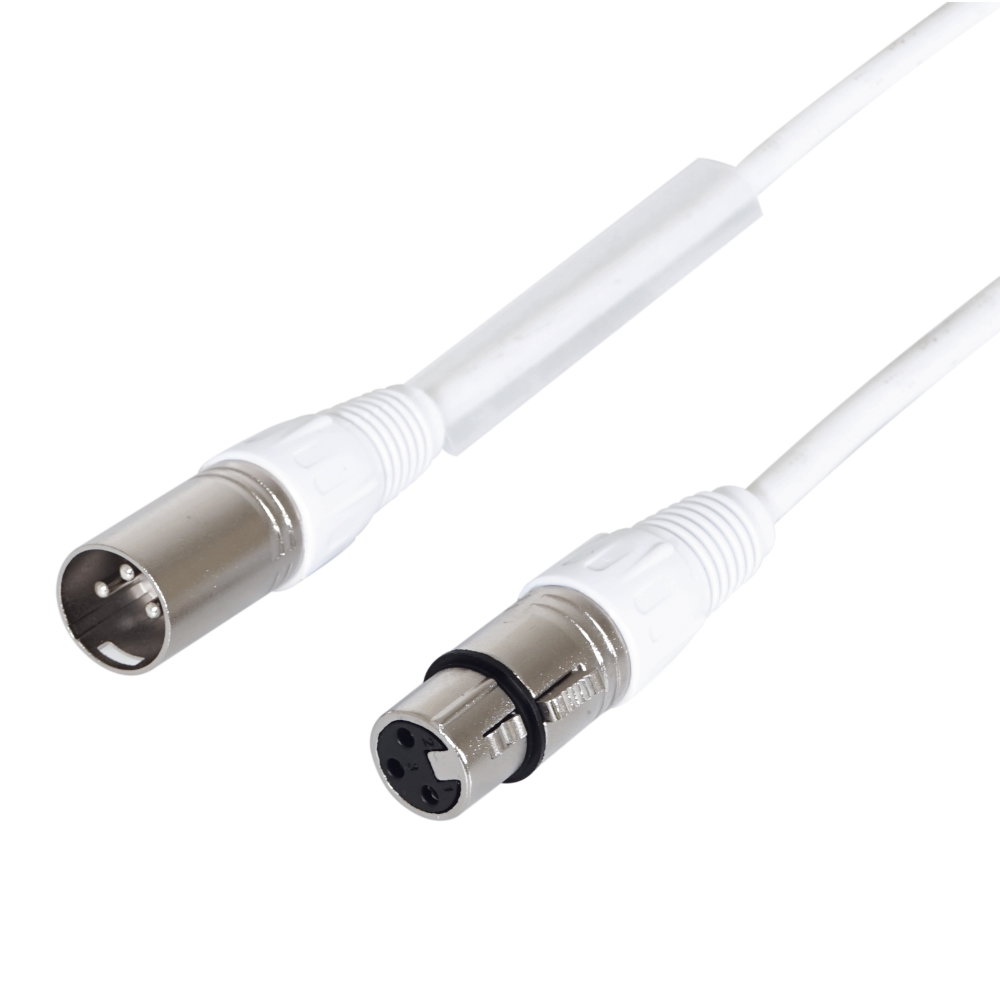

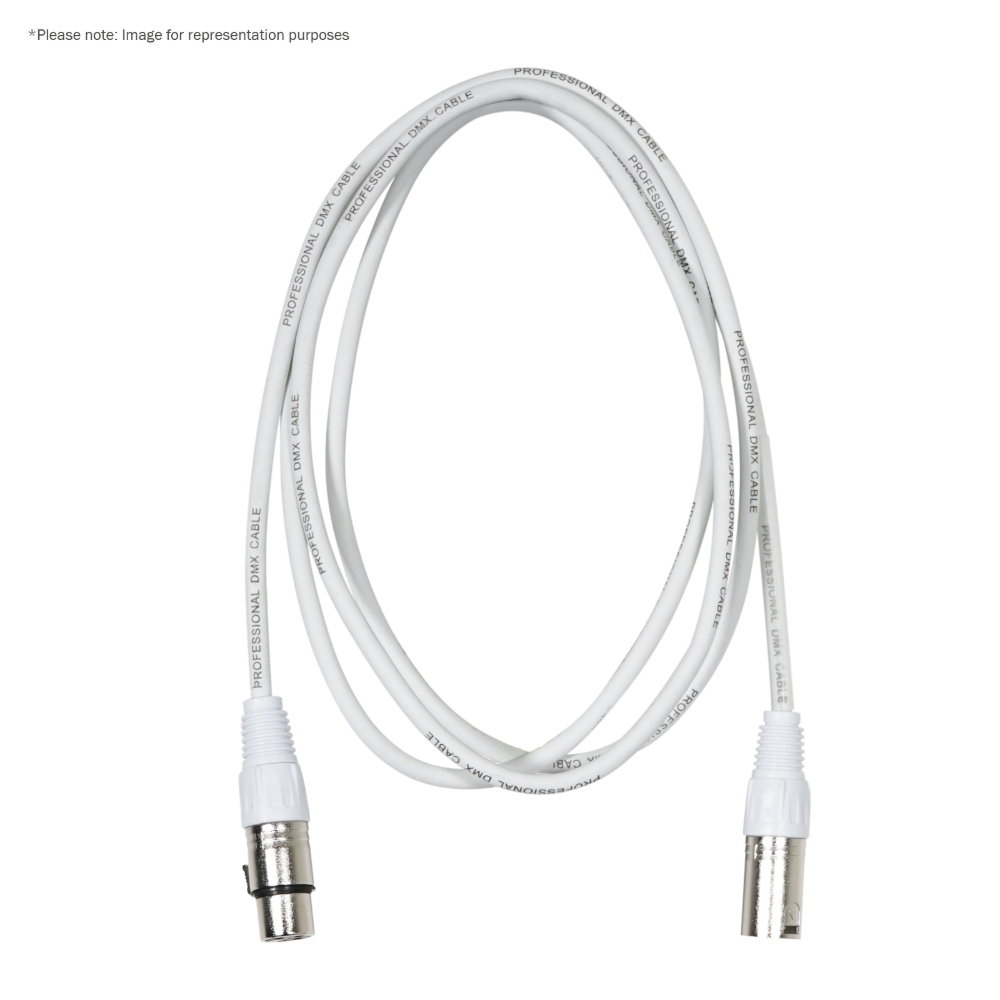

A 2m 3-pin XLR DMX cable in a white PVC sheath, running signal from a lighting console to dimmers, LED fixtures or anything else that speaks DMX. At 2m this is the short jumper you want between adjacent fixtures on a bar or between two units in a truss cell – and the white jacket keeps it discreet against white truss, drape or exhibition stands.
LENGTH
2m
Fixture to fixture
CONNECTORS
3-Pin XLR
Male to female
IMPEDANCE
110Ω
True DMX spec
SHEATH
White
PVC, water resistant
Why 110Ω matters
This is proper 110Ω data cable, not repurposed microphone cable. Mic cable is around 50-75Ω and causes reflections on a DMX line, which shows up as flicker or dropped fixtures at the far end of a long chain. The double shield with foil and braid gives greater interference rejection where DMX runs alongside mains.
Features
✓
2m length for short fixture-to-fixture jumps
2m length for short fixture-to-fixture jumps
✓
White PVC outer jacket blends with white truss and drape
White PVC outer jacket blends with white truss and drape
✓
3-pin male XLR to 3-pin female XLR
3-pin male XLR to 3-pin female XLR
✓
110Ω impedance cable to DMX specification
110Ω impedance cable to DMX specification
✓
Double shield with foil and braid for interference rejection
Double shield with foil and braid for interference rejection
✓
Heat resistant inner liners protect signal integrity
Heat resistant inner liners protect signal integrity
✓
Water-resistant PVC jacket for harsh environments
Water-resistant PVC jacket for harsh environments
✓
Clear heatshrink suitable for identification or asset label
Clear heatshrink suitable for identification or asset label
Specifications
| Stock code | CABL206 |
| Length | 2m |
| Connectors | 3-pin male XLR to 3-pin female XLR |
| Impedance | 110Ω |
| Jacket | White PVC, water resistant |
| Screening | Double shield, foil and braid |
| Packed dimensions (H x W x D) | 28 x 1.5 x 16cm |
| Packed weight | 0.1kg |
| Barcode / EAN | 0723175520233 |
| Country of origin | China |
