DMX Explained: Addressing, Universes, Cables and Networks

From your first moving head to a multi-universe Art-Net rig: how DMX512 actually works, how to address fixtures without guesswork, and why the cable you use matters more than you think.

~12 min read · Updated July 2026 · By the Stage Supply team

In this guide: What is DMX512 · Addressing · Cabling rules · DMX vs mic cable · 3-pin vs 5-pin · RDM · Wireless DMX · Art-Net & sACN · Troubleshooting · FAQ

What is DMX512?

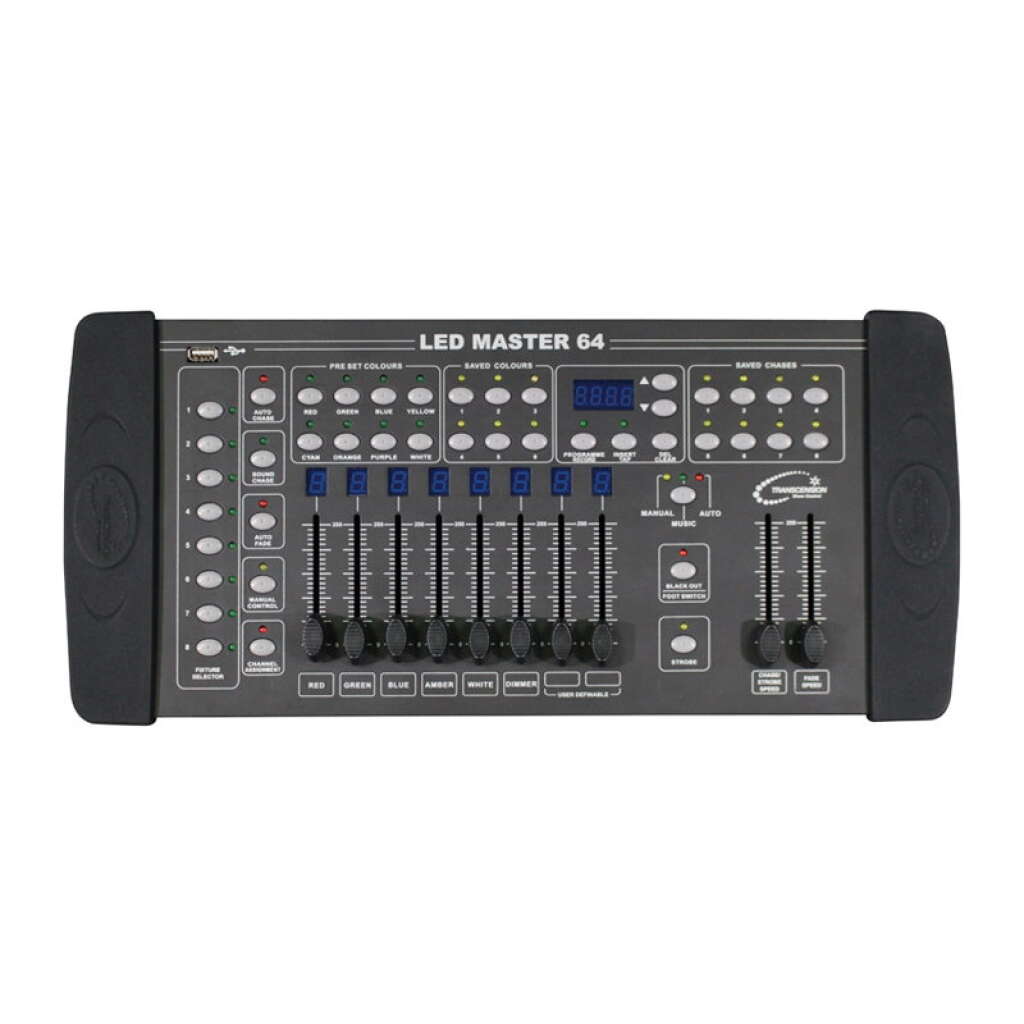

DMX512 is the control language that connects lighting desks to fixtures. Formalised today as ANSI E1.11 (usually called DMX512-A), it sends a continuous stream of control data down a shielded twisted-pair cable at 250 kbit/s using EIA-485 (RS-485) electrical signalling. One output from your controller carries one universe: up to 512 channels, each holding a value from 0 to 255, refreshed up to roughly 44 times per second.

Each channel is just a number. What that number means is entirely up to the fixture. Channel 1 might be a dimmer (0 = off, 255 = full), channel 2 might be red, channel 3 might be pan on a moving head. The fixture’s manual tells you what each channel does in each mode.

Modes: how fixtures consume channels

Almost every fixture offers several DMX modes (sometimes called personalities). A basic LED PAR might have a 3-channel mode (RGB only), a 4-channel mode (RGB plus dimmer) and an 8-channel mode adding strobe, macros and colour temperature. A mid-size moving head commonly runs 14 to 20+ channels in its full mode. The mode you select decides how many consecutive channels the fixture occupies, starting at its address. Fewer channels per fixture means more fixtures per universe but less control; pick the smallest mode that gives you the functions you actually need. If you are still choosing fixtures, our moving head buying guide covers spot vs wash vs beam and what channel counts to expect.

This is why universes fill up faster than people expect. A dozen moving heads in extended mode plus a handful of pixel battens can exhaust 512 channels on their own, which is where Art-Net and sACN come in later.

DMX addressing: a worked example

The DMX address is simply the first channel a fixture listens to. It then reads as many consecutive channels as its mode requires. The classic rule: next address = previous address + previous fixture’s channel count. Say you have four identical LED wash fixtures, each set to a 7-channel mode.

1. Fixture 1: address 001: Set the first fixture to address 1. In 7-channel mode it occupies channels 1 to 7.
2. Fixture 2: address 008: 1 + 7 = 8. Fixture 2 occupies channels 8 to 14. If you set it to 7 by mistake, it would share channel 7 with fixture 1’s last function and everything downstream would misbehave.
3. Fixture 3: address 015: 8 + 7 = 15. Channels 15 to 21.
4. Fixture 4: address 022: 15 + 7 = 22. Channels 22 to 28. Channels 29 to 512 remain free for the rest of the rig.

Two useful tricks. First, addresses do not have to be contiguous: many operators address in round-number blocks (1, 21, 41, 61) so a fixture can be swapped for a bigger one later without re-addressing the whole rig. Second, giving two identical fixtures the same address is legitimate and handy: both will respond identically to the same channels, which is exactly what you want for a matched pair of uplighters on a mobile rig.

Daisy-chaining, termination and splitters

DMX is a bus: one cable from the controller output to the first fixture’s DMX IN, another from its DMX THRU/OUT to the next fixture, and so on down the line. Three hard rules keep it reliable.

• Max 32 unit loads per line. EIA-485 allows 32 unit loads on one segment. Most fixtures present one full unit load, so treat 32 devices as the ceiling per output (fewer if you want margin). Modern fixtures with fractional-load receivers allow more, but 32 is the safe planning number.
• Terminate the end of the line. Plug a 120 ohm terminator (a male XLR with a 120 ohm resistor across the data pins) into the THRU of the last fixture. It absorbs the signal instead of letting it reflect back up the cable and corrupt data. Some fixtures have a termination switch; use one or the other, never both mid-line.
• Keep total run length sensible. The commonly quoted maximum for a DMX segment on proper cable is around 300 m; in the real world, plan for well under that and let a splitter/booster regenerate the signal on long or complex runs. Total length includes every jump lead between fixtures.
• No Y-splits. You cannot passively split a DMX line with a Y-cable or two-way adapter; the impedance mismatch and reflections will cause random flicker. Star topologies need an active DMX splitter (also called a buffer or booster), which electrically isolates and re-drives each output.

An active splitter is one of the best-value reliability upgrades a venue or school hall can buy: one input, four to eight isolated outputs, each of which is its own fresh 32-unit-load, individually terminated line. A fault on one leg (crushed cable, failed fixture) no longer takes the whole rig down. Quality leads and splitters live in our DMX cables range.

Why mic cable is the wrong cable for DMX

Because 3-pin DMX and mic leads share the same XLR connector, everyone tries a mic cable at some point. It will often appear to work on a short run with two fixtures, which is exactly why the habit spreads. Then the rig grows, the runs get longer, and the random flicker starts.

3-pin vs 5-pin XLR

The DMX512 standard specifies the 5-pin XLR connector: pin 1 ground/shield, pins 2 and 3 the primary data pair, pins 4 and 5 reserved for an optional second data link that almost nothing ever used. The 5-pin choice was partly deliberate: it stops people plugging lighting data into audio equipment, and stops mic cables being pressed into DMX service.

Manufacturers of budget and DJ-oriented fixtures adopted 3-pin XLR anyway to save cost, and it is now everywhere on that side of the market, while professional fixtures and desks stay 5-pin. The data on the three pins is identical (ground, data minus, data plus), so a simple 3-to-5-pin adapter or adapter lead is all you need to mix the two, with no signal conversion involved. Most working rigs carry a pair of adapters in each direction as standard kit. Just remember the adapter fixes the connector, not the cable: an adapter on the end of a mic lead is still a mic lead.

RDM: DMX that talks back

Standard DMX is one-way: the desk transmits, fixtures listen. RDM (Remote Device Management, ANSI E1.20) adds a return path over the same cable and pins. An RDM controller can discover every RDM-capable fixture on the line, then read and set parameters remotely: DMX address, mode, lamp hours, temperature, error states.

The practical win is re-addressing fixtures that are already rigged 6 m up on a truss without a ladder trip, and identifying which unit is which from the desk. For it to work end to end, everything in the signal path must pass RDM, including splitters, so check for RDM support when buying distribution. Many Art-Net/sACN nodes and modern DMX controllers support RDM discovery out of the box.

Wireless DMX: when it earns its keep

Wireless DMX replaces one cable run with a transmitter/receiver pair, almost always on the licence-free 2.4 GHz band using frequency-hopping or adaptive schemes to dodge Wi-Fi traffic. Good systems add a few milliseconds of latency, which is invisible for lighting, and quality units will happily cover a typical function room or marquee with headroom.

Where it shines: uplighters around a wedding venue perimeter, a fixture across a walkway you cannot legally or safely cable, listed buildings where you cannot fix cable, and fast mobile DJ changeovers. Where it disappoints: through multiple solid walls (2.4 GHz does not love brick and steel), in RF-saturated environments like exhibition halls, and with cheap no-name links that drop frames under congestion. Treat wireless as a cable replacement for specific problem runs, not the backbone of the rig, and always range-test in the actual venue. See our wireless DMX range for paired transmitter/receiver systems and battery-powered receivers.

Beyond one universe: Art-Net and sACN

One DMX output carries one universe. When your channel count outgrows 512, or you are running pixel-mapped fixtures that devour whole universes each, the answer is to carry DMX data over an ordinary Ethernet network and convert it back to physical DMX near the fixtures.

Two protocols dominate. Art-Net (originally developed by Artistic Licence) sends universes as UDP packets and is supported by practically every lighting software package and console. sACN (streaming ACN, ANSI E1.31) is the newer open standard; it uses multicast so switches only forward each universe to the devices that ask for it, and it has a built-in priority system so a backup console can take over seamlessly. Most modern hardware speaks both; for larger networks sACN’s multicast behaviour scales more gracefully than broadcast-mode Art-Net.

The hardware that converts network data back to XLR outputs is a node. A 4-universe node gives you 2,048 channels down one network cable, and nodes can sit exactly where the fixtures are: one at each truss, fed from a small gigabit switch. Many consoles and PC dongles also output Art-Net/sACN natively, so entry cost is lower than people assume: a laptop, a node and a switch is a legitimate multi-universe rig. Keep the lighting network on its own switch or VLAN rather than sharing the venue’s general network. Browse Art-Net and DMX nodes for 1 to 8 universe options.

Troubleshooting DMX problems

DMX faults follow patterns. Read the symptom, and the cause usually names itself.

FAQ

Can I use a microphone XLR cable for DMX in an emergency?

It may pass signal on a short run with a couple of fixtures, but mic cable’s lower characteristic impedance (roughly 45 to 75 ohms vs the 120 ohms DMX expects) causes data reflections that show up as flicker and glitches, especially on longer chains. Fine to limp through a gig if you must; wrong as anything you plan around.

How many lights can I run on one DMX universe?

Two separate limits apply. Channel-wise, whatever fits in 512 channels (e.g. around 36 fixtures at 14 channels each). Electrically, a single daisy-chain should not exceed 32 unit loads. Use an active splitter to add more physical lines within the same universe, and a second universe when you run out of channels.

Do I really need a DMX terminator?

Short chains often survive without one, which is why people believe terminators are optional. On longer runs or bigger fixture counts the unterminated line reflects data back on itself and causes intermittent flicker. A terminator costs a few pounds; fit one at the end of every line as a habit.

What is the difference between Art-Net and sACN?

Both carry DMX universes over Ethernet. Art-Net is the older, near-universally supported protocol using UDP unicast/broadcast. sACN (ANSI E1.31) is the open standard, uses multicast so large networks scale better, and includes per-universe priority for automatic backup takeover. Most nodes and consoles support both; on a small rig the choice barely matters.

Are 3-pin and 5-pin DMX signals different?

No. The data on ground, data minus and data plus is identical; 5-pin simply carries two extra pins reserved for a second data link that is rarely used. A passive 3-to-5-pin adapter is all you need to connect the two, provided the cable itself is DMX-rated.

Can two fixtures share the same DMX address?

Yes, deliberately. Two identical fixtures on the same address respond in unison, which is a standard trick for symmetric pairs on small rigs. Problems only arise when different fixtures, or fixtures you meant to control separately, overlap addresses unintentionally.

Is wireless DMX reliable enough for professional shows?

Quality systems from reputable manufacturers are used on major tours and are extremely dependable, with latency of a few milliseconds. Reliability drops with cheap unbranded links, multiple solid walls between transmitter and receiver, and RF-congested environments. Range-test in the venue before show day and keep a cable path in reserve for critical fixtures.

Do I need special network cable for Art-Net?

Standard Cat5e or Cat6 Ethernet is fine electrically; for stage use choose flexible, rugged patch leads or drum-mounted tour-grade cable rather than solid-core installation cable. Keep lighting traffic on its own switch or VLAN and avoid Wi-Fi for show-critical universes.
