LEDJ 5-Pin XLR DMX Cable 10m Male to Female 110Ω Double Shielded (CABL188)

SKU: CABL188

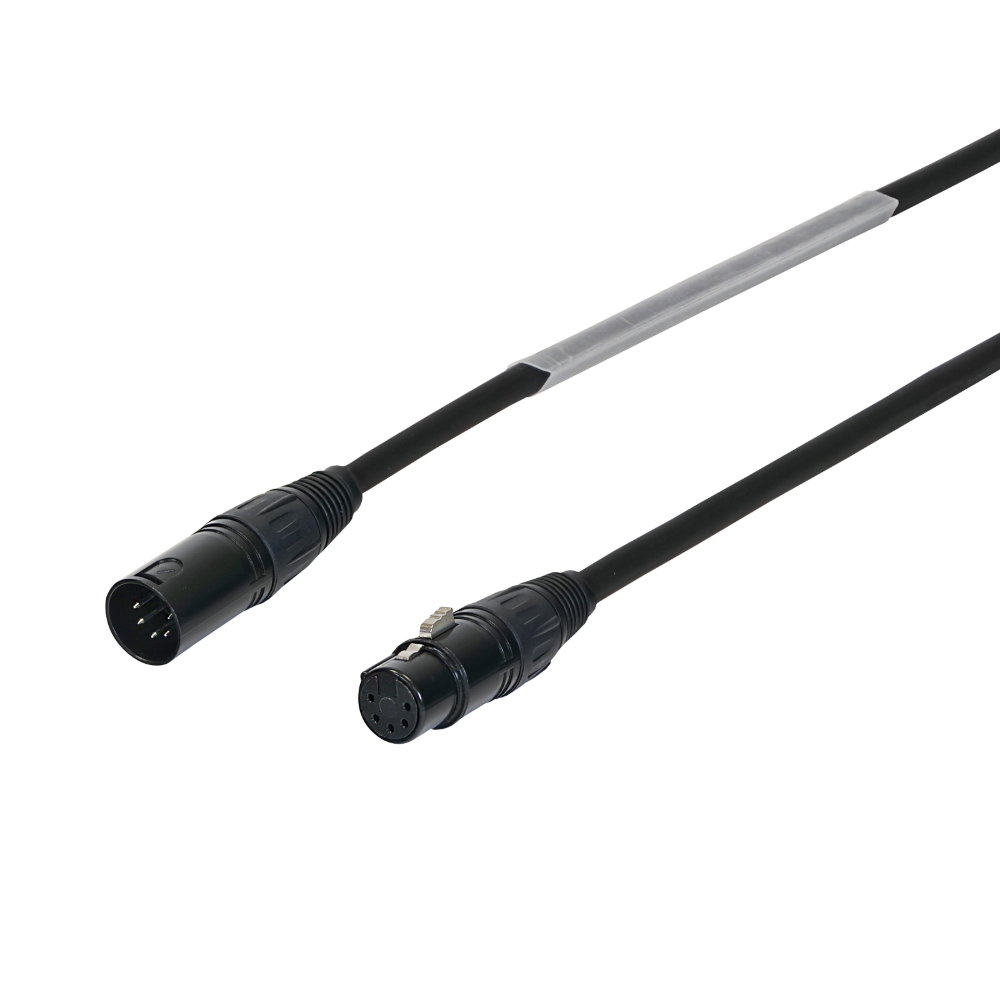

LEDJ 5-Pin XLR DMX Cable 10m Male to Female 110Ω Double Shielded (CABL188)
Click to enlarge

    £12.00 inc VAT
    £10.00 ex VAT

    Backorder - Delivery by Thu 1st Oct
    VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
    1 Year Manufacturer Warranty Included
    About Stage Supply
    Chat to us on WhatsApp

    About this Product

    A 10m 5-pin XLR DMX cable for consoles, dimmers and fixtures using the full 5-pin DMX512 connector. The 10m length is the standard console-to-rig run and the one crews keep most of in the truck – long enough to cross a stage or reach the first bar without joining two cables.

    LENGTH
    10m
    Console to rig

    CONNECTORS
    5-Pin XLR
    Male to female

    IMPEDANCE
    110Ω
    True DMX spec

    PACKED WEIGHT
    0.6kg
    PVC jacket

    Why 110Ω matters

    This is proper 110Ω data cable, not repurposed microphone cable. Mic cable is around 50-75Ω and causes reflections on a DMX line, which shows up as flicker or dropped fixtures at the far end of a long chain. The double shield with foil and braid gives greater interference rejection where DMX runs alongside mains.

    Features
    ✓
    10m length for console-to-rig and stage-crossing runs
    ✓
    5-pin male XLR to 5-pin female XLR
    ✓
    110Ω impedance cable to DMX specification
    ✓
    Double shield with foil and braid for interference rejection
    ✓
    Heat resistant inner liners protect signal integrity
    ✓
    Water-resistant PVC outer jacket for harsh environments
    ✓
    Clear heatshrink suitable for identification or asset label
    ✓
    Suits consoles and fixtures with 5-pin DMX512 connectors

    Specifications
    Stock code CABL188
    Length 10m
    Connectors 5-pin male XLR to 5-pin female XLR
    Impedance 110Ω
    Jacket PVC, water resistant
    Screening Double shield, foil and braid
    Packed dimensions (H x W x D) 3 x 20 x 28cm
    Packed weight 0.6kg
    Barcode / EAN 0721405350469
    Country of origin China

    More Information

    • PVC outer jacket
    • 5 Pin Male XLR to 5-Pin Female XLR
    • Heat resistant
    • 110Ω impedance cable
    • Double shield with foil and braid for greater interference rejection
    • Clear heatshrink suitable for identification or asset label
    • Length: 10m
