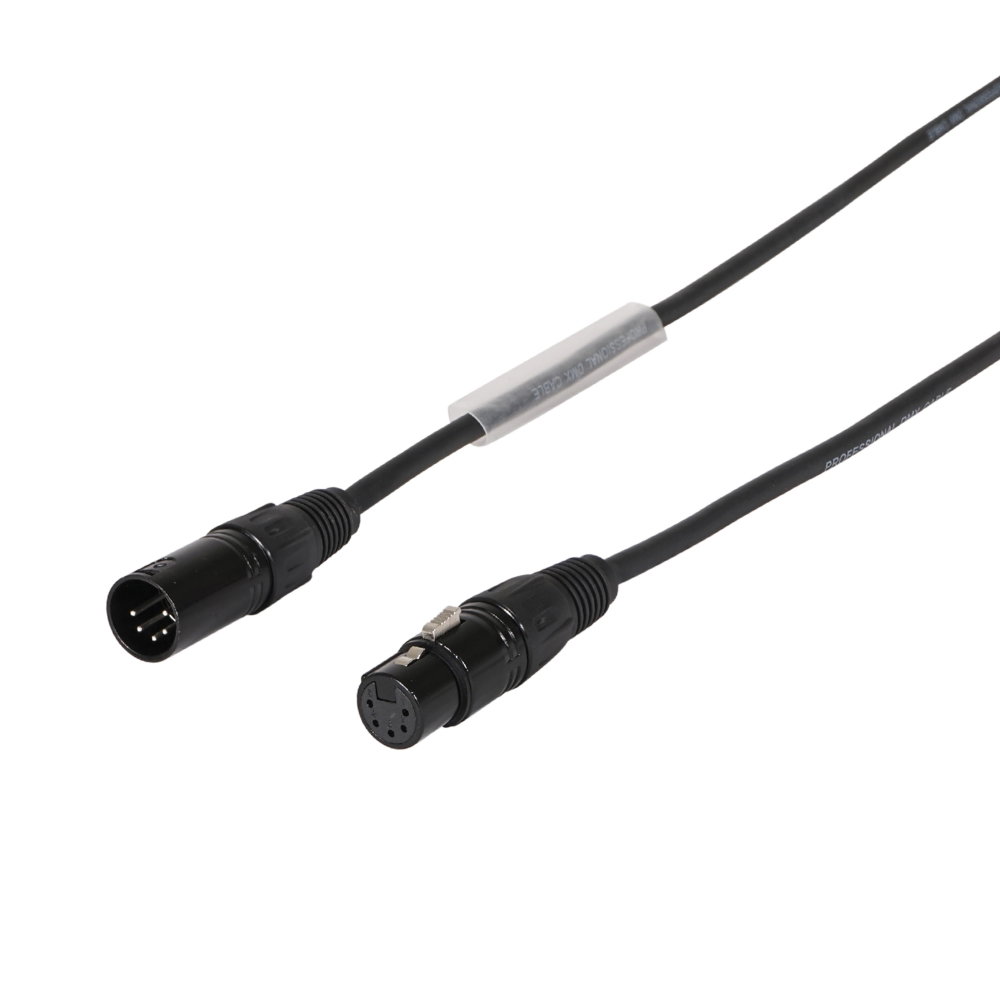

LEDJ 5-Pin XLR DMX Cable 3m Male to Female 110Ω Double Shielded (CABL186)

SKU: CABL186
LEDJ 5-Pin XLR DMX Cable 3m Male to Female 110Ω Double Shielded (CABL186)
Click to enlarge

    £6.00 inc VAT
    £5.00 ex VAT

    Available on back-order

    On backorder, expected 1 Oct 2026
    Delivered by Mon 5th OctOrder by 3pm
    Click & Collect Fri 2nd Oct ›Collect from our warehouse in Wembley, London
    VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
    1 Year Manufacturer Warranty Included
    About Stage Supply
    Chat to us on WhatsApp

    About this Product

    A 3m 5-pin XLR DMX cable for linking fixtures on the 5-pin DMX512 standard. 3m is the jumper length – enough to daisy chain between adjacent fixtures on a bar or truss without leaving slack hanging, which is why crews tend to buy these in bulk rather than one at a time.

    3m
    LENGTH · Fixture jumper
    5-Pin XLR
    CONNECTORS · Male to female
    110Ω
    IMPEDANCE · True DMX spec
    0.3kg
    PACKED WEIGHT · PVC jacket
    Why 110Ω mattersThis is proper 110Ω data cable, not repurposed microphone cable. Mic cable is around 50-75Ω and causes reflections on a DMX line, which shows up as flicker or dropped fixtures at the far end of a long chain. Worth keeping in mind when a rig is made up of a dozen short jumpers – every link in the chain counts.
    Features
    3m jumper length for daisy chaining fixtures on a bar
    Compact 0.3kg packed weight for carrying in bulk
    5-pin male XLR to 5-pin female XLR
    110Ω impedance cable to DMX specification
    Double shield with foil and braid for interference rejection
    Heat resistant inner liners protect signal integrity
    Water-resistant PVC outer jacket for harsh environments
    Clear heatshrink suitable for identification or asset label
    Specifications
    Stock code CABL186
    Length 3m
    Connectors 5-pin male XLR to 5-pin female XLR
    Impedance 110Ω
    Jacket PVC, water resistant
    Screening Double shield, foil and braid
    Packed dimensions (H x W x D) 1.8 x 20 x 28cm
    Packed weight 0.3kg
    Barcode / EAN 0723175520219
    Country of origin China

    Product Reviews

    No reviews yet — be the first to review this product.

    Bought this? It takes a minute.
    Review this product

    Reviews are checked by our team before they appear.

    More Information

    • PVC outer jacket
    • 5 Pin Male XLR to 5-Pin Female XLR
    • Heat resistant
    • 110Ω impedance cable
    • Double shield with foil and braid for greater interference rejection
    • Clear heatshrink suitable for identification or asset label
    • Length: 3m
