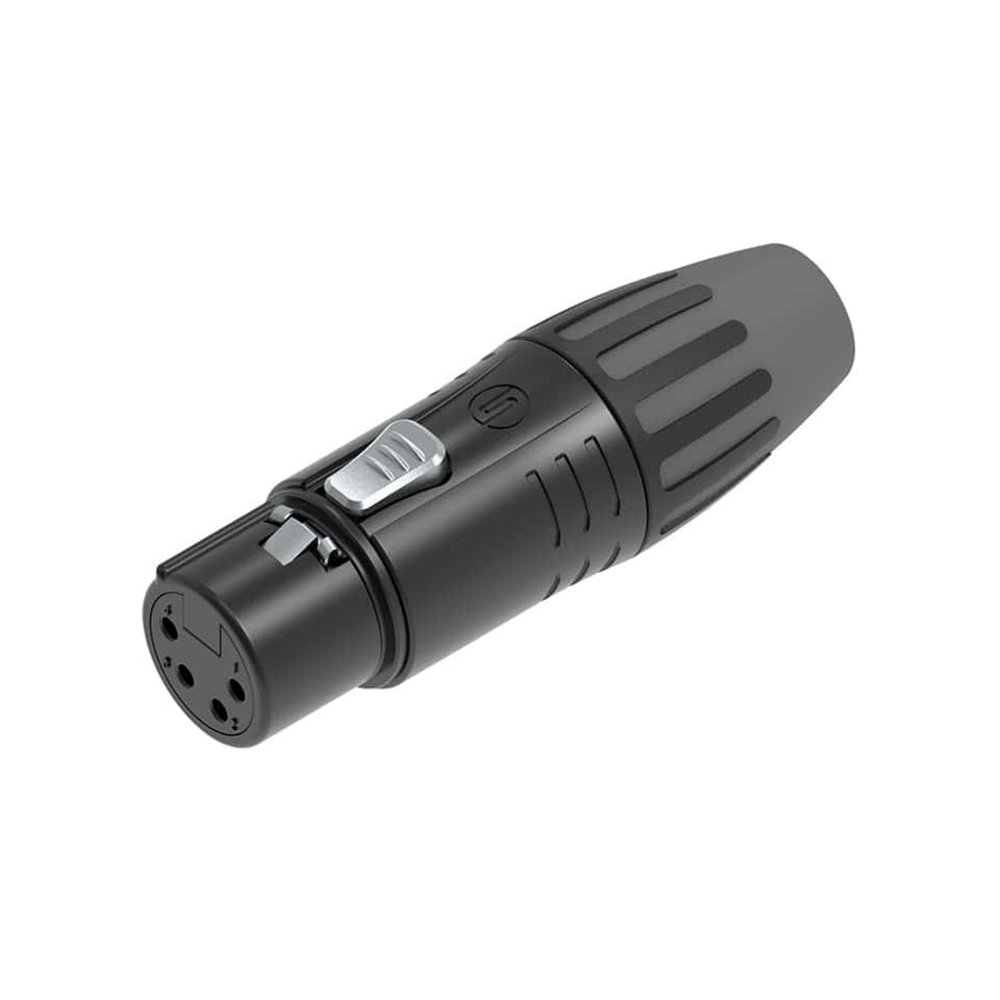

The Seetronic SCMF4-B is the four-pin female XLR cable socket from the M-Series range, with a zinc alloy black plated housing and 3.5-8mm cable capacity. Pair it with the SCMM4 male plug to make up intercom, headset and low-voltage lamp leads, or use it to re-end an existing four-pin loom that has taken a knock on the road.
POLES
4-pin
female, cable end
HOUSING
Zinc alloy
black plated
CABLE SIZE
3.5-8mm
two clamps supplied
Features
✓
4-pin female XLR socket, M-Series
4-pin female XLR socket, M-Series
✓
Zinc alloy housing with black plated finish
Zinc alloy housing with black plated finish
✓
Internal thread design for compression consolidation and component protection
Internal thread design for compression consolidation and component protection
✓
Two cable clamps supplied: black 3.5-6mm, white 6-8mm
Two cable clamps supplied: black 3.5-6mm, white 6-8mm
✓
Compact no-ring design
Compact no-ring design
✓
Coloured boots available for coding and identification
Coloured boots available for coding and identification
✓
Mates with the SCMM4 series 4-pin male for complete cable builds
Mates with the SCMM4 series 4-pin male for complete cable builds
✓
Assembles the same way as the rest of the M-Series stock
Assembles the same way as the rest of the M-Series stock
Specifications
| Model | SCMF4-B |
| Part code | CONN1048 |
| Type | 4-pin XLR female plug |
| Series | M-Series XLR Plugs |
| Housing | Zinc alloy, black plated, internal thread |
| Cable size | 3.5-8mm (black clamp 3.5-6mm, white clamp 6-8mm) |
