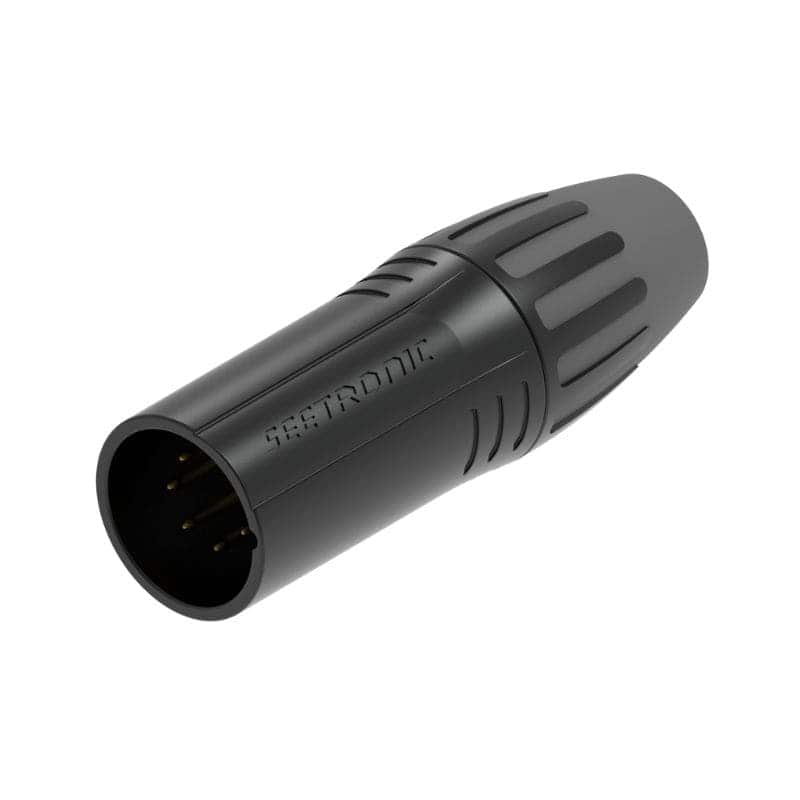

The Seetronic SCMM5-BG is a five-pole male XLR cable connector with black plated housing and gold plated contacts. Five-pin XLR is the standard for DMX512 control runs and for stereo intercom and headset leads, and the internal-thread metal housing and no-ring body make this a straightforward, compact plug to build onto touring cable.
POLES
5-pin
male, cable end
FINISH
Black / gold
housing / contacts
CABLE CLAMPS
3.5-6 / 6-8mm
black / white supplied
Two clamps in the box
Each connector ships with two cable clamps for different cable diameters: the black clamp covers 3.5-6mm and the white clamp covers 6-8mm. Pick the clamp that grips the jacket without crushing it, or the strain relief will not do its job.
Features
✓
5-core male XLR cable connector, black plated housing
5-core male XLR cable connector, black plated housing
✓
Gold plated contacts for a low-resistance connection
Gold plated contacts for a low-resistance connection
✓
Internal thread metal housing withstands load under any site conditions
Internal thread metal housing withstands load under any site conditions
✓
Two cable clamps supplied: black 3.5-6mm, white 6-8mm
Two cable clamps supplied: black 3.5-6mm, white 6-8mm
✓
No-ring design keeps the body compact and saves panel space
No-ring design keeps the body compact and saves panel space
✓
Coloured boots available for coding and identification
Coloured boots available for coding and identification
✓
Boot fitted with a polyurethane sealing sleeve to resist bending stress
Boot fitted with a polyurethane sealing sleeve to resist bending stress
✓
Suits DMX512 control lines and multi-pole intercom cable builds
Suits DMX512 control lines and multi-pole intercom cable builds
Specifications
| Model | SCMM5-BG |
| Part code | CONN1528 |
| Type | 5-core XLR male cable connector |
| Housing | Black plated metal, internal thread |
| Contacts | Gold plated |
| Cable clamps supplied | Black 3.5-6mm, white 6-8mm |
