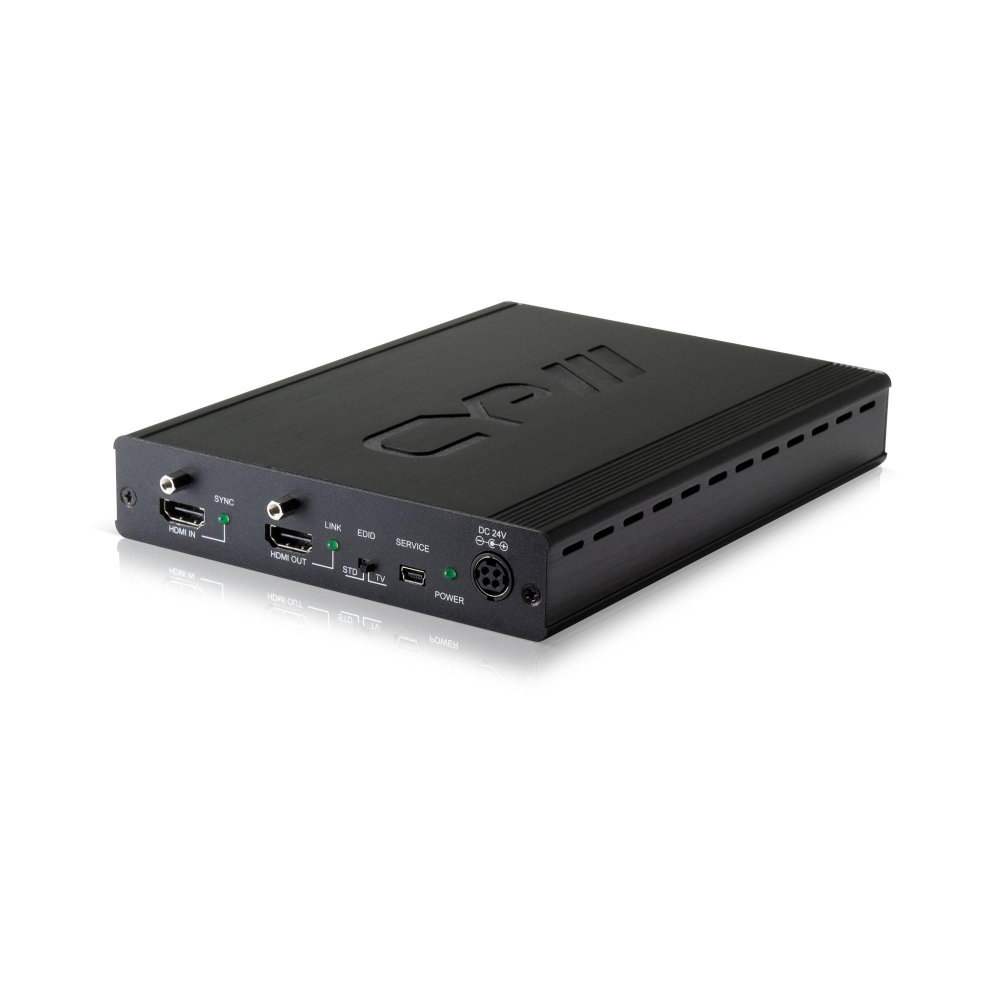

This is the HDBaseT Lite version of CYP’s three-way splitter, aimed at shorter runs: 1080p reaches 60m and 4K reaches 40m over CAT6a/7. Each of the three CAT outputs carries HDMI and IR and powers its receiver by PoC, and an extra HDMI output serves a local screen or a cascaded splitter. It suits residential and small commercial installs where runs stay under 60m.
1×3
HDBaseT Lite outputs
60m
1080p over CAT5e/6
40m
4K over CAT6a/7
PoC
Powers receivers
Receivers sold separatelyEach output needs a CYP PU-515PL-RX receiver, which is powered from this splitter by PoC.
Features

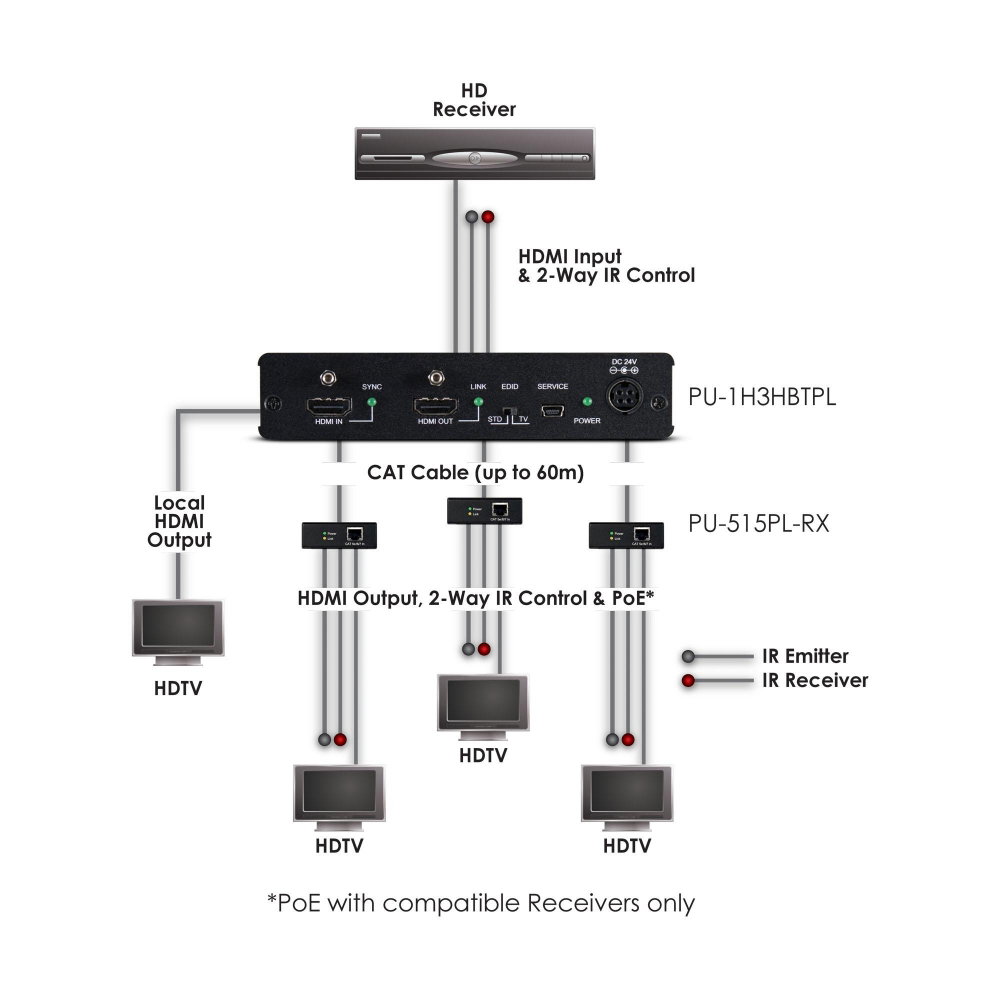

1 HDMI input to 3 HDBaseT Lite outputs plus 1 HDMI bypass output
PoC powers the connected receivers
HDMI and IR over a single CAT cable
1080p up to 60m; 4K up to 35m CAT5e/6 or 40m CAT6a/7
Cascade up to 5 times from the HDMI output
HDCP repeating, CEC and 3D support
Specifications
| Brand | CYP |
| Model | PU-1H3HBTPL |

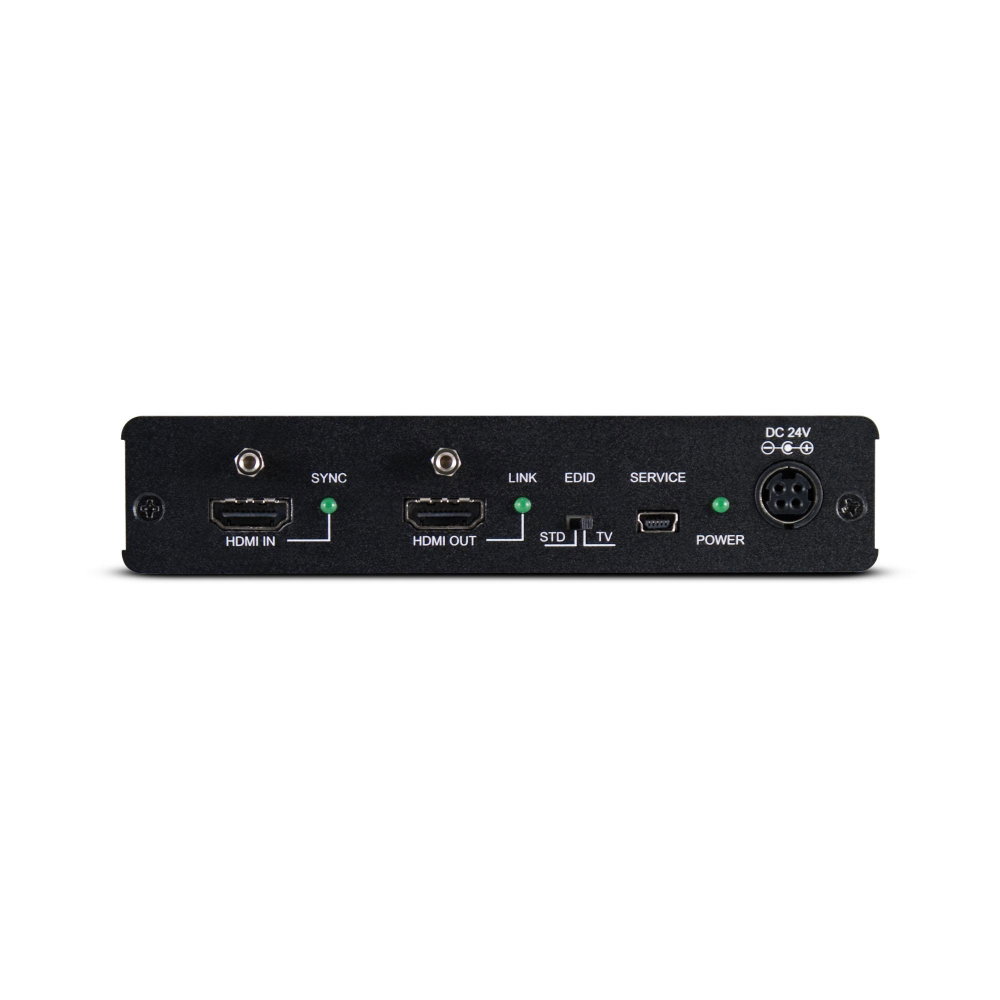

| Inputs | 1x HDMI, 1x IR in (3.5mm) |

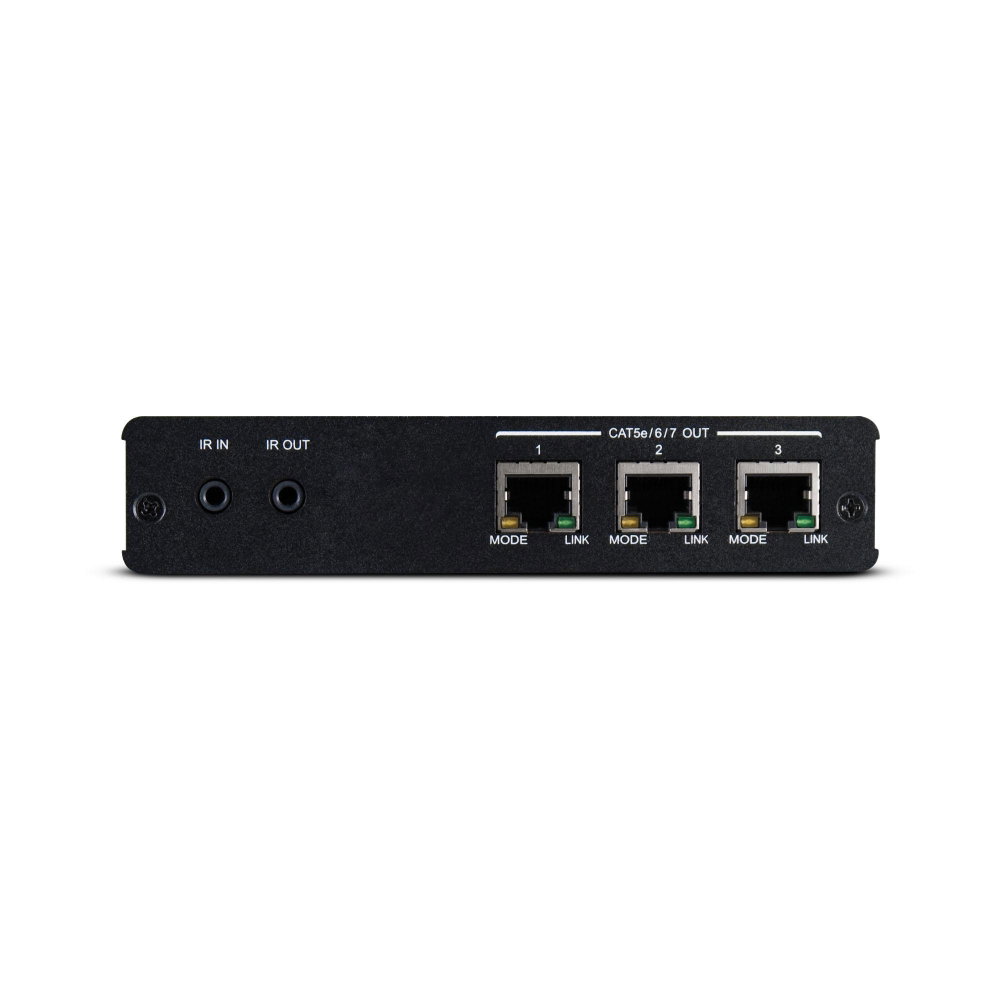

| Outputs | 3x HDBaseT Lite PoC (RJ45), 1x HDMI, 1x IR out (3.5mm) |
| Max resolution | 4K UHD@60Hz 4:2:0 |
| Bandwidth | 10.2Gbps |
| Distance (1080p) | 60m over CAT5e/6 |
| Distance (4K) | 35m CAT5e/6, 40m CAT6a/7 |
| Pass-through | IR |
| Receiver power | PoC |
| Recommended receiver | PU-515PL-RX (not included) |
| In the box | Splitter, IR receiver, IR blaster, 24V DC adaptor, power cord, manual |
| Power supply | 24V/2.7A |
| Dimensions (WxHxD) | 145 x 30 x 199mm |
| Weight | 620g |
