CYP QU-4-4K22 1x4 HDMI Distribution Amplifier 4K60 HDR Downscaling

SKU: CYP038

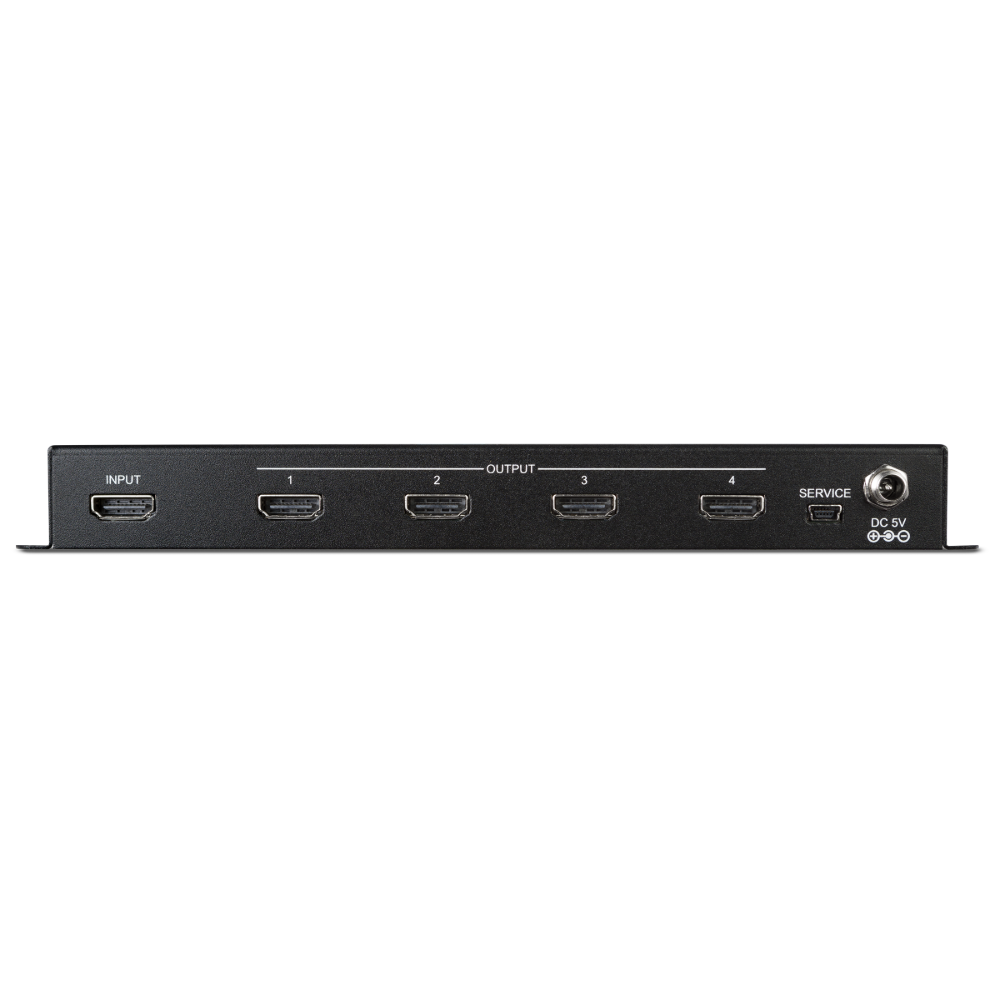

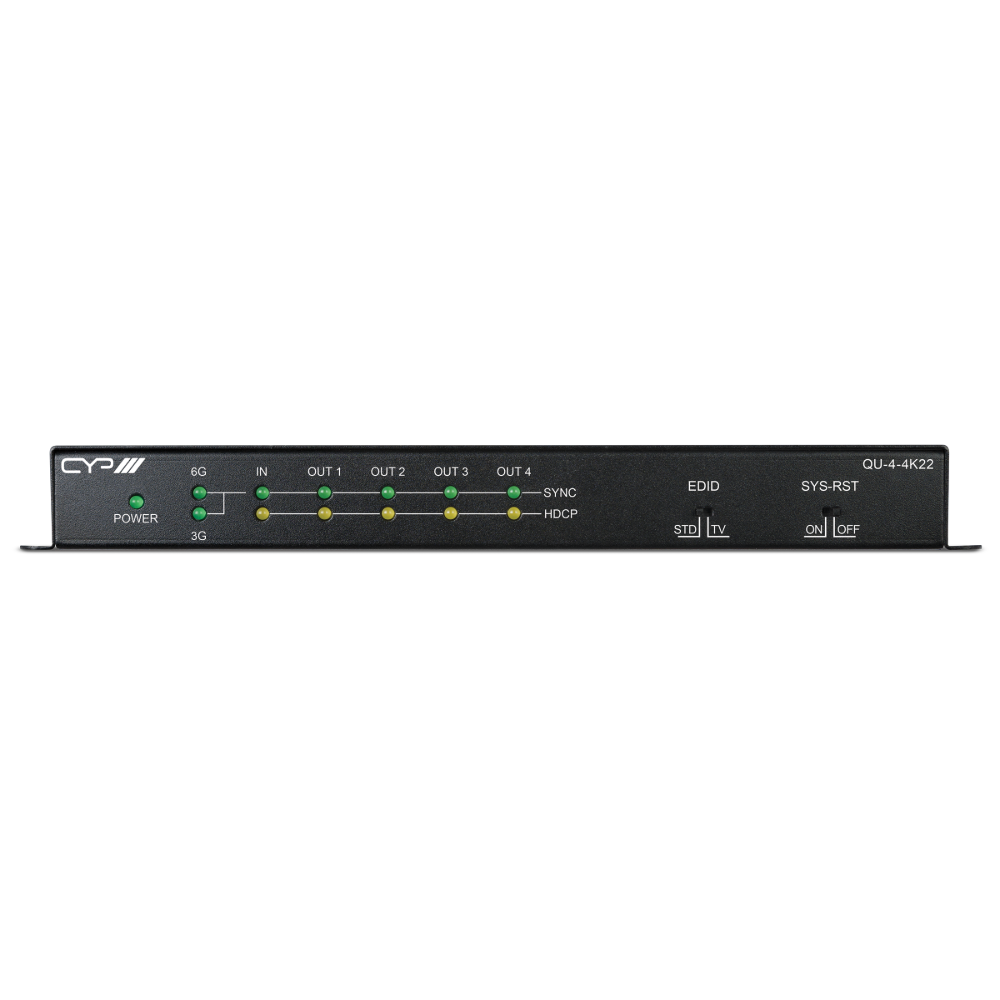

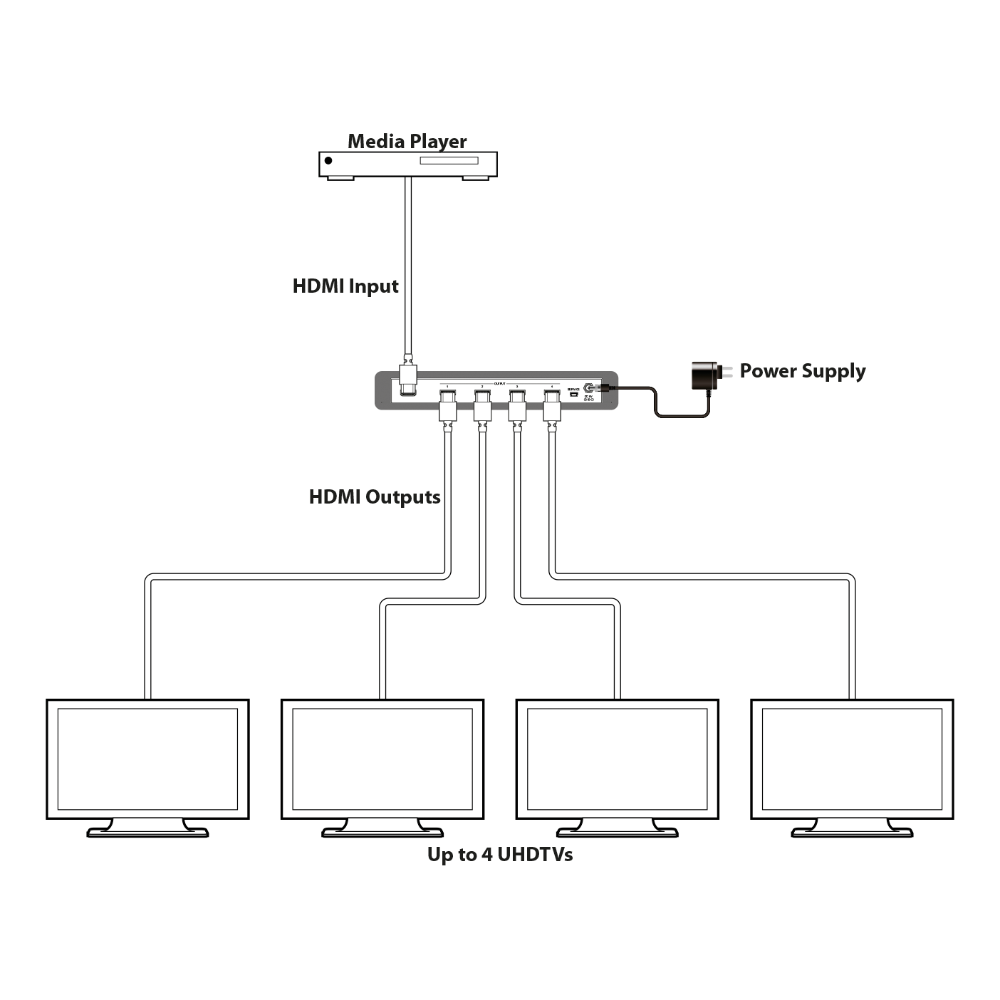

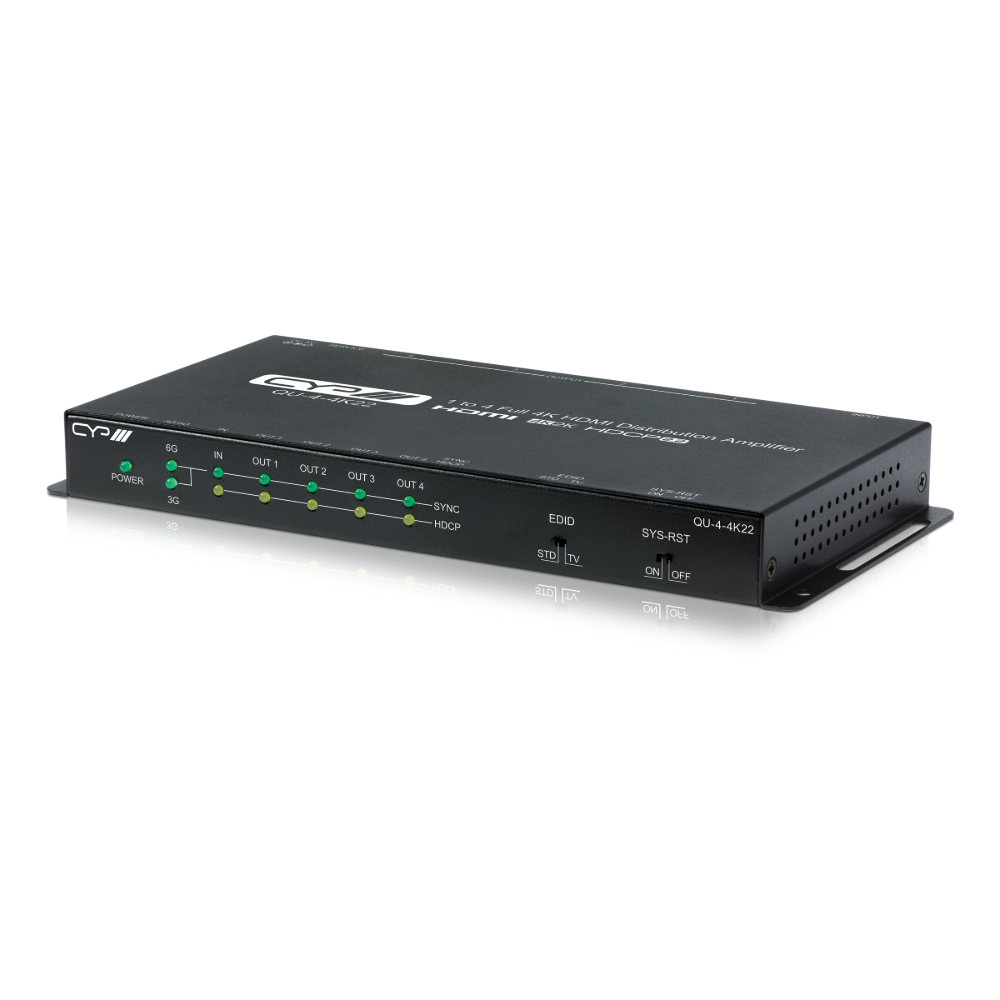

CYP QU-4-4K22 1x4 HDMI Distribution Amplifier 4K60 HDR Downscaling - Image 1
CYP QU-4-4K22 1x4 HDMI Distribution Amplifier 4K60 HDR Downscaling - Image 2
CYP QU-4-4K22 1x4 HDMI Distribution Amplifier 4K60 HDR Downscaling - Image 3
CYP QU-4-4K22 1x4 HDMI Distribution Amplifier 4K60 HDR Downscaling - Image 4
Click to enlarge

    £244.00 inc VAT
    £203.33 ex VAT

    4 in stock

    4 available online
    Delivered by TuesdayOrder by 3pm
    Click & Collect Monday ›Collect from our warehouse in Wembley, London
    VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
    1 Year Manufacturer Warranty Included
    About Stage Supply
    Chat to us on WhatsApp

    About this Product

    Four HDMI outputs from one 18Gbps source, with each output handled independently. If a connected display cannot take 4K or 4:4:4, that output downscales to 1080p or converts colour space on its own, so mixed screens can share a feed. HDR10 and Dolby Vision pass through, and EDID options are set from the front panel.

    1×4
    HDMI outputs
    18Gbps
    4K60 4:4:4 8-bit
    HDR
    10/12-bit
    Per output
    HDCP engine
    Features
    1 HDMI input split to 4 HDMI outputs
    4K UHD 18Gbps, 4K@50/60Hz 4:4:4 8-bit
    10-bit and 12-bit HDR, HDR10 and Dolby Vision
    Automatic 4K to 1080p downscaling and 4:4:4 to 4:2:0 conversion per output
    Independent HDCP management on each output, HDCP 2.2
    Passes LPCM 7.1, Bitstream and HD Bitstream audio
    EDID management options and CEC system reset
    Specifications
    Brand CYP
    Model QU-4-4K22
    Input 1x HDMI (Type A)
    Outputs 4x HDMI
    Service port USB
    HDMI / HDCP HDMI 2.0, HDCP 2.2
    Bandwidth 18Gbps
    Max resolution 4096×2160@60Hz 4:4:4 8-bit
    HDR 10/12-bit, HDR10, Dolby Vision
    Audio LPCM 8CH, Bitstream, HD Bitstream
    In the box Splitter, 5V/2.6A DC adaptor, shockproof feet, manual
    Power supply 5V/2.6A DC (locking)
    Dimensions (WxHxD) 231.5 x 25 x 108mm
    Weight 600g

    Product Reviews

    No reviews yet — be the first to review this product.

    More Information

    • HDMI with HDR 6G (HDR10/Dolby Vision support), 3D & 4K@60Hz support, DVI 1.0 compatible
    • HDCP 2.2 and HDCP backwards compatibility
    • 1x HDMI input and 4 x HDMI outputs
    • Supports up to 4K UHD (18Gbps, 4K@50/60Hz 4:4:4, 8-bit) video signals
    • Supports current 10-bit and 12-bit HDR (High Dynamic Range) formats
    • Supports pass-through of LPCM 7.1, Bitstream and advanced HD Bitstream audio formats
    • Automatic 4K to 1080p down-scaling and colour space conversion (4:4:4 to 4:2:0) for each independent output based on each connected display’s EDID
    • Independent HDCP management engine for each output ensures stable HDCP performance
    • Simple to use EDID management options
    • Support for the CEC System Reset
    • Controlled via front-panel switches

    Manuals & Downloads

    PDFManuals & Instructions: QU-4-4K22_PDF-Manual_v1.00_web.pdfPDF
    PDFManuals & Instructions: QU-4-4K22_Datasheet_v1.pdfPDF
