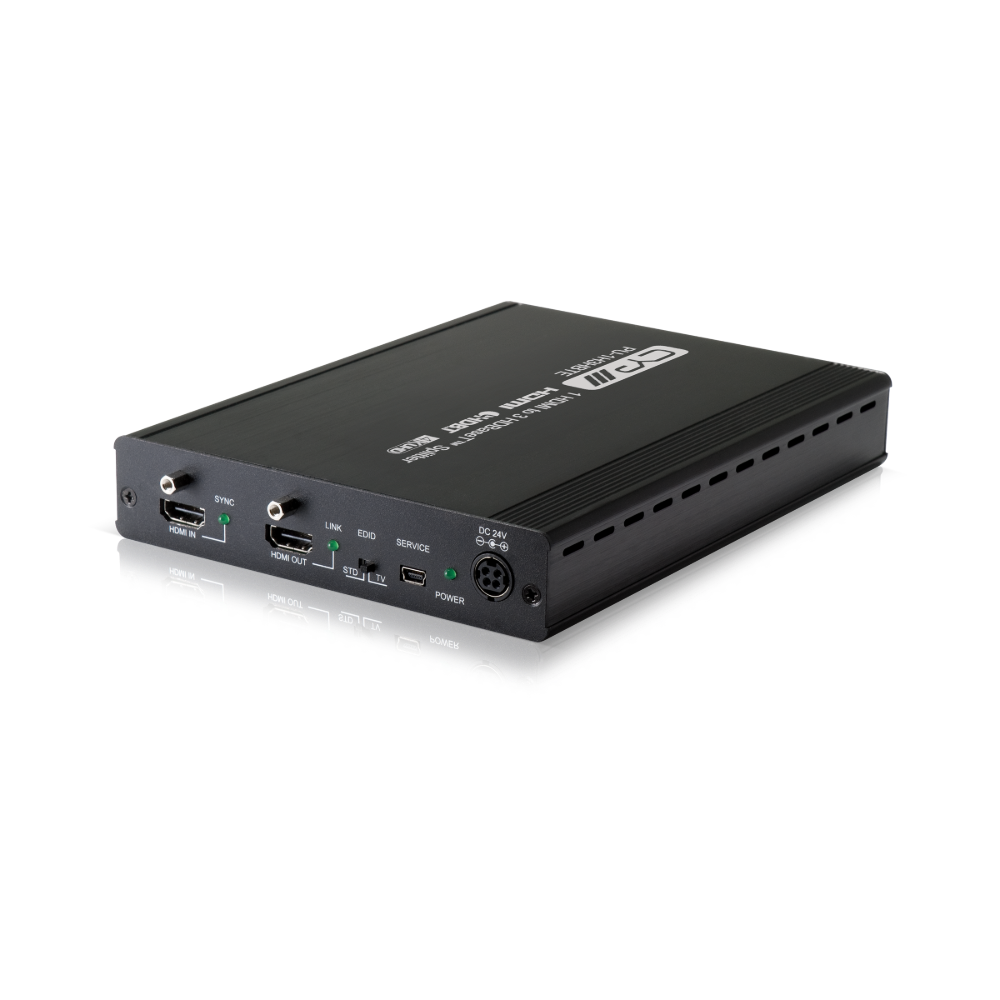

CYP PU-1H3HBTE 1x3 HDBaseT Splitter 100m with HDMI Bypass

Product code: 185557

£625.00 inc VAT
£520.83 ex VAT

SKU: CYP045

3 in stock

3 available online

Optional Add-Ons

CYP PU-507RX HDBaseT Receiver 100m for PU-1H2HBTE/PU-1H3HBTE

£217.00 inc VAT
£180.83 ex VAT

Add to basket

About this Product

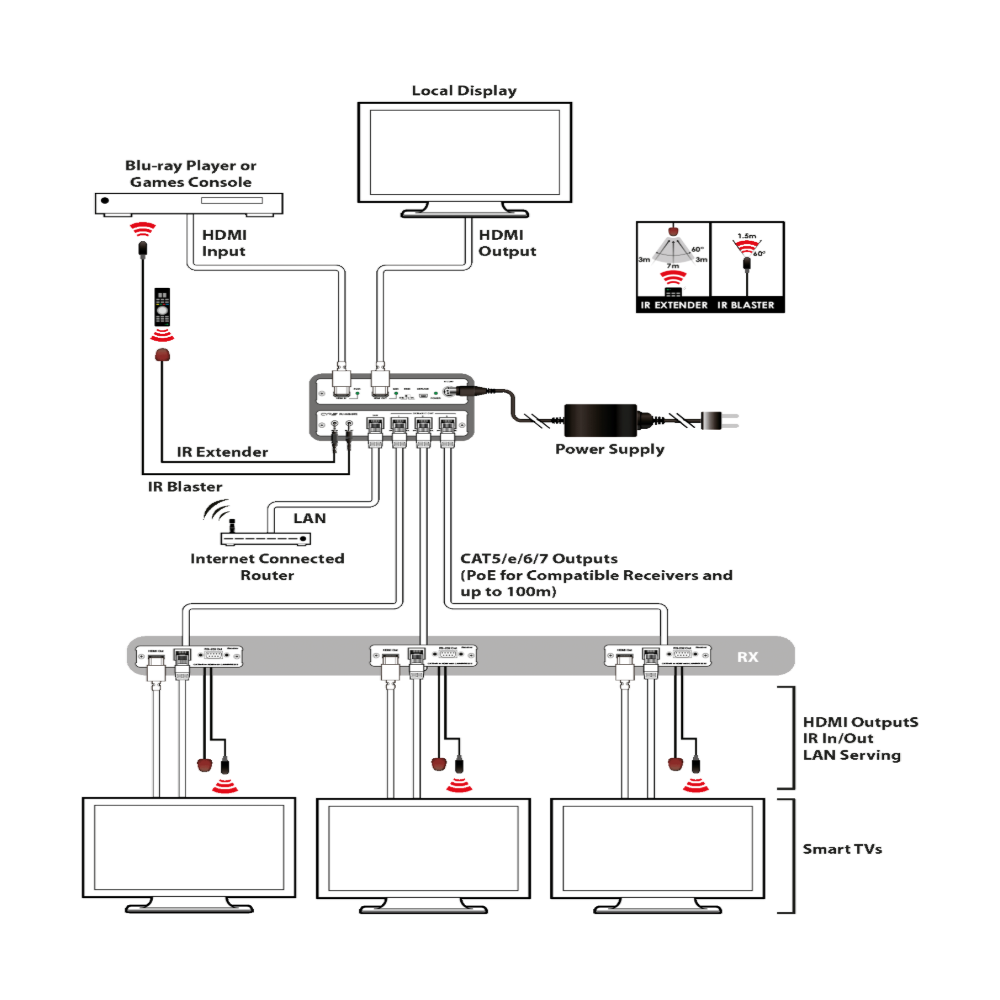

Built for three remote screens from one source, this splitter has three HDBaseT outputs that each run up to 100m over a single CAT cable, plus an extra HDMI output for a local display. HDMI, LAN, PoC and IR share the cable, and the bypass output lets you cascade into more splitters for larger screen counts. Typical jobs are pubs, gyms, shop fits and digital signage.

1×3

HDBaseT outputs

100m

1080p over CAT5e/6

PoC

Powers receivers

Cascade via HDMI bypass

Receivers sold separatelyOnly the splitter is supplied. CYP recommends a PU-507RX receiver on each HDBaseT output.

Features

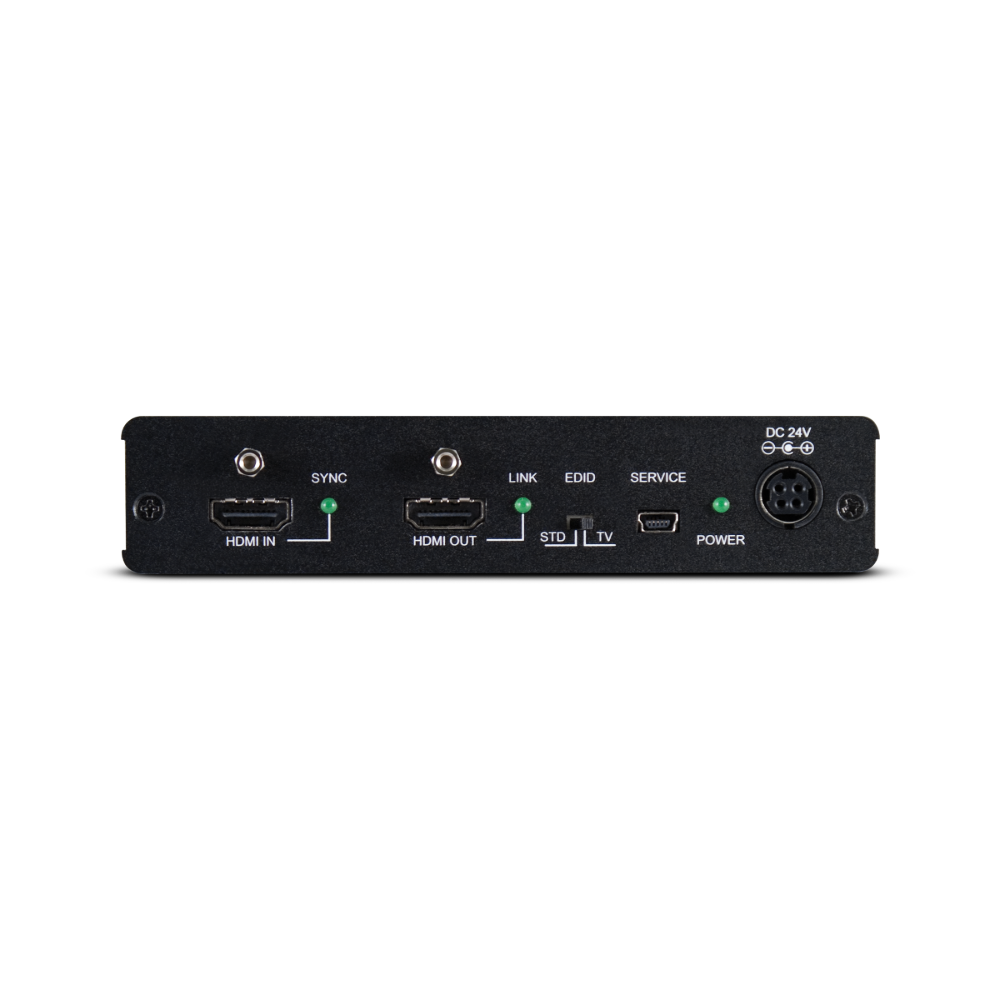

1 HDMI input to 3 HDBaseT outputs plus 1 HDMI bypass output

Carries HDMI, LAN, PoC and IR over a single CAT cable

1080p up to 100m over CAT5e/6

4K up to 70m over CAT5e/6 or 100m over CAT6a/7

Cascade up to 5 times from the HDMI bypass

HDCP repeating, CEC and 3D support

Audio up to 7.1CH including Dolby TrueHD and DTS-HD

Specifications

CYP PU-1H3HBTE 1×3 HDBaseT Splitter 100m with HDMI Bypass specifications
Brand	CYP
Model	PU-1H3HBTE
Inputs	1x HDMI, 1x IR in (3.5mm), 1x LAN (RJ45)

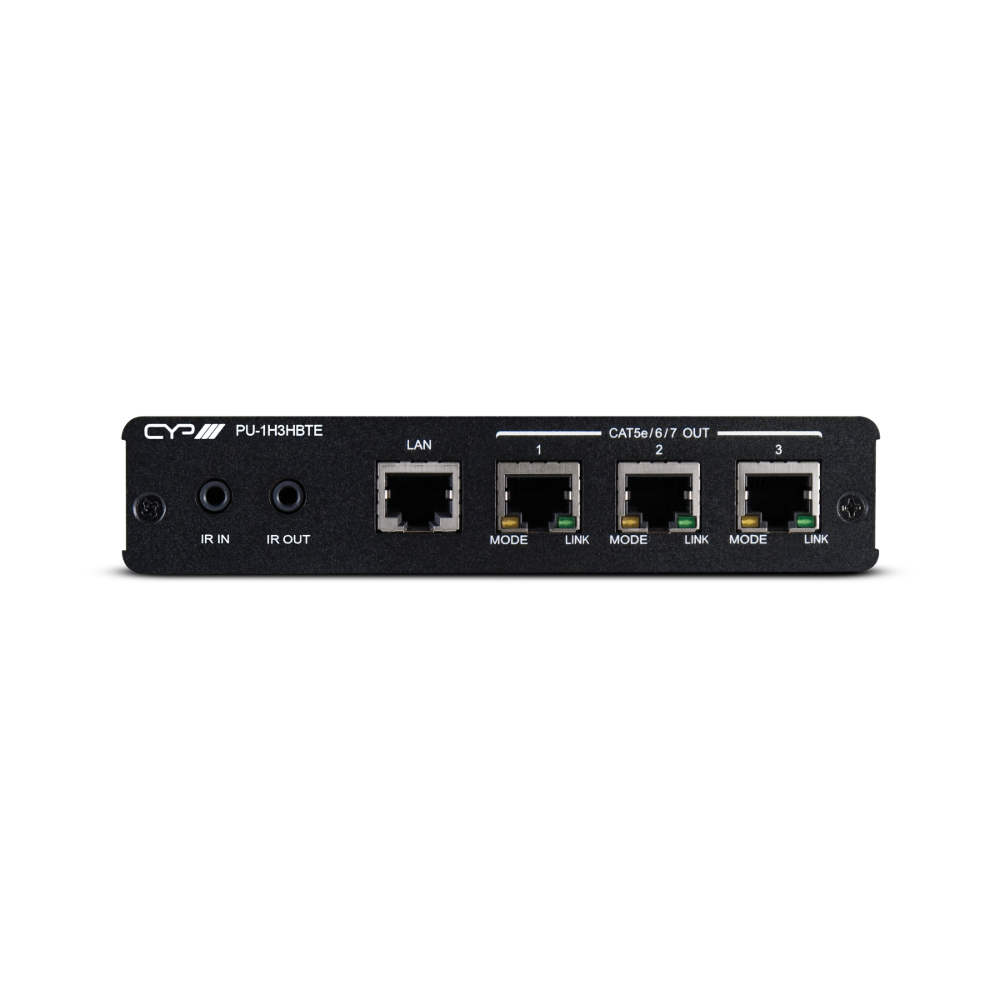

Outputs	3x HDBaseT (RJ45), 1x HDMI bypass, 1x IR out (3.5mm)
Max resolution	4K UHD@60Hz 4:2:0
Bandwidth	10.2Gbps
Distance (1080p)	100m over CAT5e/6
Distance (4K)	70m CAT5e/6, 100m CAT6a/7
Pass-through	LAN, IR
Receiver power	PoC
Recommended receiver	PU-507RX (not included)
In the box	Splitter, IR receiver, IR blaster, 24V DC adaptor, power cord, manual
Power supply	24V/2.7A
Dimensions (WxHxD)	145 x 30 x 199mm
Weight	640g

Full features

Supports all v1.4 HDMI resolutions including 4K.
HDMI, HDCP, & DVI compliant
Supports HDMI / LAN / PoC (Power over Cable) / IR
Supports resolutions VGA~WUXGA, 480i~1080p, 4K UHD@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2), 4K UHD@ 60Hz (YUV 4:2:0), 4K/2K@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2) and 4K/2K@ 60Hz (YUV 4:2:0) dependent upon the output display’s EDID settings
Supports uncompressed video/audio up to 10.2Gbps
Supports HDCP repeating and CEC functions
Additional HDMI bypass output provided to improve flexibility
Supports 1080p distances up to 100 meters through CAT5e/6 cables
Audio support up to 7.1CH & Dolby TrueHD, DTS-HD
Supports 3D signals
Supports 4K/2K & 4K UHD - CAT5e/6 = 70m & CAT6a/7 = 100m

Inputs: 1 x HDMI [1 x HDMI Uncompressed AV and Data], 1 x 3.5mm Stereo mini-jack [1 x Infra Red Receiver], 1 x RJ45 [1 x LAN Serving]
Outputs: 1 x HDMI [1 x HDMI Uncompressed AV and Data], 3 x RJ45 [3 x HDMI & Propriety Data], 1 x 3.5mm Stereo mini-jack [1 x Infra Red Emitter]
PSU: 24V/2.7A
Dimensions (H x W x D): 30 x 145 x 199mm
Net Weight: 640g
Gross Weight: 1.66kg
