CYP QU-10-4K22 1x10 HDMI Distribution Amplifier 4K60 HDCP 2.2

SKU: CYP036
CYP QU-10-4K22 1x10 HDMI Distribution Amplifier 4K60 HDCP 2.2 - Image 1
CYP QU-10-4K22 1x10 HDMI Distribution Amplifier 4K60 HDCP 2.2 - Image 2
CYP QU-10-4K22 1x10 HDMI Distribution Amplifier 4K60 HDCP 2.2 - Image 3
CYP QU-10-4K22 1x10 HDMI Distribution Amplifier 4K60 HDCP 2.2 - Image 4
Click to enlarge

    £474.00 inc VAT
    £395.00 ex VAT

    10 in stock

    10 available online
    FREE delivery by TuesdayOrder by 3pm
    Click & Collect Monday ›Collect from our warehouse in Wembley, London
    VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
    1 Year Manufacturer Warranty Included
    About Stage Supply
    Chat to us on WhatsApp

    About this Product

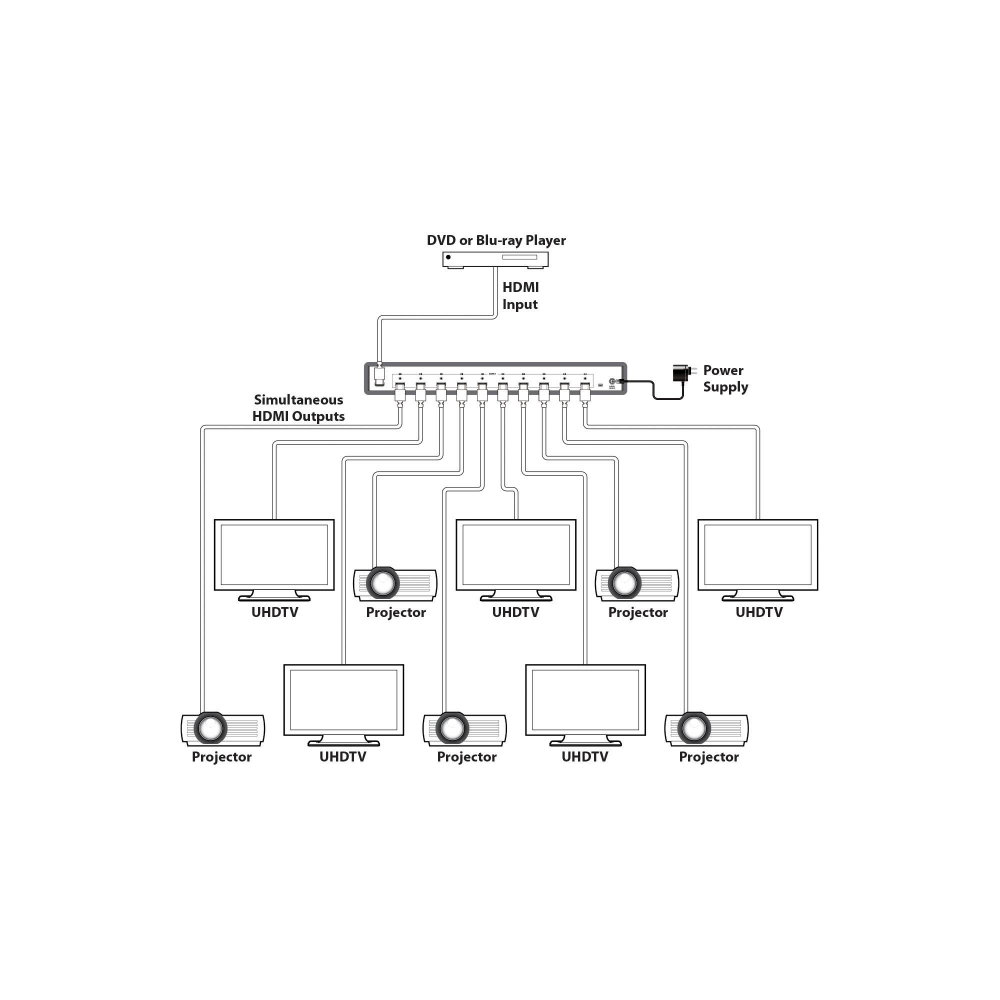

    When one source has to reach ten screens, the QU-10-4K22 copies a single HDMI input to ten identical HDMI 2.0 outputs at up to 4K60 4:4:4 with HDCP 2.2. Each buffered output drives 1080p 8-bit up to 20m, and units can cascade three layers deep. Retail video walls, showrooms and exhibition stands are common uses.

    1×10
    HDMI outputs
    4K60 4:4:4
    Max resolution
    HDCP 2.2
    HDMI 2.0
    20m
    1080p per output
    Features
    1 HDMI input split to 10 identical HDMI outputs
    HDMI 2.0, HDCP 2.2 and DVI compliant
    Up to 4096×2160@60Hz and 3840×2160@24/25/30/50/60Hz
    Passes LPCM 7.1, Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio
    Each buffered output runs 1080p 8-bit up to 20m
    Cascades up to 3 layers
    Standard and TV EDID modes; CEC system reset
    Specifications
    Brand CYP
    Model QU-10-4K22
    Input 1x HDMI (Type A)
    Outputs 10x HDMI (Type A)
    Service port USB
    HDMI / HDCP HDMI 2.0, HDCP 2.2
    Max resolution 4096×2160@60Hz 4:4:4
    Audio LPCM 8CH, Bitstream, HD Bitstream
    Output cable run 1080p 8-bit up to 20m
    Cascade Up to 3 layers
    In the box Splitter, 5V DC power adaptor, manual
    Dimensions (WxHxD) 436 x 44 x 160mm
    Weight 2kg

    Product Reviews

    No reviews yet — be the first to review this product.

    More Information

    • HDMI 2.0, HDCP 2.2 and DVI compliant
    • HDMI 1 to 10 HDMI splitter
    • Supports UHDTV resolutions up to 4K2K: 3840×2160@24/25/30/50/60Hz & 4096×2160 @24/25/30/60Hz
    • Supports passthrough of high definition audio: LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, DTS 2/5.1CH, Dolby TrueHD, DTS-HD Master Audio & Dolby Atmos
    • Supports System Reset function (CEC active source command) allows the unit to reset the TV to its default HDMI input automatically
    • HDMI input supports 'Standard' mode and 'TV' mode EDID settings

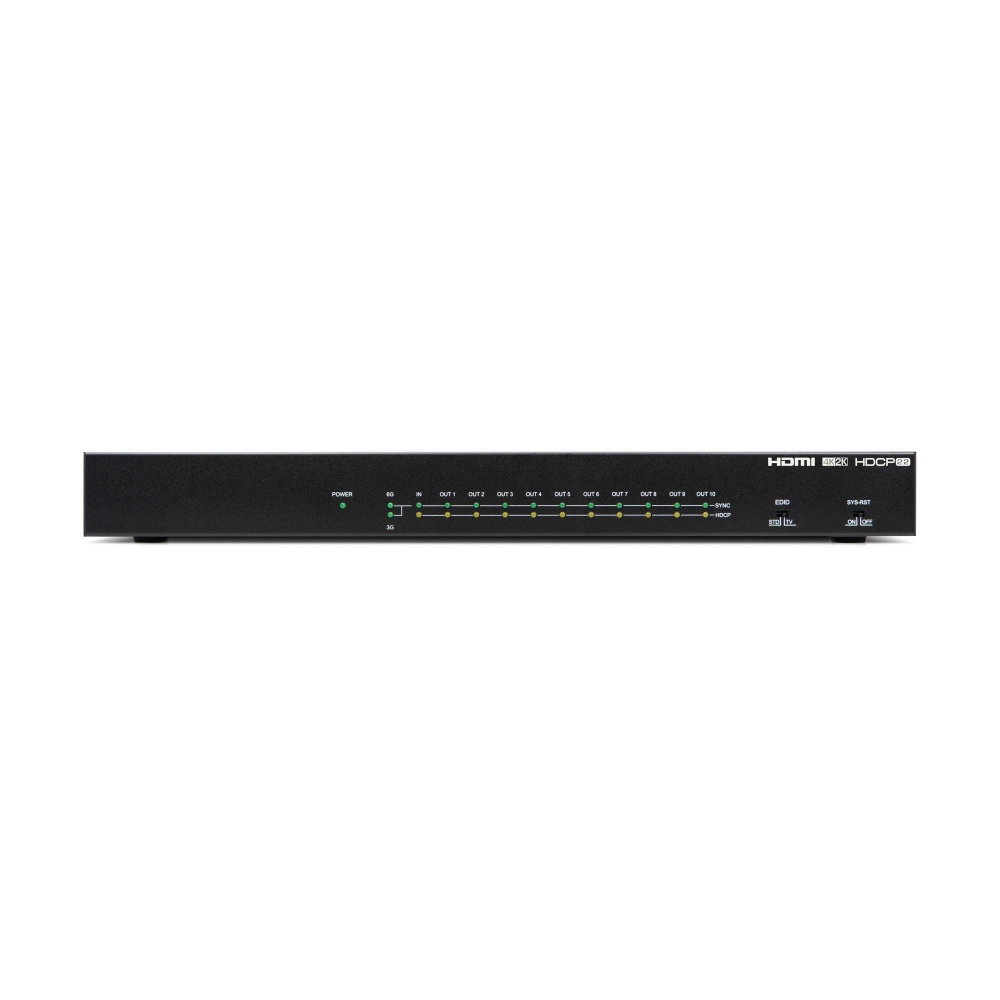

    • Input and output status are indicated on the front panel

    Manuals & Downloads

    PDFManuals & Instructions: QU-10-4K22_PDF-Manual_v2.00.pdfPDF
    PDFManuals & Instructions: QU-10-4K22_Datasheet_v1.pdfPDF
