CYP QU-2-4K22 1x2 HDMI Distribution Amplifier 4K60 HDR Downscaling

Product code: 185586

£167.00 inc VAT
£139.17 ex VAT

SKU: CYP037

10 in stock

10 available online

About this Product

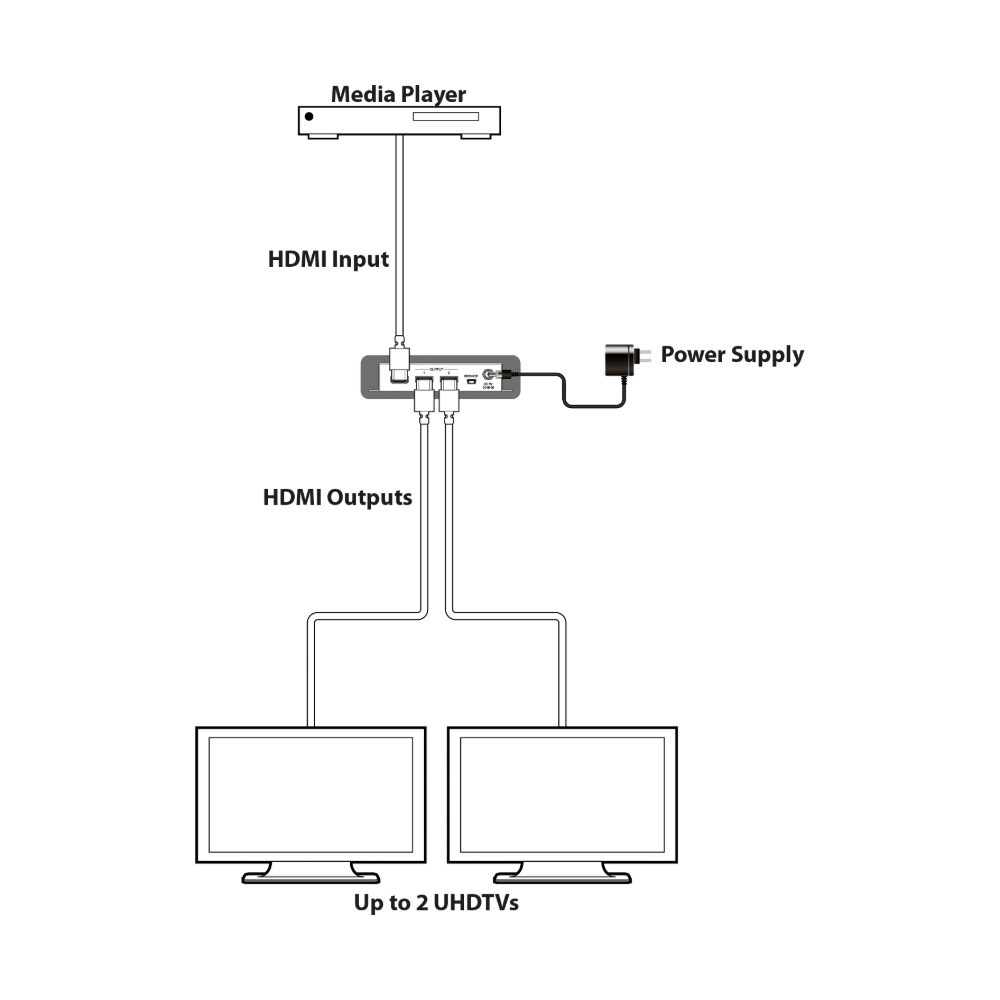

A compact two-way HDMI splitter for sending a 4K60 source to a pair of displays that may not share the same capabilities. Each output reads its own display’s EDID and will downscale 4K to 1080p or convert 4:4:4 to 4:2:0 where needed, while HDR10 and Dolby Vision pass through to screens that support them. It is a common fix for a 4K TV and a 1080p monitor or projector on one source.

1×2

HDMI outputs

18Gbps

4K60 4:4:4

HDR

HDR10 / Dolby Vision

Per output

4K to 1080p downscale

Features

1 HDMI input split to 2 HDMI outputs

HDMI 2.0, HDCP 2.2 and DVI 1.0 compatible

4K@60Hz with 10-bit and 12-bit HDR (HDR10, Dolby Vision)

Automatic 4K to 1080p downscaling per output based on display EDID

Independent HDCP management engine on each output

Passes Dolby Atmos, Dolby TrueHD and DTS-HD Master Audio

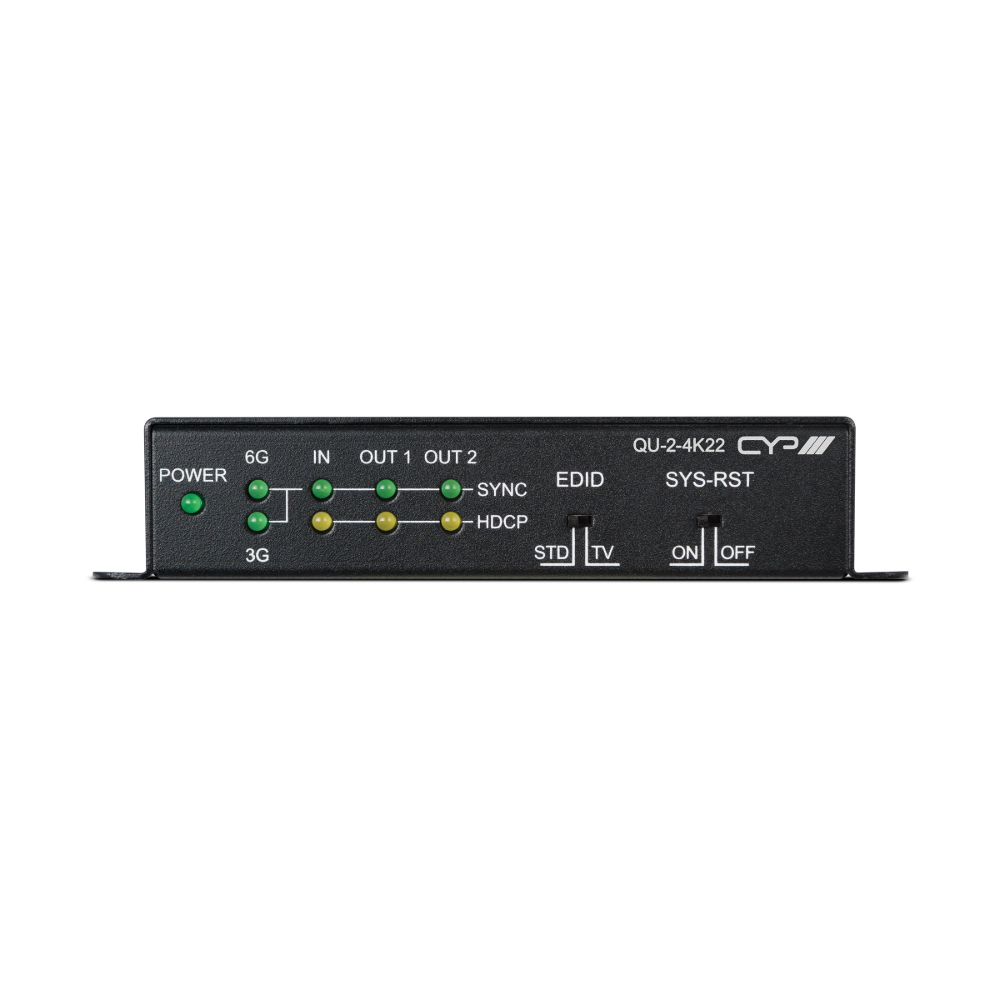

CEC active source reset; front-panel switches and status LEDs

Specifications

CYP QU-2-4K22 1×2 HDMI Distribution Amplifier 4K60 HDR Downscaling specifications
Brand	CYP
Model	QU-2-4K22
Input	1x HDMI (Type A)
Outputs	2x HDMI (Type A)
Service port	USB
HDMI / HDCP	HDMI 2.0, HDCP 2.2
Max resolution	4096×2160@60Hz 8-bit 4:4:4
HDR	10/12-bit, HDR10, Dolby Vision
Audio	LPCM 8CH, Bitstream, HD Bitstream
HDMI output cable	3m at 4K60 4:4:4, 15m at 1080p 8-bit
In the box	Splitter, 5V DC power adaptor, shockproof feet, manual
Dimensions (WxHxD)	128 x 25 x 108mm
Weight	360g

Full features

HDMI 2.0, HDCP 2.2 and DVI compliant
HDMI 1 to 2 splitter
Supports UHDTV resolutions up to 4K2K: 3840×2160@24/25/30/50/60Hz & 4096×2160 @24/25/30/60Hz
Supports passthrough of high definition audio: LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, DTS 2/5.1CH, Dolby TrueHD, DTS-HD Master Audio & Dolby Atmos
Supports System Reset function (CEC active source command) allows the unit to reset the TV to its default HDMI input automatically
HDMI input supports 'Standard' mode and 'TV' mode EDID settings
Input and output status are indicated on the front panel
HDMI with HDR 6G (HDR10/Dolby Vision support), 3D & 4K@60Hz support, DVI 1.0 compatible
Supports current 10-bit and 12-bit HDR (High Dynamic Range) formats
Automatic 4K to 1080p down-scaling and colour space conversion (4:4:4 to 4:2:0) for each independent output based on each connected display’s EDID
Independent HDCP management engine for each output ensures stable HDCP performance
Controlled via front-panel switches

Inputs: 1 x HDMI [1 x HDMI Uncompressed AV and Data], 1 x USB 3 Type B [1 x Service Port Power & Data]
Outputs: 2 x HDMI [2 x HDMI Uncompressed AV and Data]
PSU: 5V/2.6A
Dimensions (H x W x D): 25 x 128 x 108mm
Net Weight: 360g
Gross Weight: 660g

Compare the Range

CYP QU-2-4K22 1x2 HDMI Distribution Amplifier 4K60 HDR Downscaling

£167.00 inc VAT
£139.17 ex VAT

Outputs: 2x HDMI (Type A)
Dimensions (WxHxD): 128 x 25 x 108mm
Weight: 360g

Viewing Now

CYP QU-10-4K22 1x10 HDMI Distribution Amplifier 4K60 HDCP 2.2

£474.00 inc VAT
£395.00 ex VAT

Outputs: 10x HDMI (Type A)
Dimensions (WxHxD): 436 x 44 x 160mm
Weight: 2kg

View →

CYP QU-4-4K22 1x4 HDMI Distribution Amplifier 4K60 HDR Downscaling

£244.00 inc VAT
£203.33 ex VAT

Outputs: 4x HDMI
Dimensions (WxHxD): 231.5 x 25 x 108mm
Weight: 600g

View →

Product Reviews

No reviews yet — be the first to review this product.

Manuals & Downloads

Manuals & Instructions: QU-2-4K22_PDF-Manual_v2.00.pdfPDF

Manuals & Instructions: QU-2-4K22_Datasheet_v1.pdfPDF
