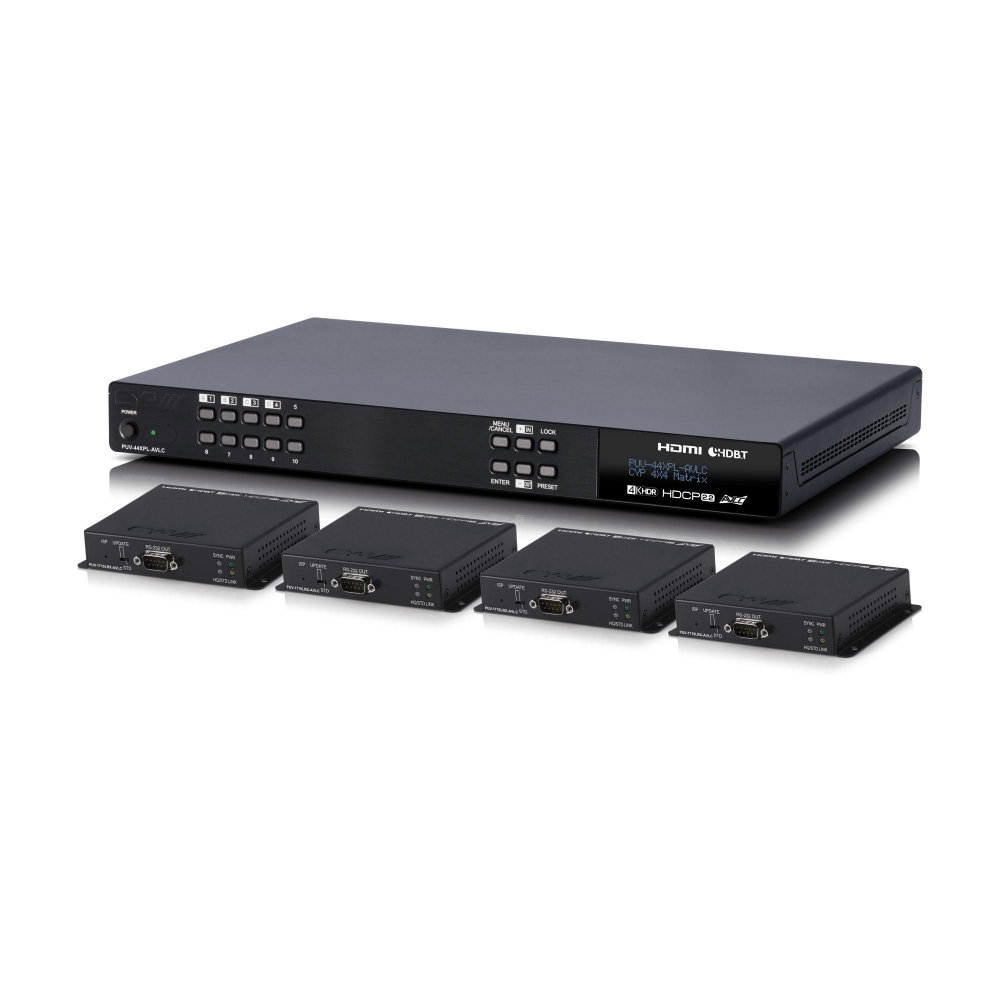

CYP PUV-44XPL-AVLC-KIT 4x4 HDBaseT Matrix, 4K60, with 4 Receivers

Product code: 185722

£1,886.00 inc VAT
£1,571.67 ex VAT

SKU: CYP062

3 in stock

3 available online

About this Product

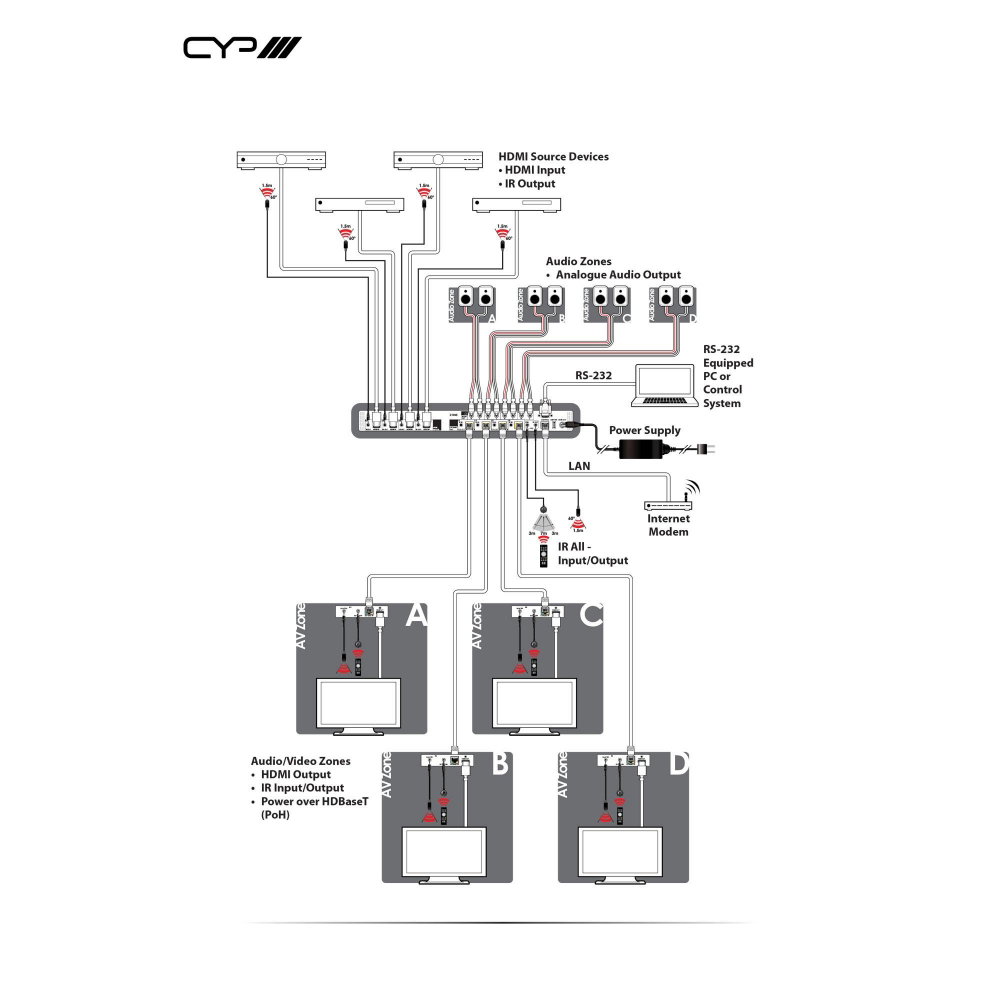

A 1U matrix that routes four HDMI sources to four displays over HDBaseT Lite, supplied with four PUV-1710LRX-AVLC receivers that take power from the matrix by PoH. AVLC compression lets 18Gbps signals, including 4K60 4:4:4 and 10/12-bit HDR with Dolby Vision, travel down a single Cat cable, and each zone has its own de-embedded analogue stereo output. Two outputs can scale 4K down for 1080p screens.

4×4

Matrix

4K60 4:4:4

Max resolution

Receivers included

PoH

Receiver power

Features

Routes 4 HDMI inputs to 4 HDBaseT outputs

AVLC compression carries 18Gbps 4K60 4:4:4 over HDBaseT

10/12-bit HDR and Dolby Vision

Output scaling on two HDBaseT outputs

4 de-embedded analogue stereo outputs on RCA, one per zone

PoH powers the 4 supplied receivers; IR and RS-232 pass-through

HD audio pass-through including Dolby Atmos and DTS-HD Master Audio

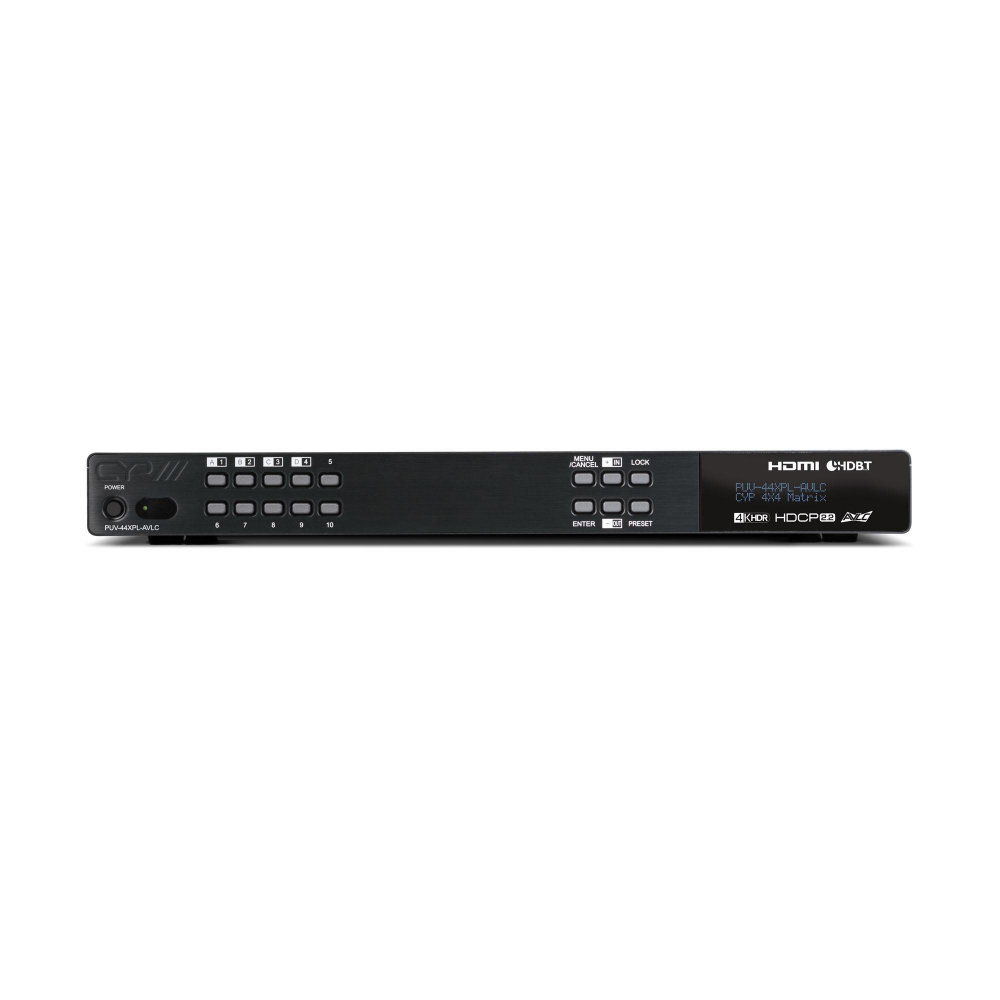

Control via front panel, IR, RS-232, Telnet and Web GUI

Specifications

CYP PUV-44XPL-AVLC-KIT 4×4 HDBaseT Matrix, 4K60, with 4 Receivers specifications
Brand	CYP
Model	PUV-44XPL-AVLC-KIT
Matrix inputs	4x HDMI
Matrix outputs	4x RJ45 HDBaseT (AVLC)
Audio outputs	4x stereo RCA
Receivers	4x PUV-1710LRX-AVLC (HDMI out, IR, RS-232)
Max resolution	4096×2160@60 4:4:4
HDMI / HDCP	HDMI 2.0 / HDCP 1.4 and 2.2
Distance	4K 6G up to 40m; 4K 3G and 1080p up to 70m
Control ports	RS-232 (DE-9), RJ45 IP, 5x IR in, 5x IR out, USB service
Power	Matrix 24V/6.25A; receivers PoH
Dimensions (WxHxD)	Matrix 438 x 44.5 x 270mm (1U); receiver 128 x 25 x 108mm
Weight	Matrix 3.56kg; receiver 386g

Full features

HDMI 2.0, HDCP1.4 and HDCP2.2 compliant
Routes 4 HDMI sources to 4 displays using 4 HDBaseT outputs
High-Definition video and audio, PoH (Power over HDBaseT) and control (Bi-Directional IR & RS-232 pass through)
Supports up-to 4K UHD (18Gbps, 4K @50/60Hz 4:4:4 8-bit) video input
AVLC (Adaptive Visually Lossless Compression)
Supports 10-bit and 12-bit HDR (High Dynamic Range)
Supports output resolutions up to 4K @50/60Hz (4:4:4 8-bit)
4K 3G Timings and 1080p up-to 70 Metres, 4K 6G Timings up to 40 Metres
Supports pass-through of HD audio formats: LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio
Supports HDCP repeating and CEC functions
Control is via RS-232, remote control, on-panel control and IP Control (Telnet & Web GUI)

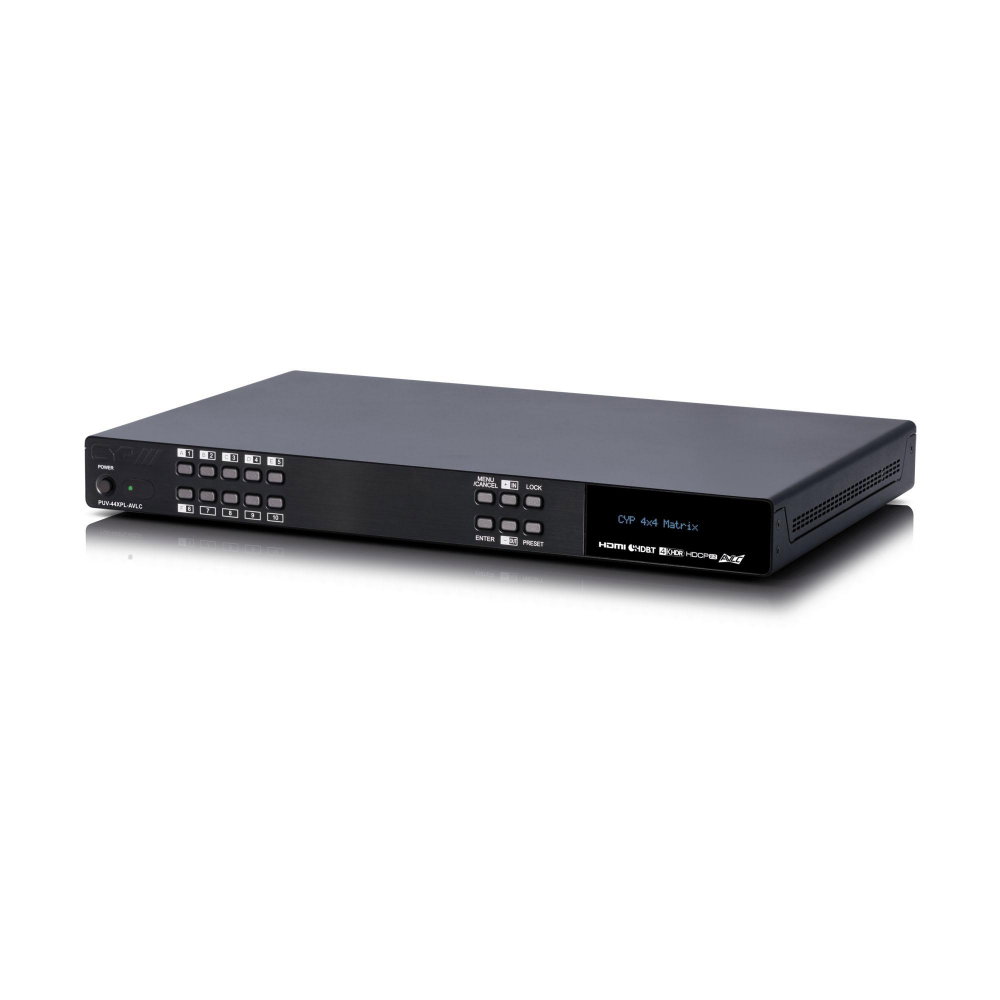

1U rack mounted design

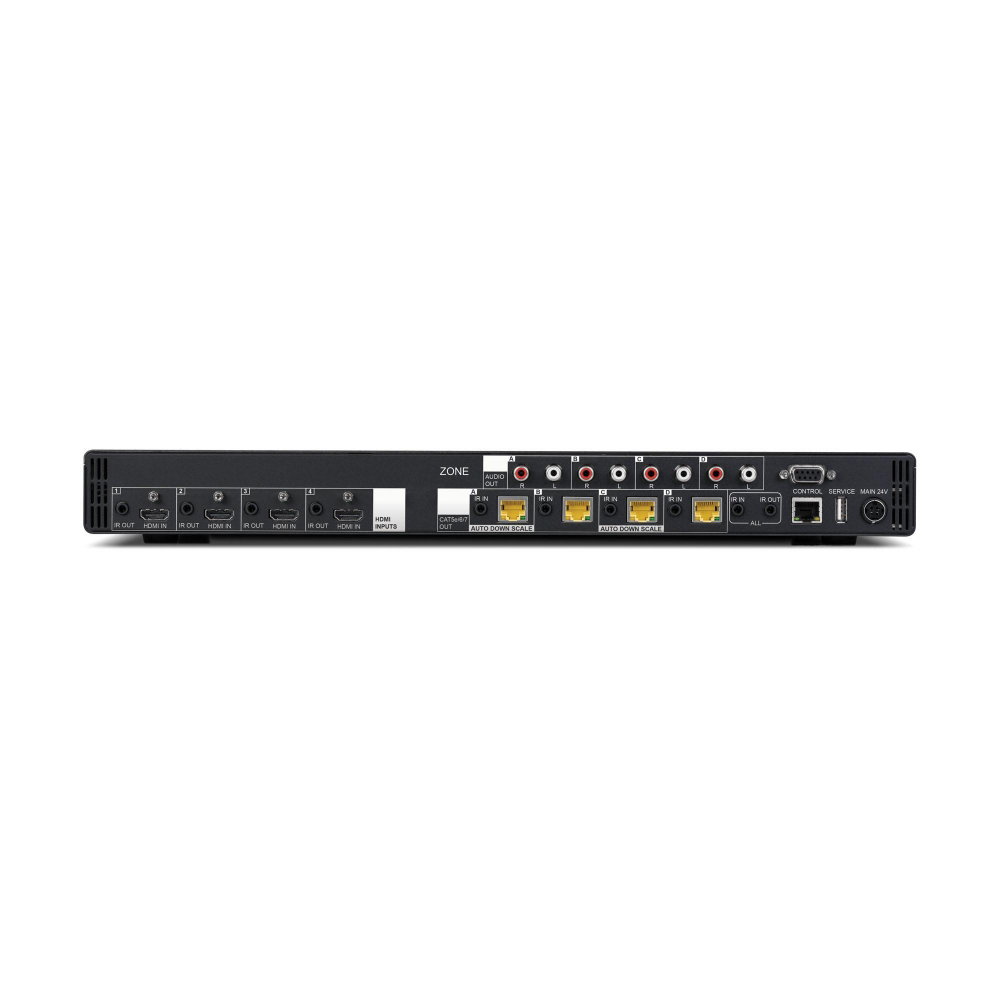

Inputs: 4 x HDMI [4 x HDMI Uncompressed AV and Data], 5 x 3.5mm Stereo mini-jack [5 x Infra Red Receiver], 1 x 9pin Dsub [1 x RS-232 Data], 1 x RJ45 [1 x IP Control], 1 x USB Type A [1 x Service Port Propriety Data]
Outputs: 4 x RJ45 [4 x HDBaseT - AVLC HDMI & Propriety Data], 8 x RCA [4 x Analogue Stereo (L/R)], 5 x 3.5mm Stereo mini-jack [5 x Infra Red Emitter]
POE PSU: PoH
PSU: 24V/6.25A
Dimensions (H x W x D): 44.5 x 438 x 270mm
Net Weight: 3.56kg
Gross Weight: 8.76kg
