CYP OR-DT42-4K22 4x2 HDMI Matrix with Dante Audio, 4K60

SKU: CYP072

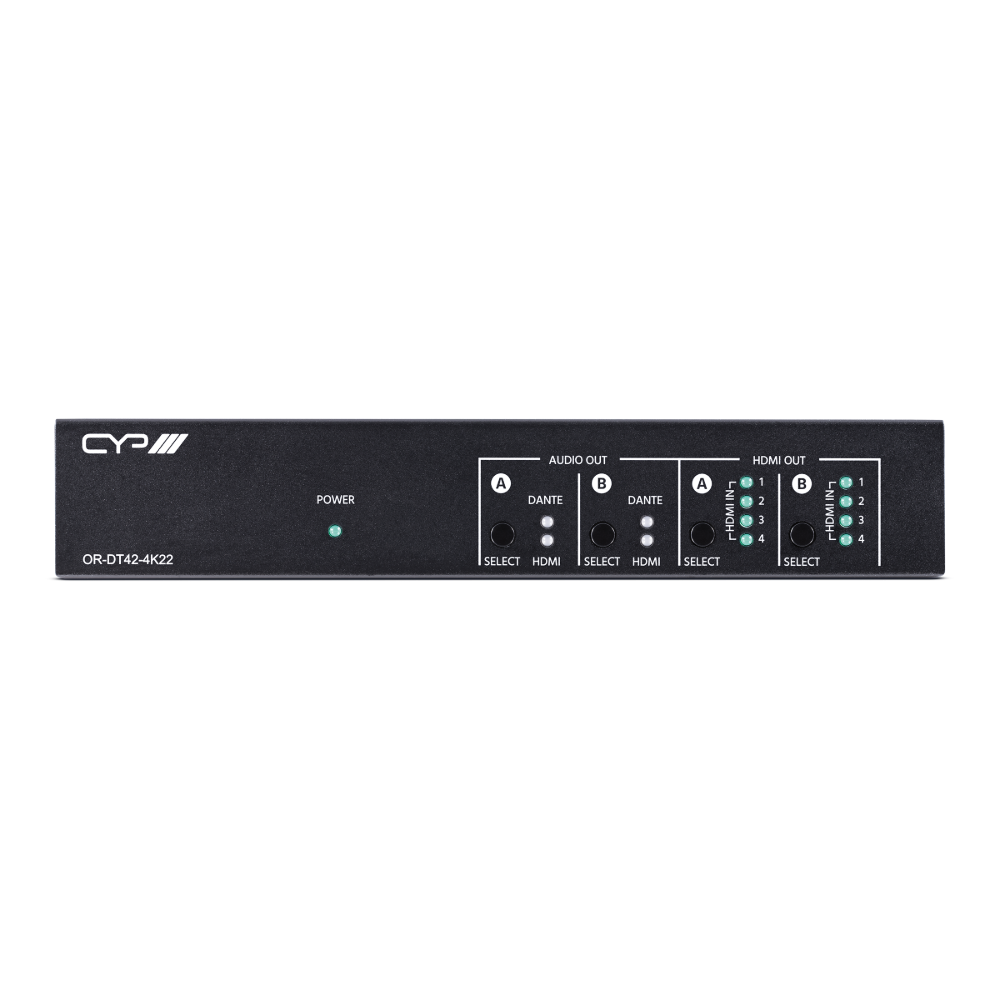

CYP OR-DT42-4K22 4x2 HDMI Matrix with Dante Audio, 4K60 - Image 1

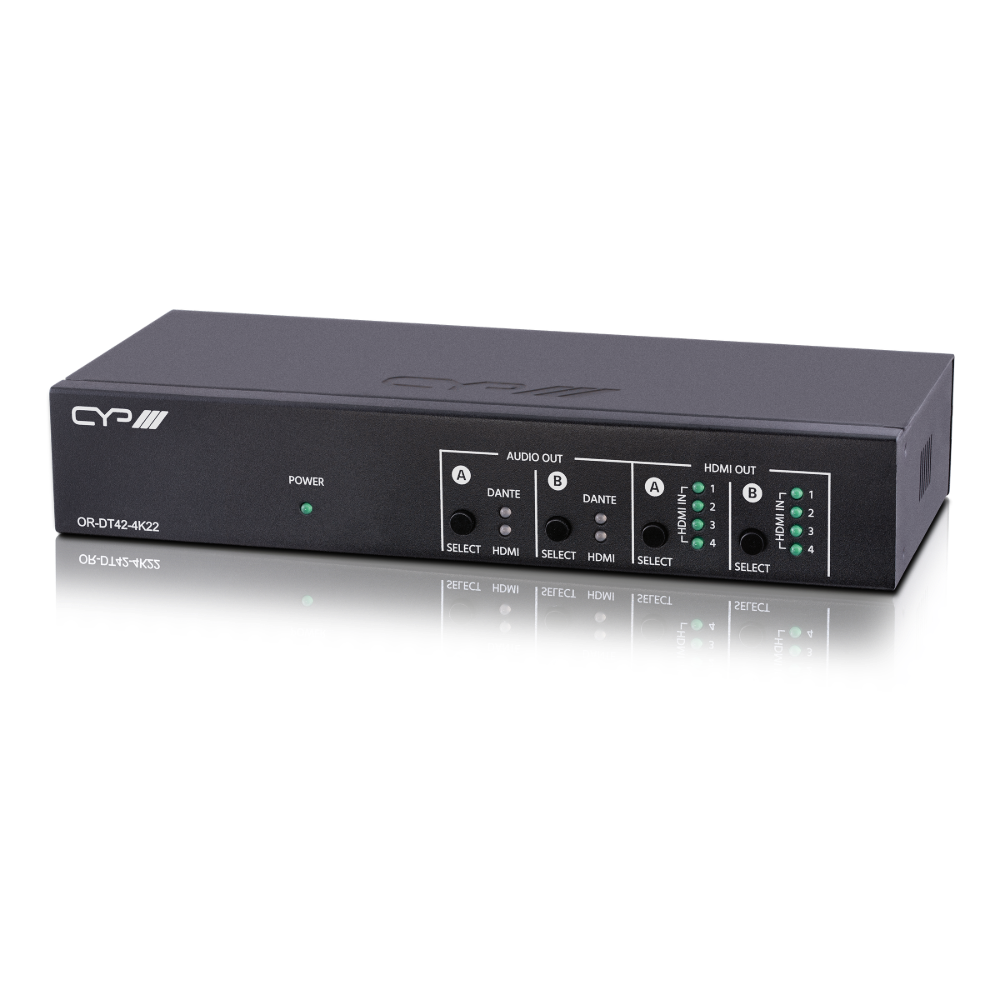

CYP OR-DT42-4K22 4x2 HDMI Matrix with Dante Audio, 4K60 - Image 2

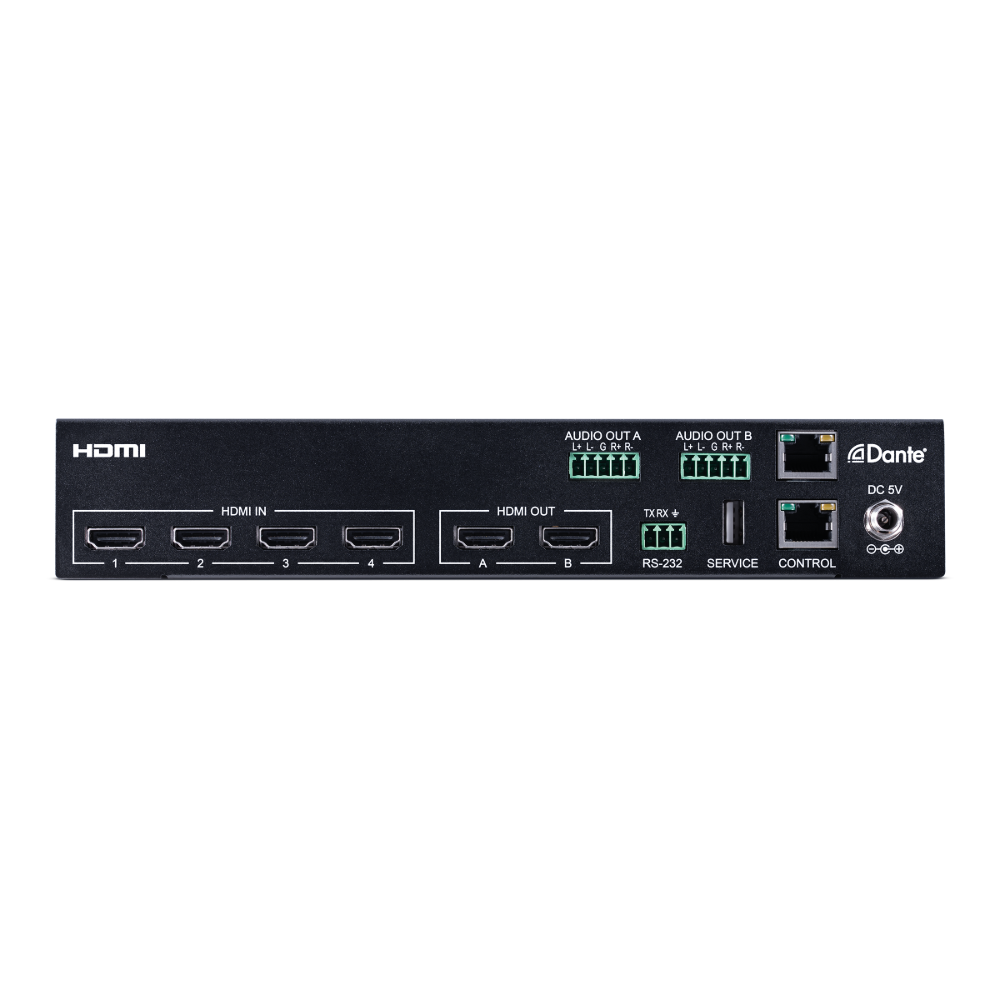

CYP OR-DT42-4K22 4x2 HDMI Matrix with Dante Audio, 4K60 - Image 3

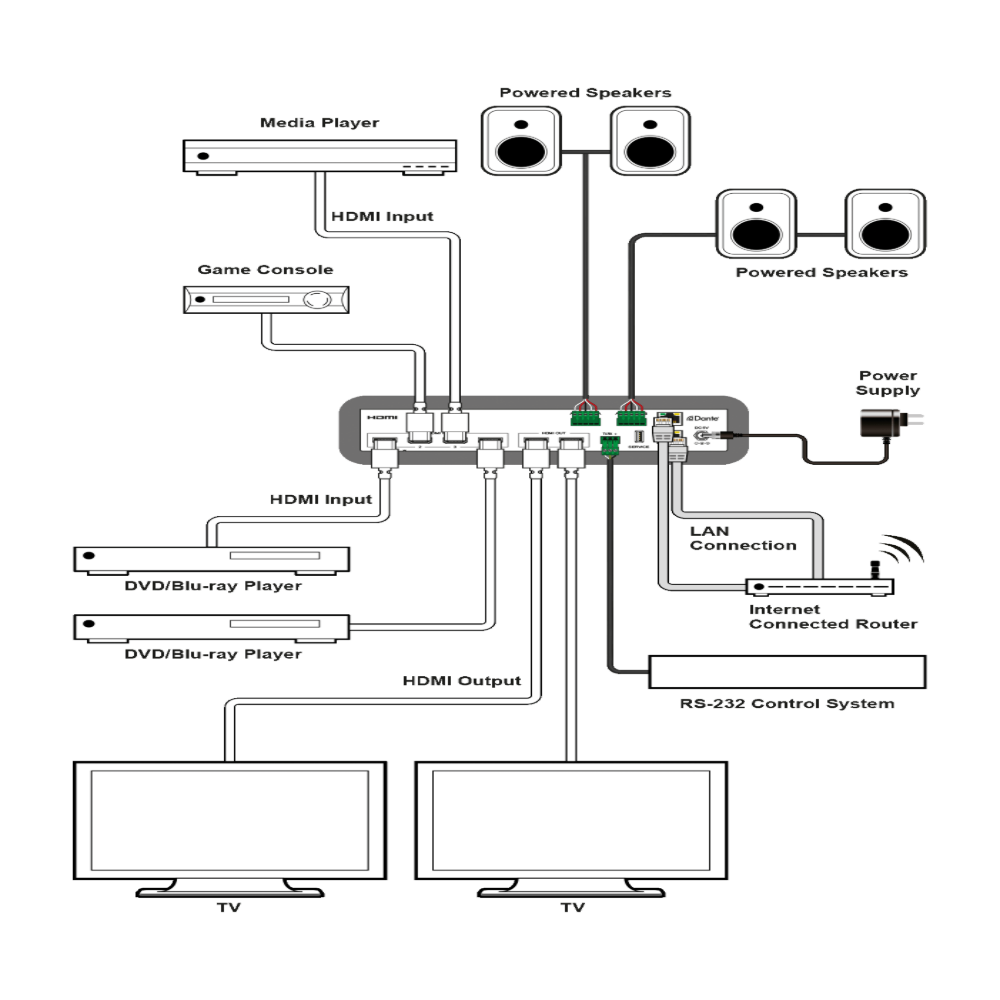

CYP OR-DT42-4K22 4x2 HDMI Matrix with Dante Audio, 4K60 - Image 4
Click to enlarge

    £443.00 inc VAT
    £369.17 ex VAT

    2 in stock

    2 available online
    FREE delivery by TuesdayOrder by 3pm
    Click & Collect Monday ›Collect from our warehouse in Wembley, London
    VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
    1 Year Manufacturer Warranty Included
    About Stage Supply
    Chat to us on WhatsApp

    About this Product

    Combines a 4×2 4K60 4:4:4 HDMI matrix with a Dante and AES67 network audio interface. Each output’s audio can follow the routed HDMI source or come from a Dante stream, and each output’s stereo audio is also available on balanced or unbalanced analogue terminals. Suited to classrooms, meeting rooms and control rooms that already run Dante.

    4×2
    Matrix
    4K60 4:4:4
    Max resolution
    2ch
    Dante audio
    AES67
    Compatible
    Dante Controller neededDante routing is set up in third-party software such as Audinate’s Dante Controller (Windows and macOS). Dante carries 2-channel LPCM only.
    Features
    4 HDMI inputs to 2 HDMI outputs, 18Gbps 4K60 4:4:4
    Dante and AES67 audio insertion and extraction
    Per-output audio from routed HDMI or a Dante source
    2 analogue stereo outputs, balanced or unbalanced
    8ch LPCM and HD Bitstream for local HDMI routing
    Per-input internal or external EDID
    Control via front panel, Web GUI, Telnet and RS-232
    Specifications
    Brand CYP
    Model OR-DT42-4K22
    Inputs 4x HDMI
    Outputs 2x HDMI, 2x analogue stereo (5-pin Phoenix)
    Network 1x RJ45 Dante, 1x RJ45 IP control
    Max resolution 4096×2160@60 4:4:4
    HDMI / HDCP HDMI 2.0 / HDCP 1.x and 2.2
    Audio HDMI 8ch LPCM, HD Bitstream; Dante 2ch LPCM
    Analogue out Balanced, 4.2 Vrms max, S/N >70dB
    Control Front panel, Web GUI, Telnet, RS-232 (3-pin Phoenix)
    Power 5V/2.6A
    Power consumption 11.68W
    Dimensions (WxHxD) 240 x 43 x 104mm
    Weight 800g

    Product Reviews

    No reviews yet — be the first to review this product.

    More Information

    • HDMI 2.0 and DVI 1.0 compliant (with the use of an HDMI-DVI adapter)
    • HDCP 1.x and 2.2 compliant
    • 4 HDMI inputs and 2 HDMI outputs
    • 4×2 matrix routing with per-output analogue audio extraction
    • Supports up to 4K UHD+ (18Gbps, 4K@50/60Hz 4:4:4, 8-bit) video input and output
    • Support pass-through of many audio formats including 8 channel LPCM, Bitstream, and HD Bitstream
    • Each output’s audio is selectable between the routed HDMI source or an independent Dante network audio source
    • Compatible with existing Dante and AES67 audio networks for transmission and reception of uncompressed audio with near-zero latency
    • Simple and easy network audio routing via 3rd party control software (available for both Windows and macOS systems)
    • Per-input EDID management with internal or external EDID options
    • Controllable via front panel buttons, Web GUI, Telnet, and RS-232

    Manuals & Downloads

    PDFManuals & Instructions: OR-DT42-4K22_PDF-Manual_RDV1.pdfPDF
    PDFManuals & Instructions: OR-DT42-4K22_Datasheet_v2.pdfPDF
