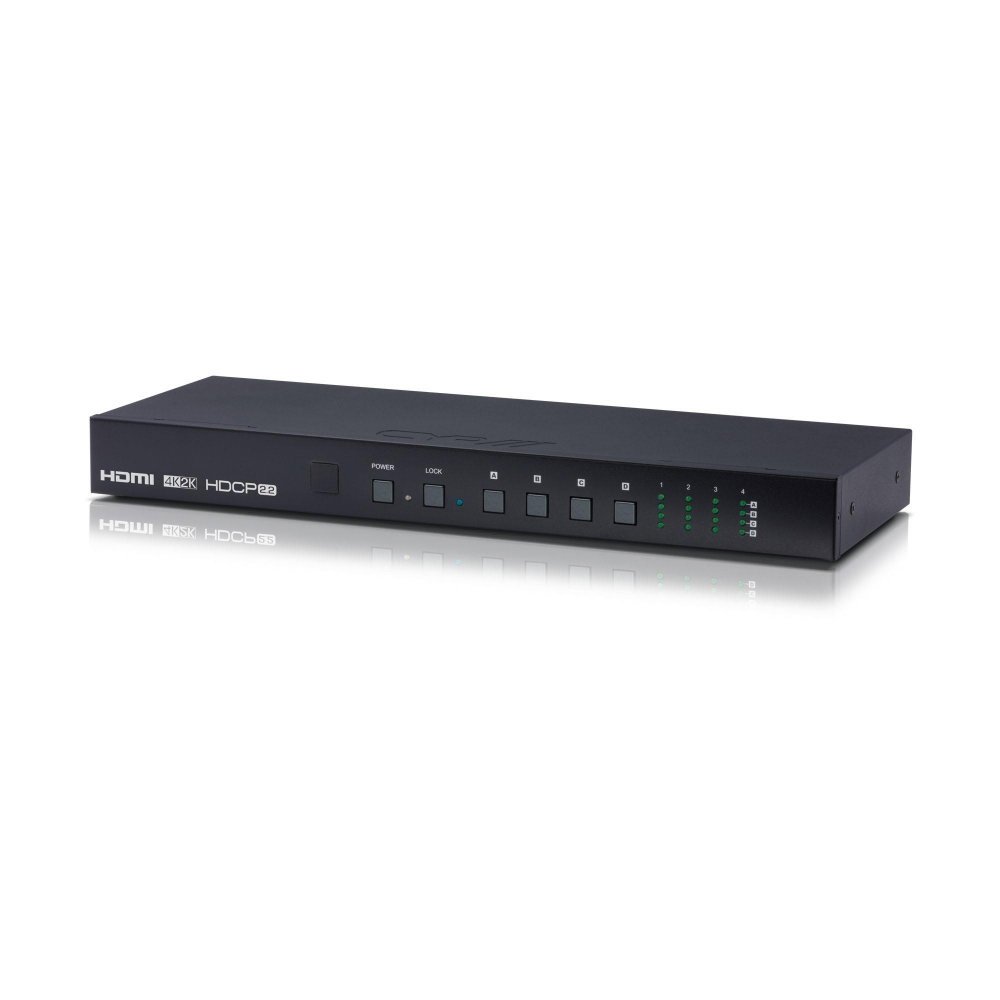

CYP OR-44-4K22 4x4 HDMI Matrix Switcher, 4K60 4:4:4, HDCP 2.2

Product code: 185730

£595.00 inc VAT
£495.83 ex VAT

SKU: CYP070

2 in stock

2 available online

About this Product

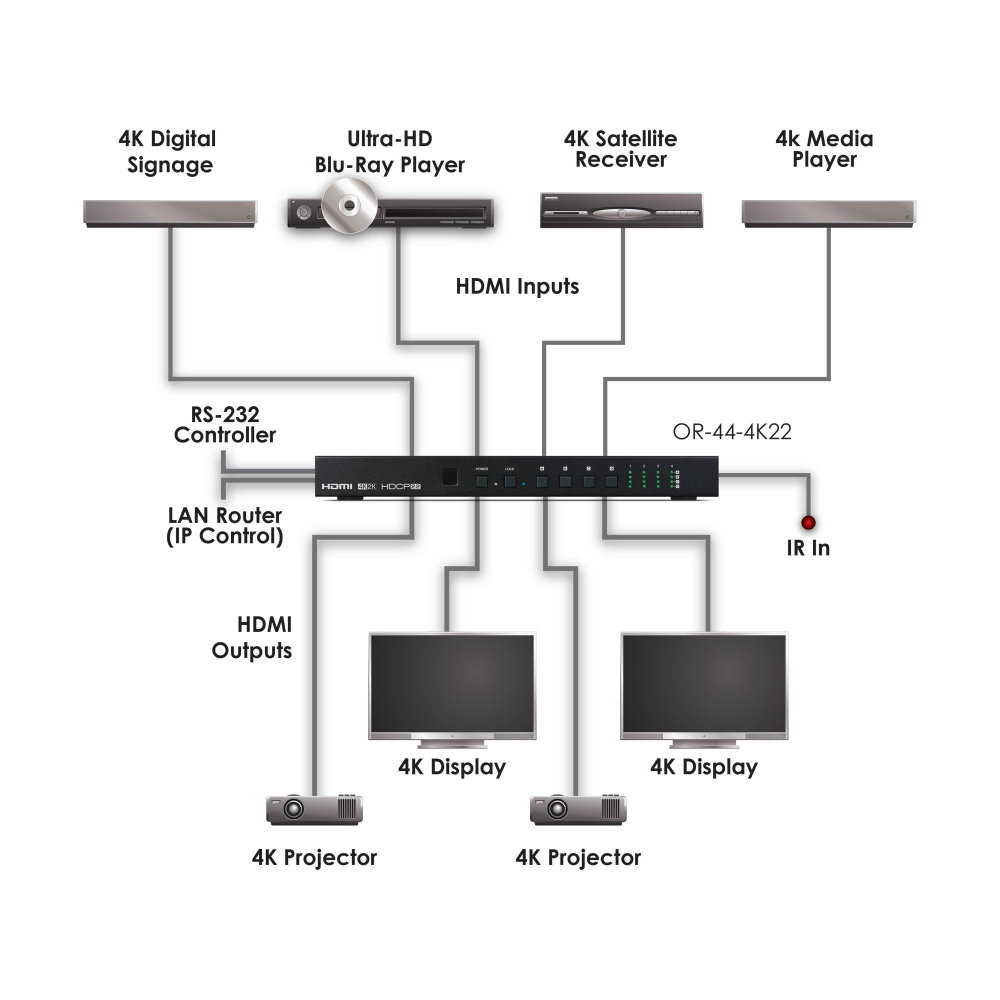

Four HDMI sources to four HDMI displays, switched from the front panel, IR, RS-232, Telnet or the Web GUI. It passes 4K60 4:4:4 with HDR and Deep Colour, plus HD audio formats up to Dolby Atmos and DTS-HD Master Audio. A common fit for multi-screen bars, meeting rooms and home cinema installs where each screen needs its own source.

4×4

Matrix

4K60 4:4:4

Max resolution

HDCP 2.2

Copy protection

Web GUI

IP control

Features

Routes 4 HDMI sources to 4 HDMI displays

4K60 4:4:4 with HDR and Deep Colour

HDMI 2.0 and HDCP 2.2 compliant

HD audio pass-through: LPCM 7.1, Dolby TrueHD, Dolby Atmos, DTS-HD MA

Control via front panel, IR, RS-232, Telnet and Web GUI

Specifications

CYP OR-44-4K22 4×4 HDMI Matrix Switcher, 4K60 4:4:4, HDCP 2.2 specifications
Brand	CYP
Model	OR-44-4K22
Inputs	4x HDMI
Outputs	4x HDMI
Max resolution	4K60 YUV 4:4:4
HDMI / HDCP	HDMI 2.0 / HDCP 2.2
Audio formats	LPCM 2/5.1/7.1, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS-HD MA
Control ports	IR in (3.5mm), RS-232 (DB-9), RJ45
Control	Front panel, IR, RS-232, Telnet, Web GUI
Power	24V/2.7A
Dimensions (WxHxD)	436 x 44 x 160mm
Weight	2.06kg

Full features

HDMI2.0 and HDCP2.2 compliant
Routes four HDMI sources to four HDMI displays
Supports pass-through of HD audio formats: LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio
4K UHD resolutions (4K2K@60Hz - YUV4:4:4)
Supports HDR (High Dynamic Range) and Deep Colour

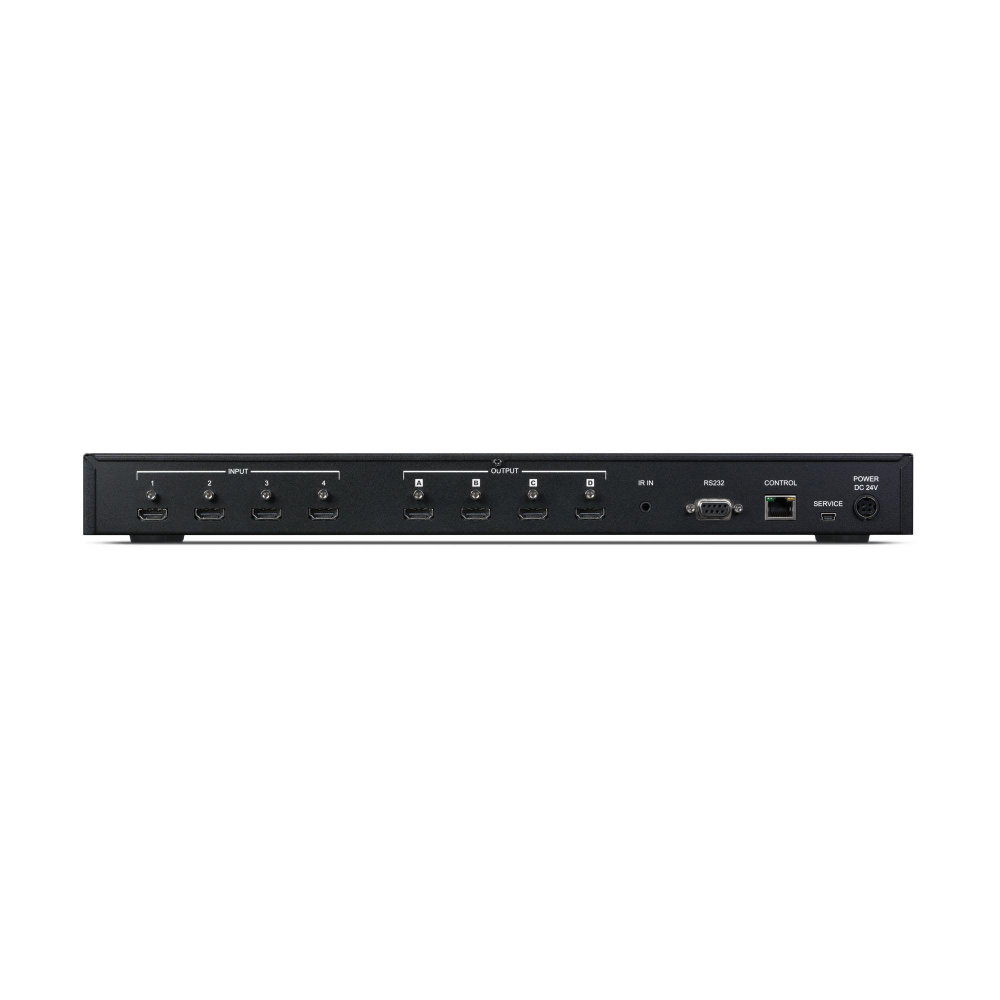

Inputs: 4 x HDMI [4 x HDMI Uncompressed AV and Data], 1 x 3.5mm Stereo mini-jack [1 x Infra Red Receiver], 1 x 9pin Dsub [1 x RS-232 Data], 1 x RJ45 [1 x IP Control]
Outputs: 4 x HDMI [4 x HDMI Uncompressed AV and Data]
PSU: 24V/2.7A
Dimensions (H x W x D): 44 x 436 x 160mm
Net Weight: 2.06kg
Gross Weight: 3.38kg

Product Reviews

No reviews yet — be the first to review this product.

Manuals & Downloads

Manuals & Instructions: OR-44-4K22_PDF-Manual_v1.00.pdfPDF

Manuals & Instructions: OR-44-4K22_Catalogue_Page.pdfPDF
