CYP PU-305BDA-KIT Bi-Directional Stereo Audio over CAT Kit 300m

Product code: 185824

£236.00 inc VAT
£196.67 ex VAT

SKU: CYP057

5 in stock

5 available online

About this Product

Each end of this kit can both send and receive line-level stereo audio on RCA, so one CAT cable carries programme audio out to a zone and a return feed back. RS-232 control passes alongside, and a single power supply at either end powers both units over the cable. CYP quotes runs of up to 300m, which covers most building-wide audio tie lines.

300m

Over CAT5e/6

2-way

Stereo audio

RS-232

Pass-through

1 PSU

Powers both ends

Features

Bi-directional analogue stereo audio on RCA at both ends

Single CAT cable run up to 300m

Bi-directional RS-232 pass-through on 9-pin D-sub

Power over CAT: one PSU can sit at either the TX or RX

Compatible audio module for CYP PUV-1082 series matrix audio CAT ports

Specifications

CYP PU-305BDA-KIT Bi-Directional Stereo Audio over CAT Kit 300m specifications
Brand	CYP
Model	PU-305BDA-KIT

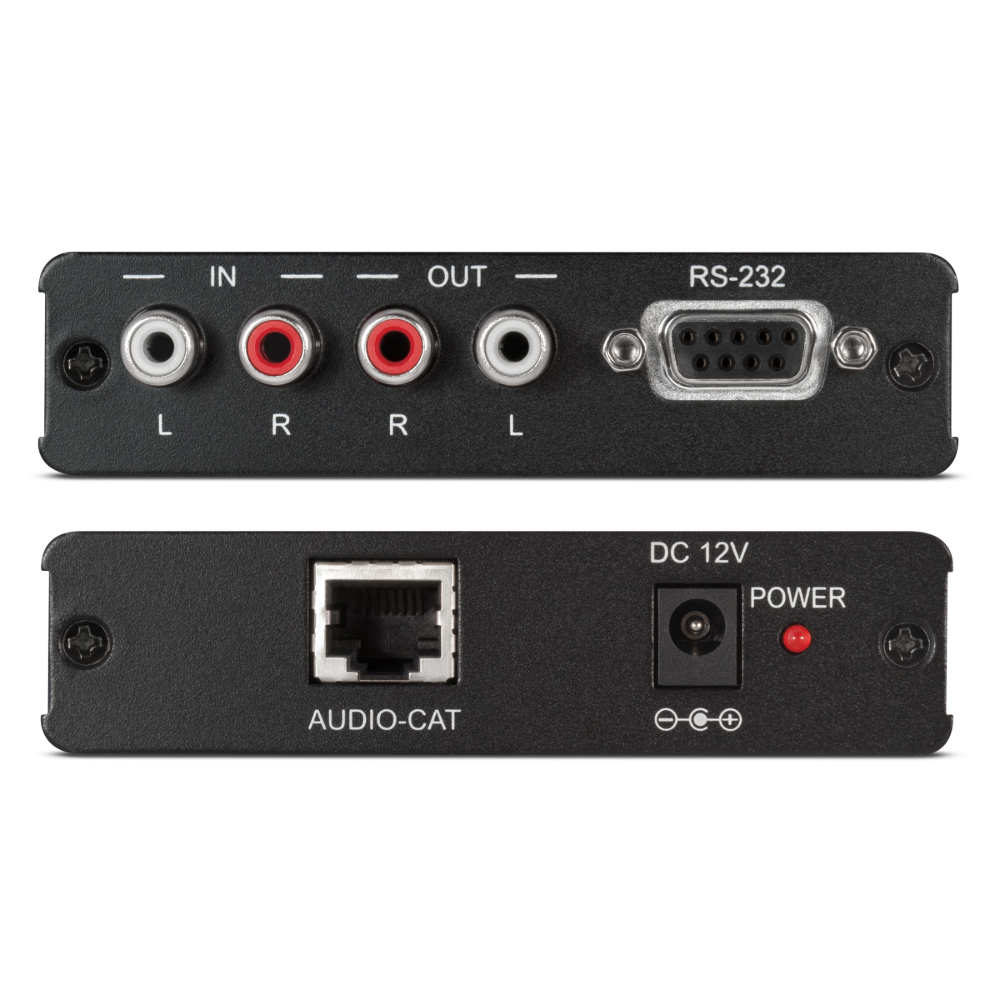

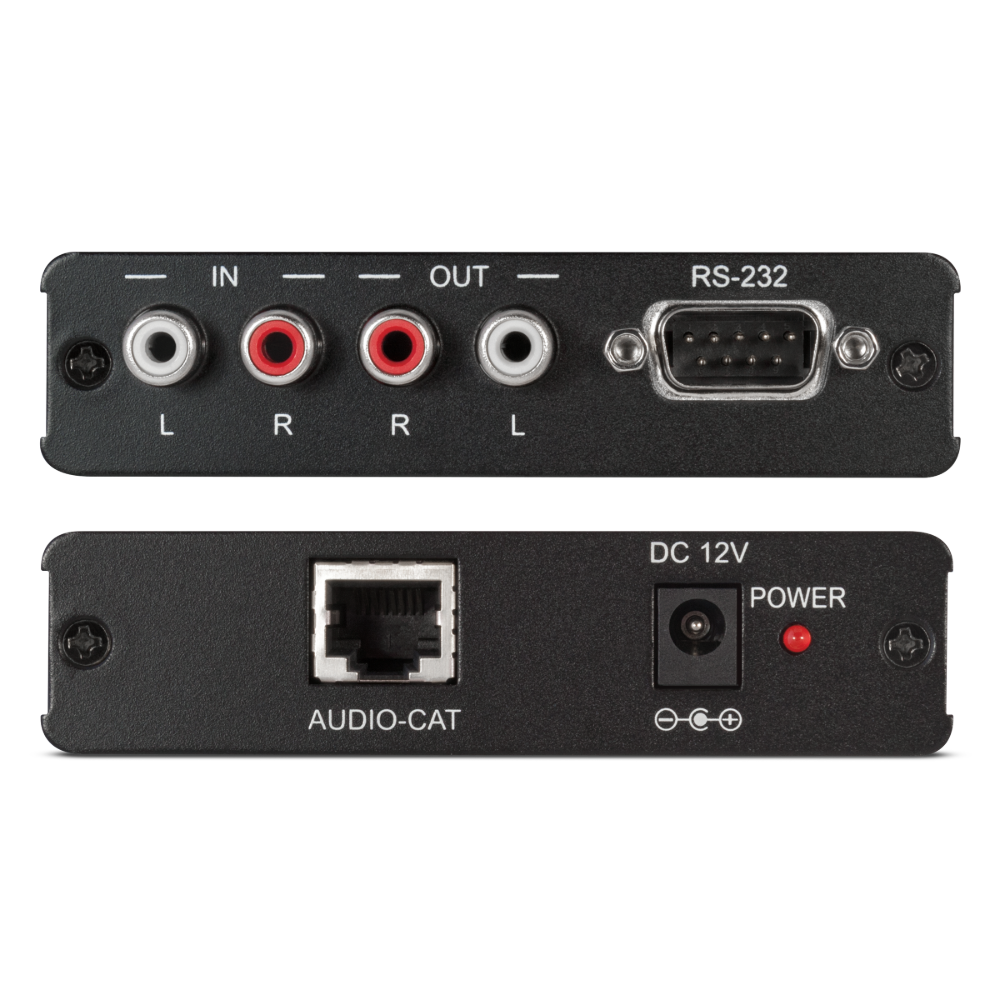

Audio I/O (each unit)	1x stereo in, 1x stereo out (RCA L/R)
Link	1x RJ45 audio CAT
Control	RS-232 (9-pin D-sub)
Distance	Up to 300m over CAT5e/6
Power	12V/1.25A DC, Power over CAT to the other unit

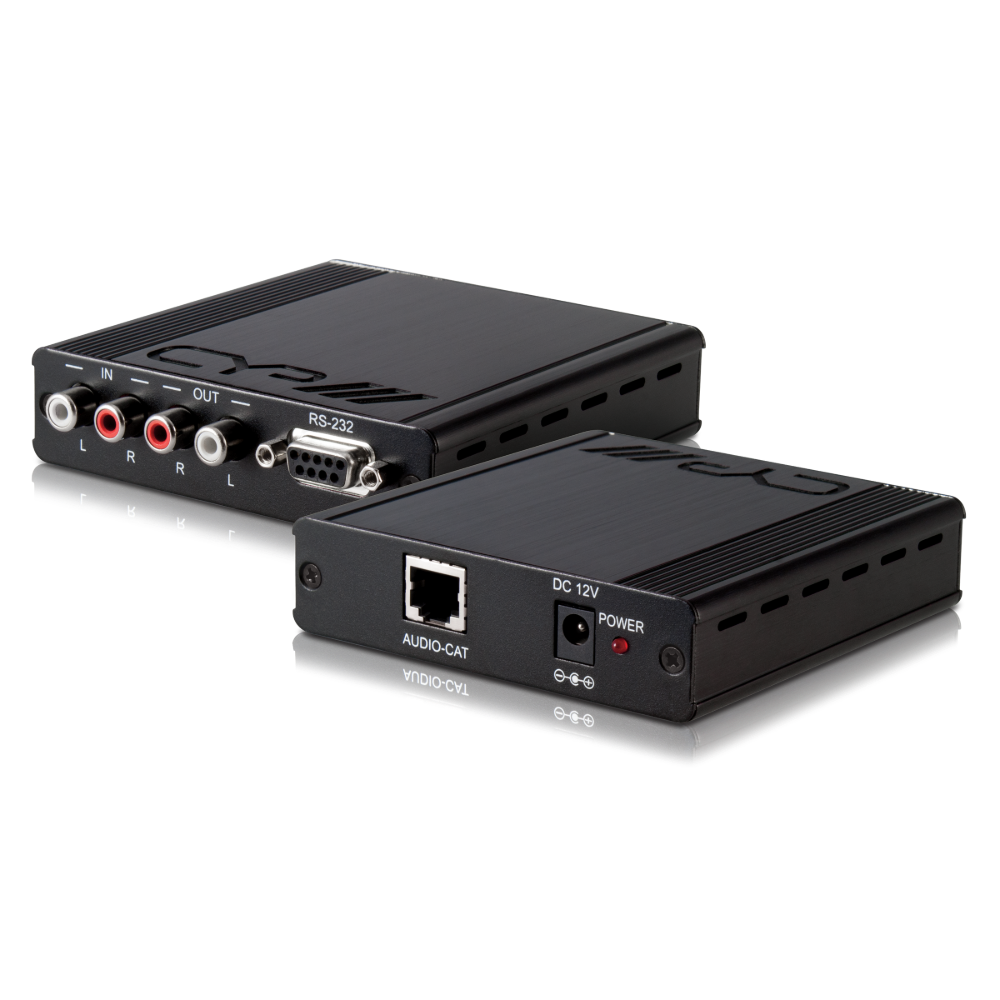

Kit	Transmitter and receiver
Dimensions (WxHxD)	102 x 25 x 102mm each
Weight	480g (pair)

Full features

Supports bi-directional transmission (in/out) of analogue audio and RS-232 pass-through
Supports Power over CAT to either TX or RX
Only one PSU is required and can be used at either the TX or RX
Bi-directional RS-232 control

Inputs: 2 x RCA [1 x TX Analogue Stereo (L/R)], 2 x RCA [1 x RX Analogue Stereo (L/R)], 1 x 9pin Dsub [1 x TX RS-232 Data], 1 x RJ45 [1 x RX Bi-directional Audio plus Propriety Data]
Outputs: 2 x RCA [1 x TX Analogue Stereo (L/R)], 2 x RCA [1 x RX Analogue Stereo (L/R)], 1 x 9pin Dsub [1 x RX RS-232 Data], 1 x RJ45 [1 x TX Bi-directional Audio plus Propriety Data]
POE PSU: PoC
PSU: 12V/1.25A, Bi-directional POE
Dimensions (H x W x D): 25 x 102 x 102mm
Net Weight: 480g
Gross Weight: 940g
