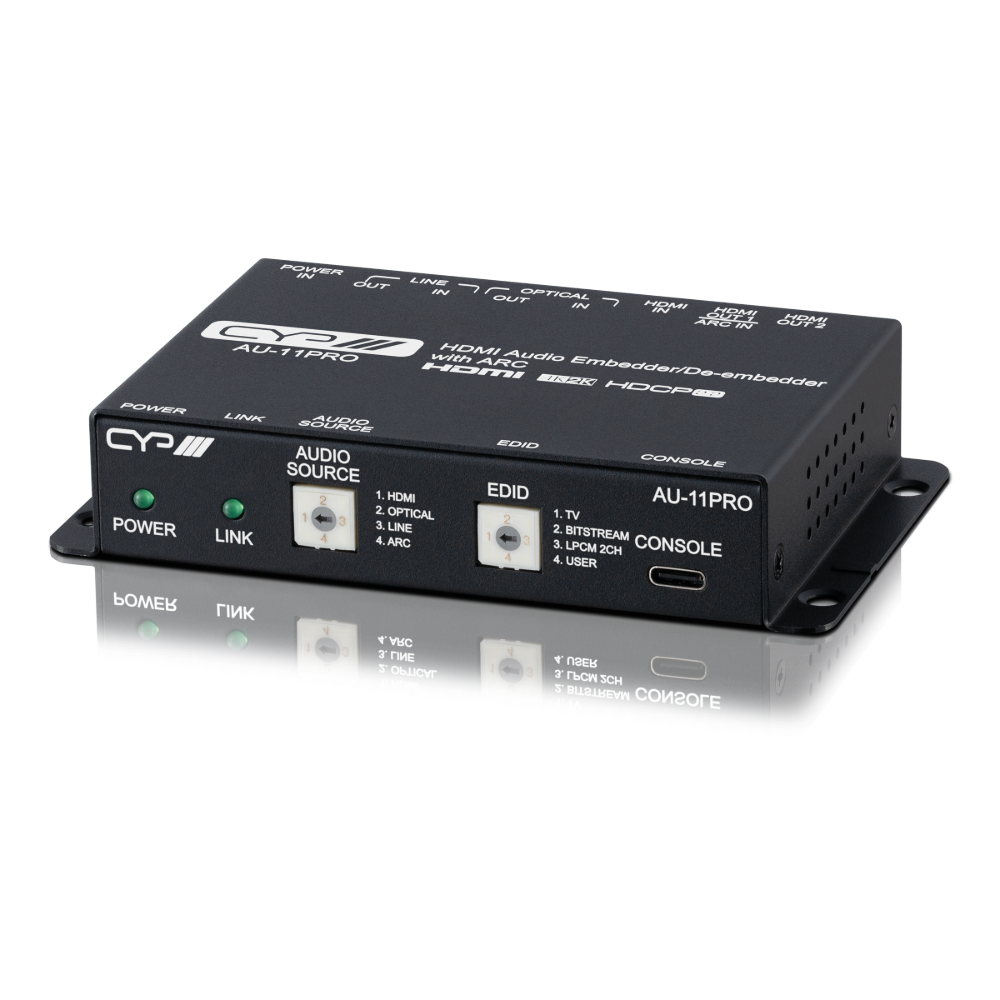

CYP AU-11PRO 4K HDMI Audio Embedder/De-embedder with ARC

Product code: 185941

£196.00 inc VAT
£163.33 ex VAT

SKU: CYP023

5 in stock

5 available online

About this Product

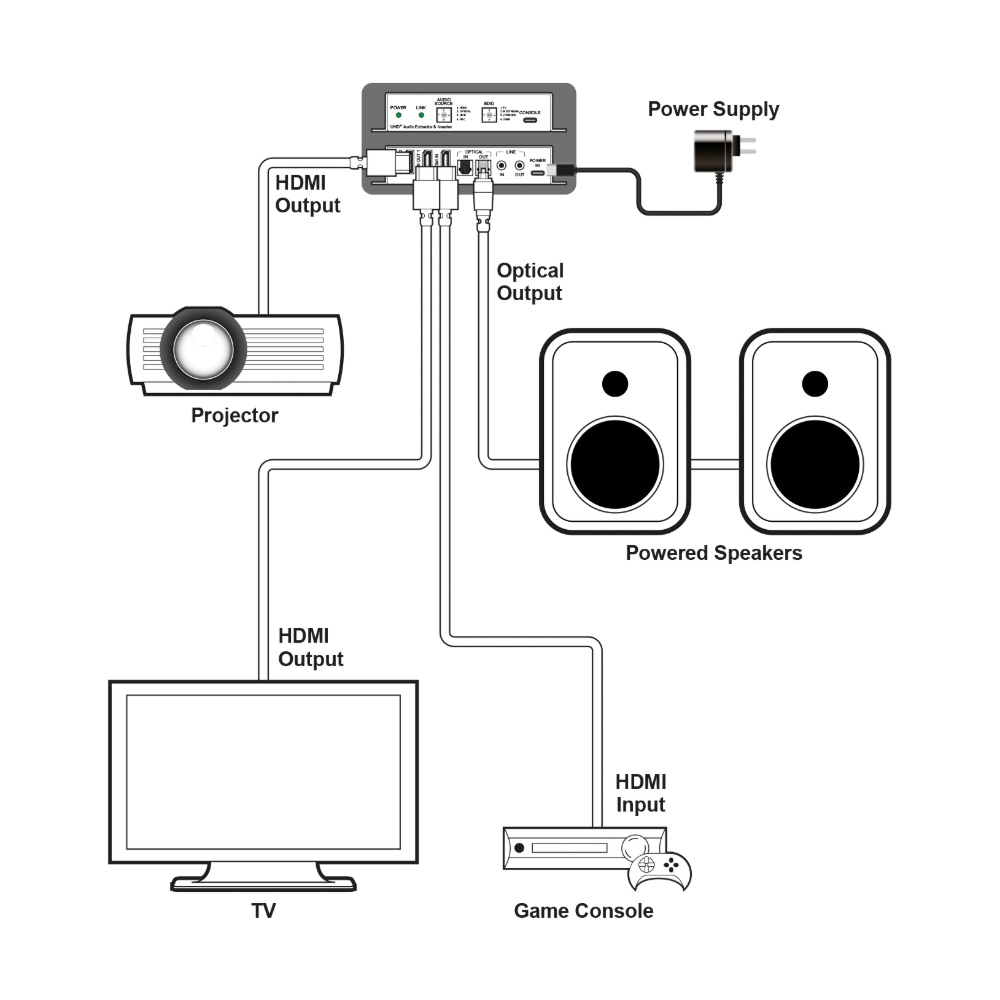

The AU-11PRO extracts, inserts and converts audio within a 4K HDMI signal path. Audio can be taken from the HDMI input, from ARC on HDMI output 1, from the optical input or from the 3.5mm analogue input, then sent to the HDMI, optical and analogue outputs simultaneously. Video passes through at up to 4K60 4:4:4 with HDR, which makes it a practical way to feed powered speakers or an older AV receiver from current sources.

4K60 4:4:4

Video

18Gbps

Bandwidth

1 in, 2 out

HDMI

ARC

Audio return

Optical and analogue outputs are limitedThe optical output handles LPCM 2.0 and standard bitstream only, and the analogue output LPCM 2.0 only. Multichannel PCM and HD bitstream formats pass through on HDMI only.

Features

HDMI 2.0 and DVI 1.0, HDCP 1.x and 2.2 compliant

One HDMI input with two mirrored HDMI outputs

4K@50/60Hz 4:4:4 8-bit at 18Gbps, 10/12-bit HDR pass-through

Audio source selectable from HDMI, ARC, optical or analogue

HDMI passes LPCM up to 8 channels, bitstream and HD bitstream

EDID bypass, 2 preset EDIDs and a user-modifiable EDID

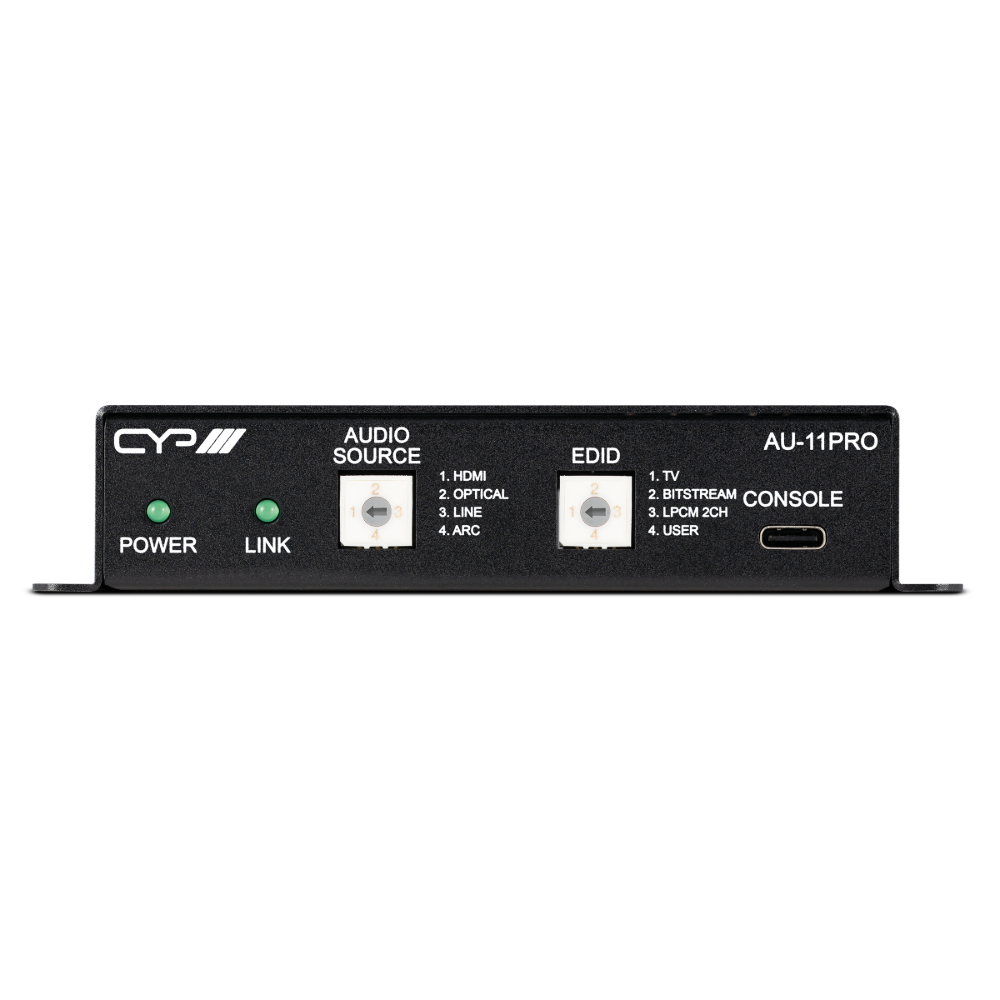

Front panel selector dials, RS-232 style control via USB-C

Specifications

CYP AU-11PRO 4K HDMI Audio Embedder/De-embedder with ARC specifications
Brand	CYP
Model	AU-11PRO
Inputs	1x HDMI, 1x Toslink optical, 1x 3.5mm analogue stereo

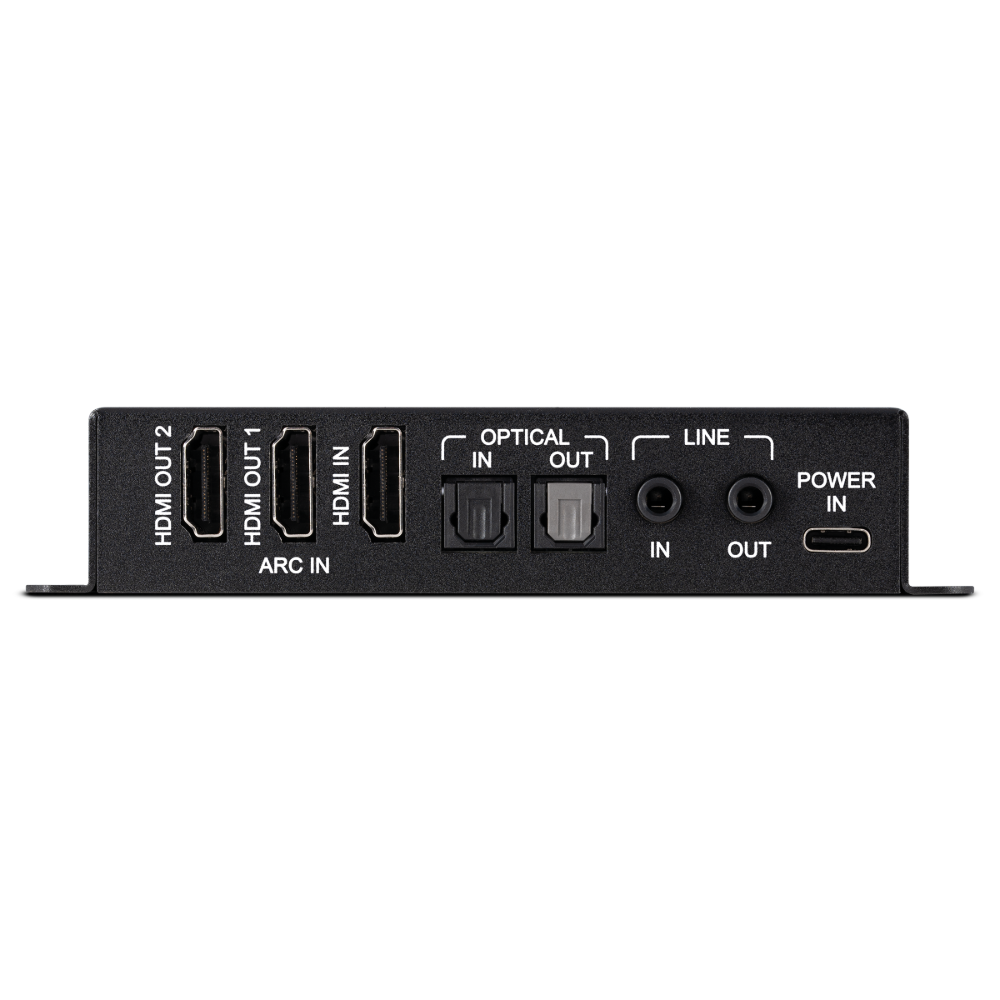

Outputs	2x HDMI (ARC on output 1), 1x Toslink optical, 1x 3.5mm analogue stereo
Control	USB-C (virtual COM port)
HDMI / HDCP	HDMI 2.0, HDCP 1.x and 2.2
Max resolution	3840×2160@60Hz 4:4:4
Bandwidth	18Gbps
Line in / line out	2Vrms
S/N ratio	>80dB (1kHz, 0dBFS)
Power supply	5V/3A DC
Power consumption	3.5W
Chassis	Steel, black
Dimensions	128 x 25 x 75mm (W x H x D)
Weight	280g

Full features

HDMI 2.0 and DVI 1.0 compliant
HDCP 1.x and 2.2 compliant
1 HDMI input and 2 mirrored HDMI outputs
Supports up to 4K UHD + (18Gbps, 4K@50/60Hz 4:4:4, 8-bit) video input and output
Supports pass-through of 10/12-bit HDR sources
HDMI supports pass-through of multiple audio formats including LPCM (up to 8 channels), Bitstream and HD Bitstream
Freely selectable audio extraction source Note: Optical output is limited to LPCM 2.0 and standard Bitstream sources. Analog audio output is limited to LPCM 2.0 sources Controllable via front panel selector dials and RS-232 style control via a Virtual COM port over USB-C
Provides EDID management with EDID bypass, 2 pre-made EDIDs, and a user modifiable EDID

Inputs: 1 x HDMI Uncompressed AV and Data [1 x HDMI], 1 x Optical 2-channel LPCM [1 x Toslink], 1 x Analogue Stereo (L/R) [1 x 3.5mm Stereo mini-jack], 1 x Control & Service Port Proprietary data [1 x USB-C]
Outputs: 2 x HDMI (output 1 with ARC in) Uncompressed AV and Data [2 x HDMI], 1 x Optical 2-channel LPCM [1 x Toslink], 1 x Analogue Stereo (L/R) [1 x 3.5mm Stereo mini-jack]
PSU: 5V/3A DC (US/EU standards, CE/FCC/UL certified)
Dimensions (H x W x D): 25 x 128 x 75mm
Net Weight: 280g
Gross Weight: 660g

Product Reviews

No reviews yet — be the first to review this product.

Manuals & Downloads

Manuals & Instructions: CYPUK_AU-11PRO_Manual_v1.00.pdfPDF

Manuals & Instructions: AU-11PRO_Datasheet_v1.02.pdfPDF
