CYP AU-11CA-4K22 4K HDMI Audio Embedder with Repeater, HDMI 2.0

Product code: 185934

£210.00 inc VAT
£175.00 ex VAT

SKU: CYP026

5 in stock

5 available online

About this Product

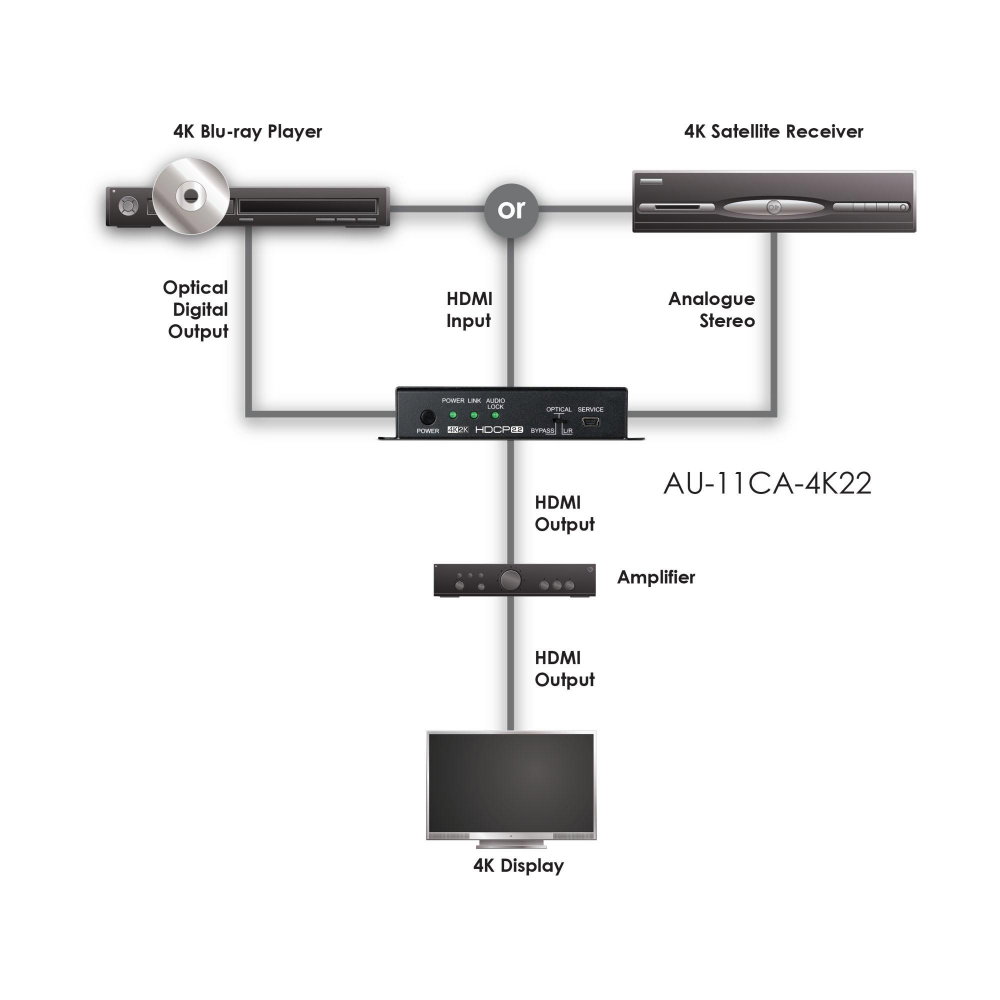

The AU-11CA-4K22 adds an external audio source to an HDMI signal without limiting the video path to HD. Analogue stereo or optical S/PDIF audio can be embedded into the HDMI output, or HDMI audio passed through, with video at up to 4096×2160@60 4:4:4 and HDCP 2.2. A built-in repeater boosts the HDMI output, and it can also add audio to a DVI source and output the result as HDMI.

4K60 4:4:4

Video

HDCP 2.2

HDMI 2.0

192kHz

Sample rate

Analogue + optical

Audio inputs

Features

HDMI 2.0, HDCP 2.2 and DVI compliant

Video up to 4096×2160@60Hz 4:4:4

Embeds analogue stereo or optical S/PDIF audio into HDMI

Adds audio to a DVI source, output as HDMI

Passes LPCM 7.1, Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio

HDMI and S/PDIF sample rates up to 192kHz

EDID bypass and 2 user-modifiable EDIDs, PC EDID tool

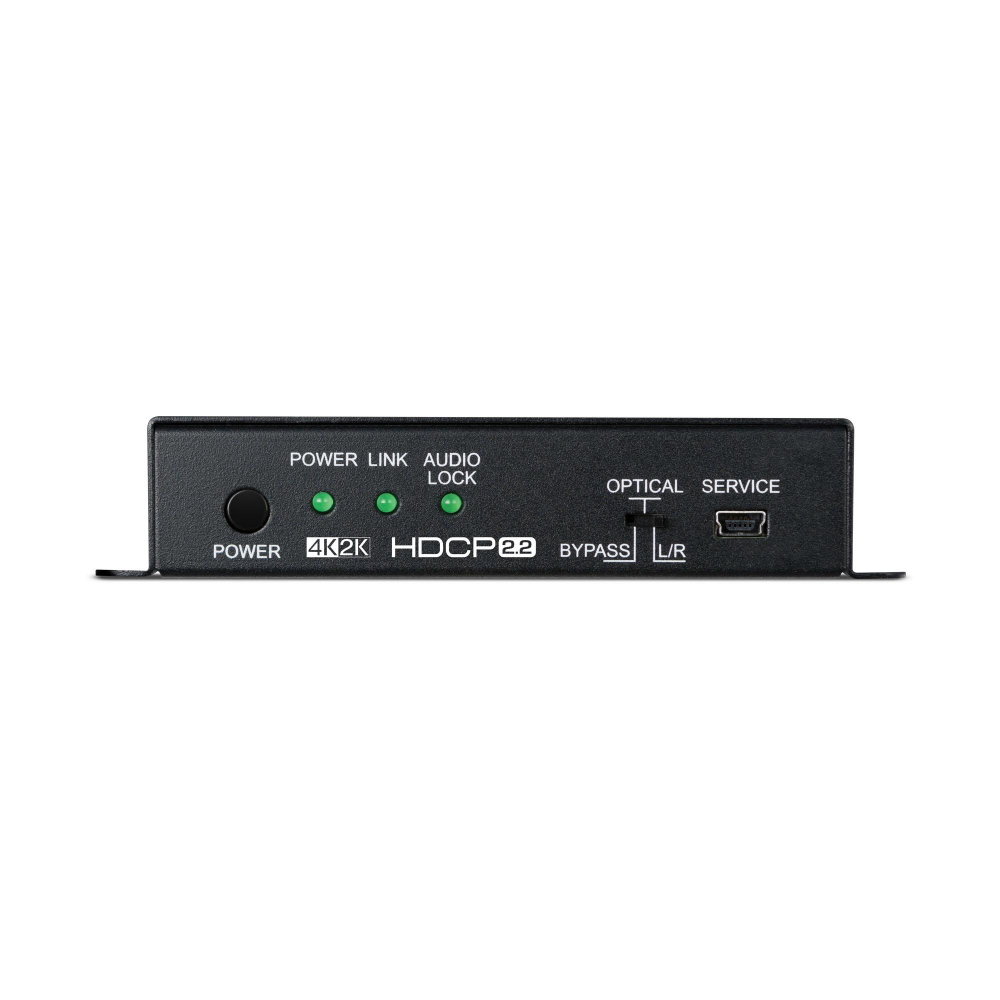

CEC bypass, RS-232 style control via virtual COM port over USB

Specifications

CYP AU-11CA-4K22 4K HDMI Audio Embedder with Repeater, HDMI 2.0 specifications
Brand	CYP
Model	AU-11CA-4K22

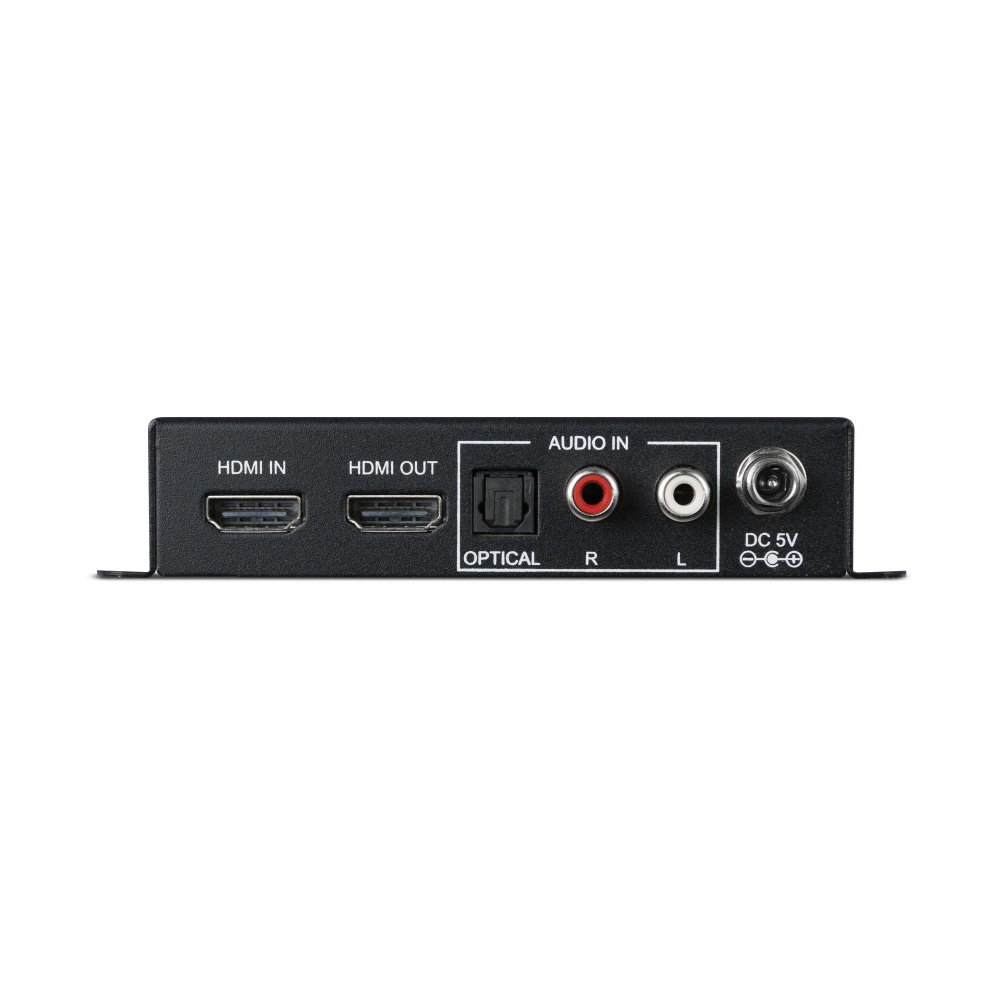

Inputs	1x HDMI, 1x Toslink optical, 1x analogue stereo
Output	1x HDMI
HDMI / HDCP	HDMI 2.0, HDCP 2.2
Max resolution	4096×2160@60Hz 4:4:4 8-bit
HDMI audio	LPCM 7.1, bitstream, HD bitstream pass-through
Optical sample rates	32kHz to 192kHz
Repeater	10m cable each side at 1080p
Power supply	5V/2.6A DC
Power consumption	3.78W

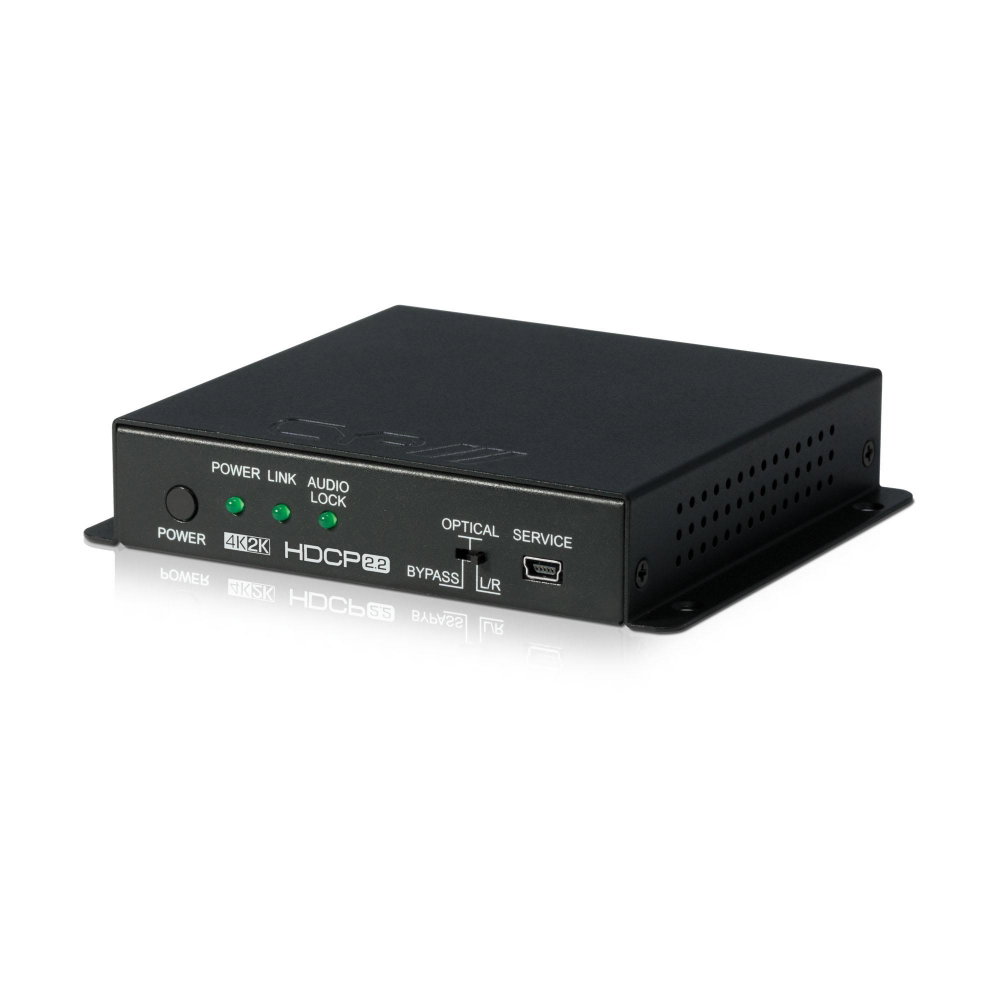

Chassis	Metal, black
Dimensions	128 x 25 x 108mm (W x H x D)
Weight	360g

Full features

HDMI 2.0, HDCP 2.2 and DVI compliant
Supports HDTV resolutions up to 4Kx2K (3840x2160@24/25/30/ 50/60 YUV_444 & 4096x2160@24/25/30/50/60 YUV_444)
Supports HDMI high resolution digital audio format bypass, LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, Dolby Atmos and DTS-HD Master Audio
HDMI supports high-bit-rate (HBR) audio
Select which audio source you require to be embedded onto the HDMI output
Supports HDMI and Optical S/PDIF audio sample rate up to 192 kHz
Supports LPCM Stereo, DTS and Dolby Digital via Optical input
Features CEC bypass
HDMI signal amplification and equalisation supporting HDMI cable distance of 10m either side of the device at full 1080p.

Inputs: 1 x HDMI [1 x HDMI 2.0 Uncompressed AV and Data], 1 x 3.5mm Stereo mini-jack [1 x Analogue Stereo (L/R)], 1 x Toslink [1 x Optical 2-channel LPCM], 1 x USB 3 Type B [1 x Service - Power & Data]
Outputs: 1 x HDMI [1 x HDMI 2.0 Uncompressed AV and Data]
PSU: 5V/2.6A
Dimensions (H x W x D): 25 x 128 x 108mm
Net Weight: 360g
Gross Weight: 740g

Product Reviews

No reviews yet — be the first to review this product.

Manuals & Downloads

Manuals & Instructions: CYPUK-AU-11CA-4K22-Manual.pdfPDF

Manuals & Instructions: AU-11CA-4K22_Datasheet_v1.pdfPDF
