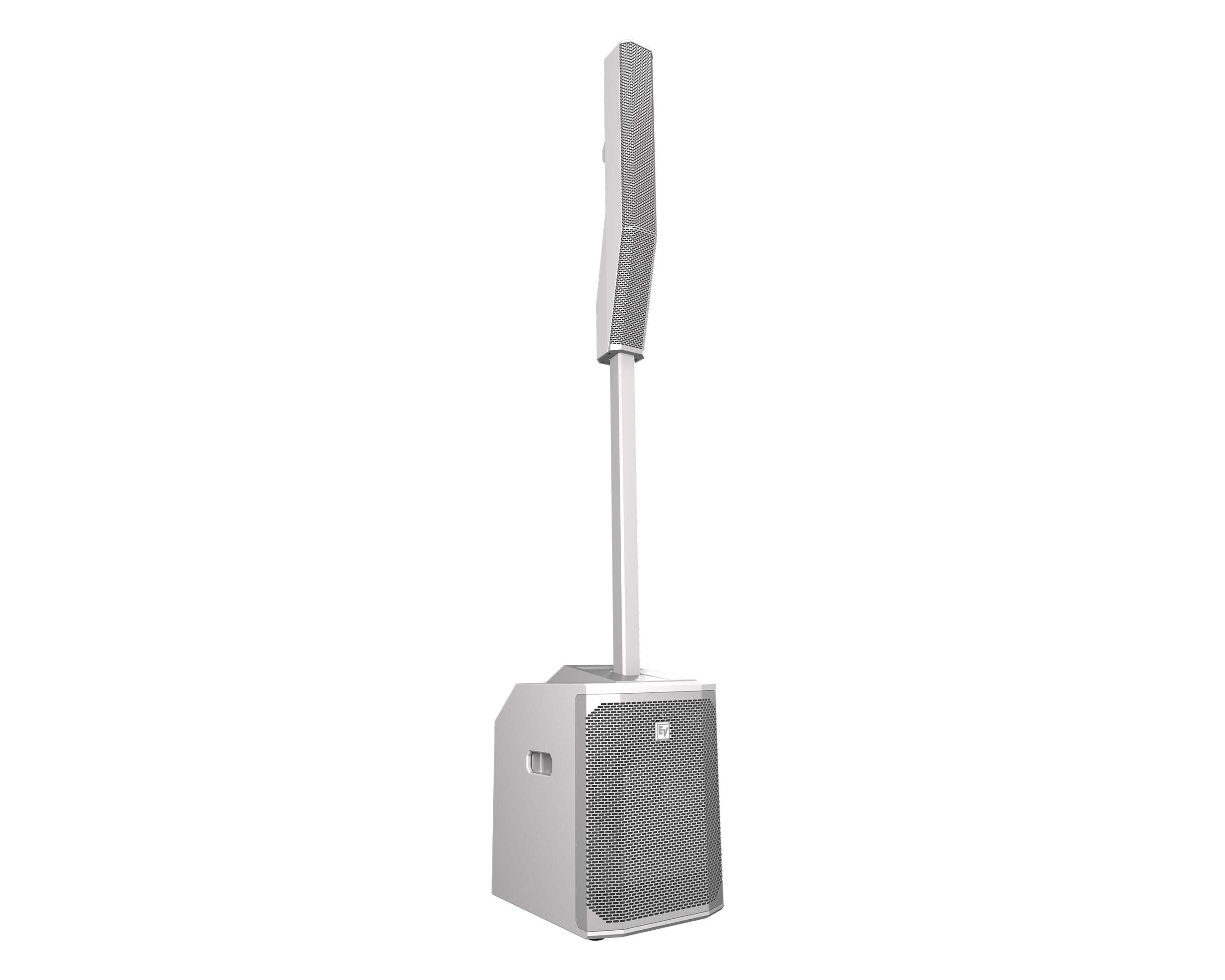

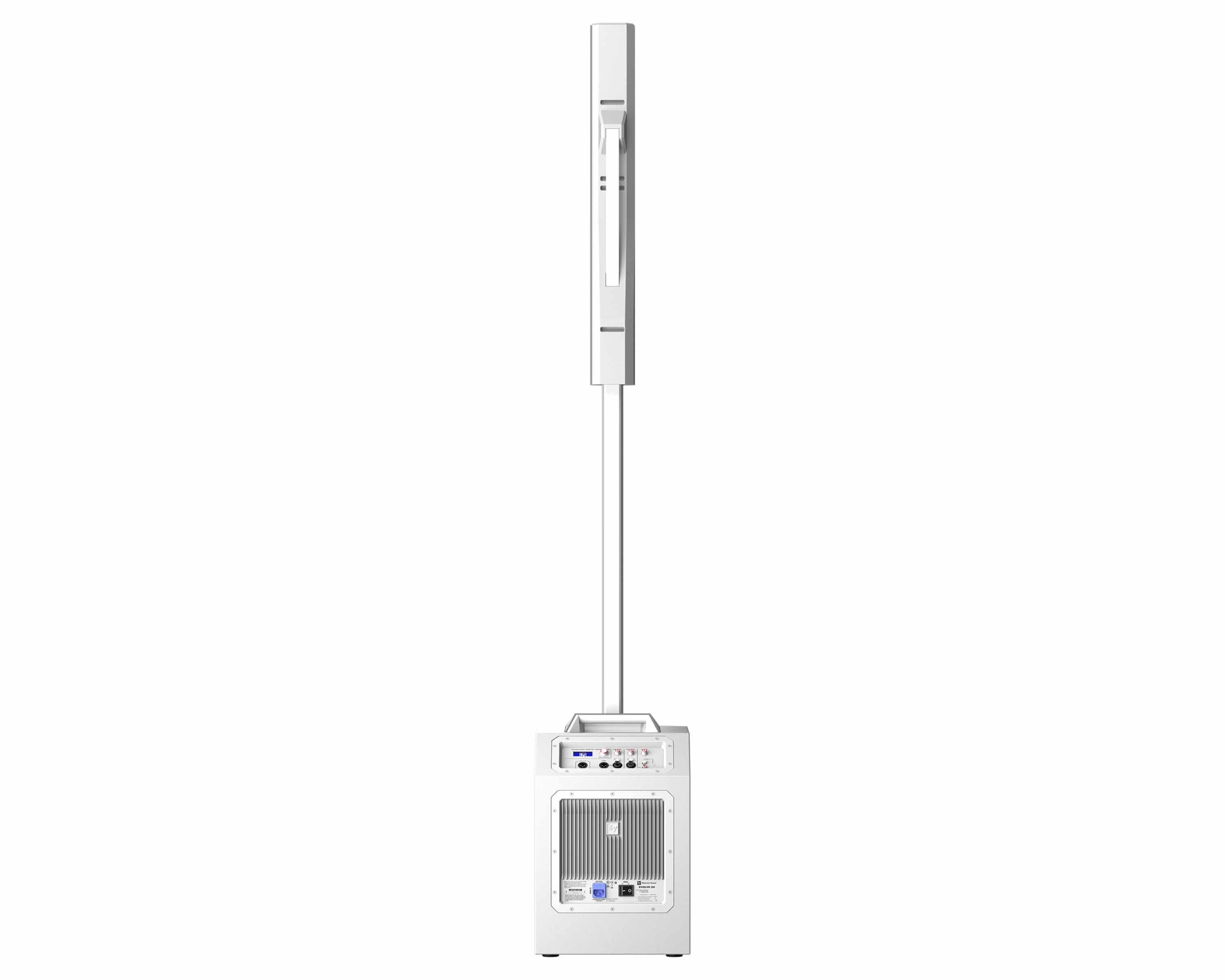

EVOLVE 50 pairs a composite column of eight 3.5″ neodymium drivers with a ported 12″ powered subwoofer, all run from a 1000W Class D amplifier. It reaches 127 dB maximum SPL with 120° horizontal and 40° down-facing vertical coverage, and QuickSmart DSP offers four presets, three-band EQ and output delay. Bluetooth streaming handles background music between sets or sessions, and the QuickSmart Mobile app can monitor up to six systems.
1000W
Class D amplifier
127 dB
Maximum SPL
37 Hz
Low end (-10 dB)
120° x 40°
Coverage
Features

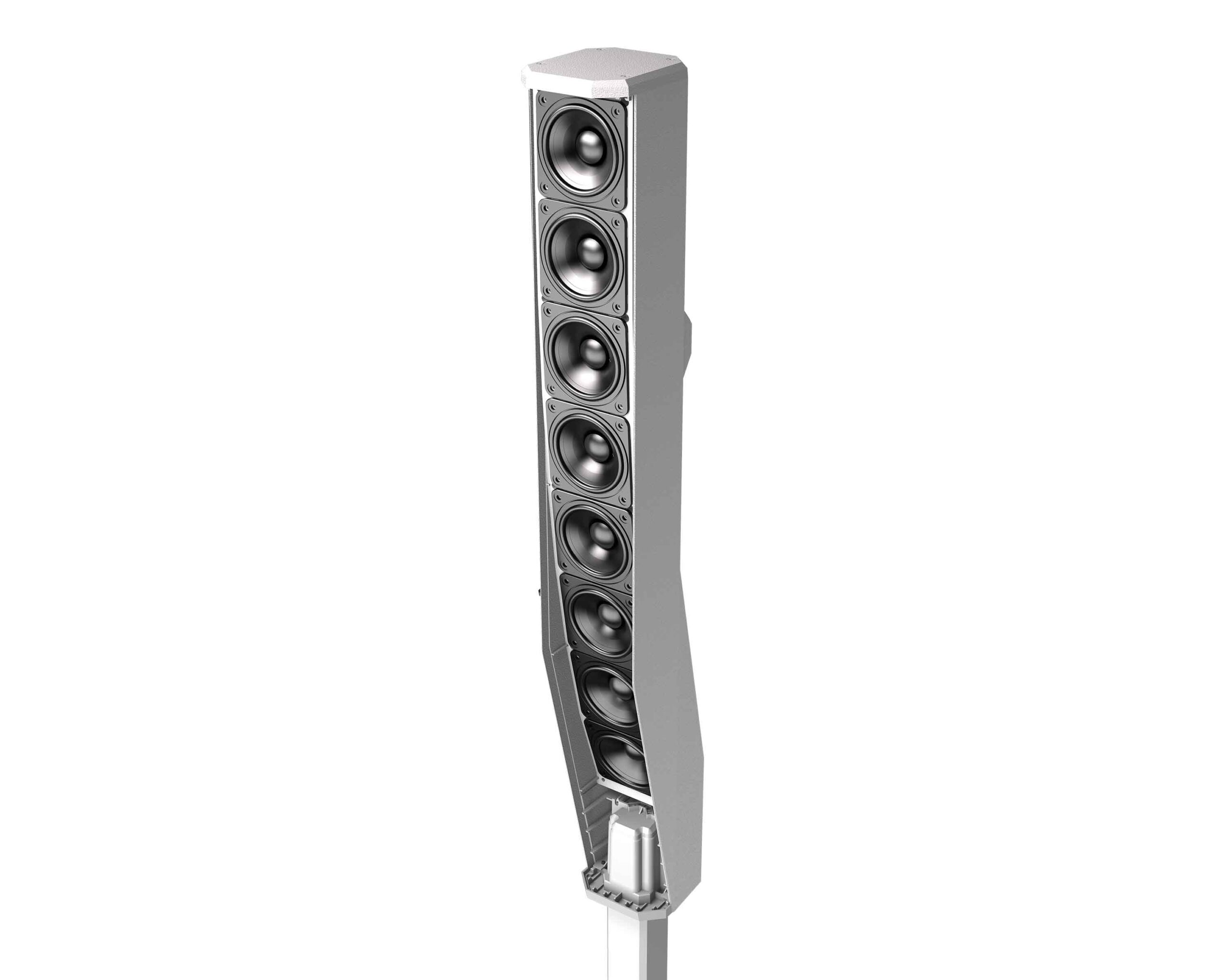

Eight 3.5″ neodymium drivers with 120° x 40° down-facing coverage
Ported 12″ subwoofer in 15 mm plywood, down to 37 Hz (-10 dB)
1000W Class D amplifier with QuickSmart DSP and single-knob LCD control
Four presets (Music, Live, Speech, Club), three-band EQ and output delay
Two XLR/TRS combo inputs with +15V phantom power
Bluetooth audio streaming plus 3.5 mm and RCA inputs
QuickSmart Mobile app controls and monitors up to six systems
Magnet-secured pole with internal signal routing; carry bag included
Specifications
| Brand | Electro-Voice |
| Model | EVOLVE 50 |
| Manufacturer part number | F.01U.353.189 |
| Configuration | Column: 8x 3.5″ neodymium drivers; subwoofer: 1x 12″ |
| Frequency response (-3 dB) | 43 Hz-20 kHz (full space, Music preset) |
| Frequency range (-10 dB) | 37 Hz-20 kHz |
| Maximum SPL | 127 dB |
| Coverage (H x V) | 120° x 40° |
| Amplifier | 1000W Class D (500W LF, 500W HF) |
| Crossover frequency | 200 Hz |

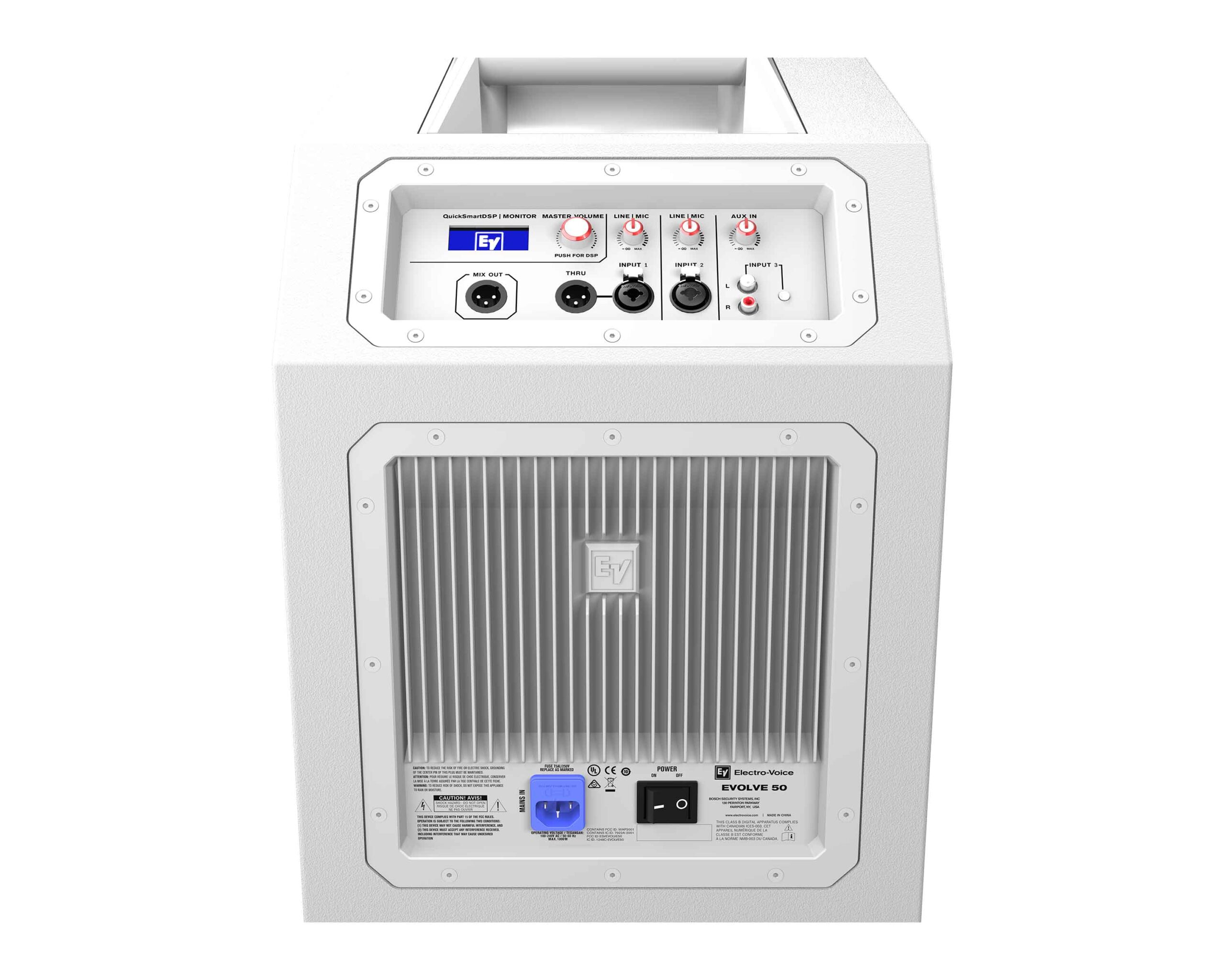

| Inputs | 2x XLR/TRS combo, 1x 3.5 mm, 1x stereo RCA, Bluetooth audio |
| Outputs | 1x XLR thru, 1x XLR mix out |
| DSP | QuickSmart DSP: 4 presets, 3-band EQ, 5 user presets, output delay, +15V phantom power |
| Construction | Sub: 15 mm plywood; column: composite; pole: aluminium; steel grille |
| Dimensions (H x W x D) | Sub 530 x 345 x 471 mm; column 825 x 102 x 172 mm; pole 929 x 48.5 x 55 mm |
| Net weight | Sub 20.3 kg; column 4.7 kg; pole 1.25 kg |
| Power | 100-240 V AC, 50-60 Hz |
| Colour | White |
