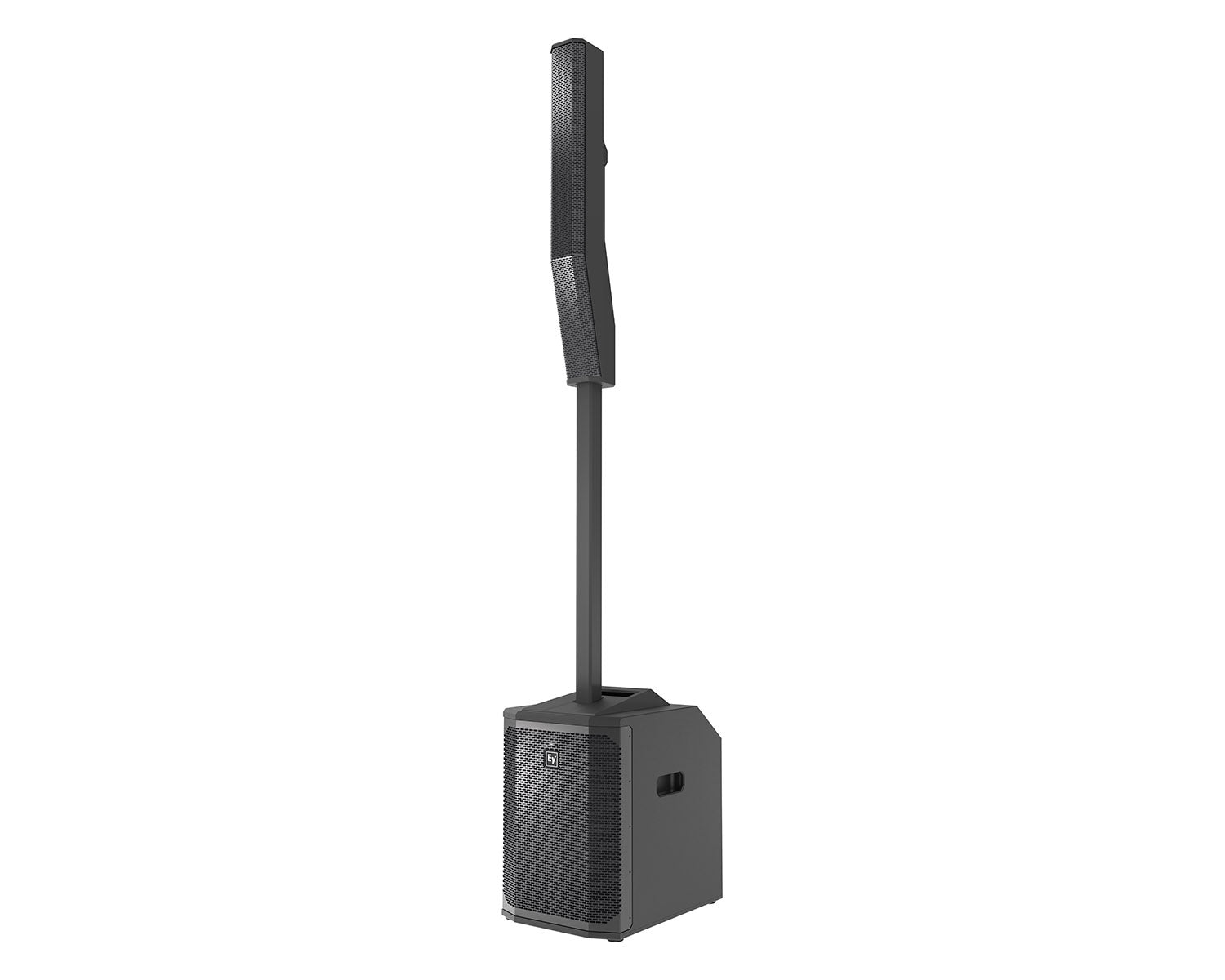

Electro-Voice EVOLVE 50M Column PA System, 8-Channel Mixer, Black

Product code: 186258

£1,799.00 inc VAT
£1,499.17 ex VAT

SKU: F.01U.394.249

6 in stock (more available subject to additional lead time)

6 available online

More available from supplier in 1–3 weeks

Other colours available

Optional Add-Ons

Electro-Voice EVOLVE 50 Subwoofer Cover, Padded, EVOLVE50-SUBCVR

EVOLVE 50 Sub Cover

£59.00 inc VAT
£49.17 ex VAT

Add to basket

EVOLVE 50 Rolling Case

£215.00 inc VAT
£179.17 ex VAT

Add to basket

About this Product

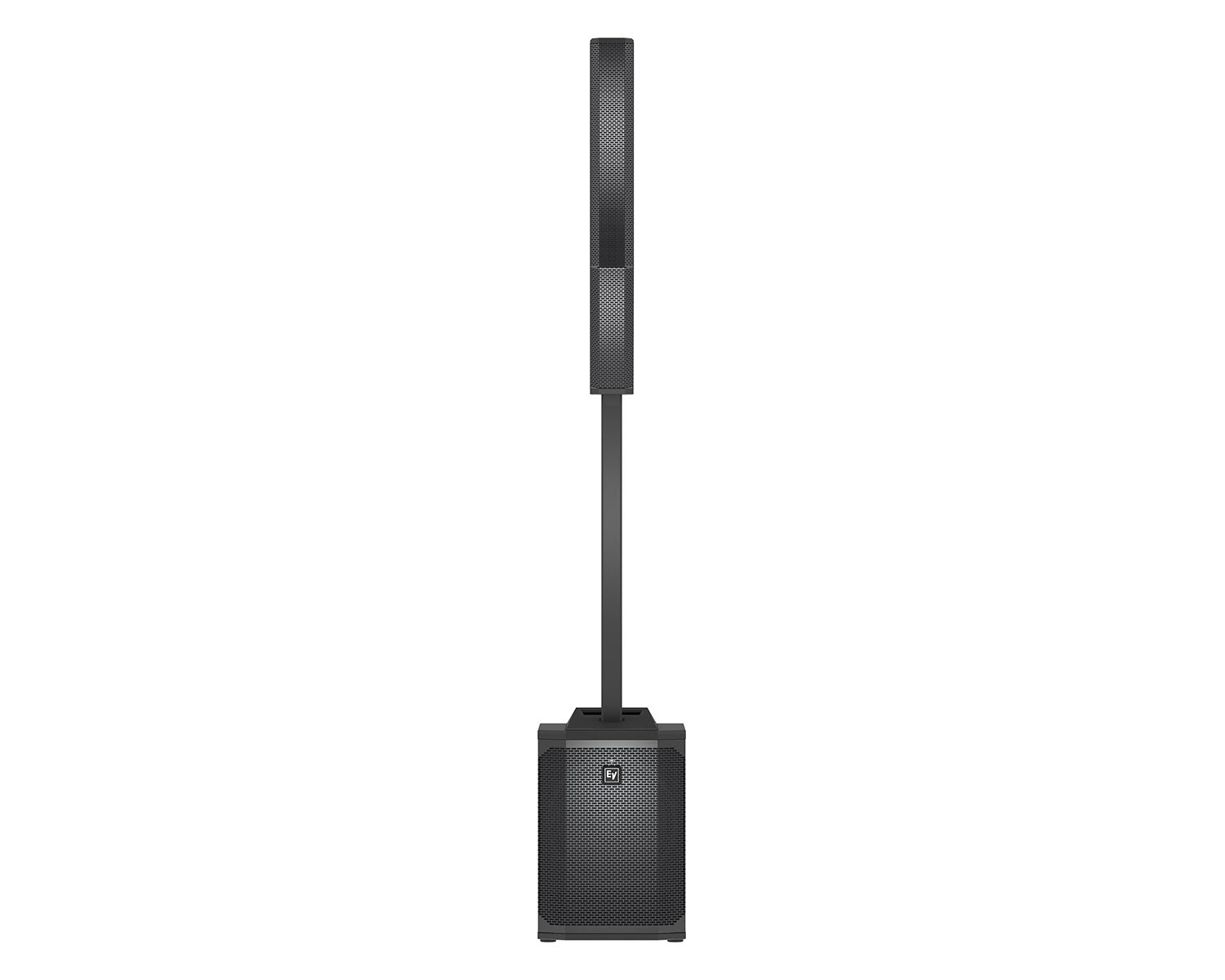

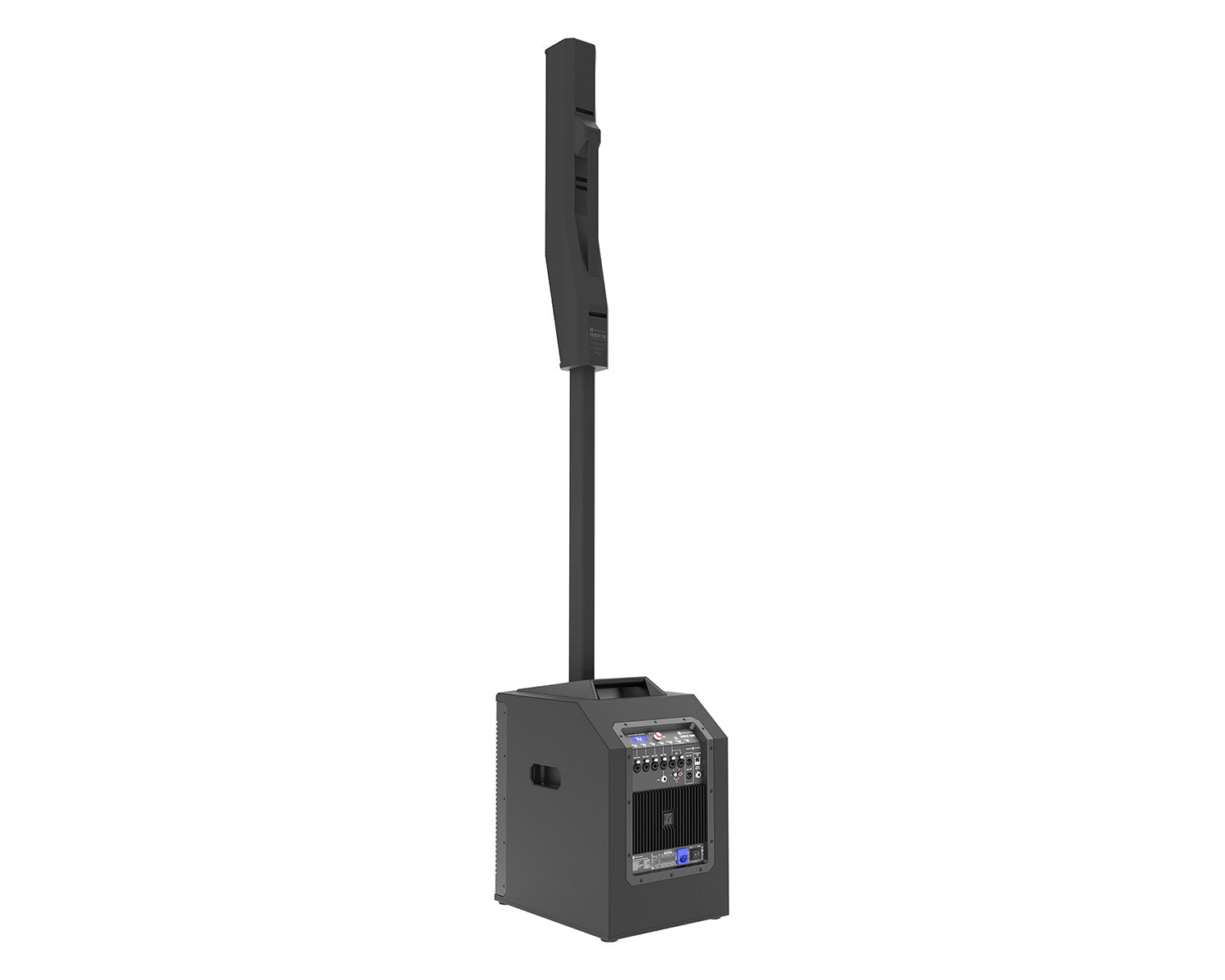

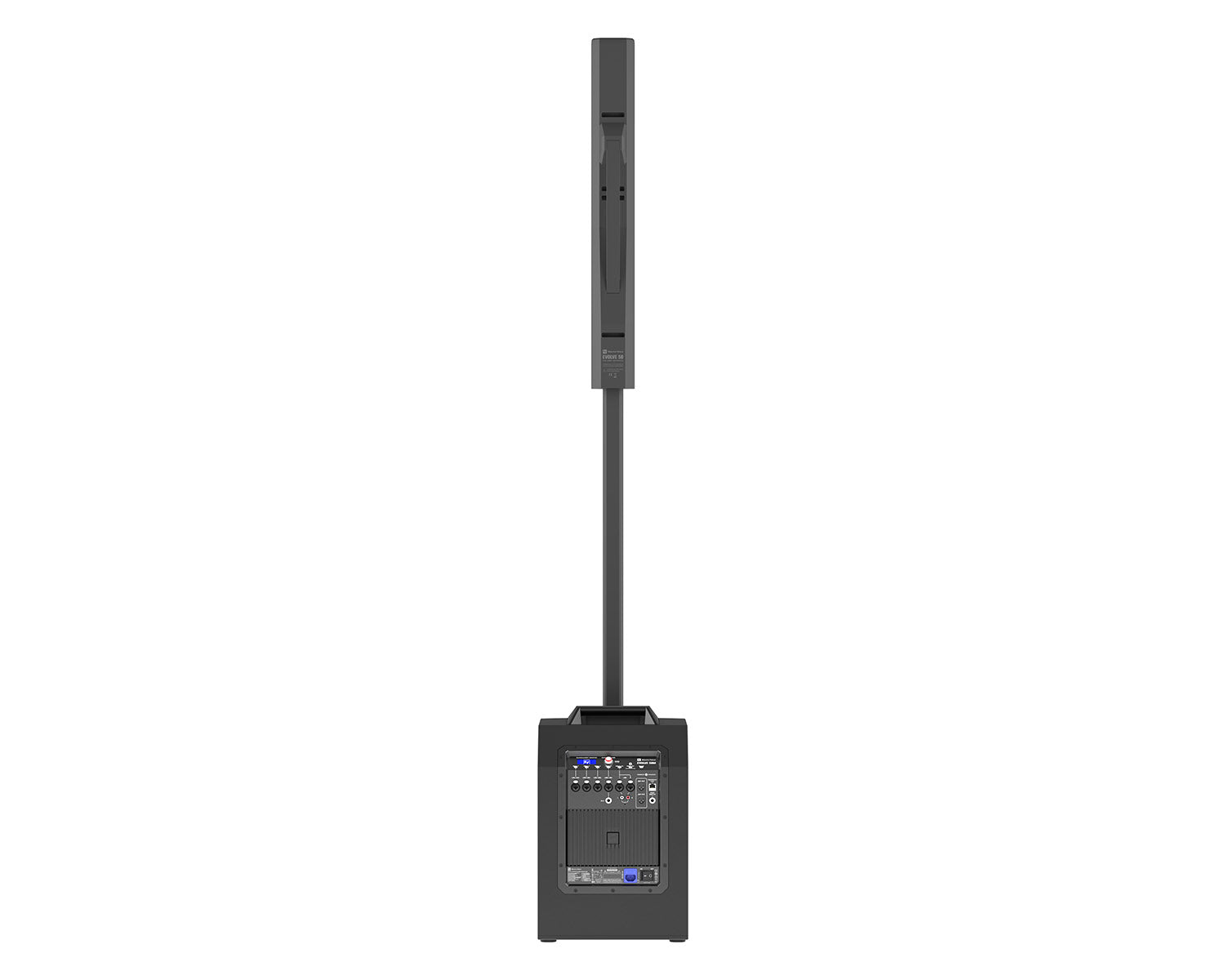

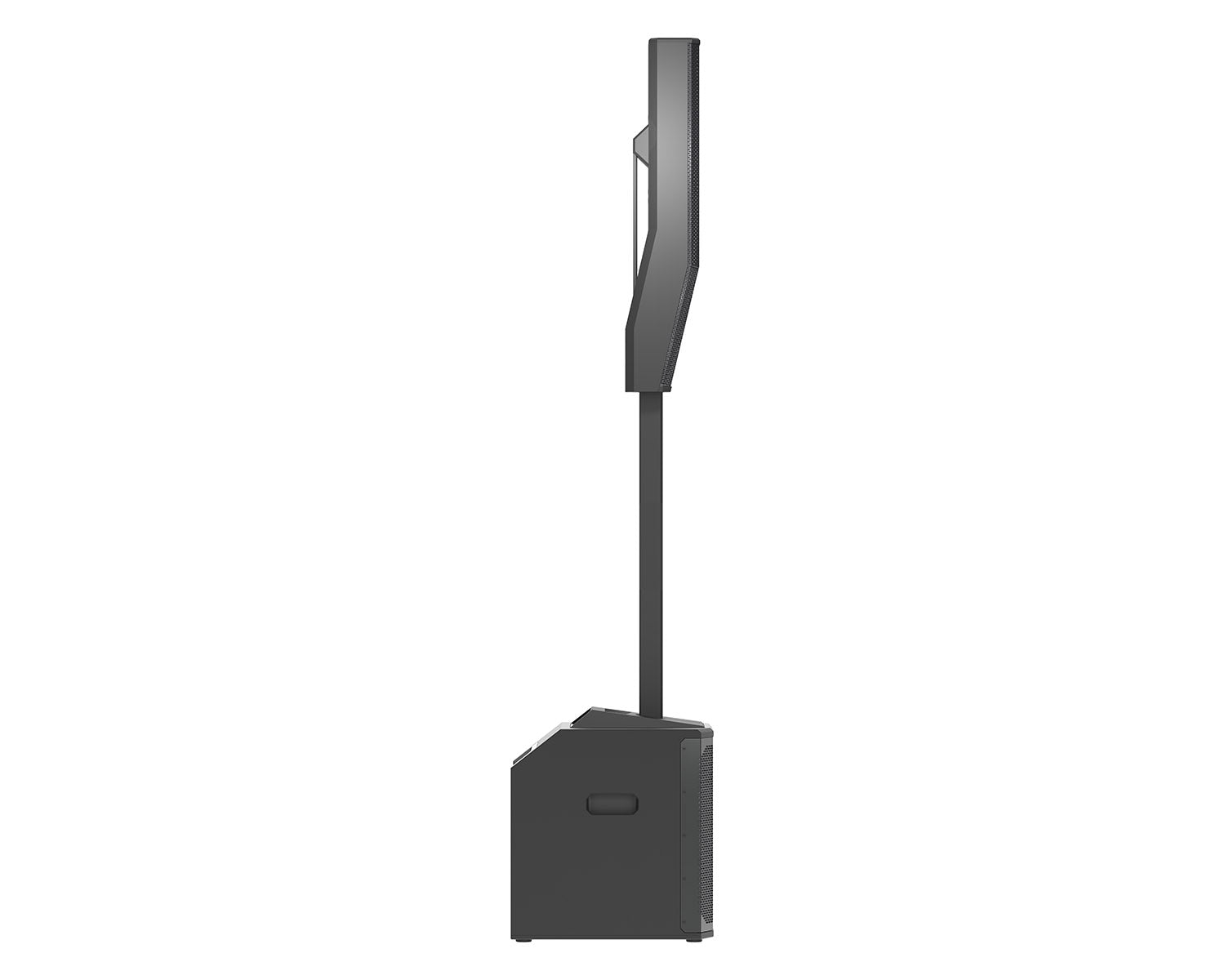

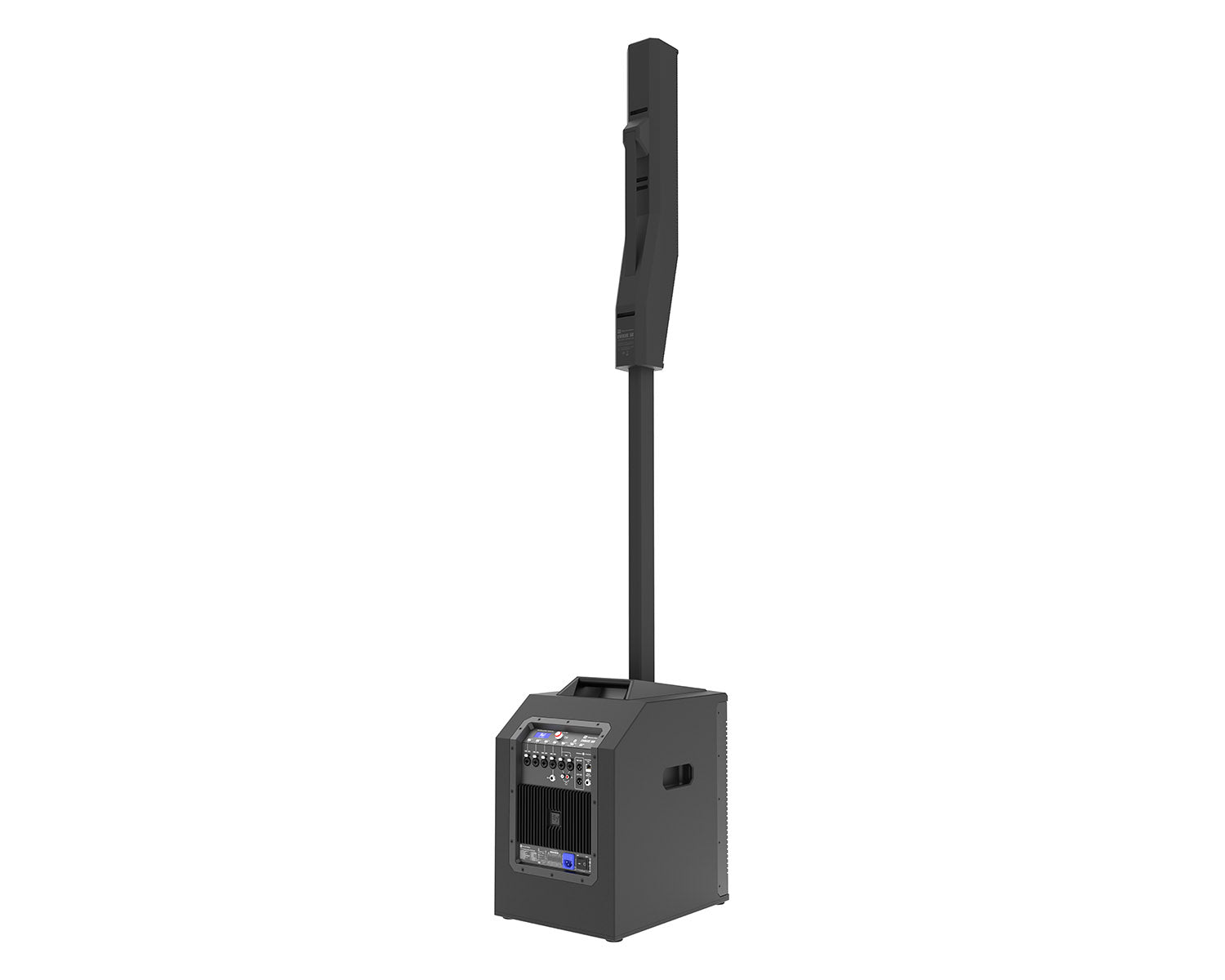

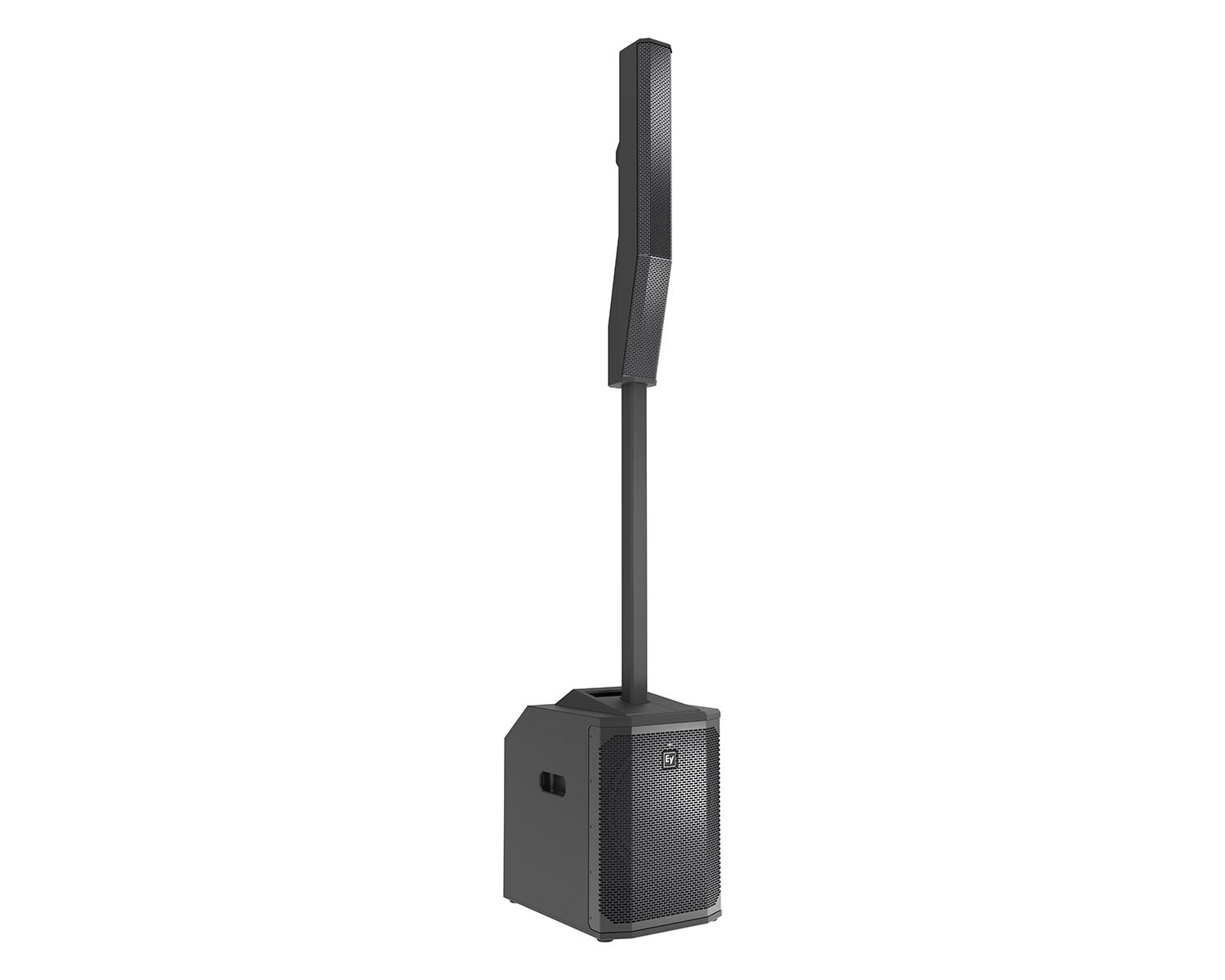

The EVOLVE 50M is a powered column system made up of an eight-driver column array, an aluminium pole and a 12″ subwoofer, driven by a 1000W Class D amplifier. Its onboard eight-channel digital mixer, effects and QuickSmart DSP let a band or solo performer run mics, instruments and Bluetooth playback without a separate desk. Coverage is 120° horizontal by 40° asymmetrical vertical, with a maximum SPL of 127 dB.

1000W

Class D amplifier

127 dB

Maximum SPL

8-channel

Onboard digital mixer

120° x 40°

Coverage

Features

Onboard eight-channel digital mixer with two FX channels

QuickSmart Link joins two EVOLVE 50Ms over a network cable to double the inputs

Mix and control from the QuickSmart Mobile app on iOS or Android

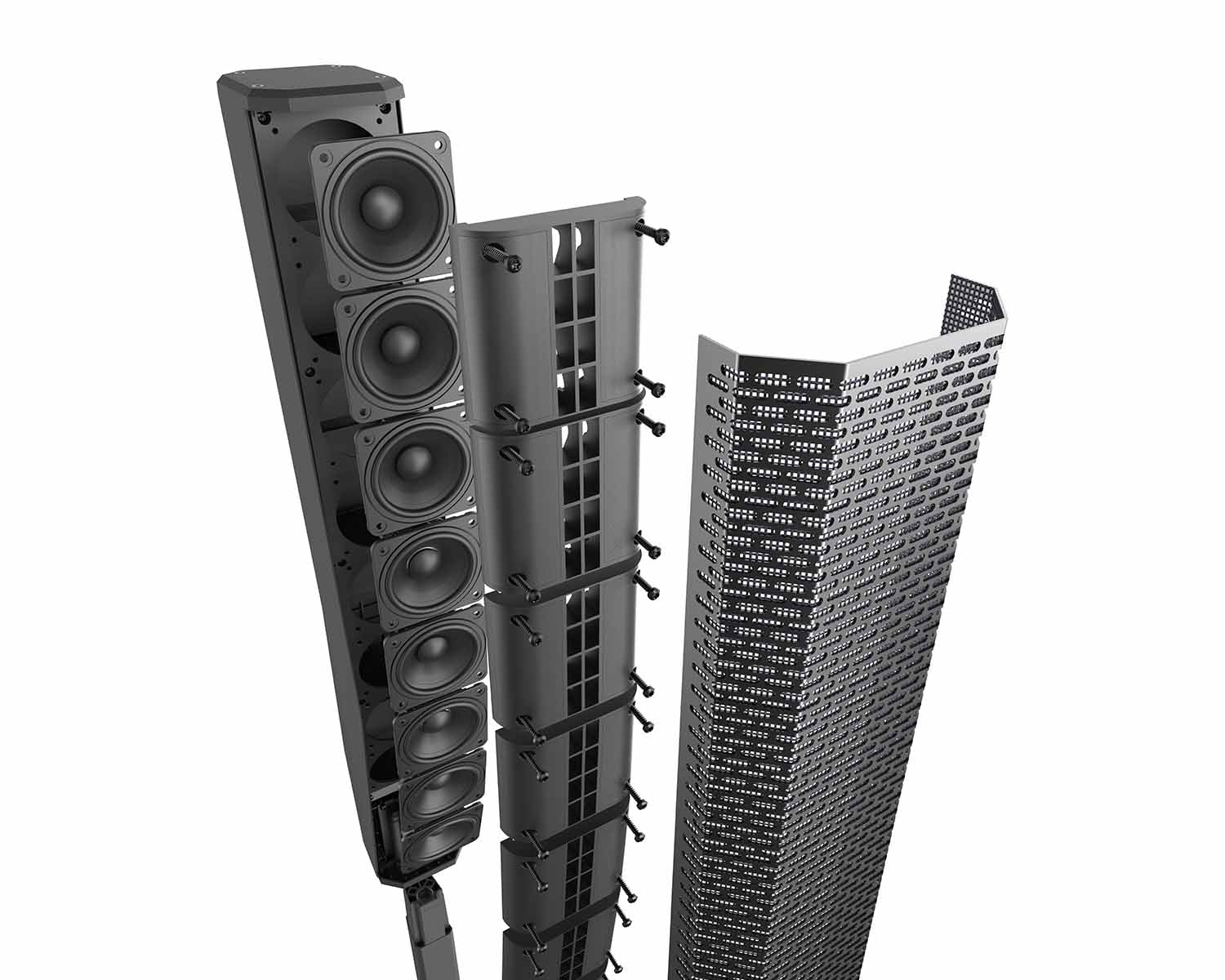

Eight 3.5″ neodymium drivers with 120° x 40° asymmetrical coverage

12″ subwoofer in a 15 mm plywood enclosure with laminar-flow vent

Stereo Bluetooth audio input plus RCA and 3.5 mm line inputs

Pole with internal wiring and magnetically assisted latching

Carry case for the array and pole included

Specifications

Electro-Voice EVOLVE 50M Column PA System, 8-Channel Mixer, Black specifications
Brand	Electro-Voice
Model	EVOLVE 50M
Manufacturer part number	F.01U.394.249
Configuration	Column: 8x 3.5″ neodymium drivers; subwoofer: 1x 12″
Frequency response (-3 dB)	43 Hz-20 kHz
Frequency range (-10 dB)	37 Hz-20 kHz
Maximum SPL	127 dB
Coverage (H x V)	120° x 40°
Amplifier	1000W Class D (500W LF, 500W HF)
Crossover frequency	200 Hz

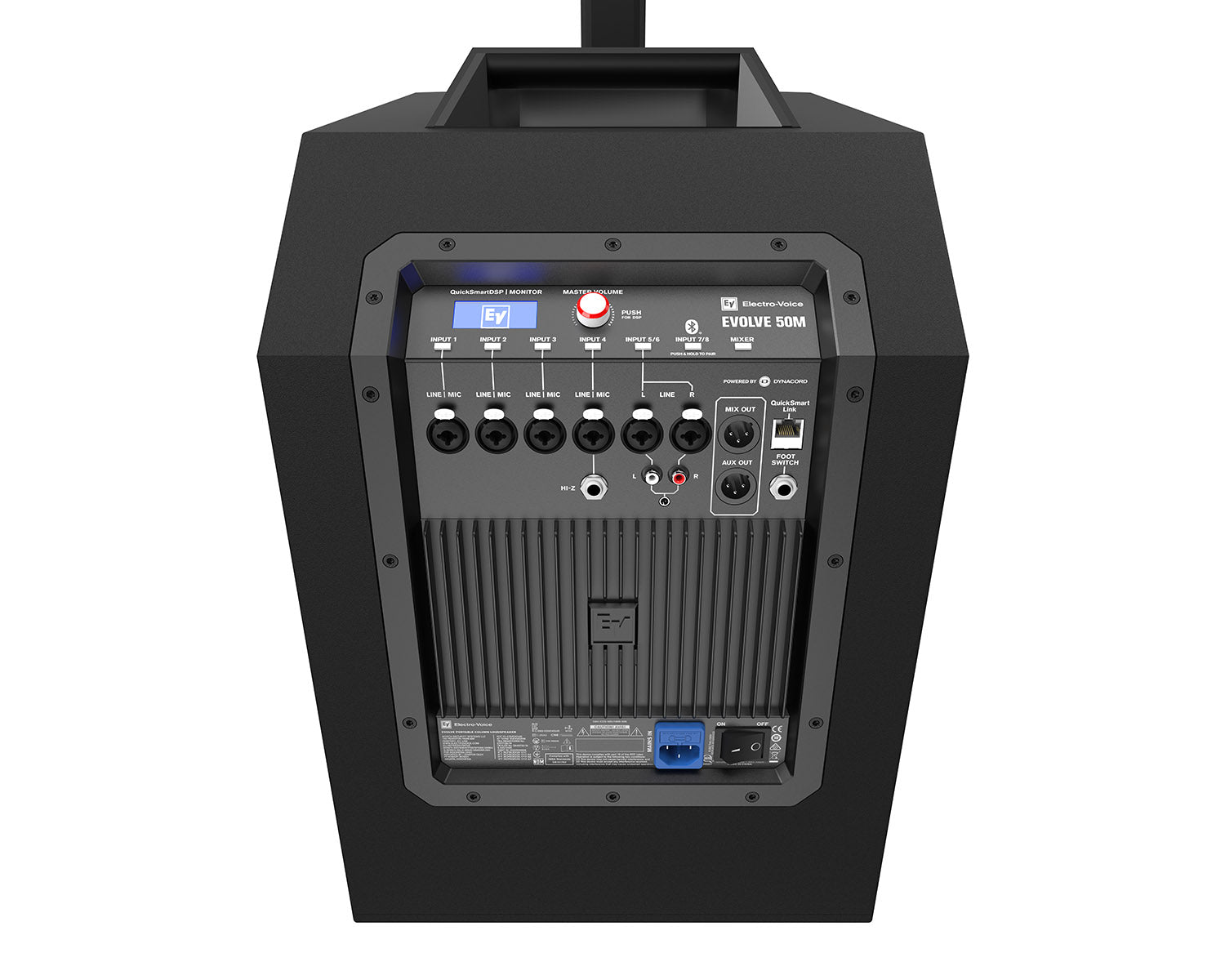

Inputs	4x XLR/TRS combo mic/line, 1x 1/4″ TRS Hi-Z, 2x XLR/TRS combo stereo line, 1x stereo RCA, 1x 3.5 mm stereo, Bluetooth stereo audio, 1x 1/4″ footswitch
Outputs and network	1x XLR mix out, 1x XLR aux out, 1x RJ45 QuickSmart Link
DSP	QuickSmart DSP: 4 presets (Music, Live, Speech, Club), 3-band system EQ, 7-band graphic EQ in Mixer mode, 5 user presets, phantom power
Construction	Sub: 15 mm plywood; column: composite; pole: aluminium; steel grille
Dimensions (H x W x D)	Assembled 2045 x 345 x 471 mm; sub 530 x 345 x 471 mm; column 825 x 102 x 172 mm
Net weight	26.25 kg total (sub 20.3 kg, column 4.7 kg, pole 1.25 kg)
Power	100-240 V AC, 50-60 Hz
Colour	Black

Full features

The EVOLVE 50M joins the EVOLVE 50 and EVOLVE 30M in the award-winning EVOLVE series - globally recognised as the benchmark for performance in column systems
Professional performance, column convenience - superior Electro-Voice-engineered components and premium materials deliver best-in-class sound quality, power and reliability
No need to bring additional gear to the gig - onboard eight-channel digital mixer with prograde preamps and studio-quality effects
Easily expand your PA - use QuickSmart Link to connect two EVOLVE 50Ms via a network cable - double your mic/line inputs and mix the whole band via the QuickSmart Mobile app
The EVOLVE 50M features ElectroVoice’s new QuickSmart Link digital audio and control technology, an onboard mixer, DSP and effects - all combined within the sleek EVOLVE 50 format
Perfect choice for bands/musicians, AV rental companies, DJs and any application where true professional audio performance is required in a super-compact and portable package.

Full specifications

General

Frequency response (-3 dB)1: 43 Hz to 20 KHz
Frequency range (-10 dB)1: 37 Hz to 20 KHz
Maximum SPL2: 127 dB
Coverage (H x V): 120° x 40°
Amplifier rating: 1000 W
LF channel rating: 500 W
HF channel rating: 500 W
Crossover frequency: 200 Hz
Connectors:
- 4x XLR/TRS Combo Jack Line / Mic Input
- 1x 1/4" TRS HI-Z input
- 2x XLR/TRS Combo Jack for Stereo Line Input
- 1x Stereo RCA Input
- 1x 3.5 mm Stereo Input
- 1x Wireless Stereo Bluetooth® Audio Input
- 1x 1/4" Foot Switch Input
- 1x XLR MIX OUT Output
- 1x XLR AUX OUT Output
- 1x RJ45 QuickSmart-Link connector
Frequency Band: 2402 MHz to 2480 MHz
Transmitter Power: EIRP:4.8 dBm
Power consumption3: 100-240 V AC, 50-60 Hz, 1.5-0.6 A

Physical

Materials
- Enclosure: Sub: 15 mm plywood
- Column: Composite
- Pole: Aluminium
- Grille: Steel with black or white powder coat
Colour: Black or white
Dimensions
- Dimensions (HxWxD) - mm (in)
  - Subwoofer: 530 x 345 x 471 (20.9 x 13.6 x 18.5)
  - Column: 825 x 102 x 172 (32.5 x 4.0 x 6.9)
  - Sub pole: 929 x 48.5 x 55 (36.6 x 1.9 x 2.2)
- Assembled dimensions (HxWxD) - mm (in): 2045 x 345 x 471 (80.5 x 13.6 x 18.5)
Weight
- Net weight: Subwoofer: 20.3 kg (44.66 lb)
- Column: 4.7 kg (10.34 lb)
- Pole: 1.25 kg (2.75 lb)
- Subwoofer cover: 0.4 kg (0.9 lb)
- Bag for column and pole: 0.85 kg (1.87 lb)
Shipping Weight
- Shipping weight (sub box): 23 kg (50.71 lb)
- Shipping weight (column box): 8.3 kg (18.30 lb)

1 - Half-space measurement using live DSP preset.

2 - Maximum SPL is measured at 1 m using broadband pink noise at maximum output.

3 - Current rating is 1/8 power.
