The NEXO ID84 is a passive column loudspeaker that packs eight 4″ LF drivers and eight 1″ HF drivers into a slim 990mm enclosure, sharing the aesthetic design and sonic signature of the wider ID Series. It delivers the well-known NEXO size-to-power ratio for venues, houses of worship, theatres and installations where a discreet footprint and even coverage are essential. This is the Touring version, using a front Magnelis® grille with two NL4 connectors at the rear plus a hidden connector in the bottom cover for cableless coupling to the dedicated IDS312 sub.
LF Section
8 x 4″
Neodymium drivers
HF Section
8 x 1″
Patent-pending waveguide
Dimensions
990 x 150 x 215mm
H x W x D
Weight
15 kg
Per module
Selectable Vertical Directivity
A rear switch selects between +0/-10° “Narrow” and +0/-25° “Wide” vertical dispersion, with 100° horizontal coverage in both cases. Dedicated presets accompany each directivity choice, keeping the sound consistent across the audience area.
Features
✓
Eight 4″ LF and eight 1″ HF latest-generation Neodymium drivers
Eight 4″ LF and eight 1″ HF latest-generation Neodymium drivers
✓
Switchable Narrow / Wide vertical directivity with dedicated presets
Switchable Narrow / Wide vertical directivity with dedicated presets
✓
Aluminium enclosure with Magnelis® side covers and grille
Aluminium enclosure with Magnelis® side covers and grille
✓
Two modules can be coupled upside-down for increased throw
Two modules can be coupled upside-down for increased throw
✓
Optional ID84L low-frequency extension for greater directivity up to cardioid
Optional ID84L low-frequency extension for greater directivity up to cardioid
✓
Shares NEXO phase response for seamless mixing with other NEXO systems
Shares NEXO phase response for seamless mixing with other NEXO systems
✓
Ideal for side-fill and front-fill alongside larger NEXO rigs
Ideal for side-fill and front-fill alongside larger NEXO rigs
✓
Available in black, white or custom RAL colour on request
Available in black, white or custom RAL colour on request
Note

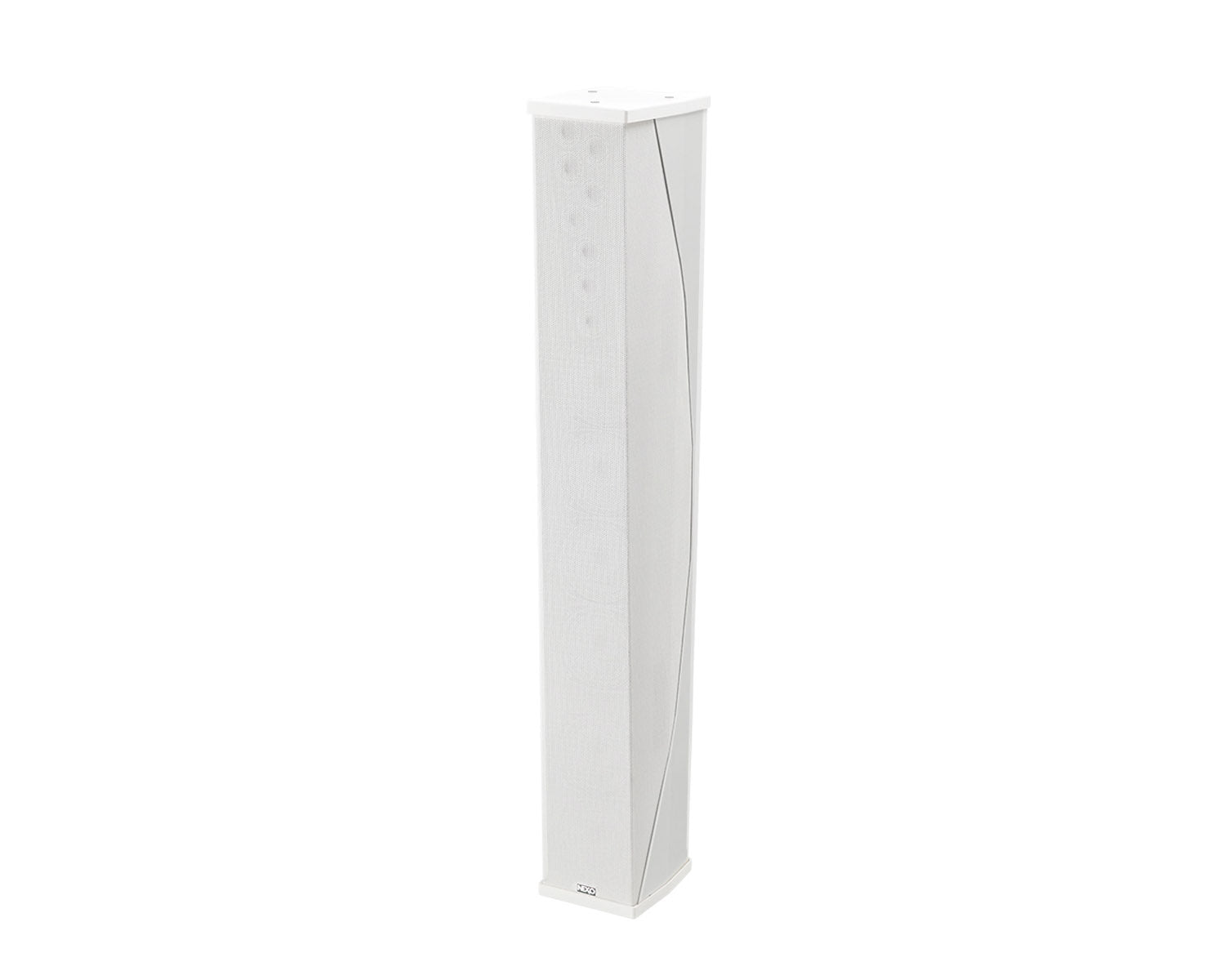

This is the Touring (-T) version in white: front Magnelis® grille, twin NL4 connectors and a concealed bottom-cover connector for cableless coupling to the IDS312 sub.
Specifications
| Type | Passive column loudspeaker |
| LF section | 8 x 4″ Neodymium |
| HF section | 8 x 1″ Neodymium |
| Coverage | 100° horizontal; +0/-10° or +0/-25° vertical (switchable) |
| Dimensions (H x W x D) | 990 x 150 x 215 mm |
| Weight | 15 kg |
| Enclosure | Aluminium with Magnelis® grille and side covers |
| Version | Touring (-T) |
| Finish | White |
