Rated 4.9 (112 reviews)
The LRC-2100 is the two-way model in Electro-Voice’s Line Radiator Column range, with twelve 2.5″ mid-high drivers above two 6.5″ woofers loaded in a band-pass section, all in a 950 mm column. It covers 45 Hz to 16 kHz (-10 dB) with a 180° horizontal pattern and a switchable 25° or 45° vertical pattern, so it can work as a main or support speaker for music and speech. It is an 8 ohm low-impedance design with no line transformer, and ships with EV’s SwifTilt pan and tilt bracket.
45 Hz-16 kHz
Frequency range (-10 dB)
180°
Horizontal coverage
600W
Program power handling
IP55
Weather rating
Low impedance only; IP55 when uprightThe LRC-2100 has no 70V/100V transformer (EV lists transformer taps as not applicable), so it needs a low-impedance amplifier channel with a 50 Hz high-pass filter. EV’s IP55 rating only applies when the column is mounted upright, not inverted.
Features

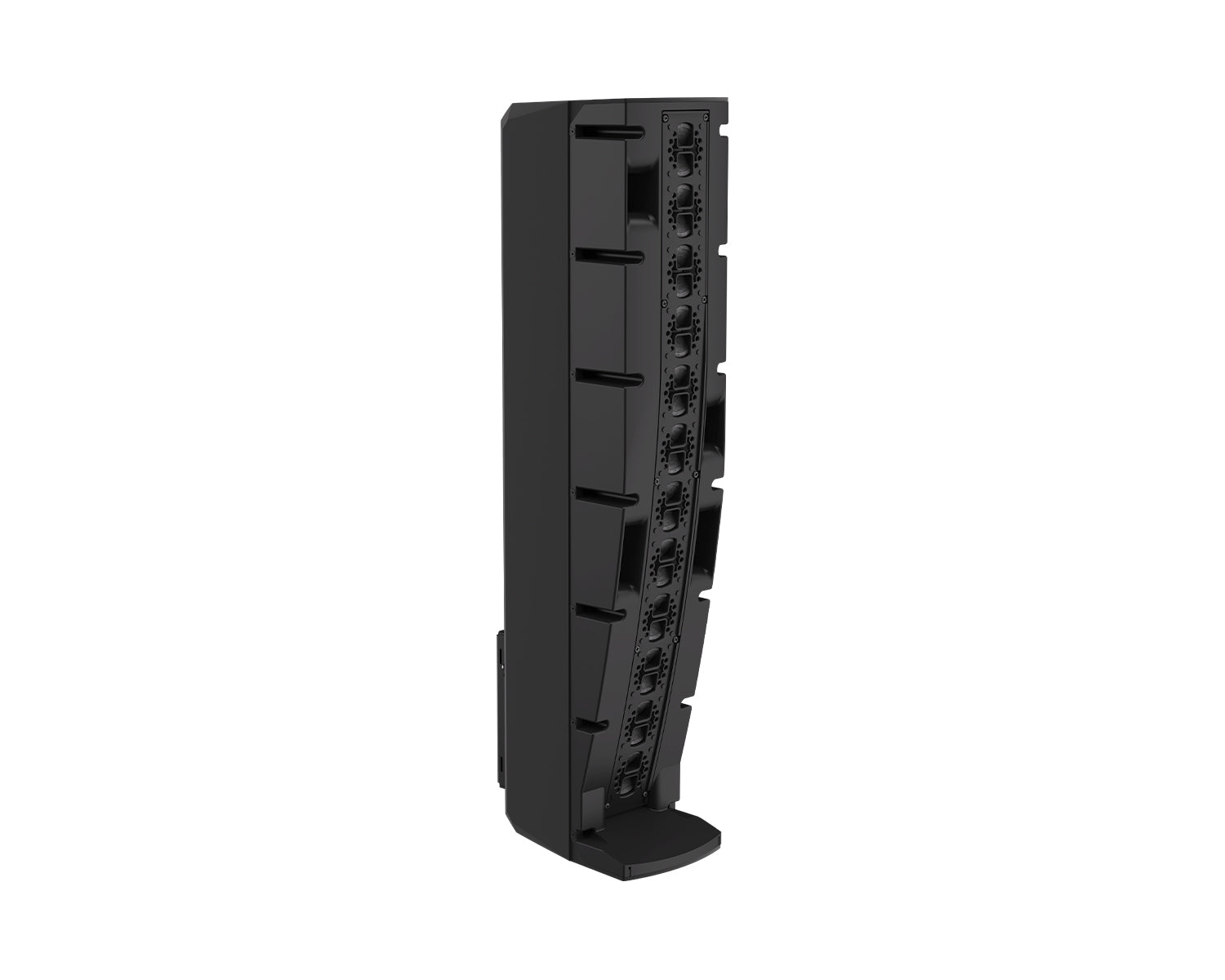

Twelve 2.5″ mid-high drivers with PaSS phase plugs plus two 6.5″ band-pass woofers
Switchable 25°/45° vertical pattern with 7.5° downward acoustic tilt
180° horizontal coverage

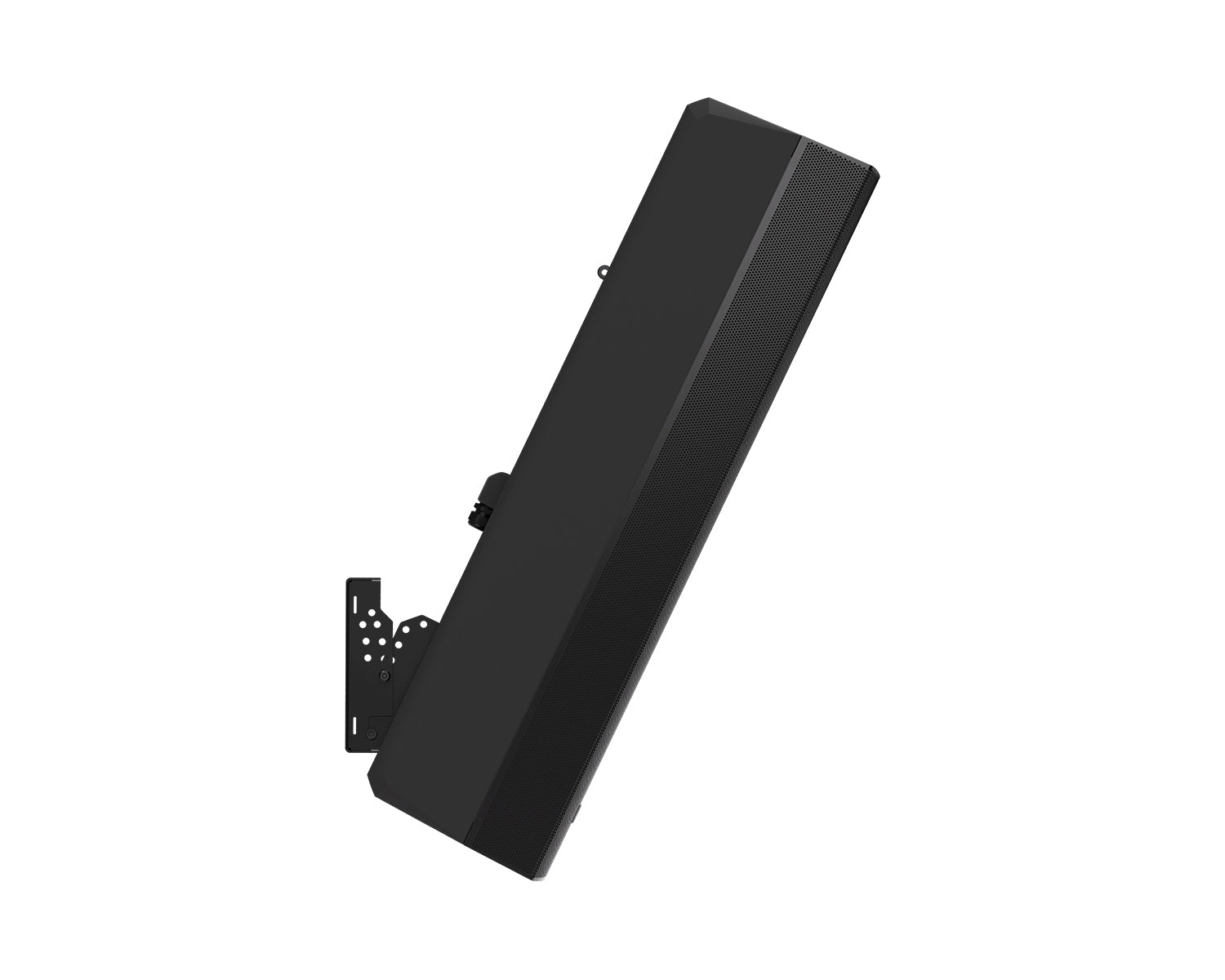

SwifTilt pan and tilt bracket included: 0° to 25° tilt, up to 80° pan each way
IP55 rated for indoor or outdoor installation when mounted upright
Six M8 suspension points, with M8 eyebolt pre-installed
Supported by Dynacord DSP presets, EASE Focus 3, PREVIEW and SONICUE
Specifications
| Brand | Electro-Voice |
| Model | LRC-2100 |
| Manufacturer part number | F.01U.417.802 |
| Drivers | (12) 2.5″ mid-high; (2) 6.5″ bass in band-pass |
| Frequency range (-10 dB) | 45 Hz-16 kHz |
| Coverage (H x V) | 180° x 25° (narrow) / 180° x 45° (wide) |
| Maximum SPL | 128 dB narrow / 126 dB wide |
| Axial sensitivity (1W/1m) | 91.5 dB narrow / 90 dB wide |
| Power handling | 300W continuous / 600W program |
| Impedance | 8 Ω nominal (6.4 Ω minimum at 280 Hz) |
| Recommended high-pass | 50 Hz Butterworth, 24 dB/oct |

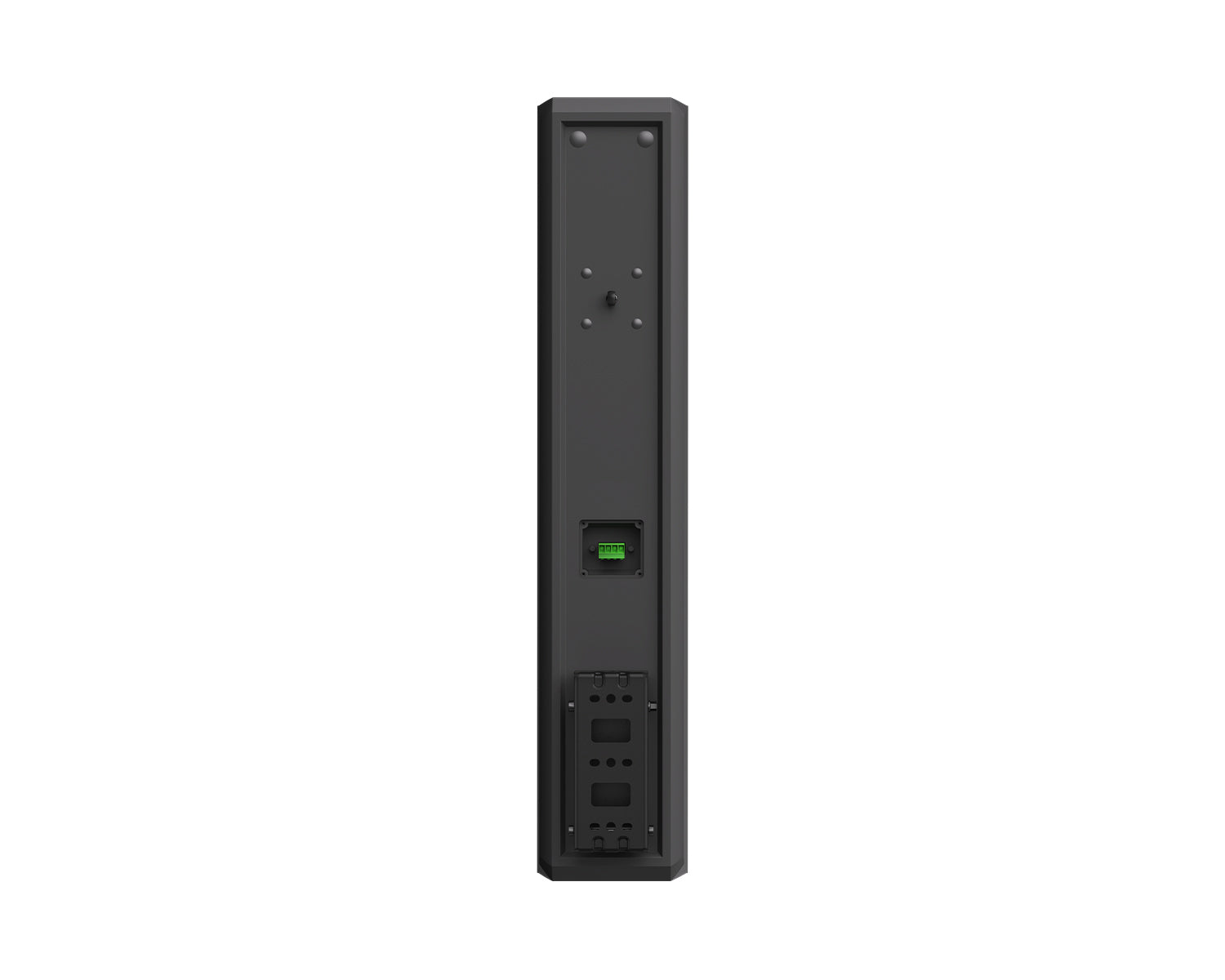

| Connector | 4-pin Euroblock input and pass-through (max 10 AWG) |
| Mounting | SwifTilt tilt and pan bracket (included); (6) M8x20 suspension points |
| IP rating | IP55 (upright mounting only) |
| Dimensions (H x W x D) | 950 x 185 x 250 mm |
| Weight | 15.7 kg (EV datasheet) |
| Colour | Black (RAL 9004) |
