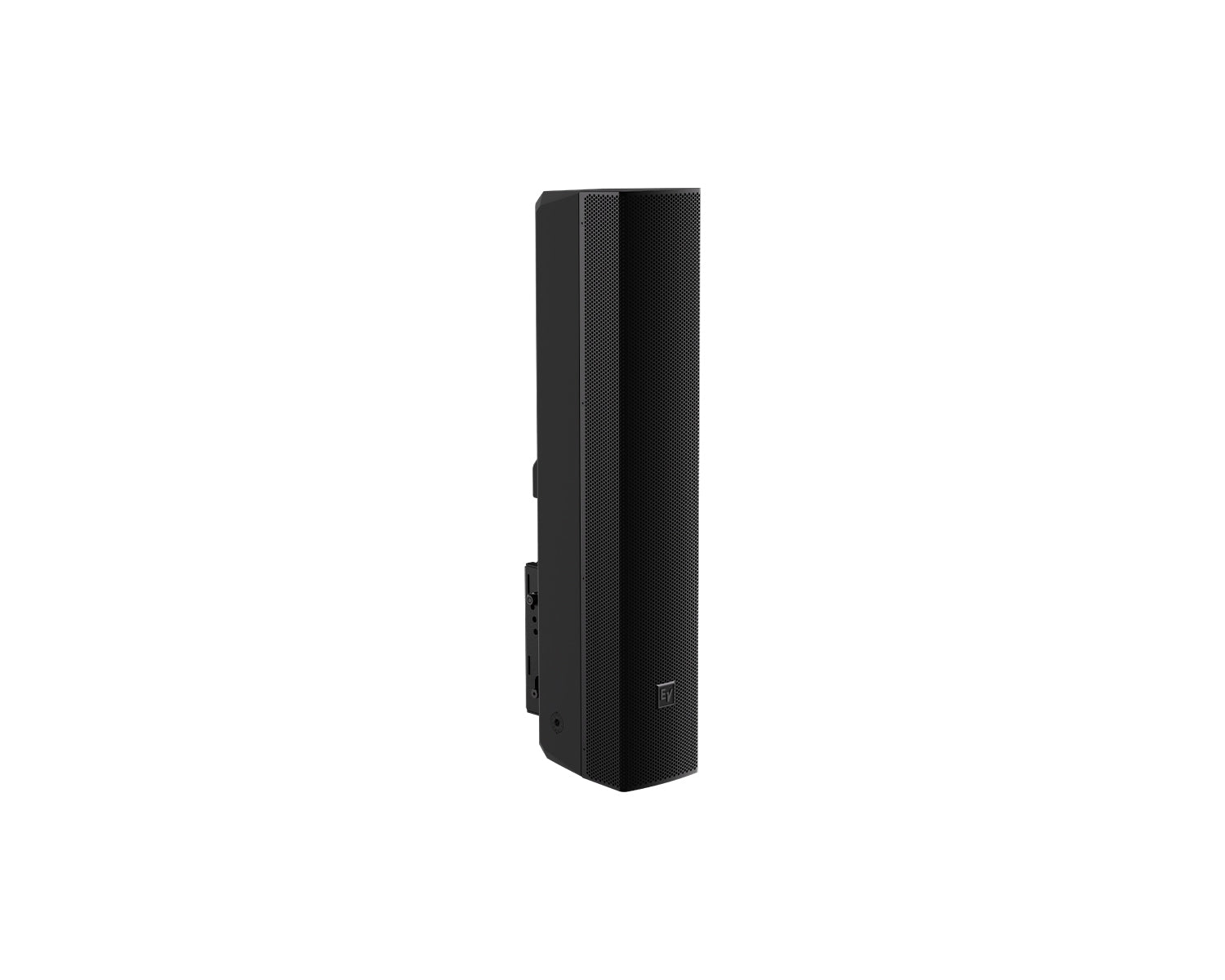

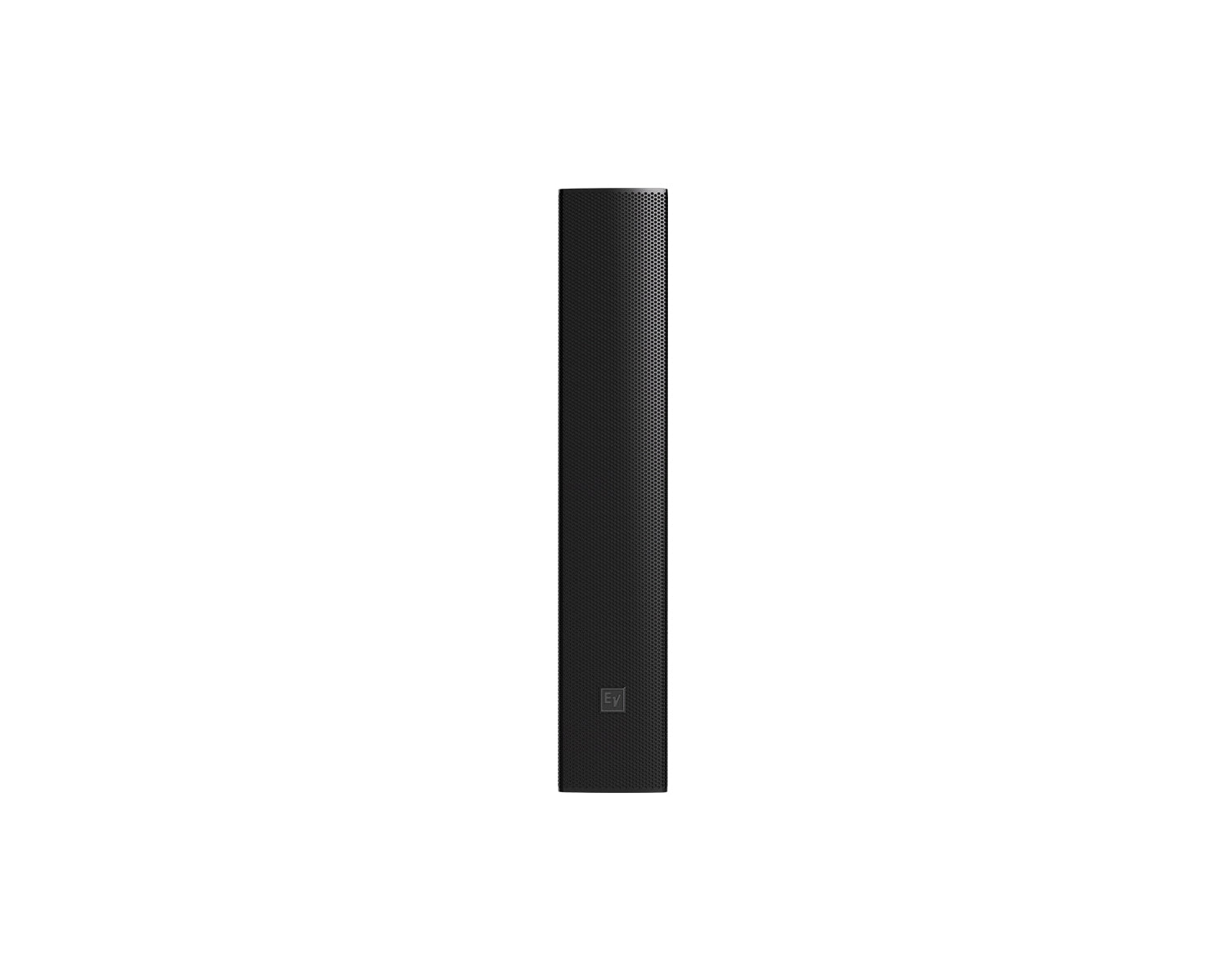

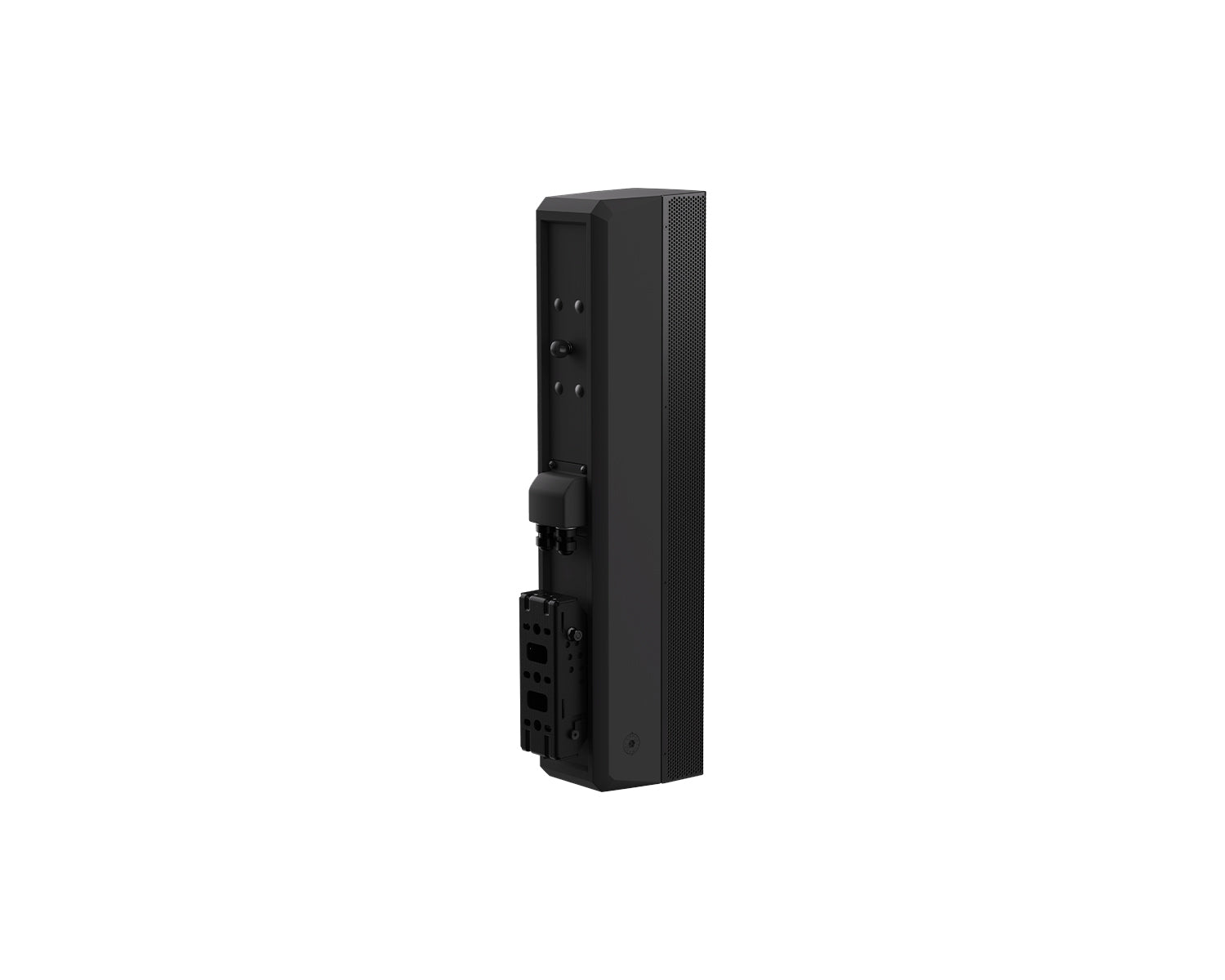

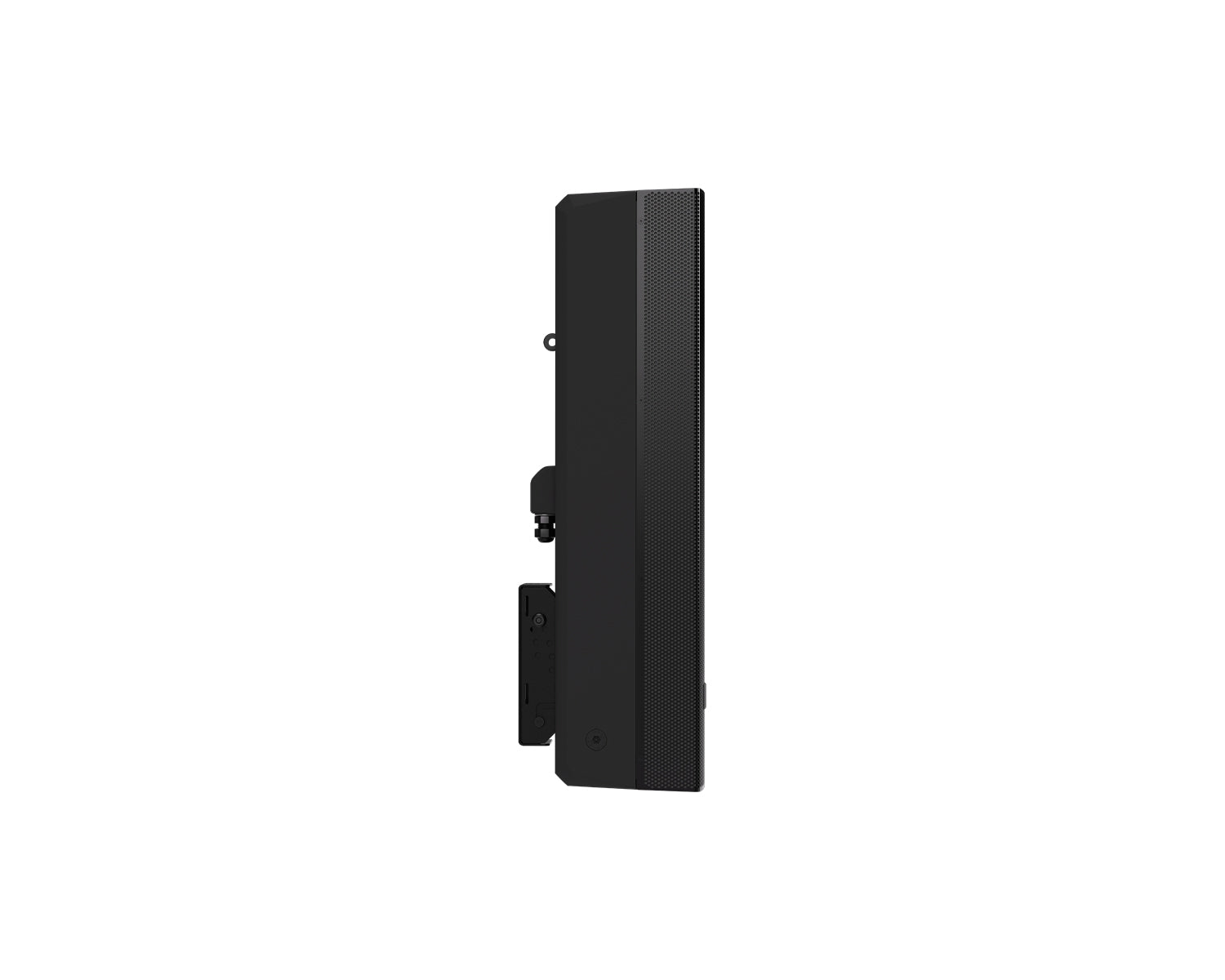

At 580 mm tall, the LRC-1060 is the compact EN54-24 column in the LRC range, with six 2.5″ full-range drivers and two passive radiators giving a fixed 130° x 20° pattern. It runs on 70V or 100V lines through a built-in transformer with Automatic Saturation Compensation, or at 8 ohms, and handles 100W continuous. Typical duty is life-safety voice evacuation alongside background and foreground music, indoors or outside.
EN54-24
Type B certified
60W
Maximum 100V tap
130° x 20°
Coverage
580 mm
Column height
Features
EN54-24 Type B certified column, 580 mm high

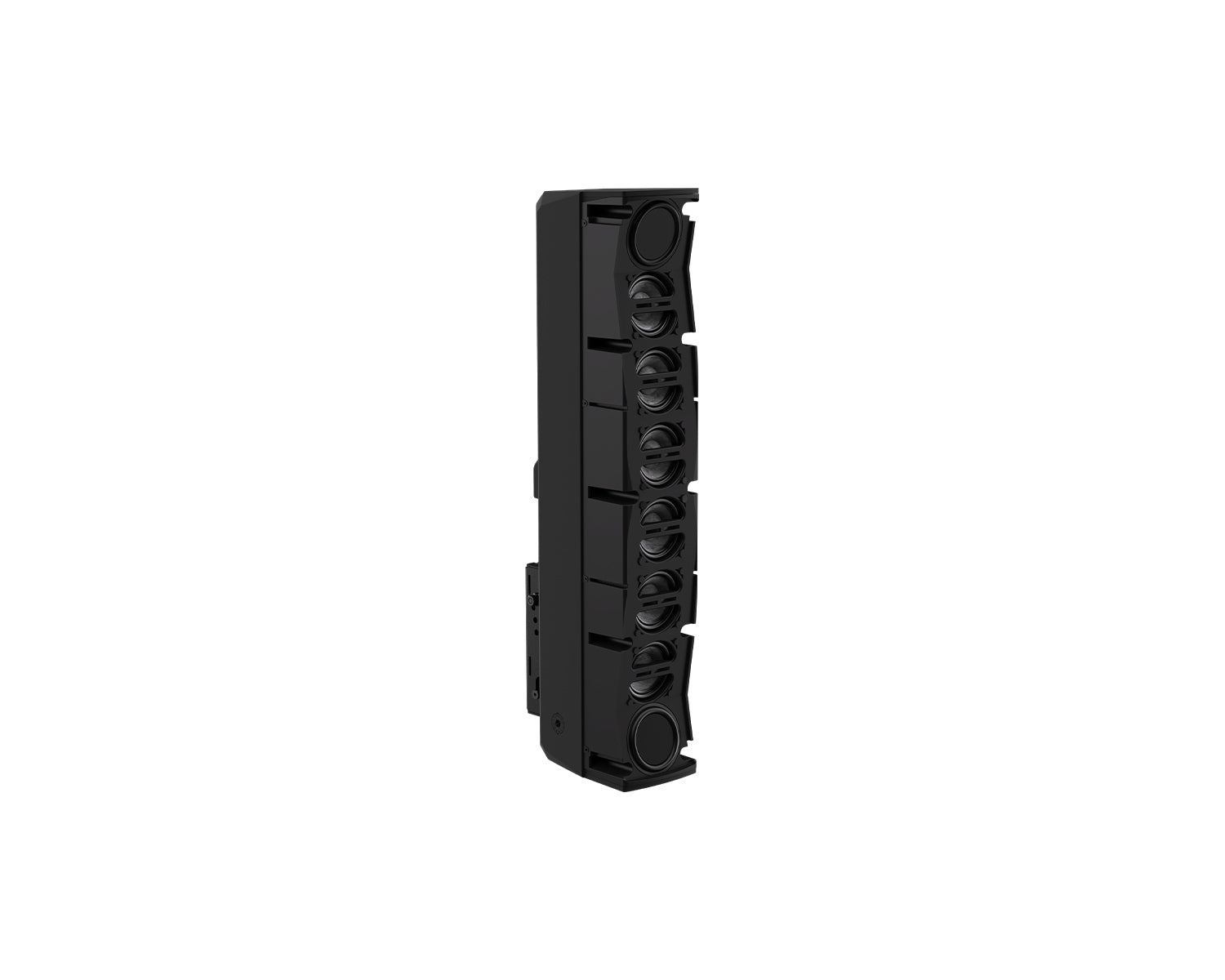

Six 2.5″ drivers with PaSS phase plugs plus two 2.5″ passive radiators
Fixed 20° symmetrical vertical pattern, 130° horizontal
Built-in 70V/100V transformer with ASC; 8 ohm low-impedance mode
100V taps 60, 30, 15 and 8W; 70V adds a 4W tap
Rated for full outdoor exposure (FW), IP56c per EV datasheet

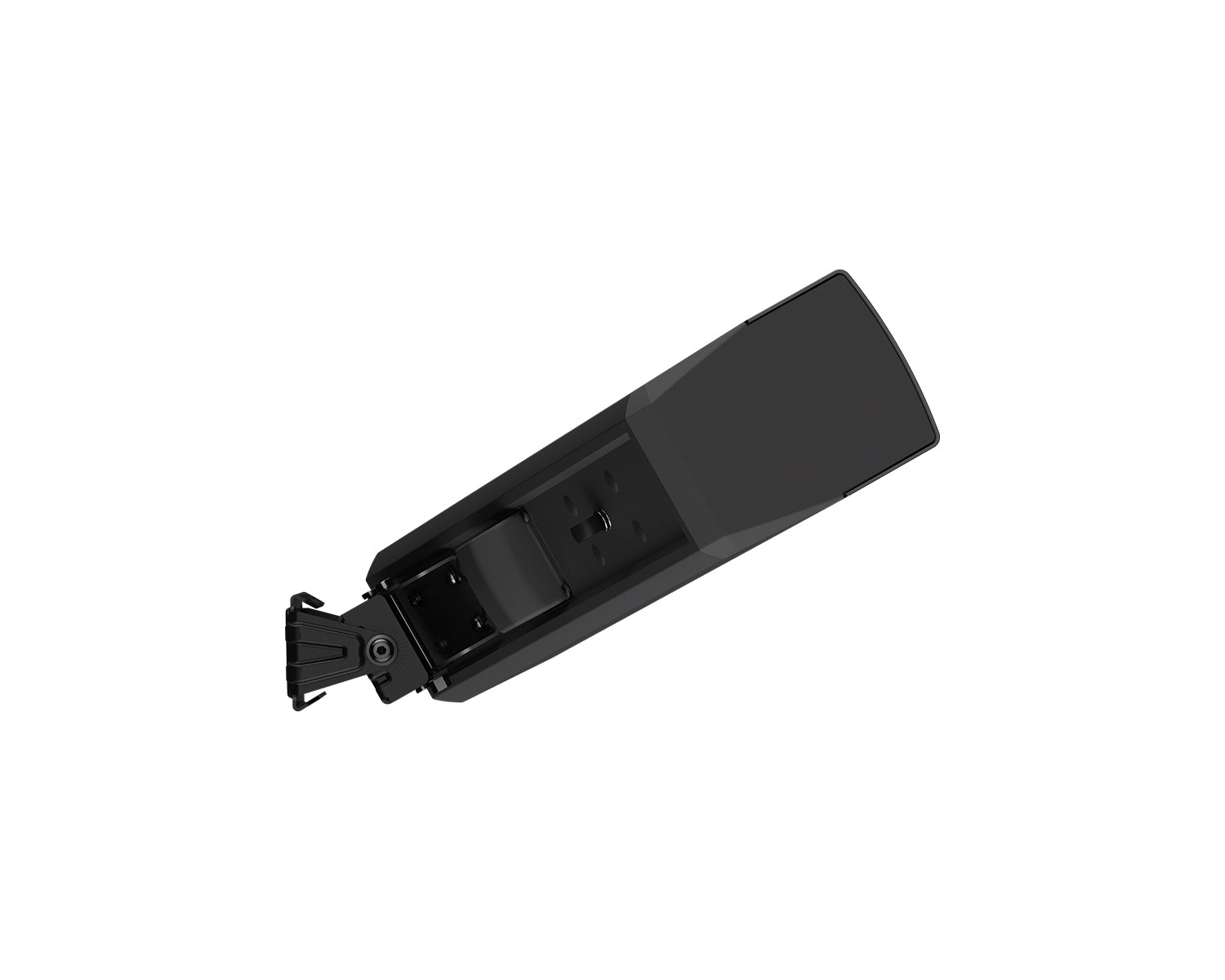

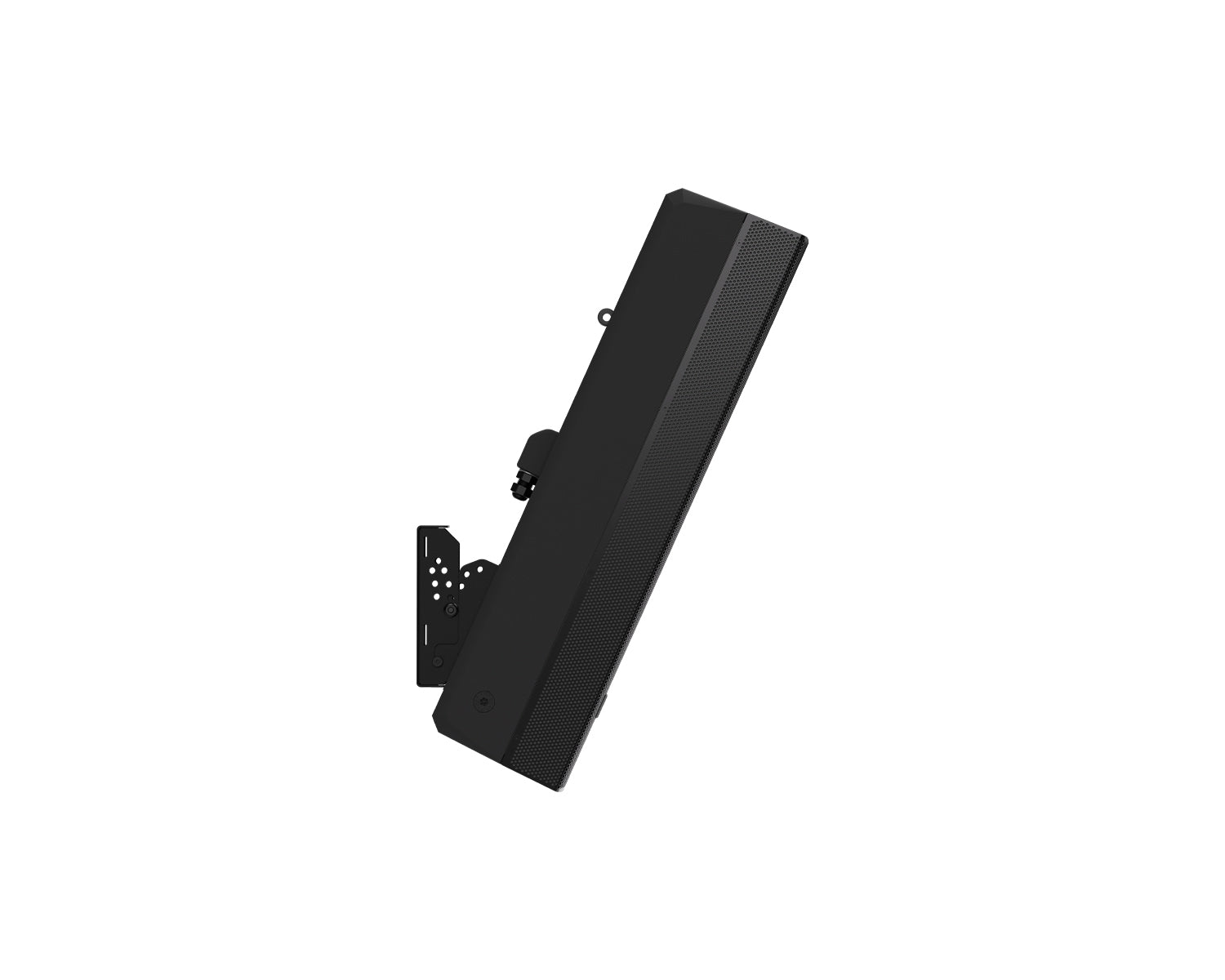

SwifTilt pan and tilt bracket and gland nut weather cover included
Specifications
| Brand | Electro-Voice |
| Model | LRC-1060 |
| Manufacturer part number | F.01U.417.794 |
| EN54 certification | EN54-24 Type B |
| Drivers | (6) 2.5″ active drivers; (2) 2.5″ passive radiators |
| Frequency range (-10 dB) | 70 Hz-15 kHz |
| Coverage (H x V) | 130° x 20° |
| Maximum SPL | 122 dB |
| Axial sensitivity (1W/1m) | 90 dB |
| Power handling (Lo-Z) | 100W continuous / 200W program |
| Impedance (Lo-Z) | 8 Ω nominal |
| Transformer taps | 100V: 60W, 30W, 15W, 8W; 70V: 60W, 30W, 15W, 8W, 4W |
| Recommended high-pass | 70 Hz or higher, Butterworth 24 dB/oct |

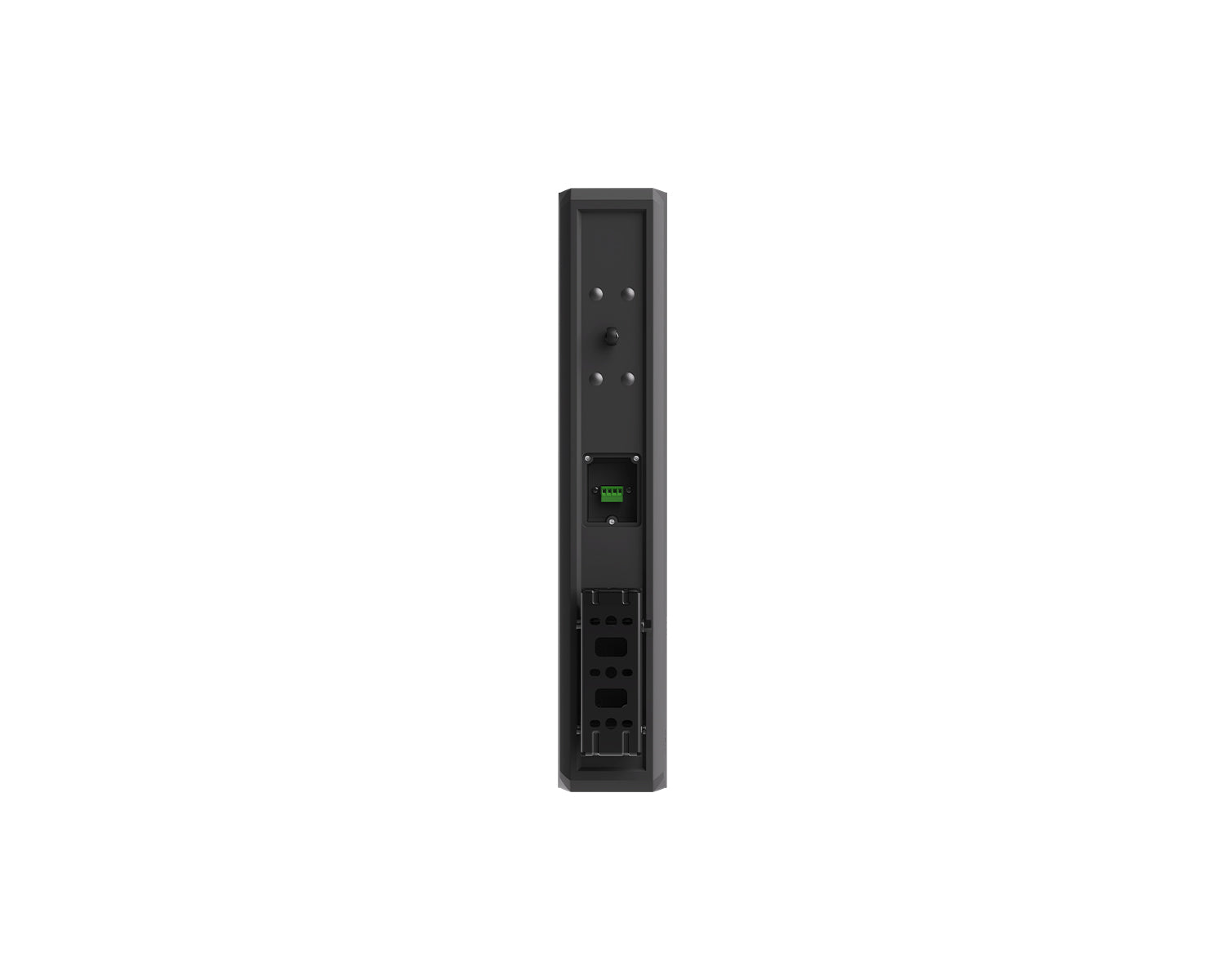

| Connector | 4-pin Euroblock input and pass-through (max 12 AWG) |
| IP rating | FW (outdoor full exposure), IP56c |
| Dimensions (H x W x D) | 580 x 105 x 144 mm |
| Weight | 4.4 kg |
| Colour | Black (RAL 9004) |
