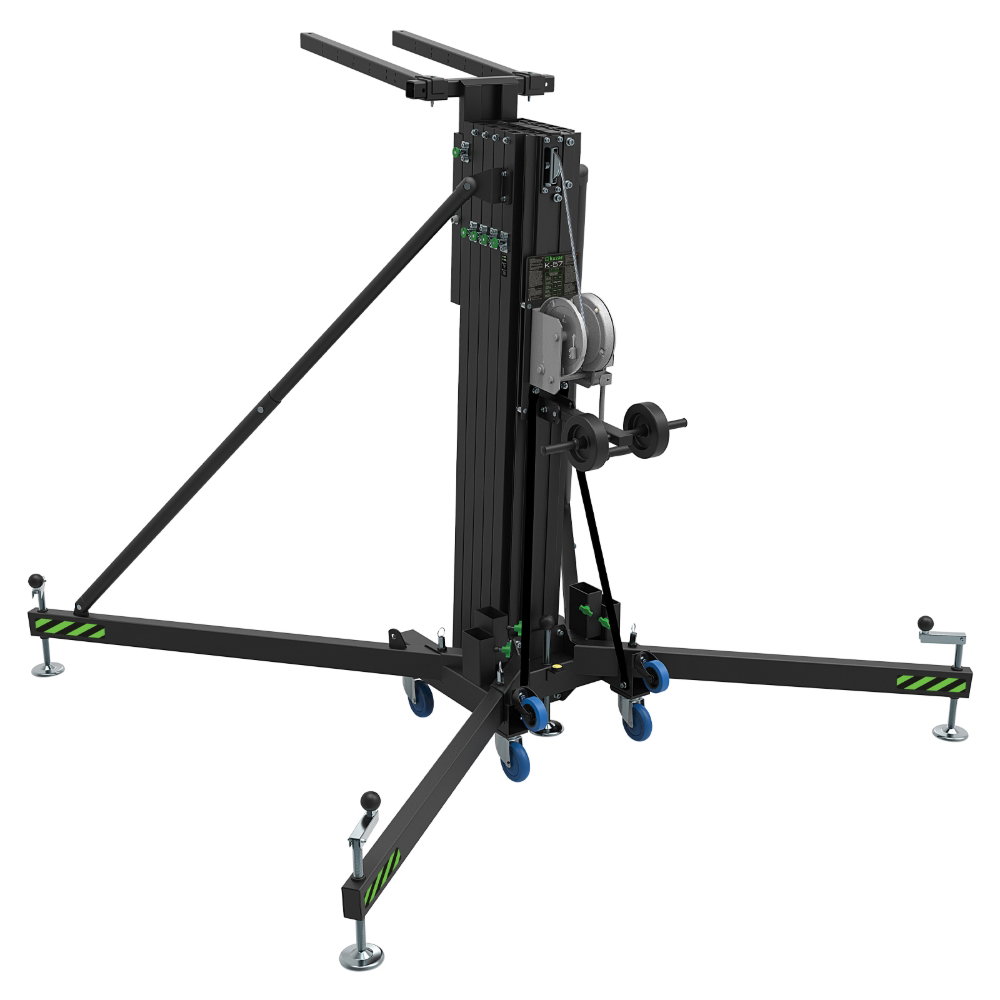

The Kuzar K-57 is a five-section front loading lifter that raises 500kg to 7m in dynamic mode, or handles up to 1200kg in structural mode where the lifter is cranked to height with a chain hoist on the forks and the load is then lifted by the hoist. At 223kg it is manageable for a two-person crew on a get-in, and the front loading geometry lets you build truss on the deck and lift it clear without walking the load over the base.
7m
Maximum height · 5 aluminium sections
500kg
Dynamic load · Lifted on the winch
1200kg
Static load · Structural mode
223kg
Weight · Transport height 1.9m
Dynamic vs structural mode500kg is the dynamic rating – the load the winch itself will raise. The 1200kg figure is structural only: the lifter is cranked to the working height carrying just a chain hoist on the forks, the section locks are engaged, and the load is then brought up by the hoist. Do not treat 1200kg as a winching capacity.
Features
Five aluminium sections with integrated Automatic Trigger Locks
KAT locks give two positions – one for raising, one for locking off
Eye bolts on each section so the lift can be secured at any height
High quality winch loaded with steel cable
Cable guide designed for smoother movement on the winch drum
Steel base on 4 swivel castors for positioning on deck
2 rear castors and a central wheel included for horizontal transport

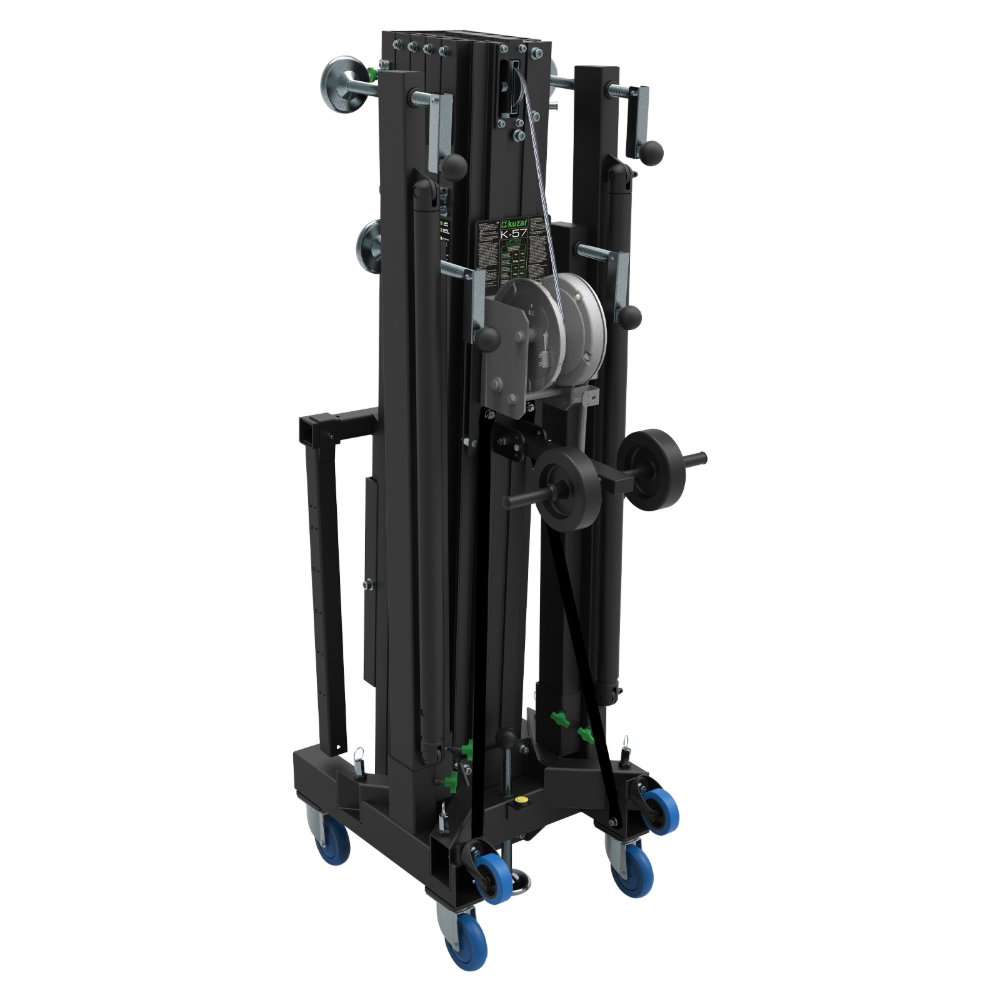

Transportable vertically or horizontally at 1.9m transport height
Manufactured in Europe to DGUV 17 and CE (2006/42/CE) standards
2 year warranty
NoteShipping charges may apply on this item due to its weight and dimensions. The maximum outrigger footprint is 2.34 x 2.25m – check you have that clear floor area at each lifter position before specifying it for a venue.
Specifications
| Stock code | STAN175 |
| Model | Kuzar K-57 |
| Maximum height | 7m |
| Maximum load | 500kg dynamic / 1200kg static |
| Sections | 5 aluminium, Automatic Trigger Locks |
| Maximum footprint (W x D) | 2.34 x 2.25m |
| Transport height | 1.9m |
| Weight | 223kg |
| Standards | DGUV 17 Directive, CE 2006/42/CE |
| Warranty | 2 years |
