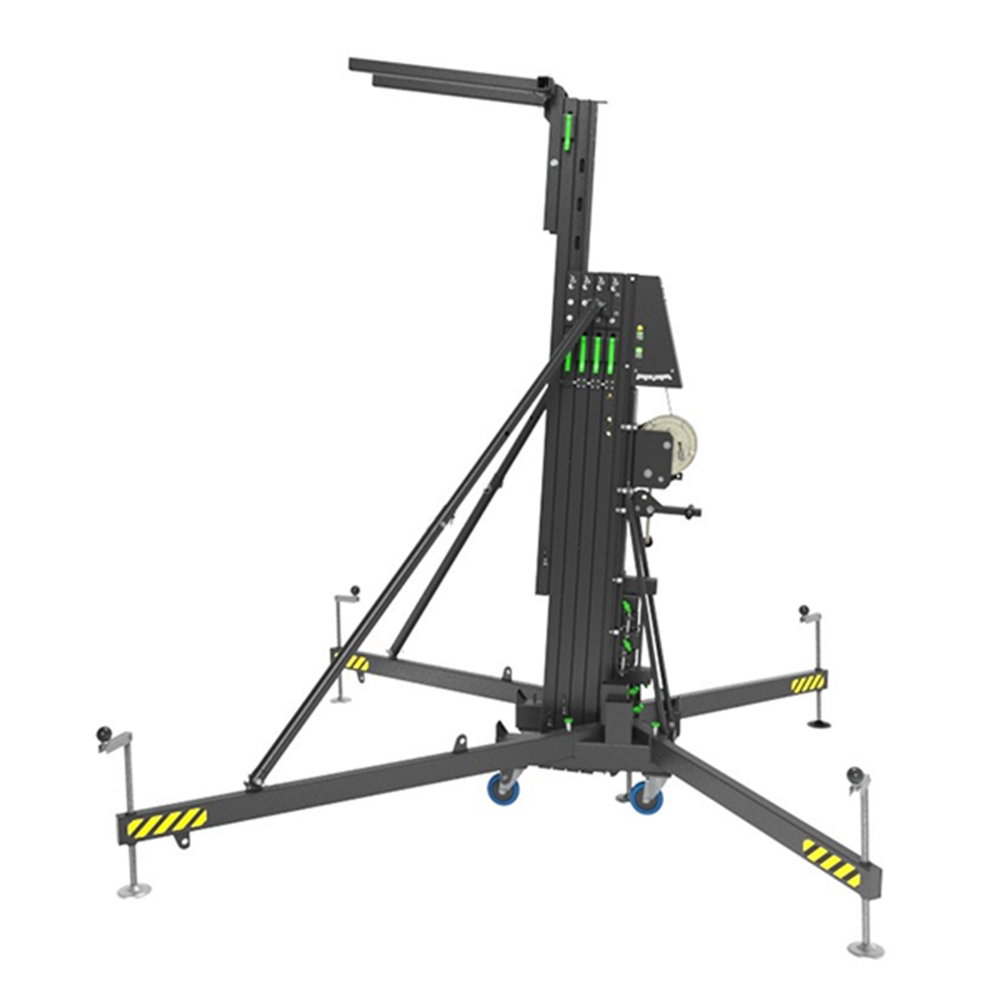

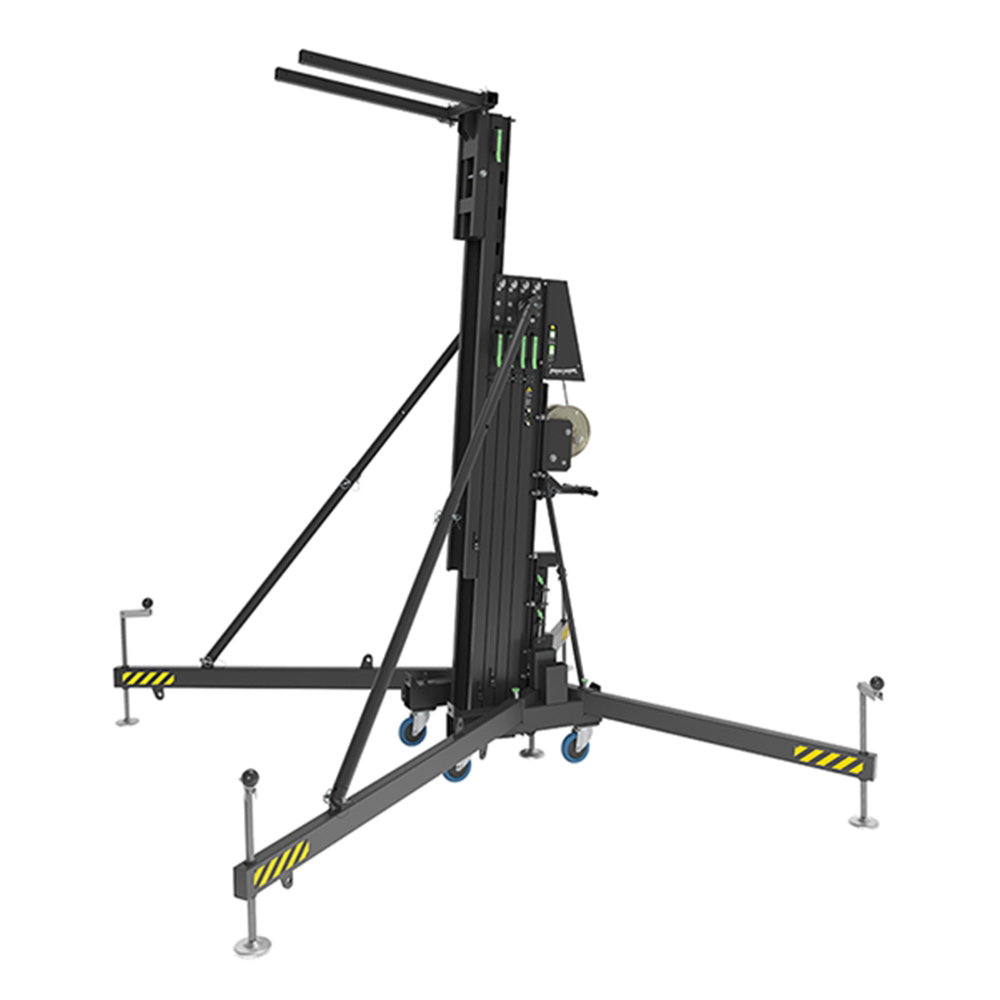

The Kuzar K-60 is a front loading tower lift for flying line arrays and other front loads to a maximum height of 7.2m. In dynamic mode the winch lifts up to 500kg on the forks. In structural mode the tower is raised to height first, then a manual or electric hoist hung from the forks lifts loads up to 1000kg. It is built from 6082-T6 aluminium profiles with a 1200kg AL-KO winch and 6mm galvanised steel cable. The SLS Safe Lock System locks each section automatically as it rises, and an integrated inclinometer and spirit level help keep it plumb under heavy loads. One AGR-2 support bar and four TA-360 U pieces come as standard.
DeliveryAt 259kg this ships on a pallet. The pallet delivery charge is added automatically at checkout.
Features
Maximum height 7.2m, folded height 2m
500kg in dynamic mode, 1000kg in structural mode

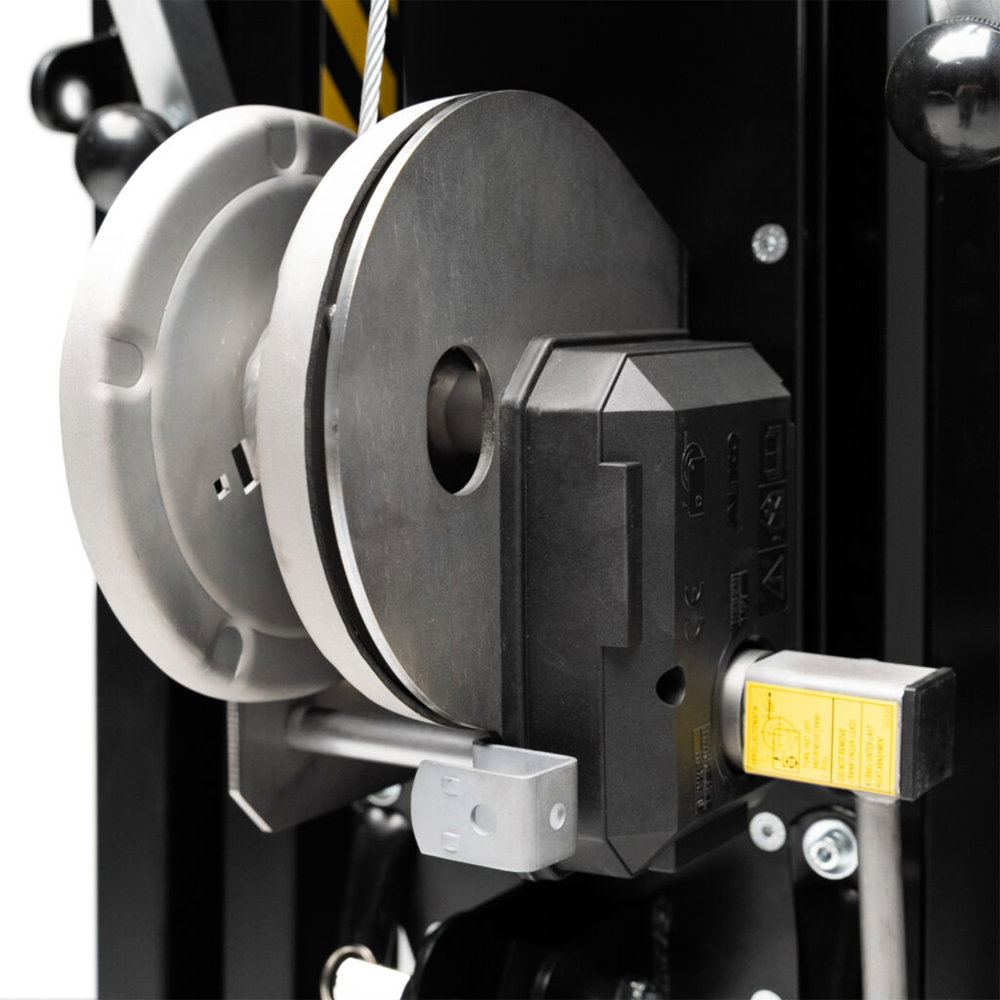

Heavy-duty 1200kg certified AL-KO winch

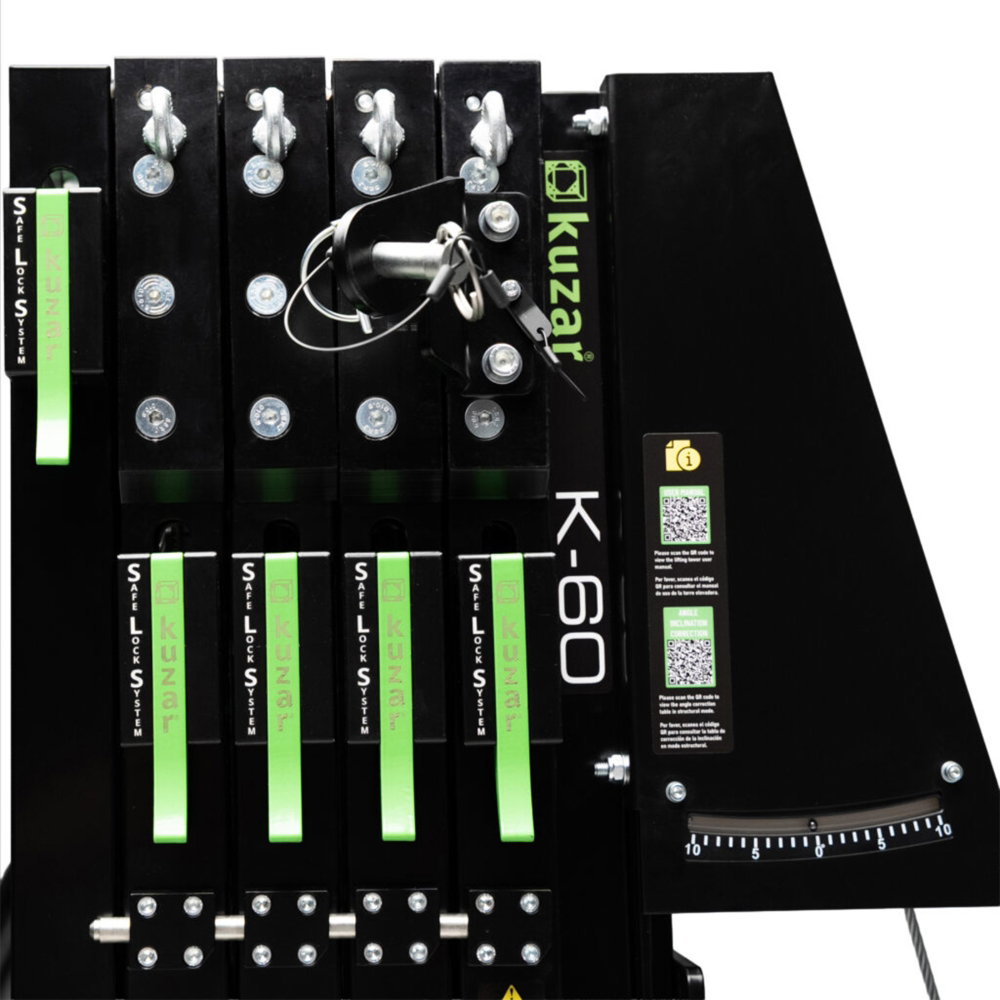

SLS Safe Lock System locks each section during elevation

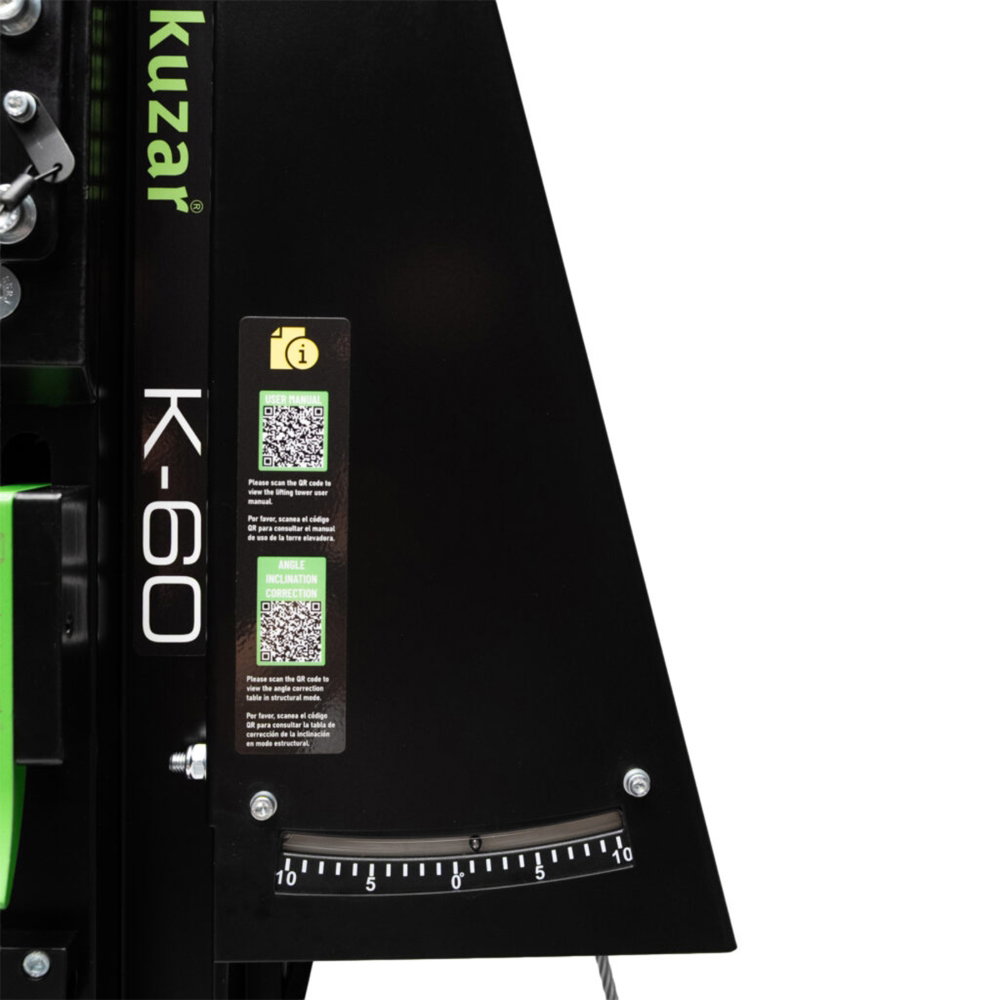

Integrated inclinometer and spirit level

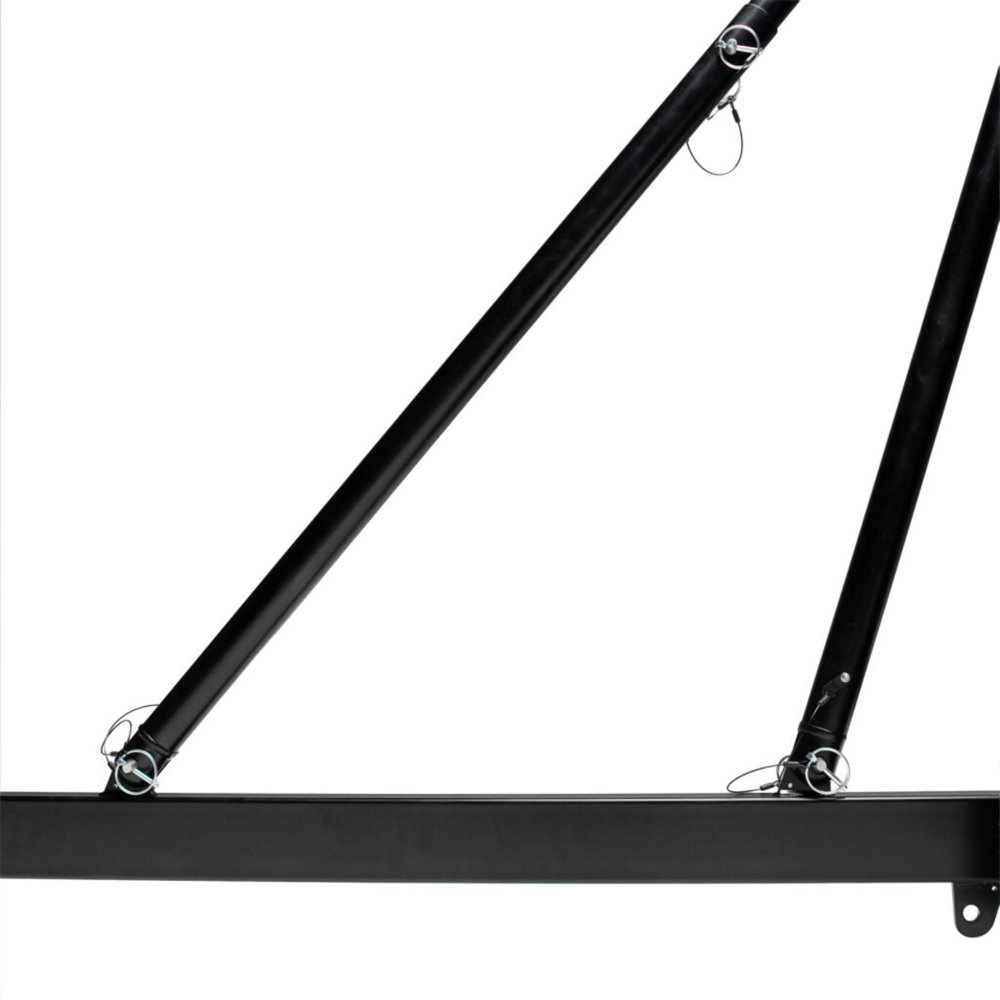

Two positions for reinforcement bars

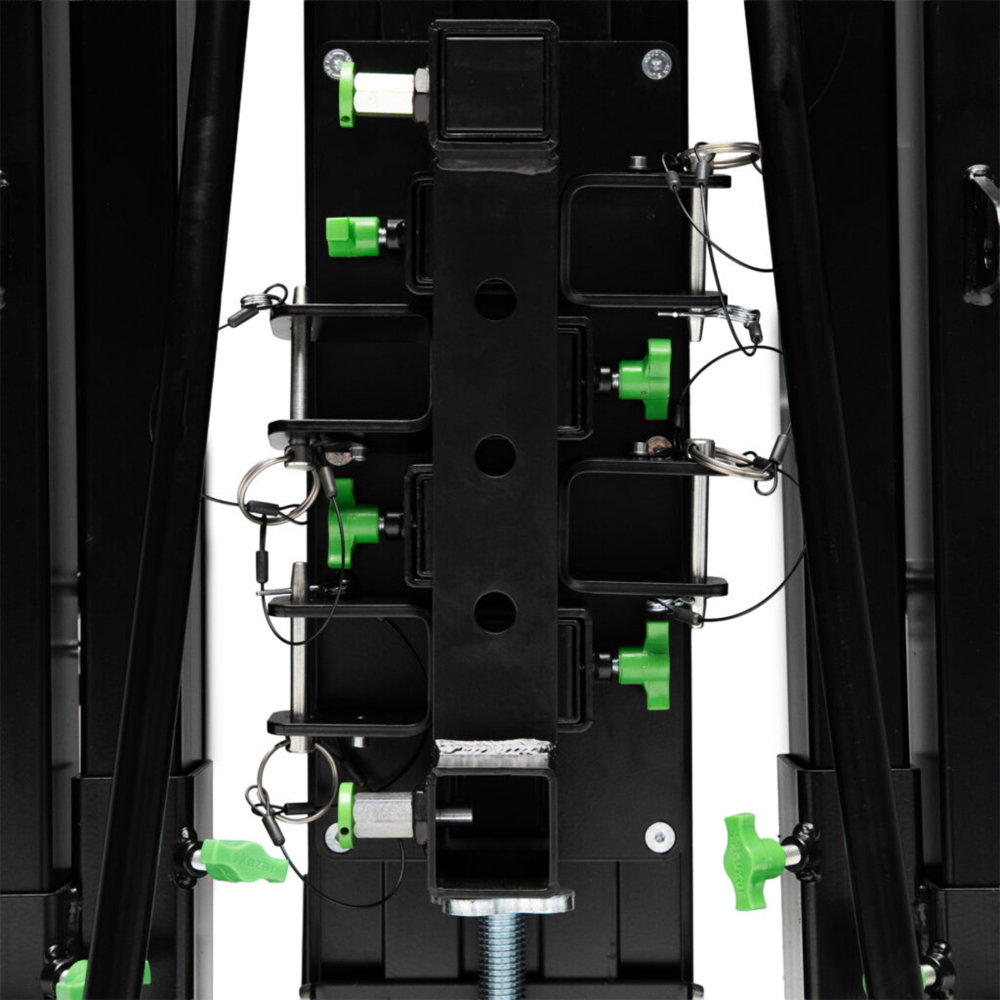

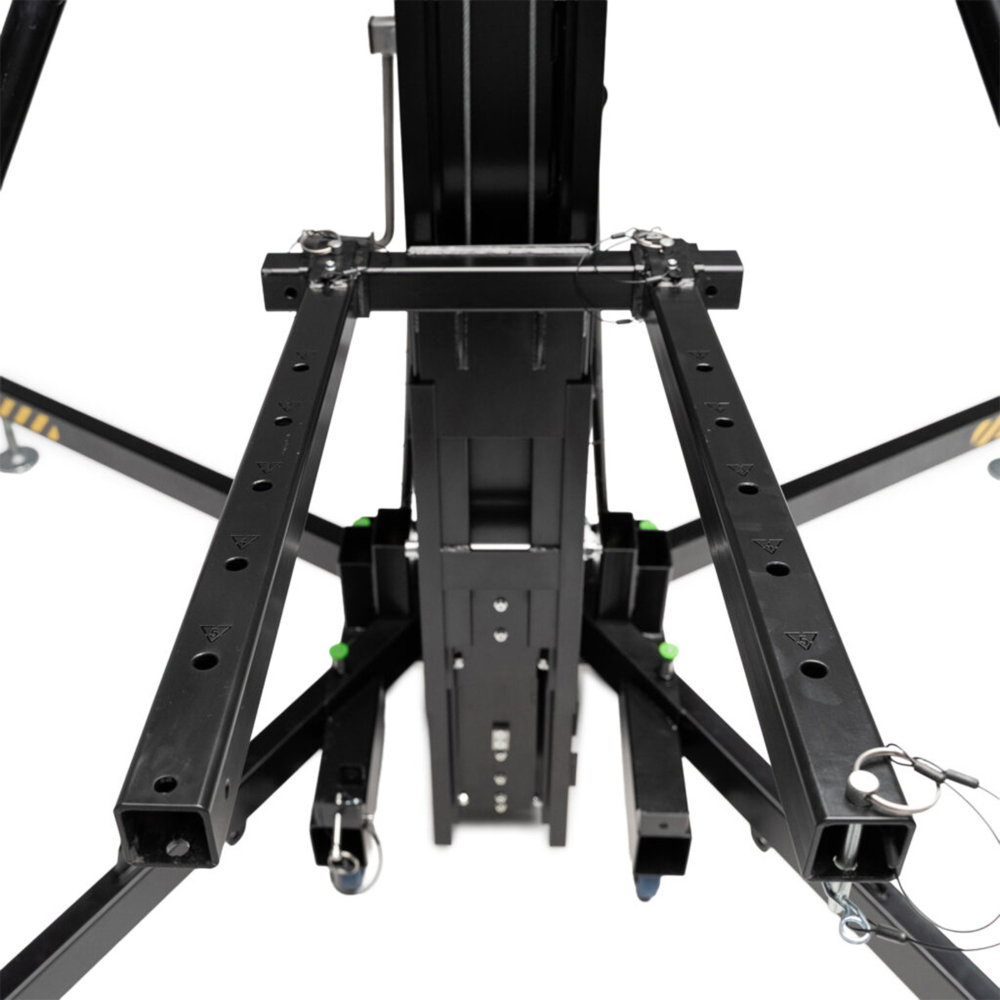

Perforated forks for the quick-trigger AGR-2 support bar

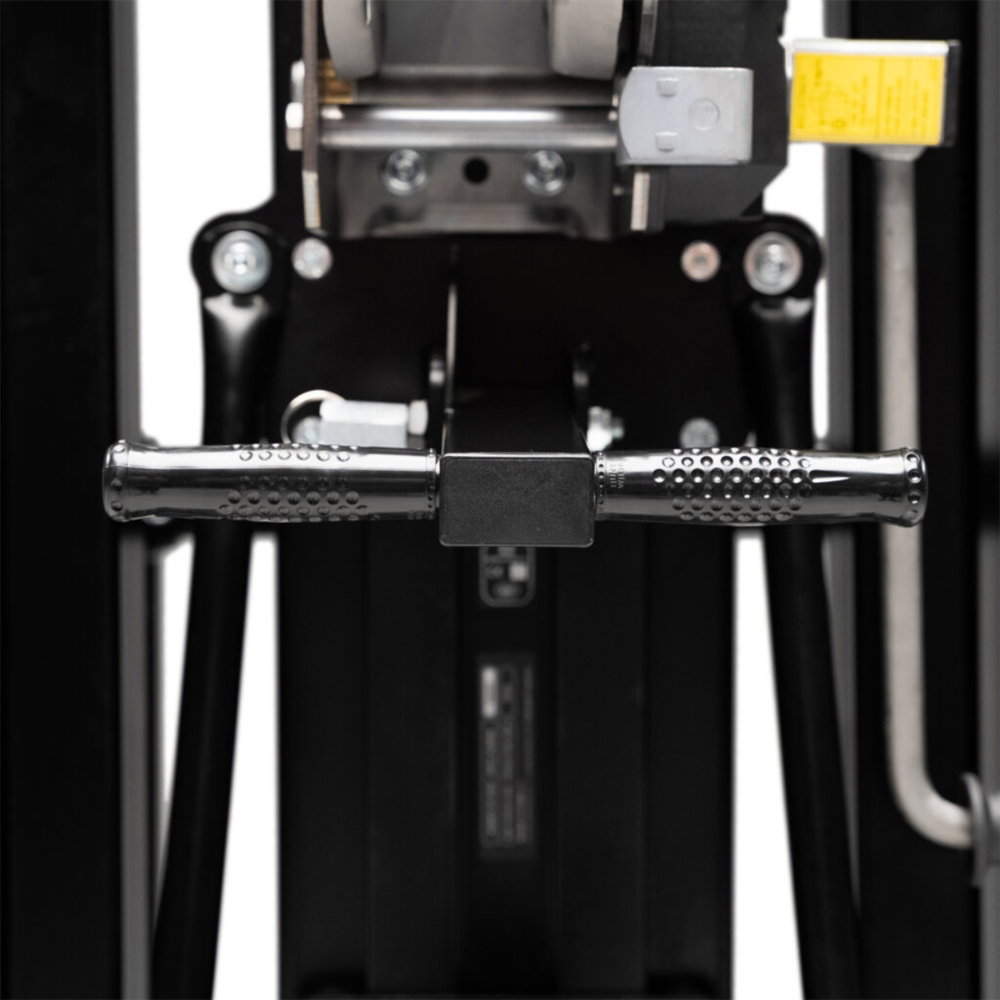

Steering wheel and swivel castors for moving
Adjustable stabiliser plates with non-slip rubber feet
1 x AGR-2 and 4 x TA-360 included
Specifications
| Max. load, dynamic mode | 500kg |
| Max. load, structural mode | 1000kg |
| Min. load | 25kg |

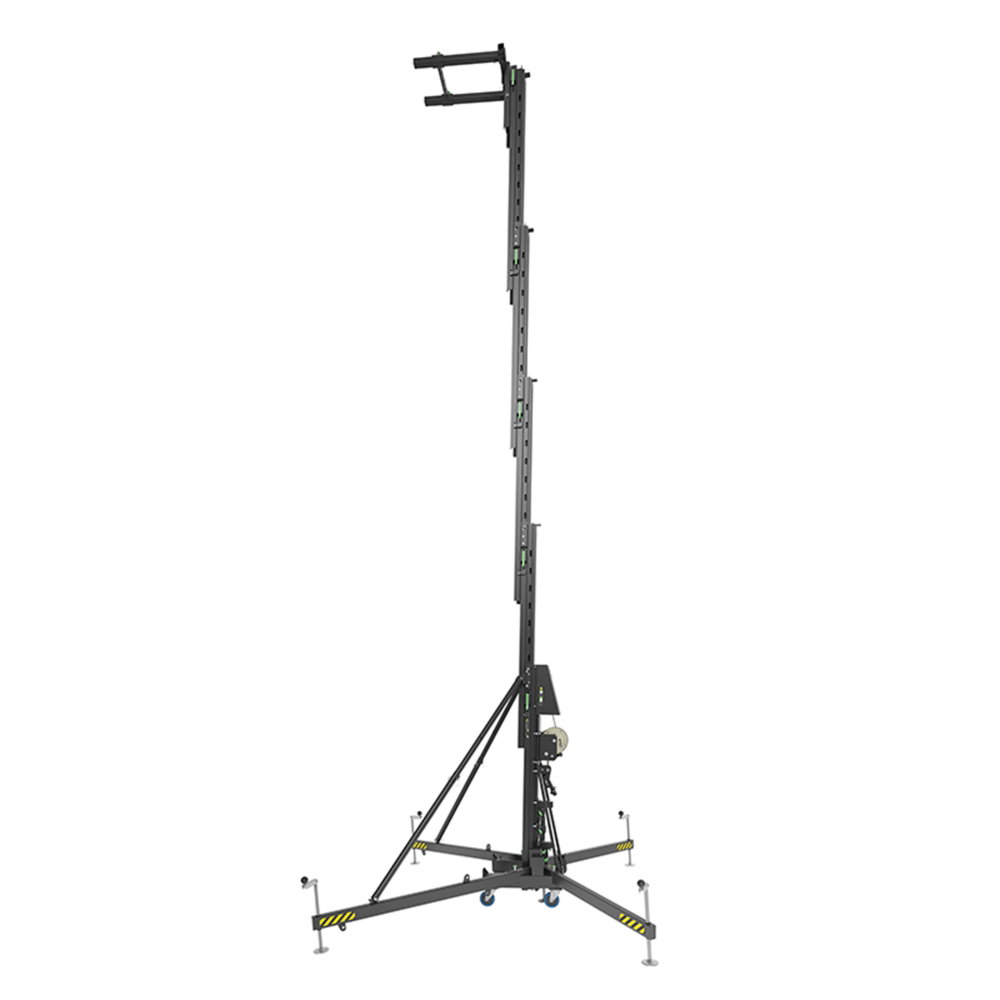

| Max. height | 7.2m |

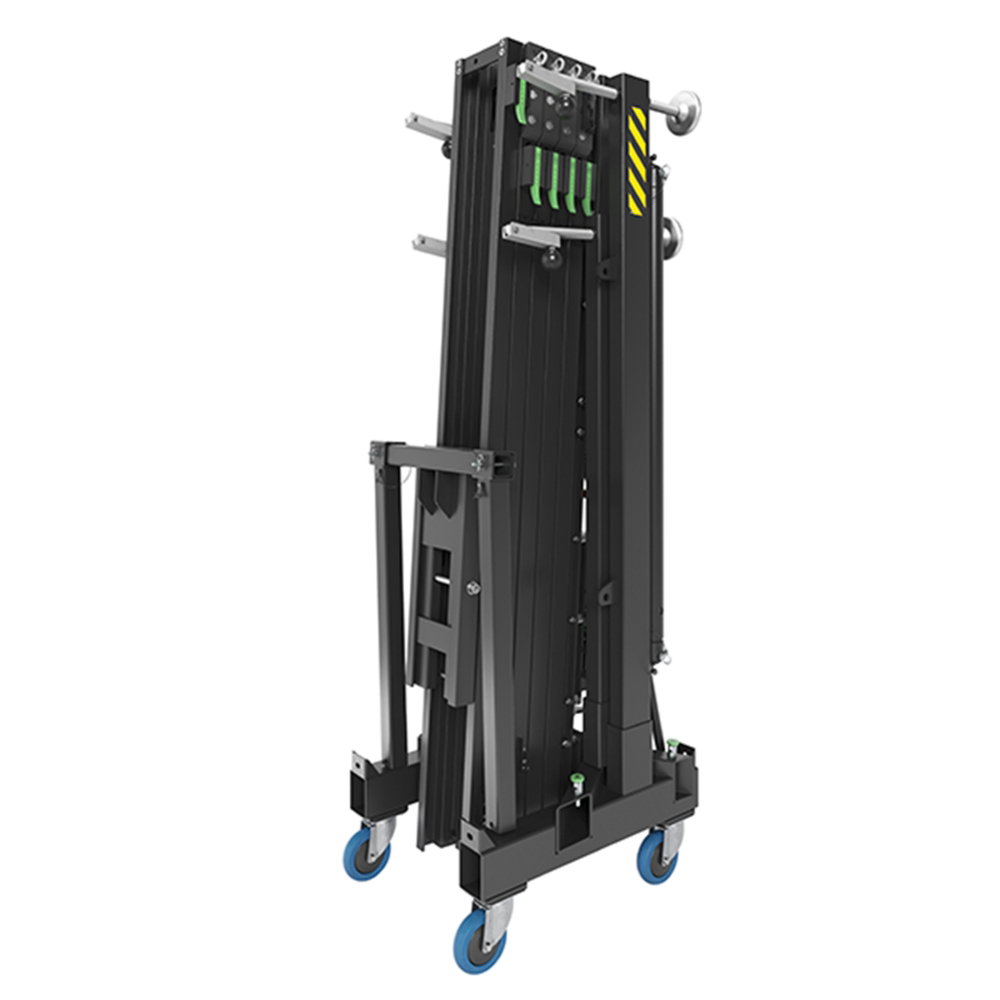

| Folded height | 2m |
| Work surface | 2.39 x 2.39m |
| Folded base area | 55 x 79cm |
| Net weight | 259kg |
| Winch | AL-KO, 1200kg certified |
| Cable | 6mm steel, DIN 3060, 180kg/mm², anti-torsion and anti-corrosion |
| Construction | 6082-T6 aluminium profiles |
| Leg anchoring | Safety catches |
| Colour | Black |
| Certification | TÜV, EN 17206-2:2023 |
| Order code | STAN174 |
