The Sennheiser AWM UHF (article 508865) is an active directional antenna for Evolution Wireless Digital systems, covering the UHF I band from 470 to 694 MHz. It is built for installed and portable applications where directional pickup and adjustable gain improve RF reliability, boardrooms, lecture theatres, houses of worship and stage productions running EW-D or EW-DX.
CompatibilityConnects to any stationary Evolution Wireless Digital receiver or to the EW-D ASA antenna splitter. The antenna draws power down the coax via its DC-coupled BNC when used with the EW-D ASA or EW-DX EM 4 (Dante). When used with the EW-DX EM 2 (Dante) or EW-D EM, an optional external power supply is required.
Features
Active directional antenna for the 470-694 MHz UHF I band

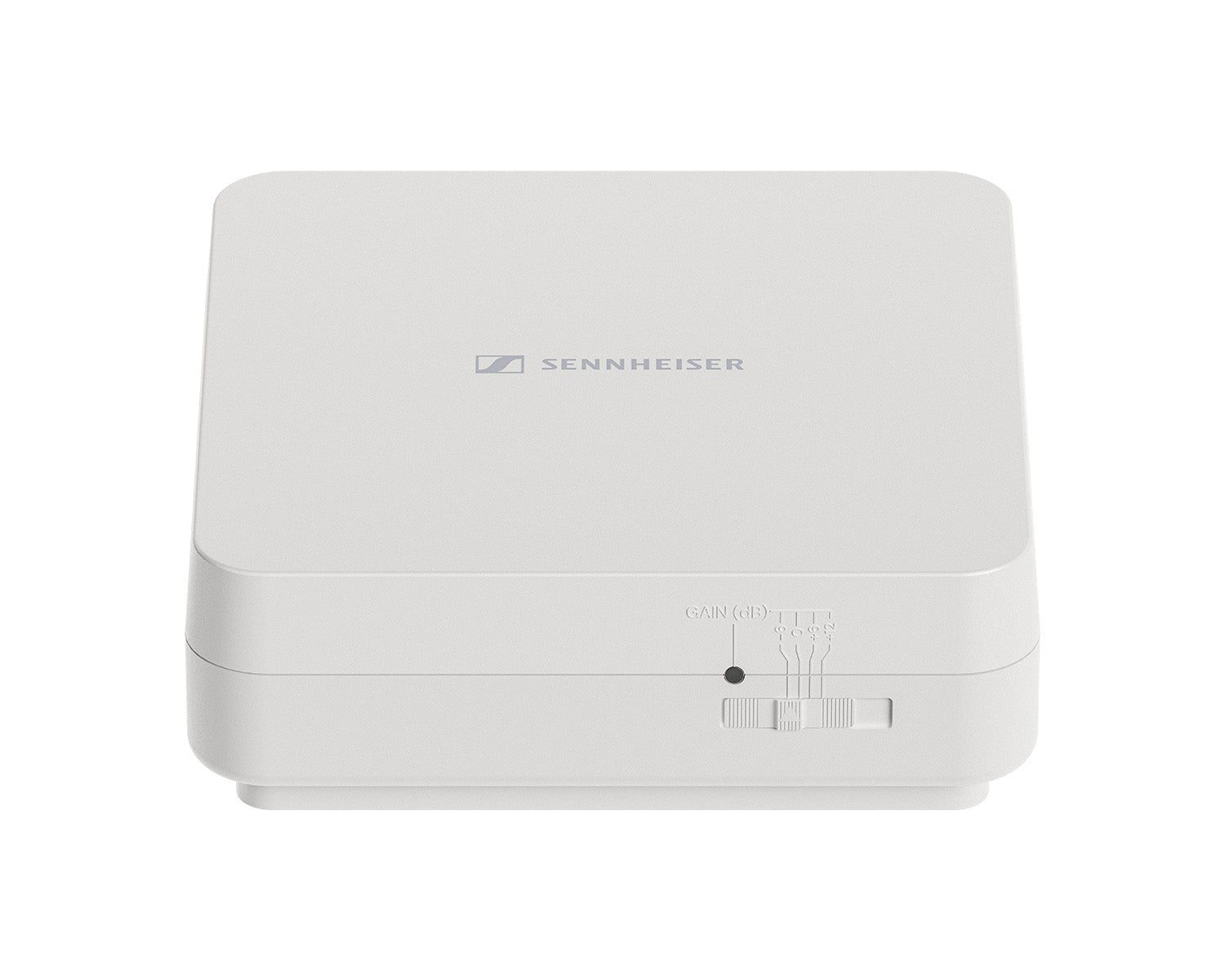

Selectable amplification: −6, 0, +6 and +12 dB

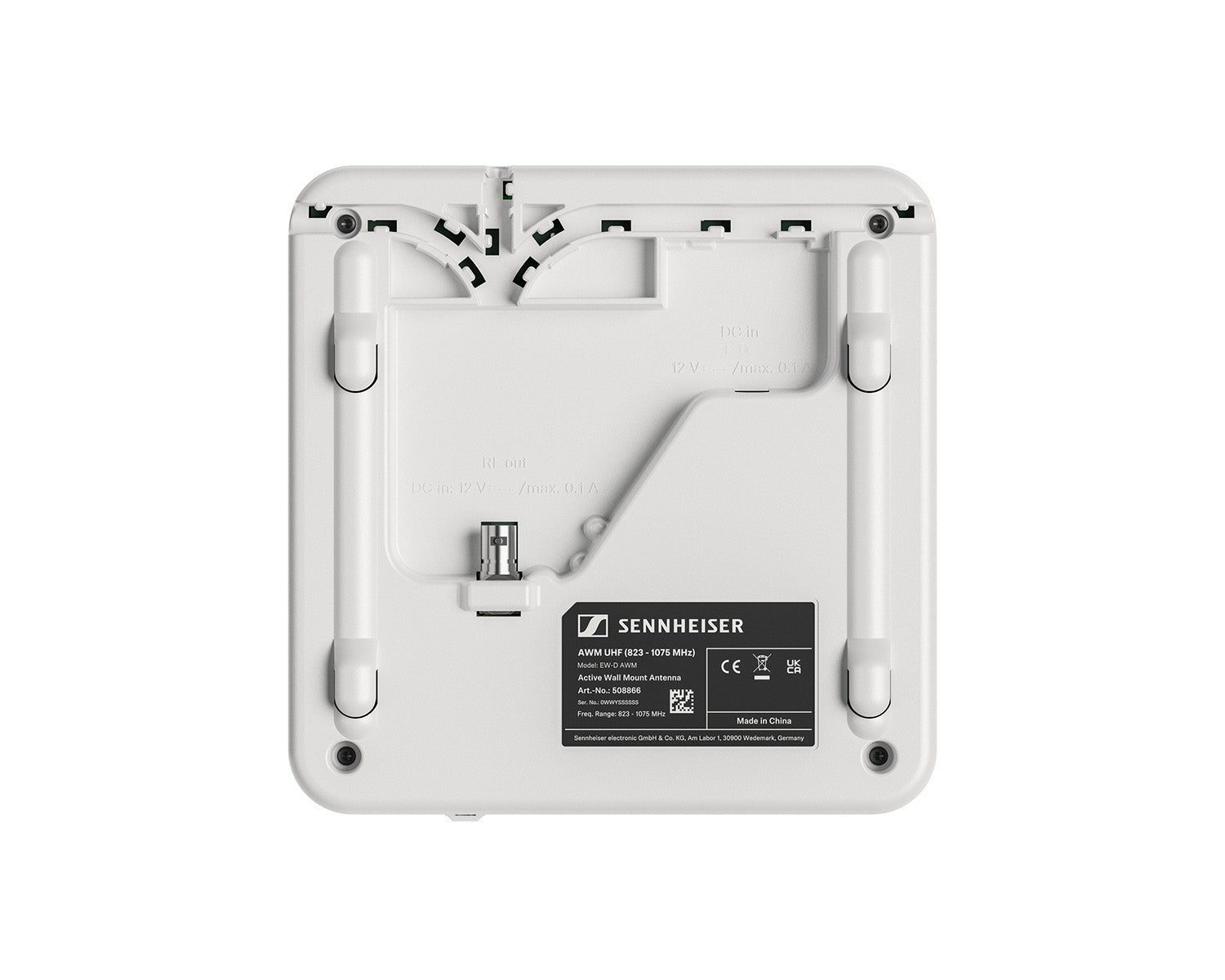

DC-coupled BNC female connector, 50 Ω
Wall, ceiling or mic-stand mounting
3/8″ tripod thread and VESA 100 x 100 fixing
Supplied with wall-mount adapter and drilling template
Halogen-free flame-retardant PC/ABS housing
Traffic white (RAL 9016) finish for discreet installation
Specifications
| Manufacturer | Sennheiser |
| Model | AWM UHF (470-694 MHz) |
| Article number | 508865 |
| Type | Active directional antenna |
| Frequency range | 470-694 MHz (UHF I) |
| Antenna gain | ≥ +3.0 dBi (480 MHz), ≥ +3.5 dBi (582 MHz), ≥ +4.5 dBi (694 MHz) |
| Amplification modes | +12 dB / +6 dB / 0 dB (−0.5 dB) / −6 dB |
| Polarisation | Linear |
| RF connector | BNC female, DC coupled |
| Impedance | 50 Ω |
| Max. RF output power | approx. +22 dBm |
| OIP3 | ≥ 35 dBm |
| Power supply | 12 V DC (9-18 V DC) / max. 100 mA @ 12 V |
| Mounting | 3/8″ inside thread (tripod); VESA 100 x 100 |
| Dimensions | 180 x 180 x 53 mm (without wall bracket); 180 x 180 x 63 mm (with bracket) |
| Weight | approx. 700 g |
| Operating temperature | −10 °C to +55 °C |
| Housing material | Halogen-free flame-retardant PC/ABS |
| Colour | Traffic white (RAL 9016) |
