Sennheiser EW-D AB Antenna Booster (S Band, Ch38)

Product code: 3164

£207.00 inc VAT
£172.50 ex VAT

SKU: 508875

11 available online

More available from supplier in 1–3 weeks

About this Product

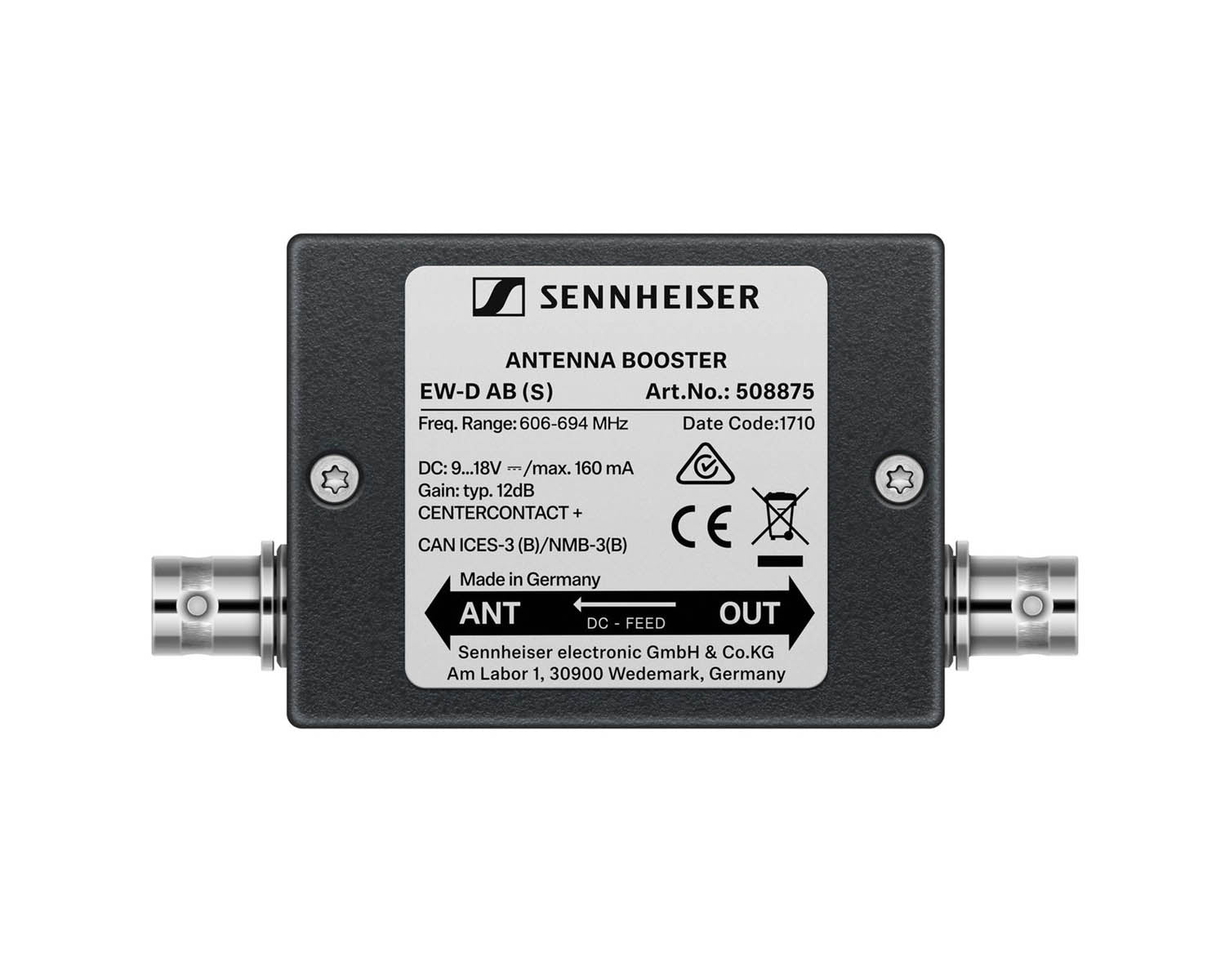

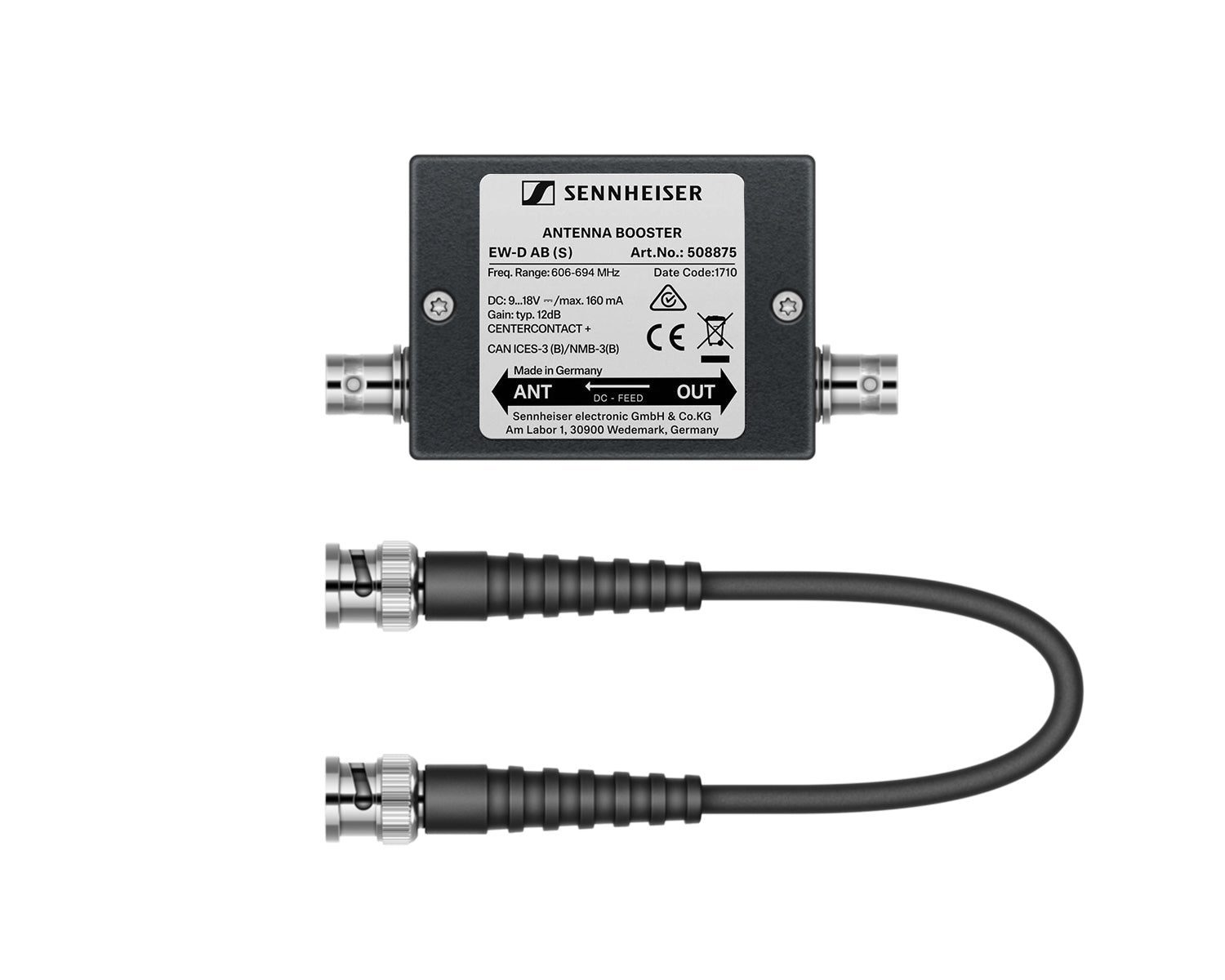

The Sennheiser EW-D AB is an inline antenna booster for Evolution Wireless Digital (EW-D) systems, providing a typical 12 dB of gain to compensate for RF signal loss over long coaxial antenna runs. It is inserted between a remote antenna and the receiver-side EW-D ASA active antenna splitter, drawing its power down the same coax, making it the standard fix for distributed antenna installs in theatres, houses of worship and touring rigs. This is the S band variant covering 606-694 MHz, which includes Channel 38 (606-614 MHz), the UK band available under the Ofcom shared coordinated licence.

CompatibilityDesigned for use with Sennheiser EW-D systems via the EW-D ASA active antenna splitter. The booster is fitted in the antenna line and is fed DC power from the splitter, passed from the OUT connector through to the ANT (antenna) connector, no separate power supply is required. Match the S band (606-694 MHz) variant to your system’s frequency range; in the UK, Channel 38 operation requires an Ofcom licence.

Features

Typically 12 dB gain to offset coaxial cable loss

Inline design for use with remote antennas

Powered remotely via the EW-D ASA, no local PSU needed

High linearity with IIP3 > 25 dBm for clean signal handling

50 Ω impedance with 2x BNC female connectors

S band variant covering 606-694 MHz (incl. UK Ch38)

Specifications

Sennheiser EW-D AB Antenna Booster (S Band, Ch38) specifications
Manufacturer	Sennheiser
Model	EW-D AB (S)
Type	Inline antenna booster
Frequency range	606-694 MHz (S band)
Gain	Typically 12 dB
Impedance	50 Ω
IIP3	> 25 dBm
Max RF input power	+10 dBm
Connectors	2x BNC female (DC fed from OUT to ANT)
Power supply	DC 12 V (DC 9-18 V), max. 160 mA @ 12 V, centre contact positive
Dimensions	Approx. 95 x 47 x 21 mm
Weight	Approx. 120 g
Operating temperature	-10 °C to +55 °C
Storage temperature	-20 °C to +70 °C
Relative humidity	5-95% (non-condensing)

Full features

Digital wireless eliminates noise, interference and static bursts
UHF transmission greatly enhances range, reliability and scalability
Mobile App streamlines setup and operation and eliminates complicated menus
Automated setup creates reliable connections with minimal time and effort
Up to 2,240 selectable frequencies
56 MHz Bandwidth will allow for up to 90 channels

Full specifications

Frequency ranges
- EW-D AB (Q): 470 - 550 MHz
- EW-D AB (R): 520 - 608 MHz
- EW-D AB (S): 606 - 694 MHz
- EW-D AB (U): 823 - 865 MHz
- EW-D AB (V): 902 - 960 MHz
- EW-D AB (Y): 1785 - 1805 MHz
Power supply (DC coupled): DC 12 V (DC 9 - 18 V) / max. 160 mA @ 12 V, center contact +
IIP3: > 25 dBm
Max. RF input power: +10 dBm
Gain Typically: 12 dB
Impedance: 50 Ω
Connections: 2x BNC female, DC power supply from OUT to ANT
Dimensions: Approx. 95 x 47 x 21 mm
Weight: Approx. 120 g
Operating temperature range: -10 °C - +55 °C (14 °F - 131 °F)
Storage temperature range: -20 °C - +70 °C (-4 °F - 158 °F)
Relative humidity: 5 - 95 % (non-condensing)
