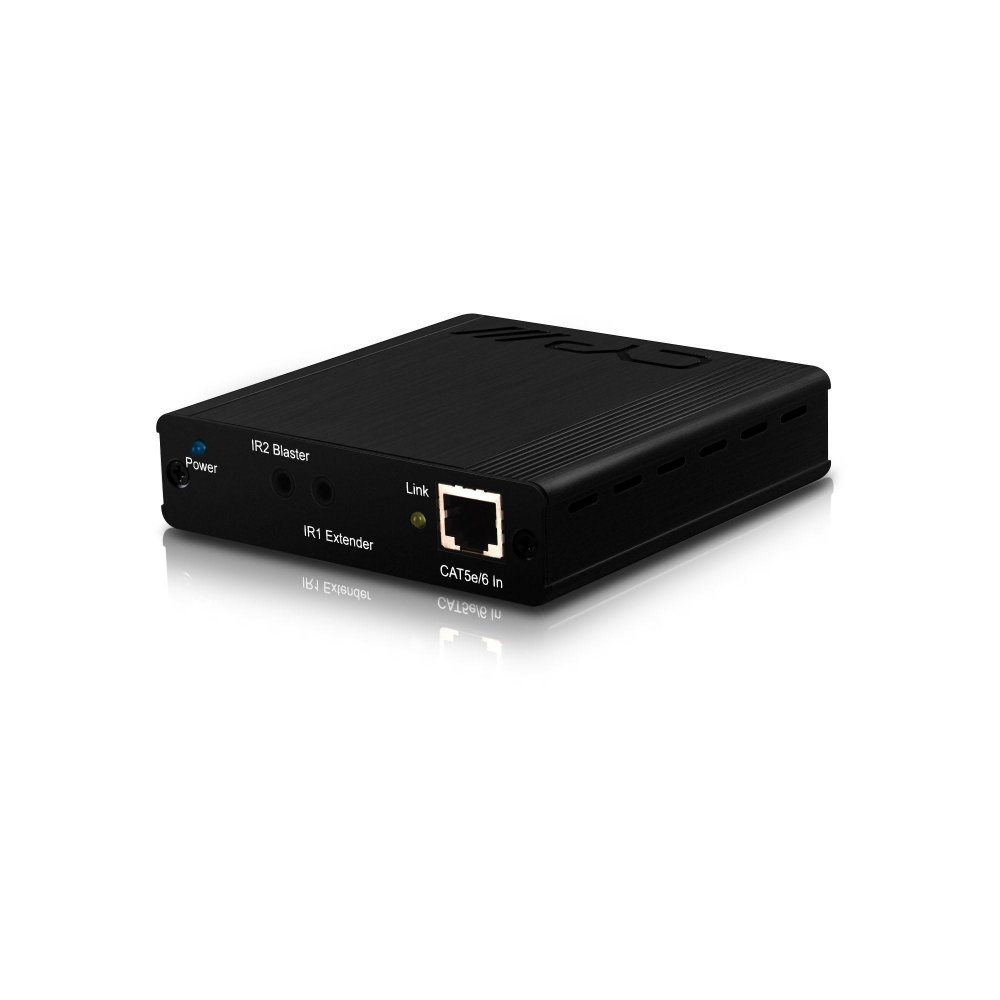

CYP PU-507RX HDBaseT Receiver 100m for PU-1H2HBTE/PU-1H3HBTE

Product code: 186152

£217.00 inc VAT
£180.83 ex VAT

SKU: CYP046

1 in stock

1 available online

Optional Add-Ons

CYP PU-1H3HBTE 1x3 HDBaseT Splitter 100m with HDMI Bypass

£625.00 inc VAT
£520.83 ex VAT

Add to basket

CYP PU-1H2HBTE 1x2 HDBaseT Splitter 100m with HDMI Bypass

£417.00 inc VAT
£347.50 ex VAT

Add to basket

About this Product

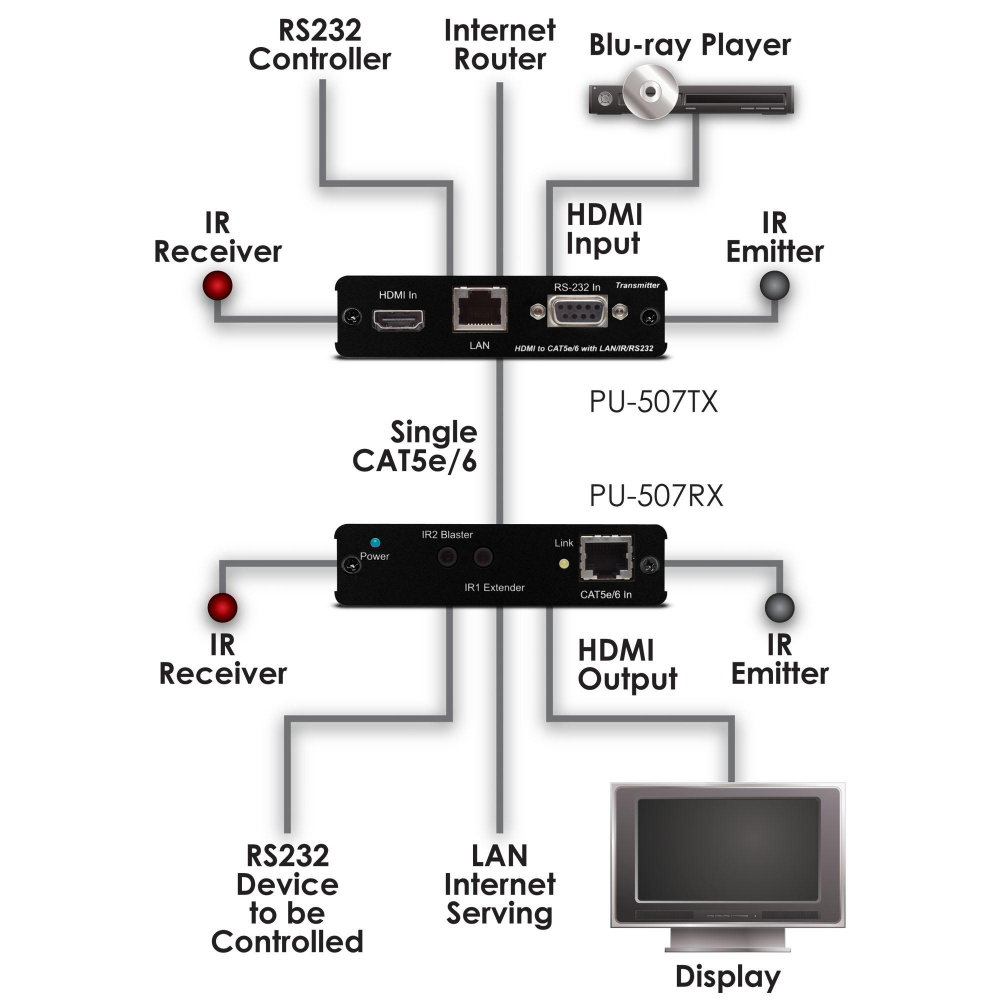

Fit this receiver at the display end of a CYP PU-1H2HBTE or PU-1H3HBTE splitter, or opposite a PU-507TX transmitter. It outputs HDMI and breaks out LAN, RS-232 and two-way IR from the same CAT cable, and it takes its power by PoC from the sending unit. Runs reach 100m at 1080p on CAT5e/6.

100m

1080p over CAT5e/6

70m

4K over CAT5e/6

PoC

Cable powered

5-Play

HDMI, LAN, PoC, IR, RS-232

Needs a PoC sourceThere is no power supply with this receiver. It is powered by PoC from a compatible CYP unit such as the PU-1H2HBTE or PU-1H3HBTE splitter or the PU-507TX transmitter.

Features

Receives HDMI from a compatible CYP HDBaseT transmitter or splitter

5-Play: video, audio, LAN, PoC, RS-232 and two-way IR on one CAT cable

1080p up to 100m over CAT5e/6

4K up to 70m over CAT5e/6 or 100m over CAT6a/7

RS-232 on 9-pin D-sub and an Ethernet port for the display end

HDCP 2.2, HDCP repeating, CEC and 3D support

Specifications

CYP PU-507RX HDBaseT Receiver 100m for PU-1H2HBTE/PU-1H3HBTE specifications
Brand	CYP
Model	PU-507RX

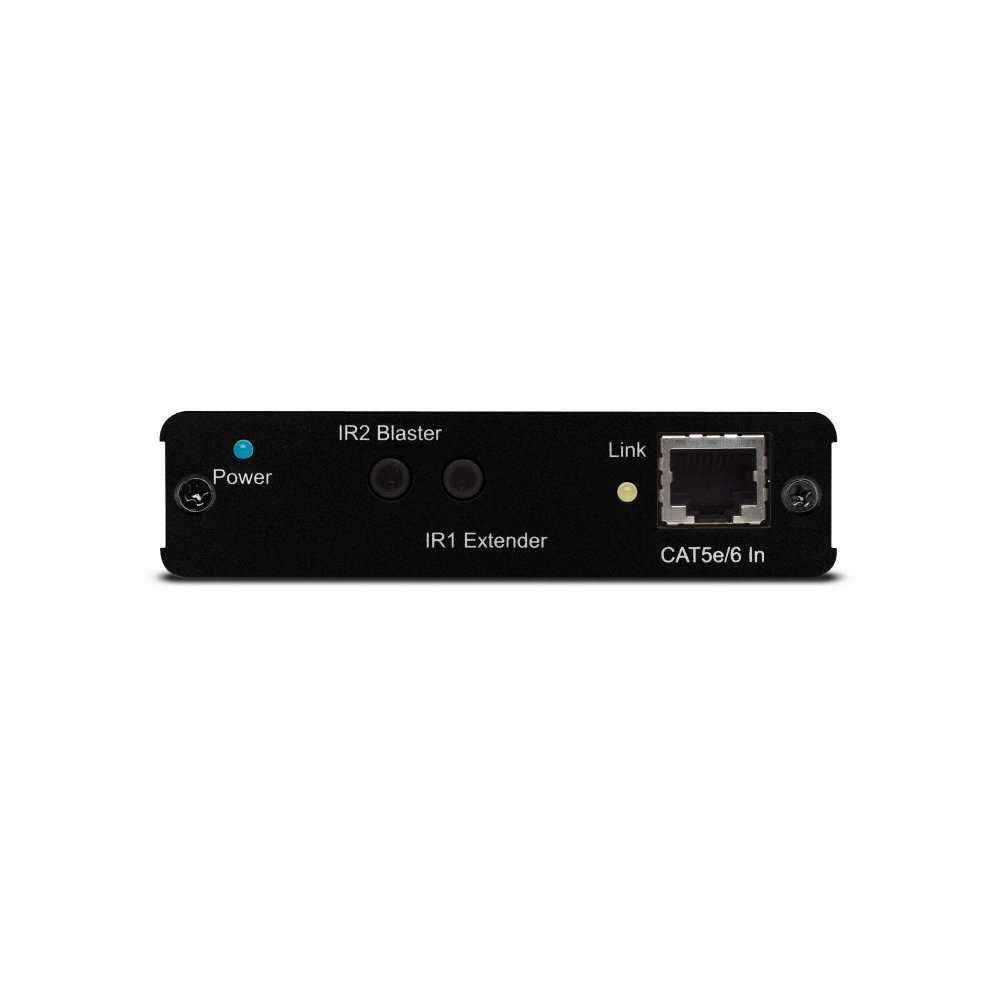

Input	1x HDBaseT (RJ45), 1x IR in (3.5mm)

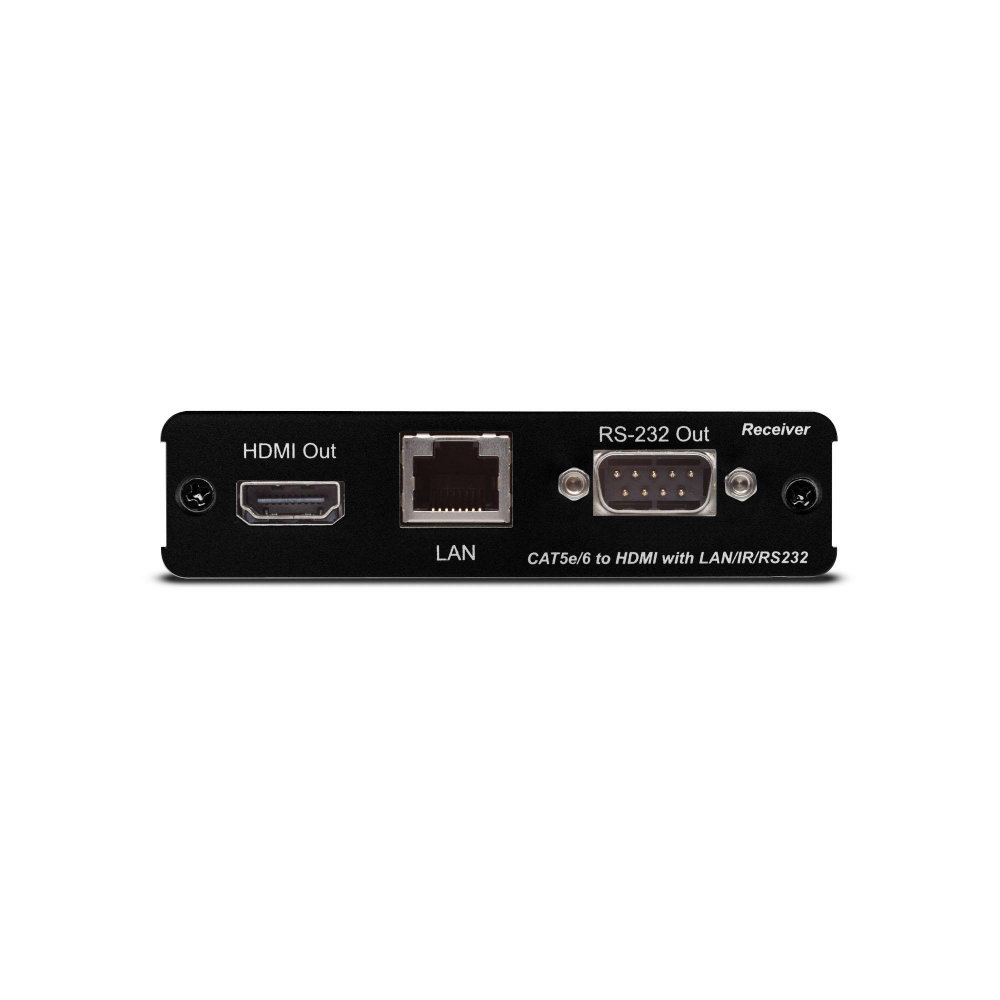

Outputs	1x HDMI, 1x RS-232 (9-pin D-sub), 1x IR out (3.5mm), 1x LAN (RJ45)
Max resolution	4K UHD@60Hz 4:2:0
Bandwidth	10.2Gbps
HDCP	HDCP 2.2
Distance (1080p)	100m over CAT5e/6
Distance (4K)	70m CAT5e/6, 100m CAT6a/7
Power	PoC from compatible transmitter
Compatible with	PU-1H2HBTE, PU-1H3HBTE, PU-507TX
In the box	Receiver, IR blaster, IR receiver, manual
Dimensions (WxHxD)	102 x 25 x 102mm
Weight	260g

Full features

HDCP 2.2 Compliant
Supports all v1.4 HDMI resolutions plus 4k.
Supports uncompressed video/audio up to 10.2Gbps
Supports resolutions VGA~WUXGA, 480i~1080p, 4K UHD@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2), 4K UHD@ 60Hz (YUV 4:2:0), 4K/2K@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2) and 4K/2K@ 60Hz (YUV 4:2:0) dependent upon the output display’s EDID settings
HDMI, HDCP, & DVI compliant
Supports HDCP repeating and CEC functions
Supports 1080p distances up to 100 meters through CAT5e/6 cables
Uncompressed video 1080p, 60Hz, 48bits
Audio support up to 7.1CH & Dolby TrueHD, DTS-HD
5-Play™ convergence: HDMI, LAN, PoC & Control (IR & RS232)
Supports 3D signals
Supports 4K/2K & 4K UHD - CAT5e/6 = 70m & CAT6a/7 = 100m

Inputs: 1 x RJ45 [1 x HDMI & Propriety Data], 1 x 3.5mm Stereo mini-jack [1 x Infra Red Receiver]
Outputs: 1 x HDMI [1 x HDMI Uncompressed AV and Data], 1 x 9pin Dsub [1 x RS-232 Data], 1 x 3.5mm Stereo mini-jack [1 x Infra Red Emitter], 1 x RJ45 [1 x Ethernet (I/O) IP]
PSU: PoC
Dimensions (H x W x D): 25 x 102 x 102mm
Net Weight: 260g
Gross Weight: 460g

Product Reviews

No reviews yet — be the first to review this product.

Manuals & Downloads

Manuals & Instructions: PU-507-KIT_PDF-Manual_v1.03.pdfPDF

Manuals & Instructions: CYP_HDBaseT_Extenders-1.pdfPDF

Manuals & Instructions: PU-507TXRX_Datasheet_v1.pdfPDF

Manuals & Instructions: PUMA-Extender-Set-Explanation-v.5-3.pdfPDF
